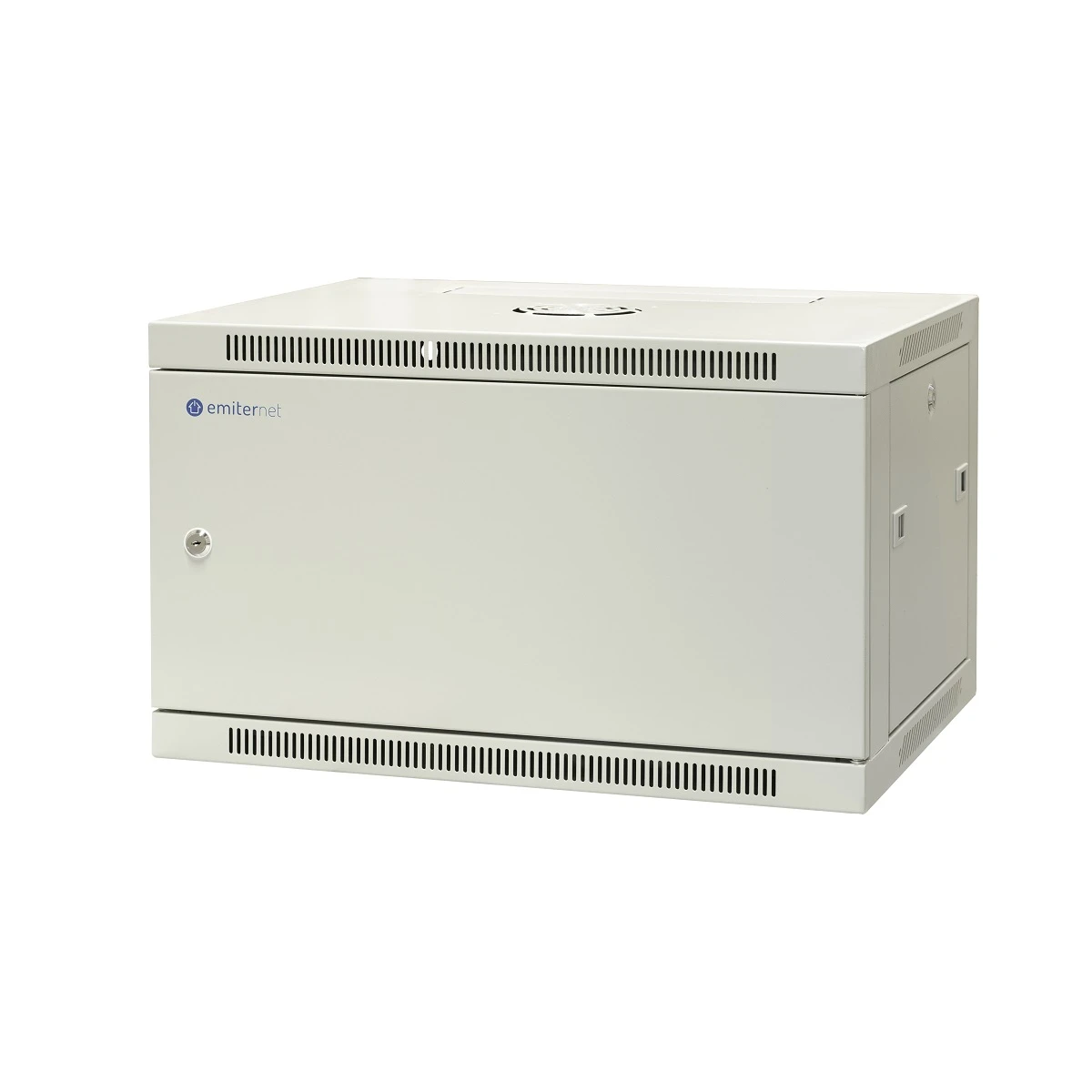

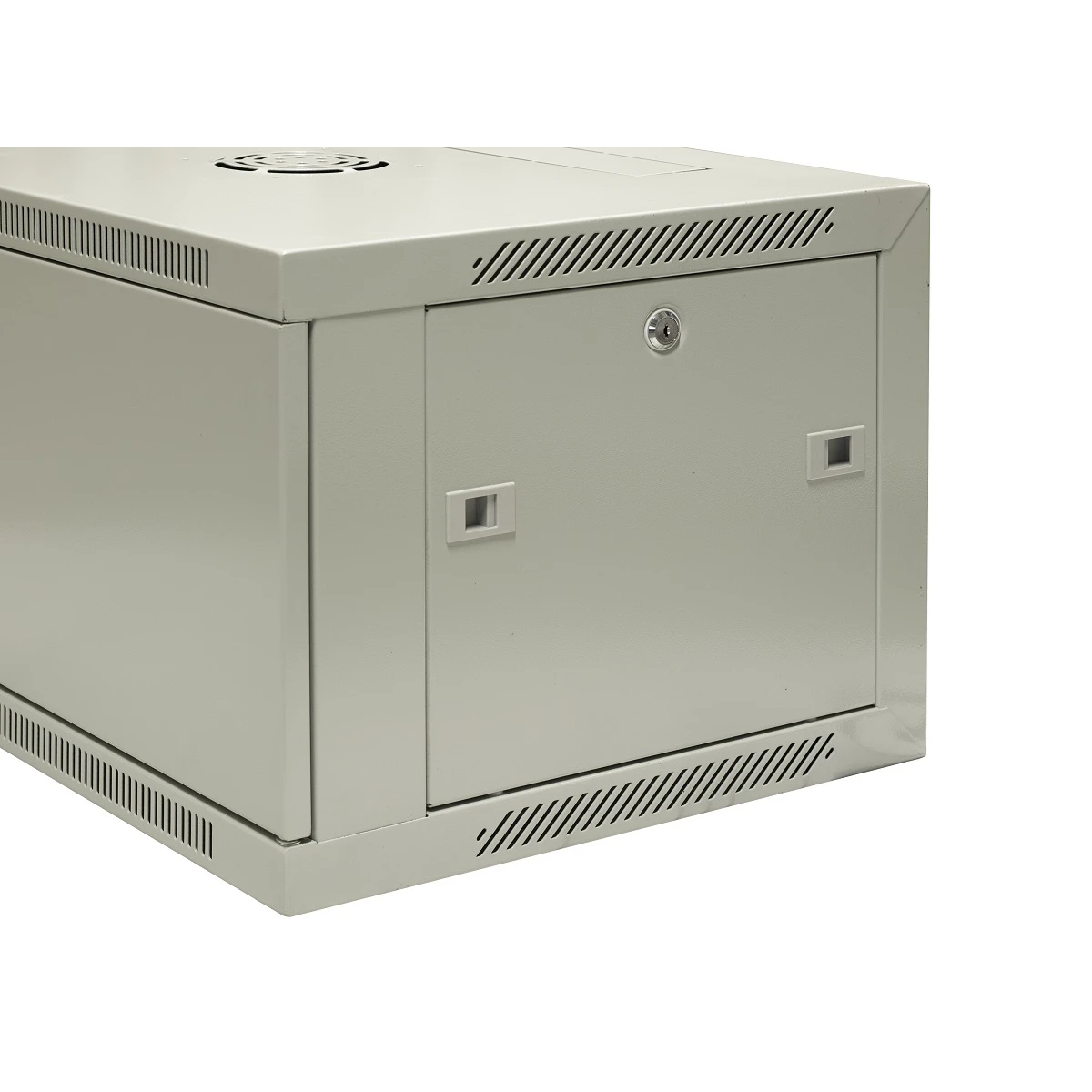

Cabinet made of steel sheet, welded construction, with high rigidity (higher than in the case of bolted cabinets). The housing has two openings for cables (340x60mm, 1xupper part, 1xlower part).

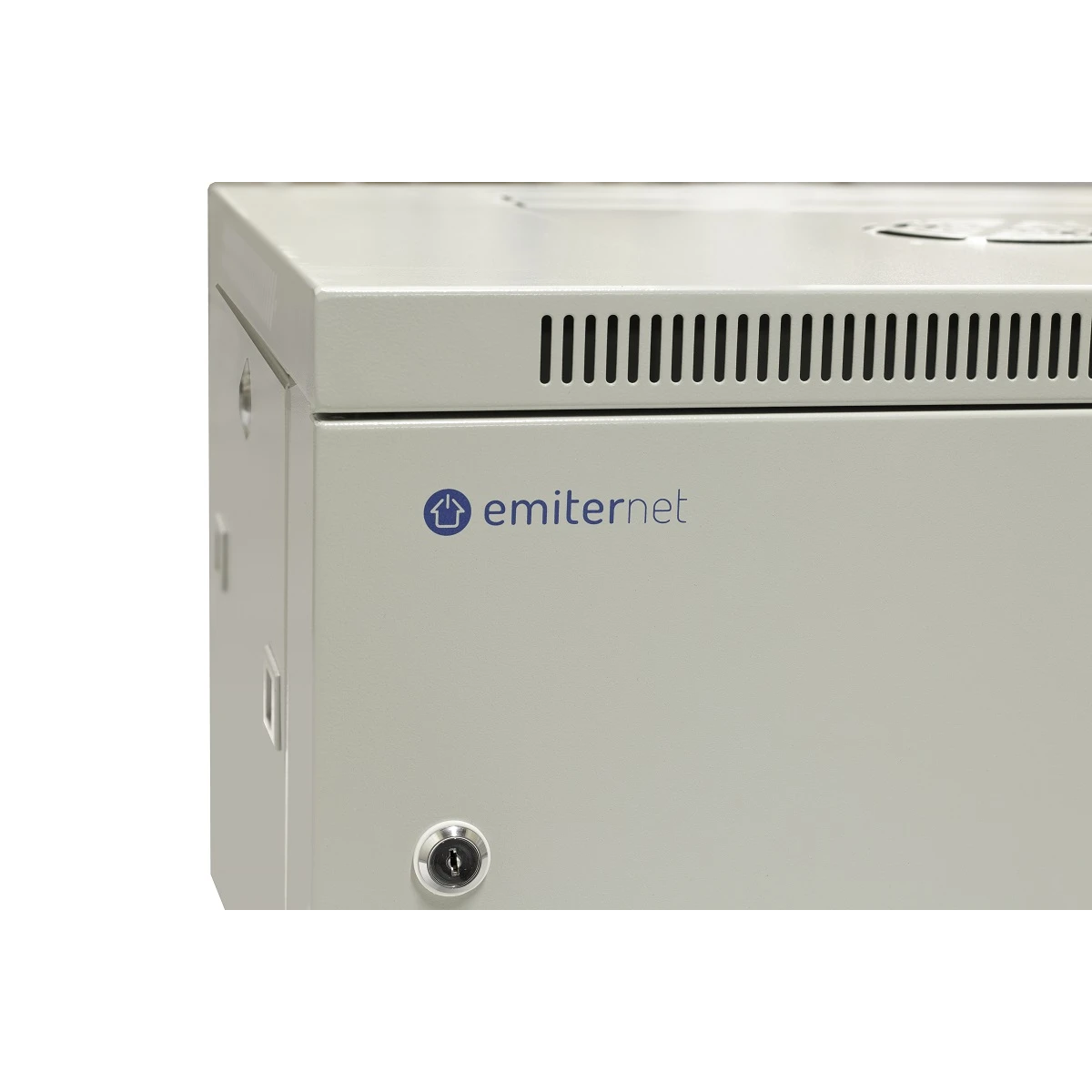

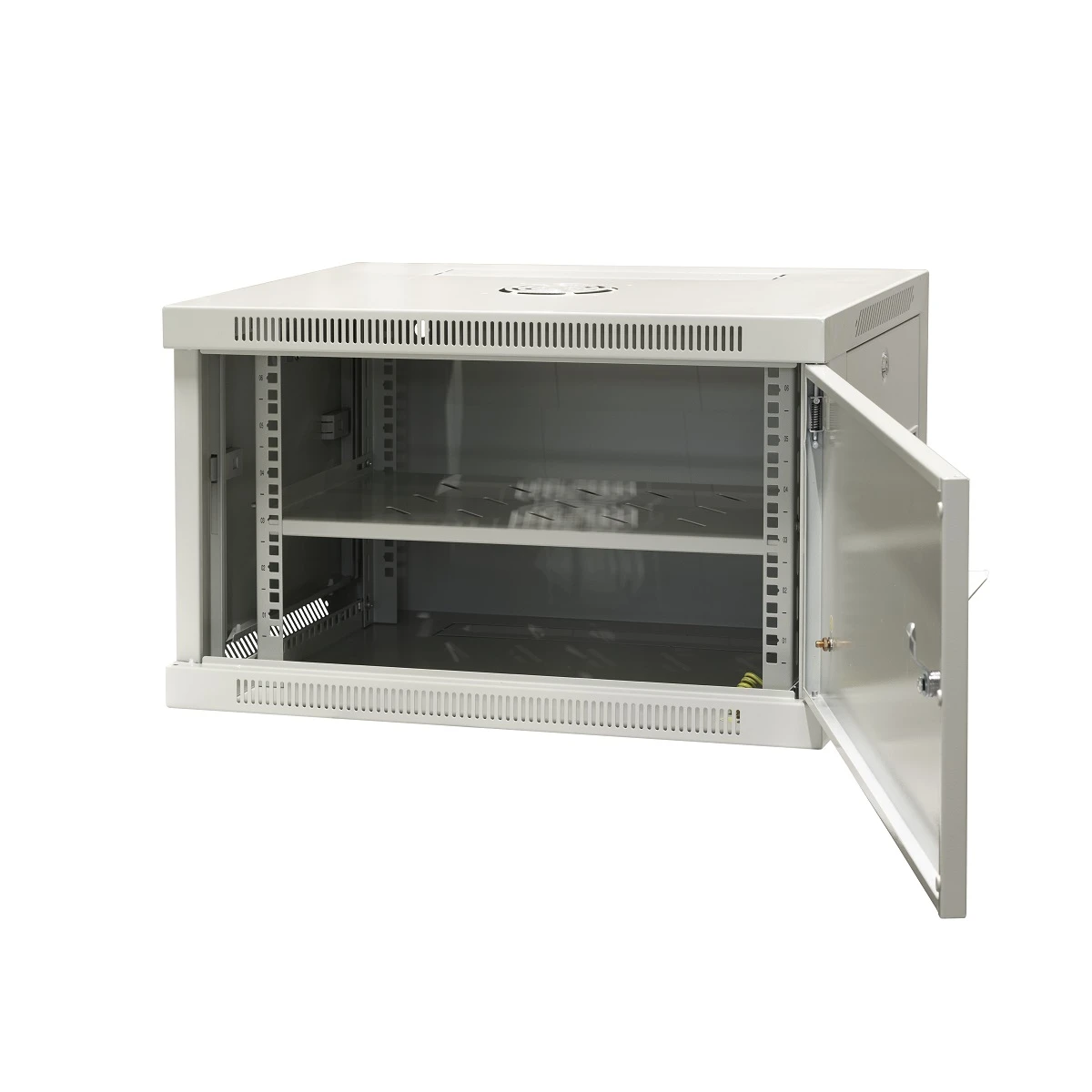

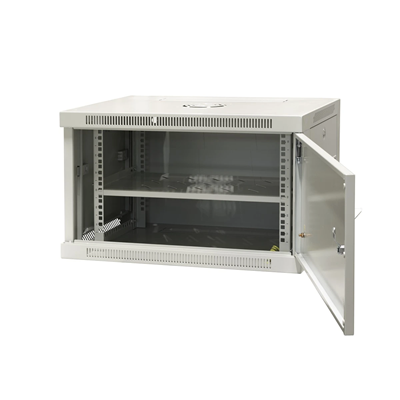

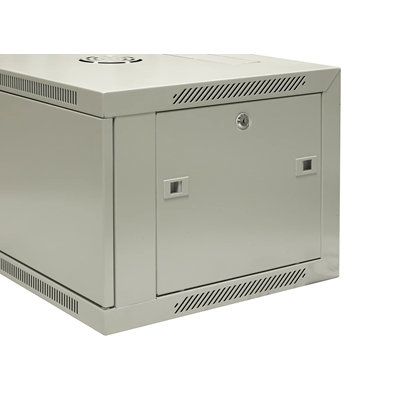

The front door is made of steel sheet with a 1-point lock, mounted on hinges that allow the door to open 180 degrees. Removable side covers with zipper. Two levels 19” vertical mounting profiles, mounted on horizontal traverses with raster, every 20 mm, minimum distance from the front door 35 mm (standard 65 mm).

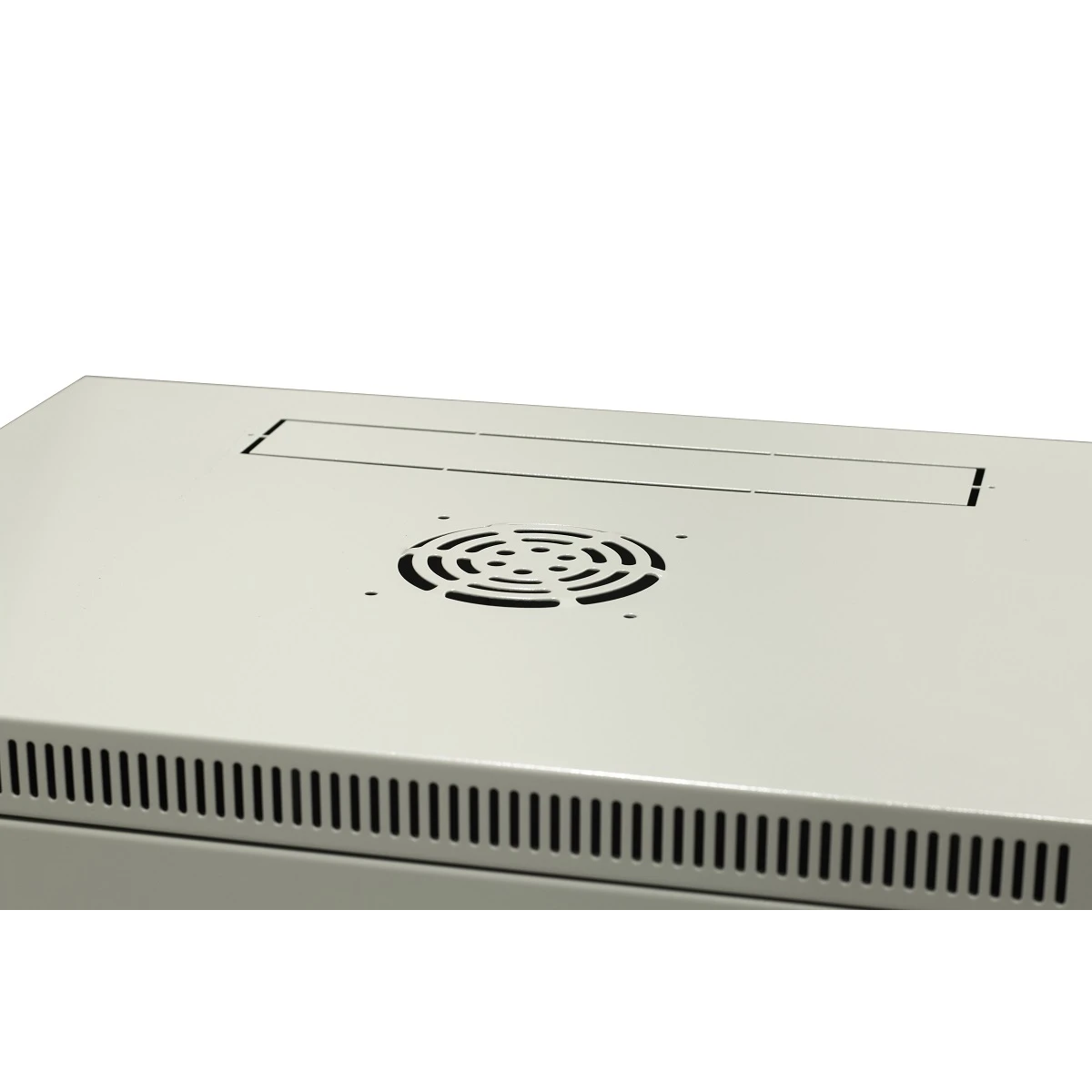

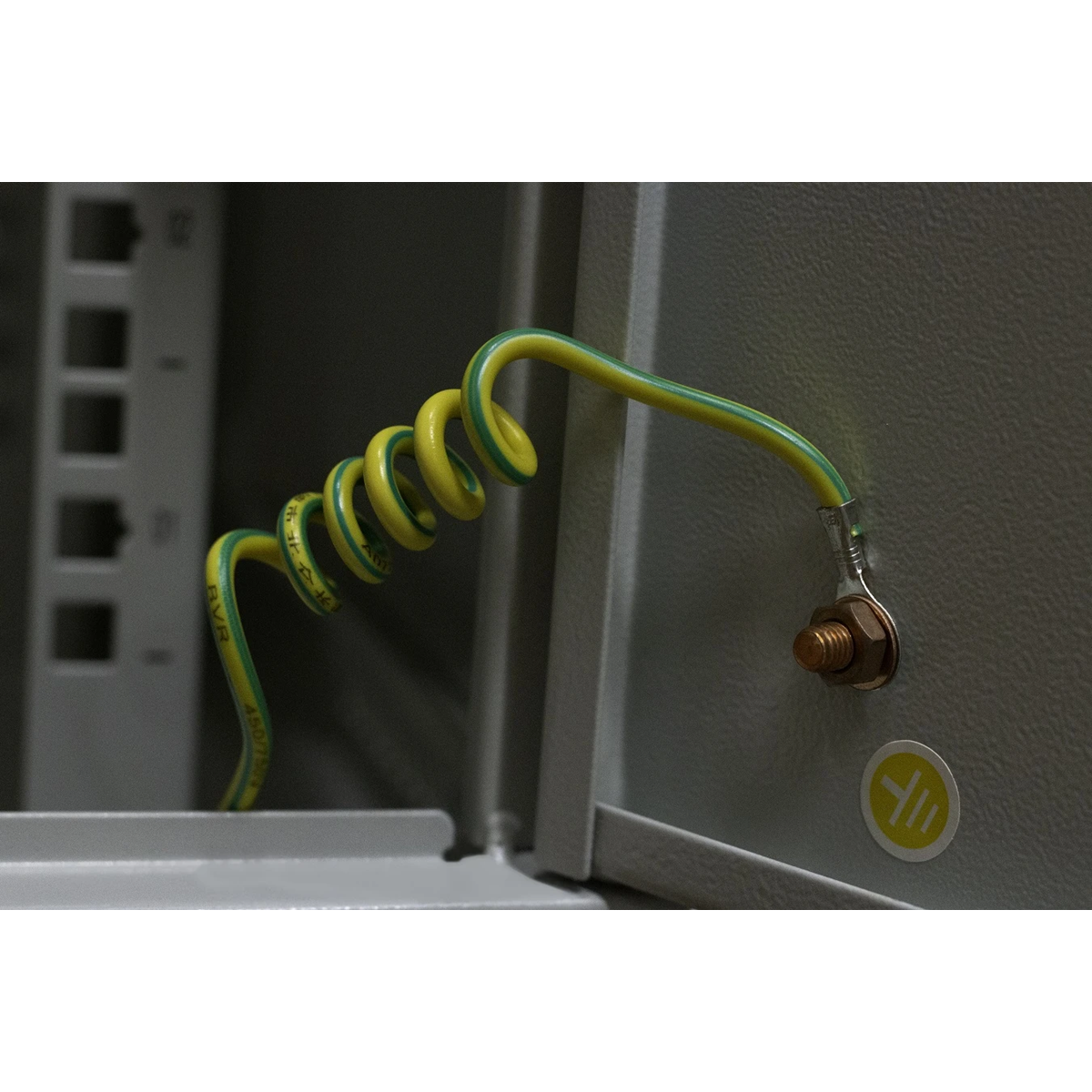

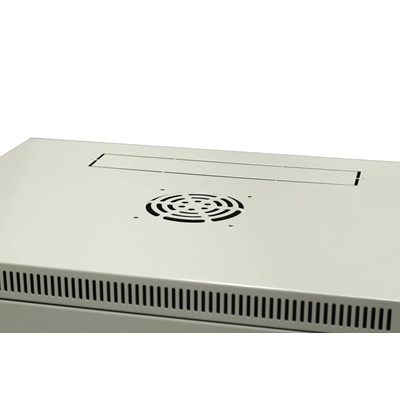

In the roof of the cabinet, openings are adapted for the installation of 1-fan ventilation modules. 300mm long cable for grounding. Fixed shelf 280mm and 15 mounting screws in standard equipment. The cabinets are intended for indoor use.

Technical data

Cabinet color RAL 7044 (light gray - structure)
Door color RAL 7010 (dark gray - structure)
Two mounting levels 19”
Rating of protection against solid objects, dust and water ingress: IP 20 (does not apply to cabinets with mounted brush ducts )
The cabinet is completely assembled, ready for installation and assembly of equipment
