EmiterNet hanging cabinet 19" 12U depth 450mm undivided EM/AP6412-B

local index:
RMR103EMSO
Catalog No:
EM/AP6412-B
EAN code:
5906764105713
Manufacturer: EMITER
Depth [mm]: 450
Width [mm]: 600
Height [mm]: 635
Price:
133,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cabinet made of steel sheet, welded construction,  with high rigidity (higher than in the case of bolted cabinets). The housing has two openings for cables (340x60mm, 1xupper part, 1xlower part).

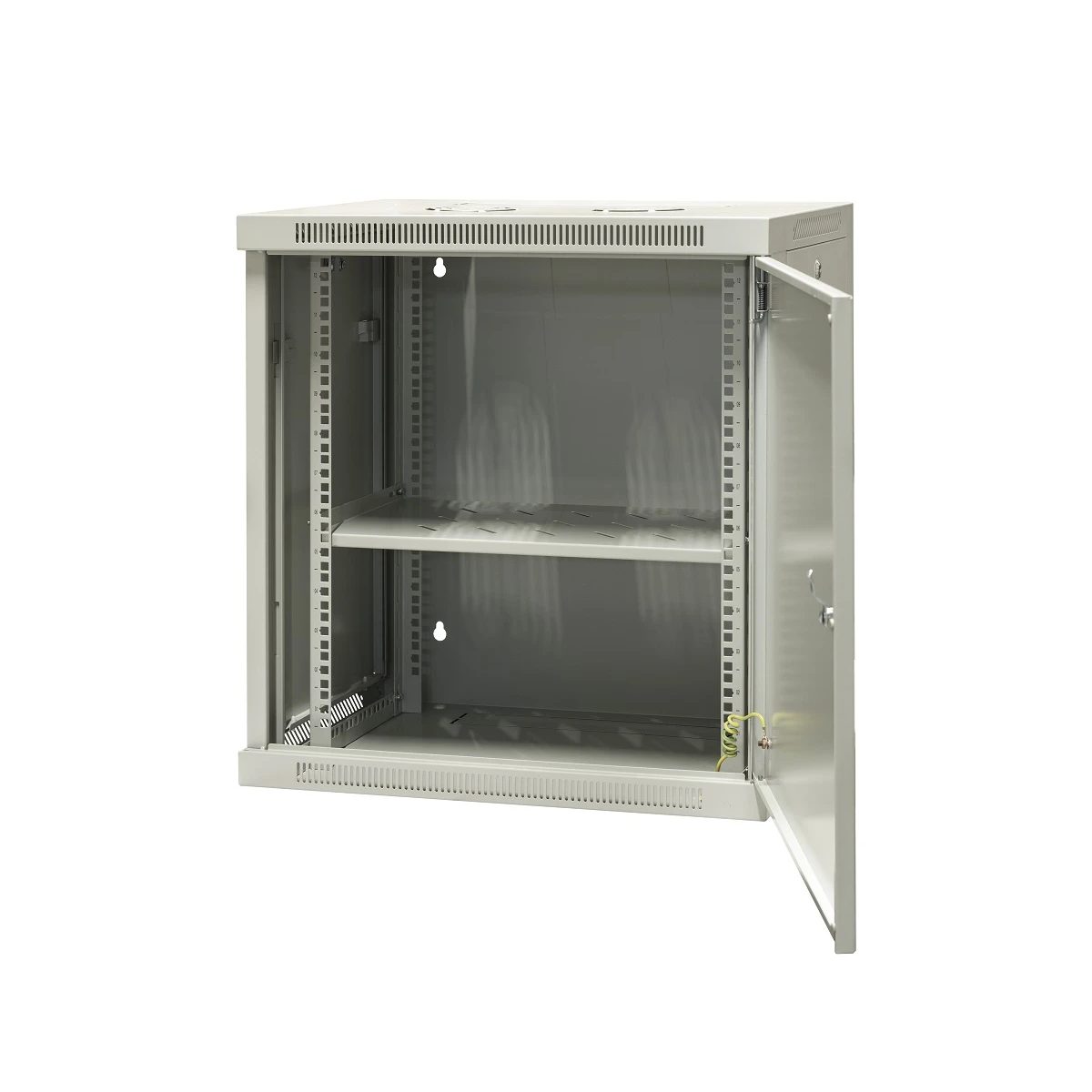

The front door is made of steel sheet with a 1-point lock, mounted on hinges that allow the door to open 180 degrees. Removable side covers with zipper. Two levels 19” vertical mounting profiles, mounted on horizontal traverses with raster, every 20 mm, minimum distance from the front door 35 mm (standard 65 mm).

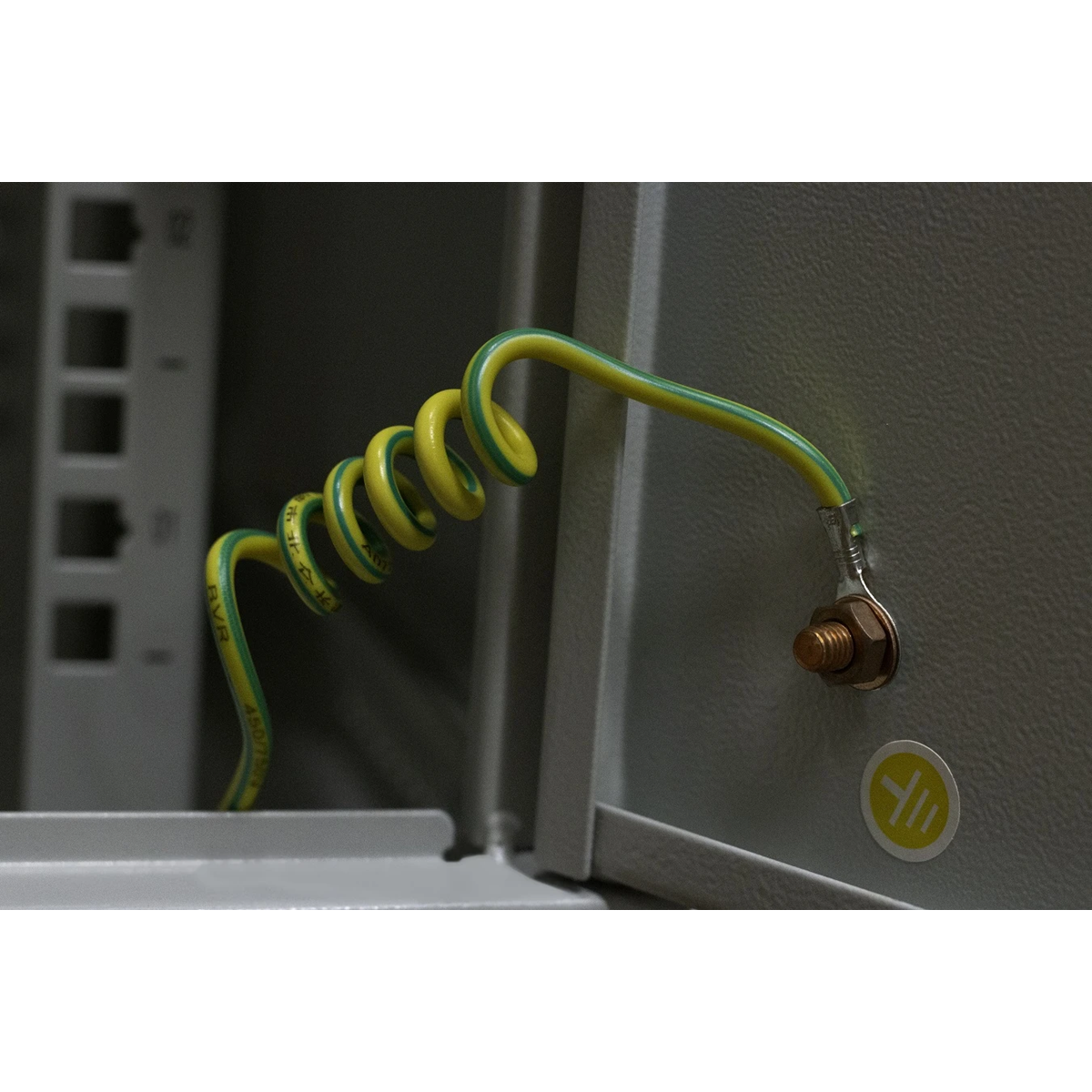

In the roof of the cabinet, openings are adapted for the installation of 1-fan ventilation modules. 300mm long cable for grounding. Fixed shelf 280mm and 15 mounting screws in standard equipment. The cabinets are intended for indoor use.

Technical data

  • Cabinet color RAL 7044 (light gray - structure)
  • Door color RAL 7010 (dark gray - structure)
  • Two mounting levels 19”
  • Rating of protection against solid objects, dust and water ingress: IP 20 (does not apply to cabinets with mounted brush ducts )
  • The cabinet is completely assembled, ready for installation and assembly of equipment

Technical data

  • Depth [mm]
    450
  • Height [mm]
    635
  • load capacity [kg]
    50
  • Width [mm]
    600
  • Height [U]
    12

Other technical data

  • Mounting level
    Front and rear
  • Number of doors
    1
  • Width
    600 mm
  • Depth
    450 mm
  • Number of height units
    12
  • With roof plate
    Yes
  • With front door
    Yes
  • Front door locking system
    One point
  • With glazed door
    No
  • With base
    No
  • Material
    Steel
  • Colour
    Grey
  • RAL-number
    7044
  • Degree of protection (IP)
    IP20
  • Type of profile rail
    L-shaped
  • Type of ventilation
    Passive
  • Height
    635 mm
  • Modular spacing
    482.6 mm (19 inch)
  • Max. load capacity
    50 kg
  • With earthing
    Yes
  • Material front door
    Steel
  • With rear door
    No
  • With sidewall
    Yes
  • With vertical cable management
    Yes
  • Surface finishing
    Powder coating
  • Model
    With swing frame
  • Demountable
    No
