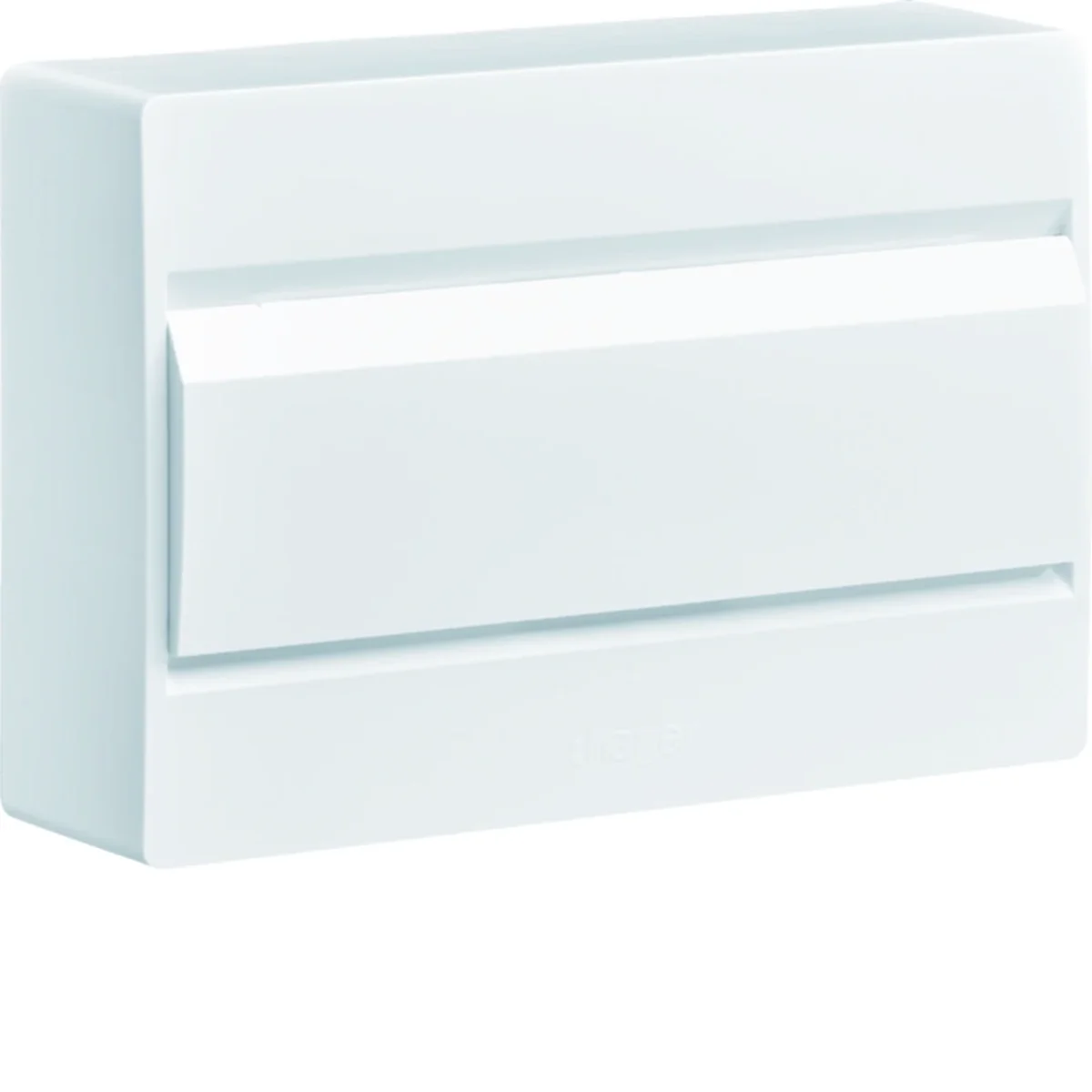

COSMOS Distribution box 1x12M n/t IP40 solid door VD112PP

Indice locale:
RMN086HAGE
Numero di catalogo:
VD112PP
Codice EAN:
3250616467934
Produttore: HAGER
Depth [mm]: 91
Number of modules: 12
Number of rows: 1
Prezzo:
84,80 zł
gross / pezzi
(inclusa IVA 23%)
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Surface mounted switchgear, solid door, cosmos series. 1 row/12 modules.

Dati tecnici

  • Depth [mm]
    91
  • Number of rows
    1
  • Color
    White
  • Level of security
    IP40
  • Height [mm]
    200
  • Number of rows for cameras
    1
  • Number of modules
    12
  • Protection class
    II
  • Family
    COSMOS
  • Width [mm]
    292.5
  • Glow wire test [°C]
    650
  • PKWIU
    27.12.40.0

Altri dati tecnici

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Transparent cover/door
    No
  • With lock
    No
  • Housing material
    Plastic
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Height
    200 mm
  • Depth
    91 mm
  • Number of rows
    1
  • Type of covering
    Door
  • Type of door
    Single
  • Signal passing door
    Yes
  • Type of closure
    Other
  • Inner depth
    72 mm
  • Neutral terminal block
    Yes
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Width
    292.5 mm

Dettagli del produttore

  • Produttore
    Hager Industrial de Envolventes S.A.
  • Indirizzo
    08430 La Roca del Valles Alfred Nobel 18 Hiszpania

Imballaggio sfuso

Una specie di pacchetto Karton Paleta
Quantità 1 pezzi 124 pezzi
Peso (kg) 0,760 119,240
Larghezza (m) 0,210 0,800
Lunghezza (m) 0,100 1,050
Profondità (m) 0,300 1,200
