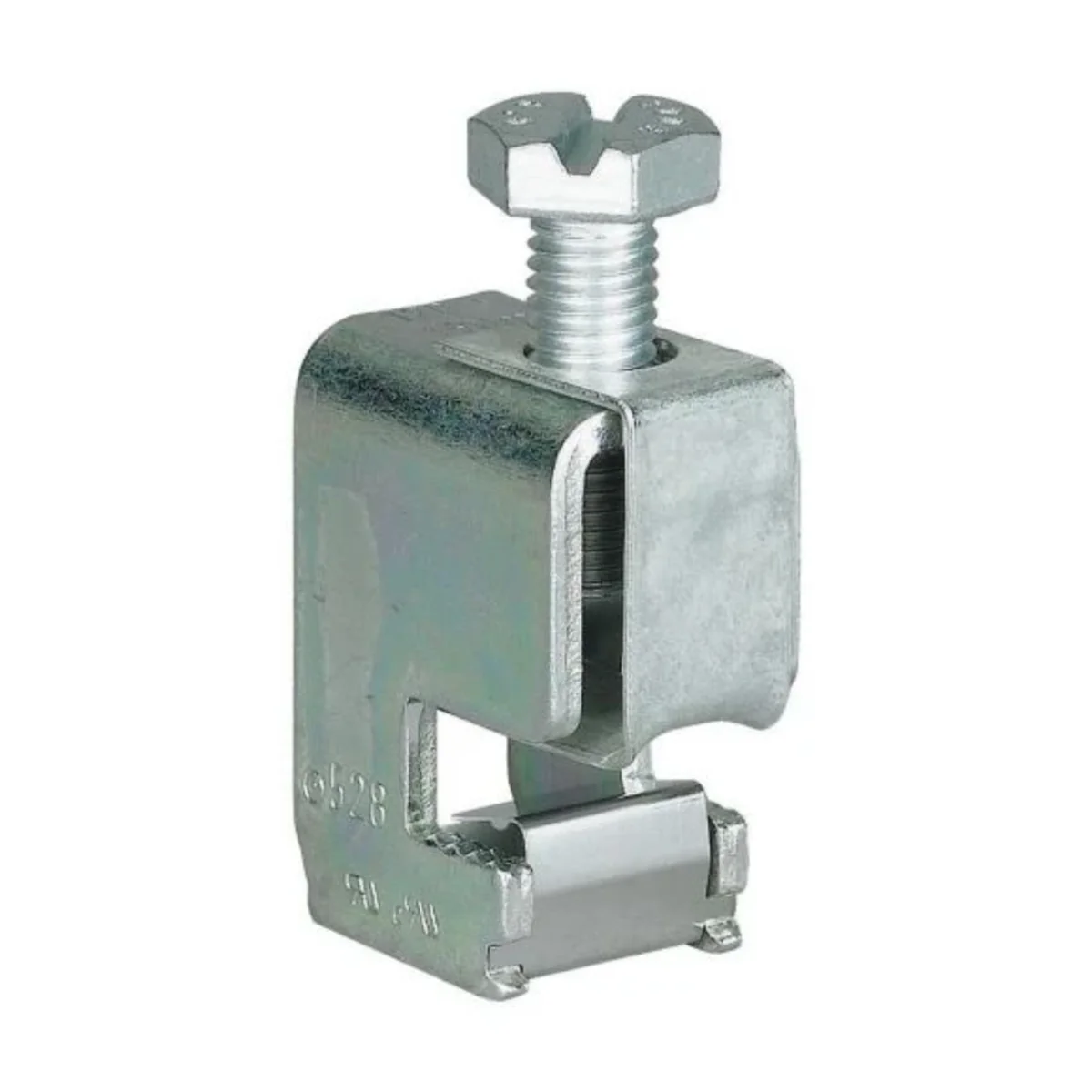

Connection terminal 350A, AKU120/10 107194

local index:
RRR049MOEL
Catalog No:
107194
EAN code:
4015081069576
Manufacturer: EATON
Connection: 16-120 mm2, AWG 4 - MCM 250. direct connection, 4x16x0.8 or 6x16x0.8 or 10x16x0.8
Rated current [A]: 440
Application: For flat rails with a thickness of 10 mm
Price:
8,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
25
)
Add to clipboard
Print

Product description

Universal connection terminals, mounted on 5 mm thick flat rails - captive screws.

Technical data

  • Connection
    16-120 mm2, AWG 4 - MCM 250. direct connection, 4x16x0.8 or 6x16x0.8 or 10x16x0.8
  • Application
    For flat rails with a thickness of 10 mm
  • Rated current [A]
    440

Other technical data

  • Busbar thickness
    10 ... 10 mm
  • Suitable for
    Flat rail
  • Max. conductor cross section
    120 mm²
  • Suitable for round conductor connection
    Yes
  • Suitable for strip conductor connection
    Yes
  • Busbar width
    0 ... 0 mm
  • Width clamp
    23.5 mm
  • Max. rated operation current Ie
    440 A
  • Suitable for sector conductor connection
    Yes

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 25 pcs.
Weight (kg) 0,109 2,721
Volume (m3) 0,000 0,002
Width (m) 0,038 0,105
Length (m) 0,026 0,210
Depth (m) 0,057 0,095
