Connection terminal 160A, AKU35/5 5 pcs. 107188

local index:
RRR170MOEL
Catalog No:
107188
EAN code:
4015081069514
Manufacturer: EATON
Connection: 4-35mm2, AWG 10 - AWG 2nd direct connection, 3x9x0.8 or 6x9x0.8
Rated current [A]: 270
Pieces in the package: 5
Price:
15,44 €
gross / pkg.
(including VAT 23%)
3,09 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
10
)
Add to clipboard
Print

Product description

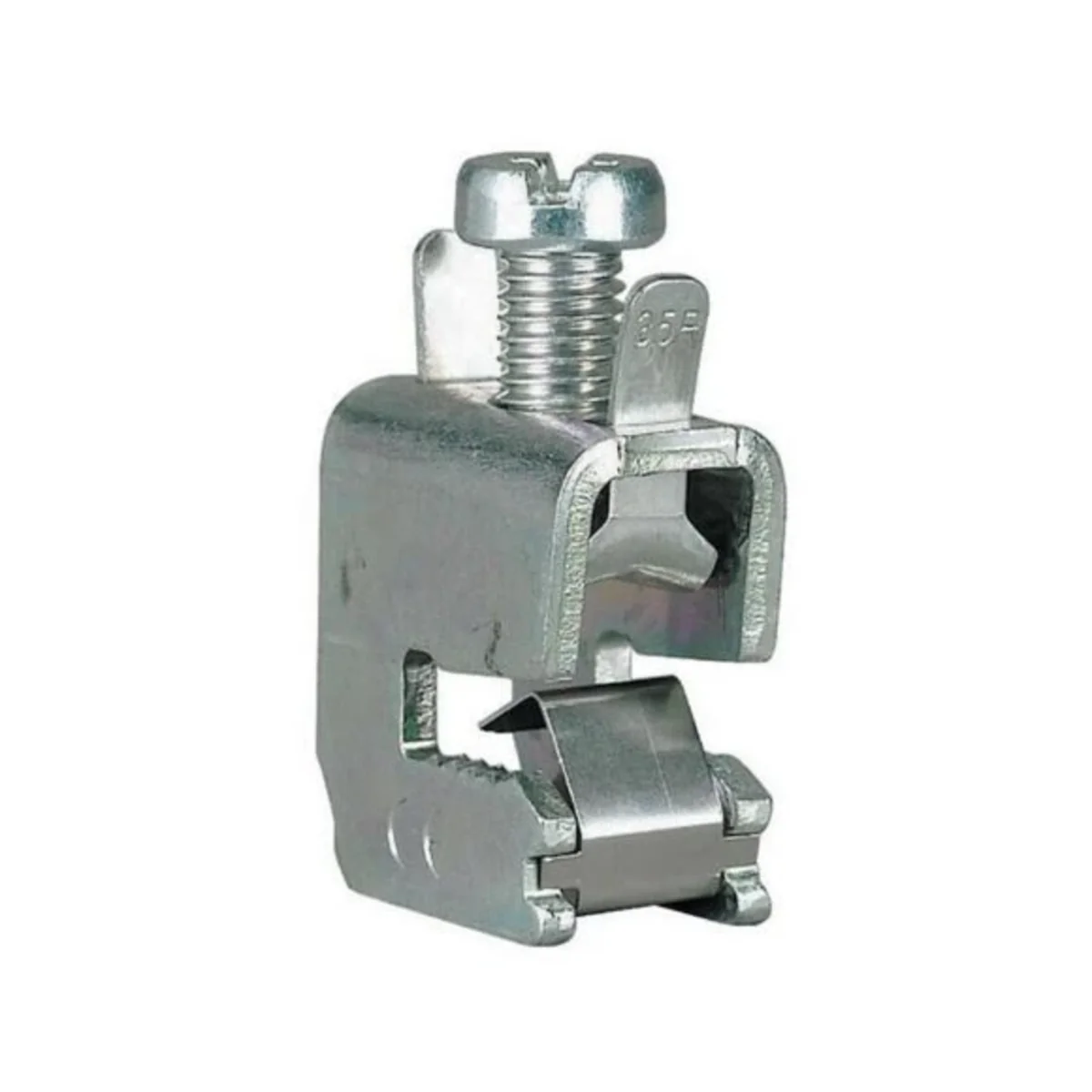

Universal connection terminals, mounted on 5 mm thick flat rails - captive screws.



Technical data

  • Connection
    4-35mm2, AWG 10 - AWG 2nd direct connection, 3x9x0.8 or 6x9x0.8
  • Pieces in the package
    5
  • Rated current [A]
    270
  • Application
    For flat rails with a thickness of 5 mm

Other technical data

  • Busbar thickness
    5 ... 5 mm
  • Suitable for
    Flat rail
  • Max. conductor cross section
    35 mm²
  • Suitable for round conductor connection
    Yes
  • Suitable for strip conductor connection
    Yes
  • Busbar width
    0 ... 0 mm
  • Width clamp
    15.5 mm
  • Max. rated operation current Ie
    270 A
  • Suitable for sector conductor connection
    Yes

Bulk packaging

A kind of package Karton
Quantity 10 pkg.
Weight (kg) 0,046
Volume (m3) 0,002
Width (m) 0,029
Length (m) 0,016
Depth (m) 0,036
