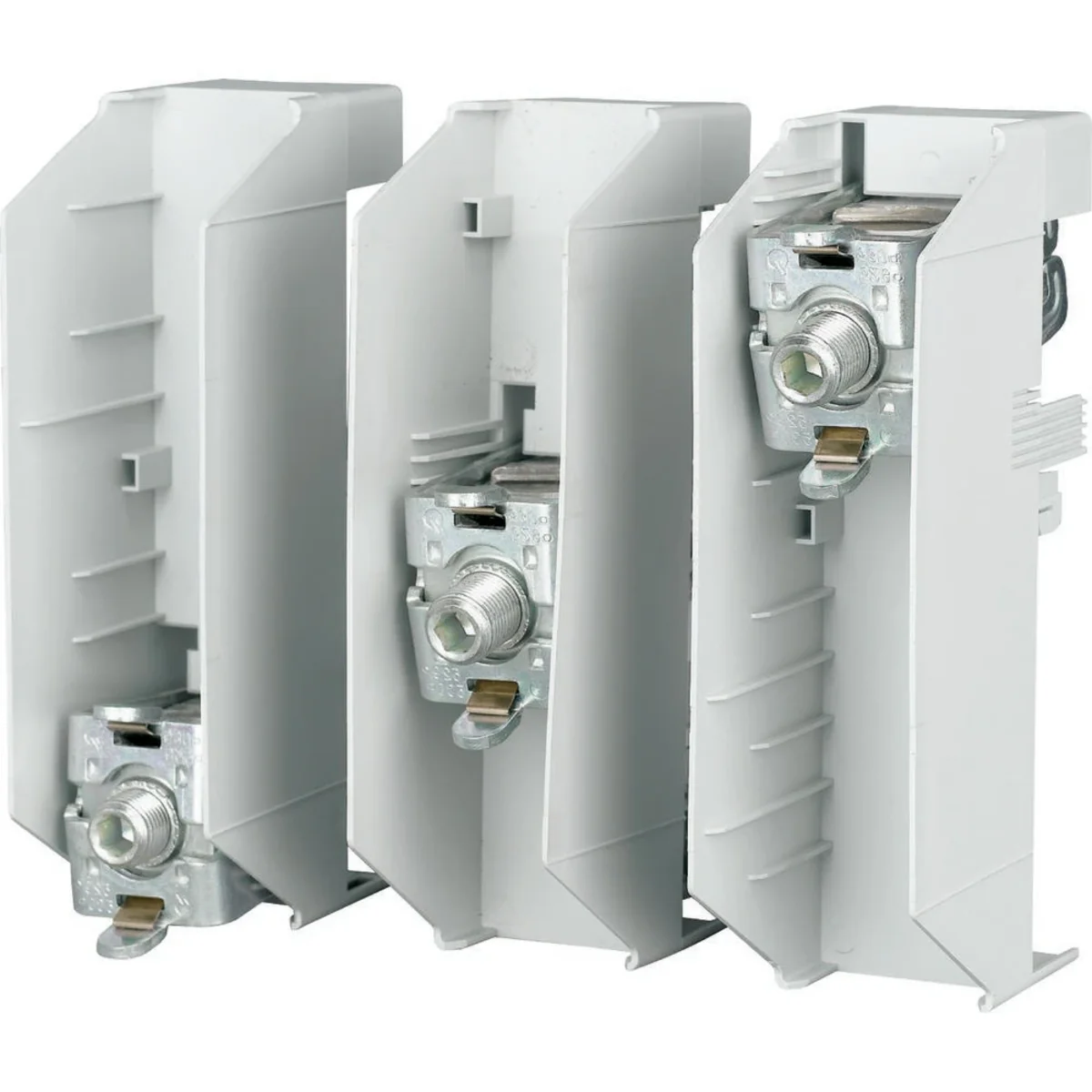

Connection adapter for Cu-Band, BBA-TP3/CU-BAND 107186

local index:
RRR573MOEL
Catalog No:
107186
EAN code:
4015081069491
Manufacturer: EATON
Rated current [A]: 800
Used for CU rails: 3
Price:
178,72 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Connection adapter, 3-pole, without front cover - width 180-240 mm adjustable pole spacing, mounting directly on busbars, including side covers 1 set with 3 terminals, cable entry and exit possible

Technical data

  • Rated current [A]
    800
  • PKWIU
    27.12.40.0
  • Used for CU rails
    3

Other technical data

  • Busbar thickness
    5 ... 10 mm
  • Suitable for
    Flat rail
  • Max. conductor cross section
    750 mm²
  • Suitable for round conductor connection
    No
  • Suitable for strip conductor connection
    Yes
  • Busbar width
    20 ... 30 mm
  • Width clamp
    240 mm
  • Max. rated operation current Ie
    800 A
  • Suitable for sector conductor connection
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,865
Volume (m3) 0,007
Width (m) 0,135
Length (m) 0,260
Depth (m) 0,205
