Switchboards and enclosures
Switchgear accessories
Connection adapter, BBA-TP3/300 107185
local index:
RRR127MOEL
Catalog No:
107185
EAN code:
4015081069484

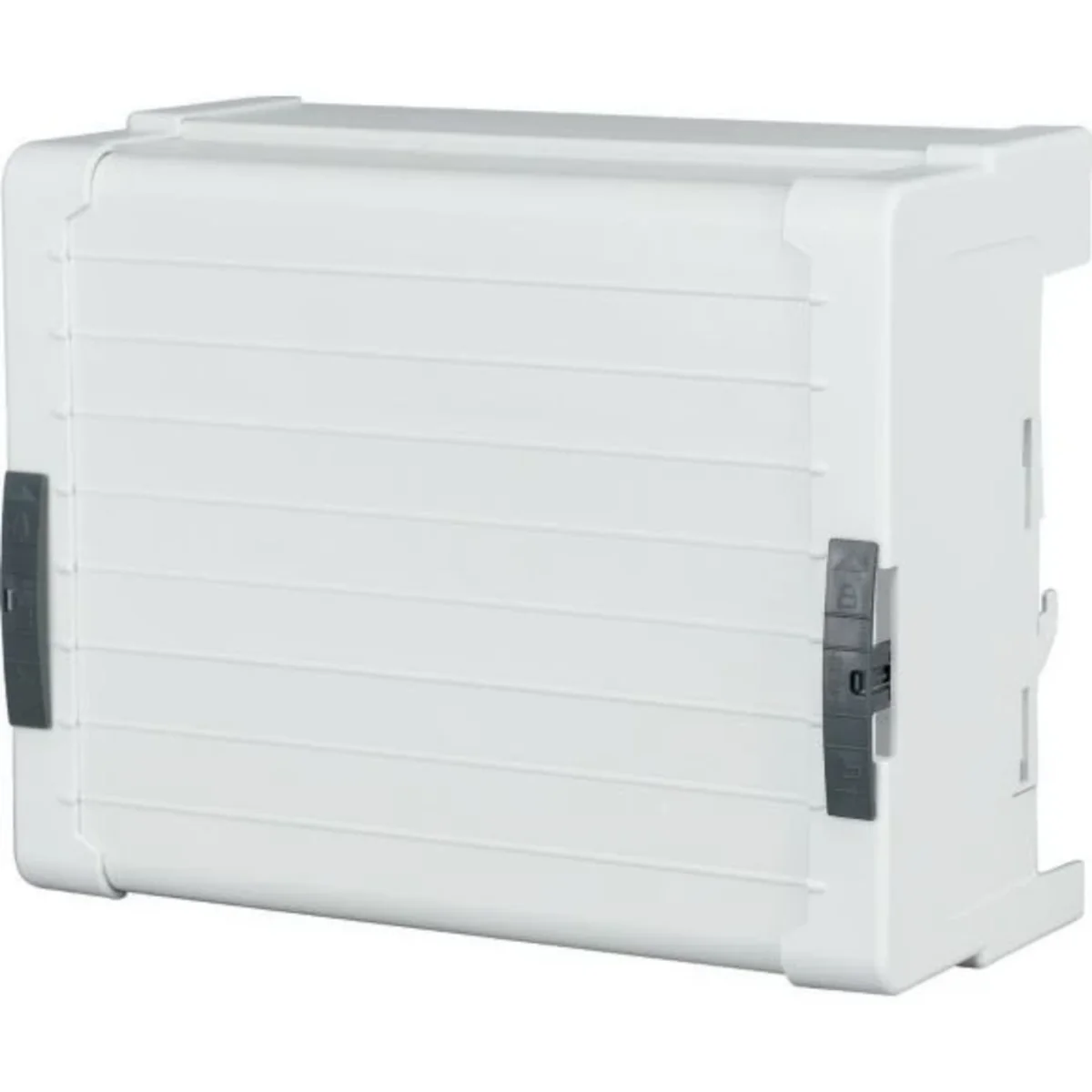

Click on the photo to enlarge
Manufacturer:
EATON
Number of poles:
3
Connection:
120-300mm2, MCM300-MCM600
Rated current [A]:
560
See full description
Price:
190,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description

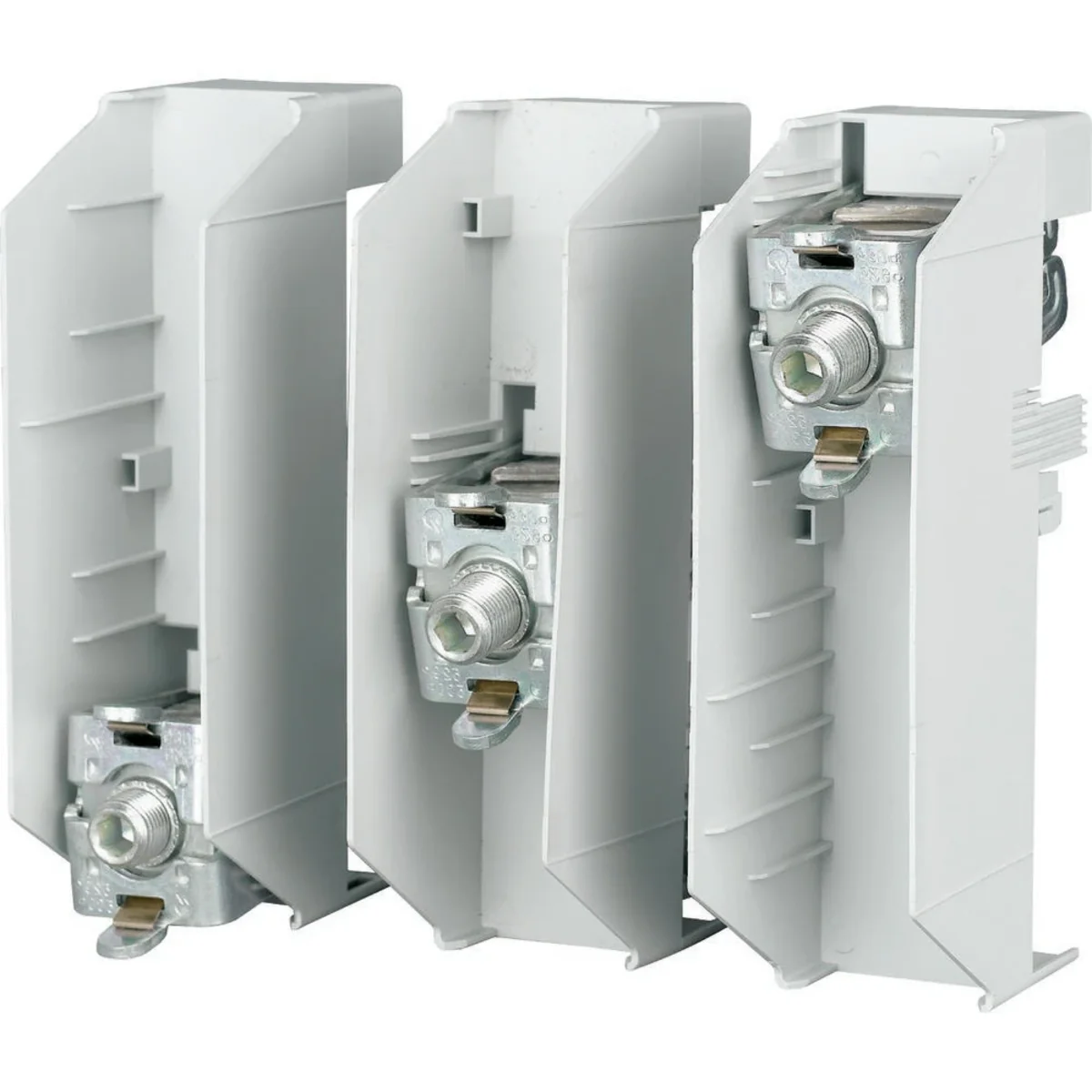

Connection adapter, 3-pole, without front cover - width 180-240 mm adjustable pole spacing, mounting directly on busbars, including side covers 1 set includes 3 terminals, cable entry and exit.
Technical data
Number of poles
3
Rated current [A]
560
Connection
120-300mm2, MCM300-MCM600
Used for CU rails
20 x 5/10 25 x 5/10 30 x 5/10 (H-profile)
Other technical data
Busbar thickness
5 ... 10 mm
Suitable for
Flat rail
Max. conductor cross section
300 mm²
Suitable for round conductor connection
Yes
Suitable for strip conductor connection
Yes
Busbar width
12 ... 30 mm
Width clamp
240 mm
Max. rated operation current Ie
560 A
Suitable for sector conductor connection
Yes
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
2,074
Volume (m3)
0,007
Width (m)
0,135
Length (m)
0,260
Depth (m)
0,205
