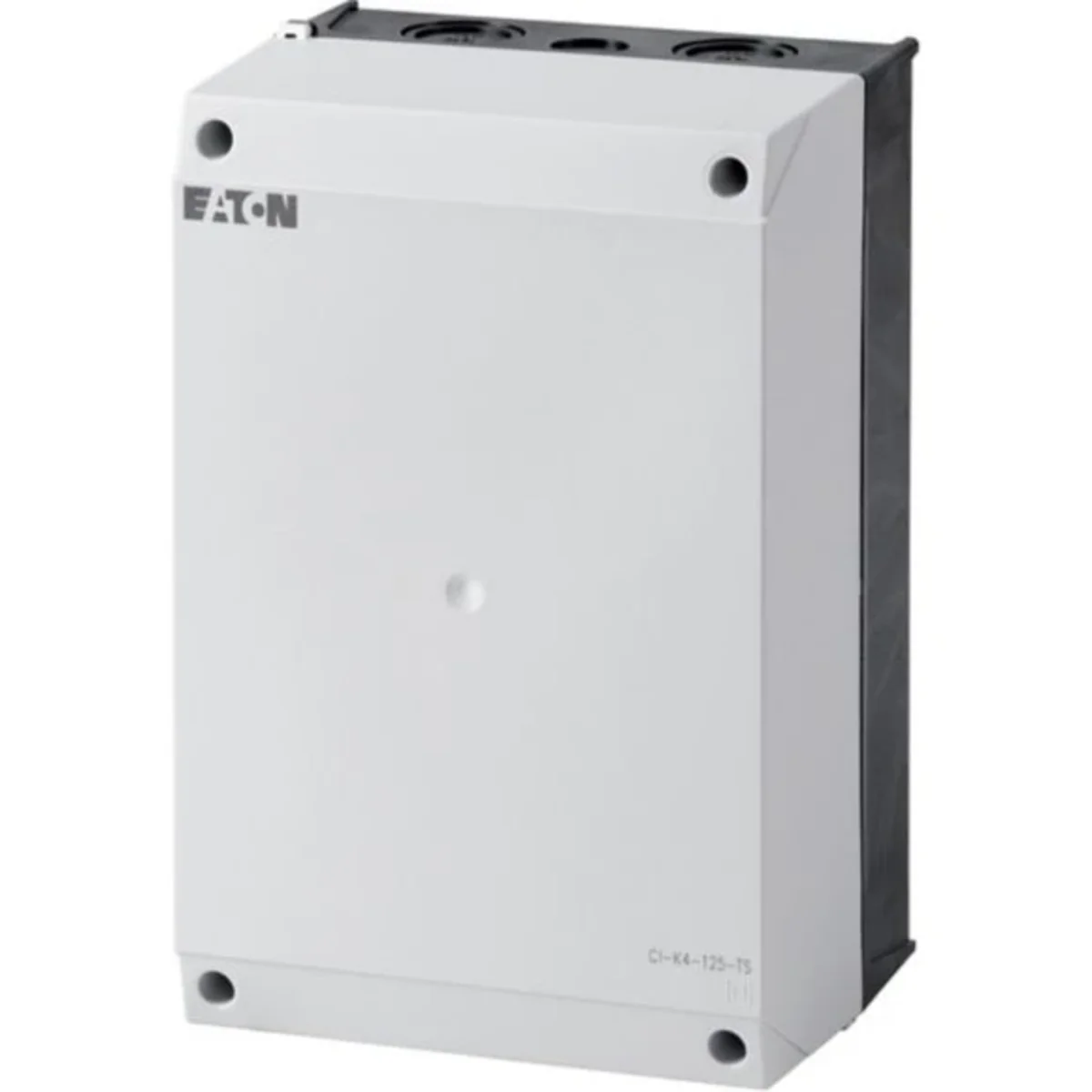

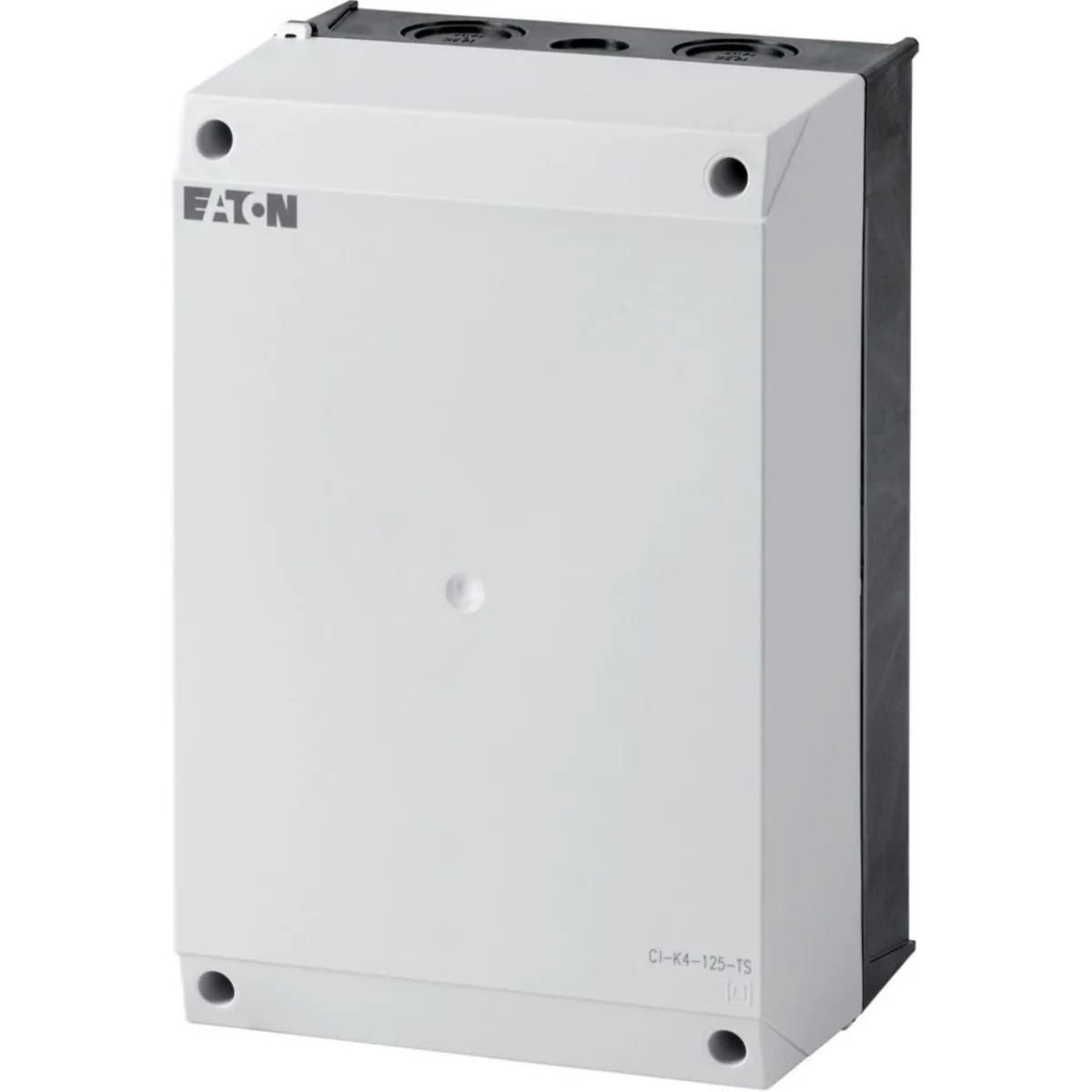

CI-K4 small enclosure with CI-K4-125-TS mounting rail 206886

local index:
RIH020MOEL
Catalog No:
206886
EAN code:
4015082068868
Manufacturer: EATON
Depth [mm]: 93
Equipment: mounting plate
Price:
60,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

CI-K empty enclosures
• Degree of protection IP65 (exception: CI-K2-80-A), material reinforced with glass fiber polycarbonate
• Casing bottom RAL 9005, black / Casing top RAL 7035, light grey
• Metric pre-punching on top, bottom, rear panel
• Pierced diaphragm for cables in CI-K1 and CI-K2
• Hard metric pre-stampings on CI-K1H to CI-K2H
• Hard metric extrusions in CI-K3 to CI-K5
• Introduction for control cables from CI-K2
• Signal lamp L- installed in the extrusion of the lower part of the M20/M25

Technical data

  • Depth [mm]
    93
  • Equipment
    mounting plate

Other technical data

  • Housing material
    Plastic
  • Height
    125 mm
  • With transparent cover
    No
  • Model
    Surface mounting
  • Degree of protection (NEMA)
    Other
  • Width
    160 mm
  • Depth
    240 mm
  • Suitable for emergency stop
    Yes
  • Degree of protection (IP)
    IP65

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 0,823
Volume (m3) 0,008
Width (m) 0,163
Length (m) 0,255
Depth (m) 0,182
