Cabinet for serial installation UNIVERS IP54/I 6-pole FG26XD

local index:
RMS004HAGE
Catalog No:
FG26XD
EAN code:
3250612794782
Manufacturer: HAGER
Depth [mm]: 600
Number of doors: 2
Color: Gray
Shipment on a pallet
Price:
3107,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

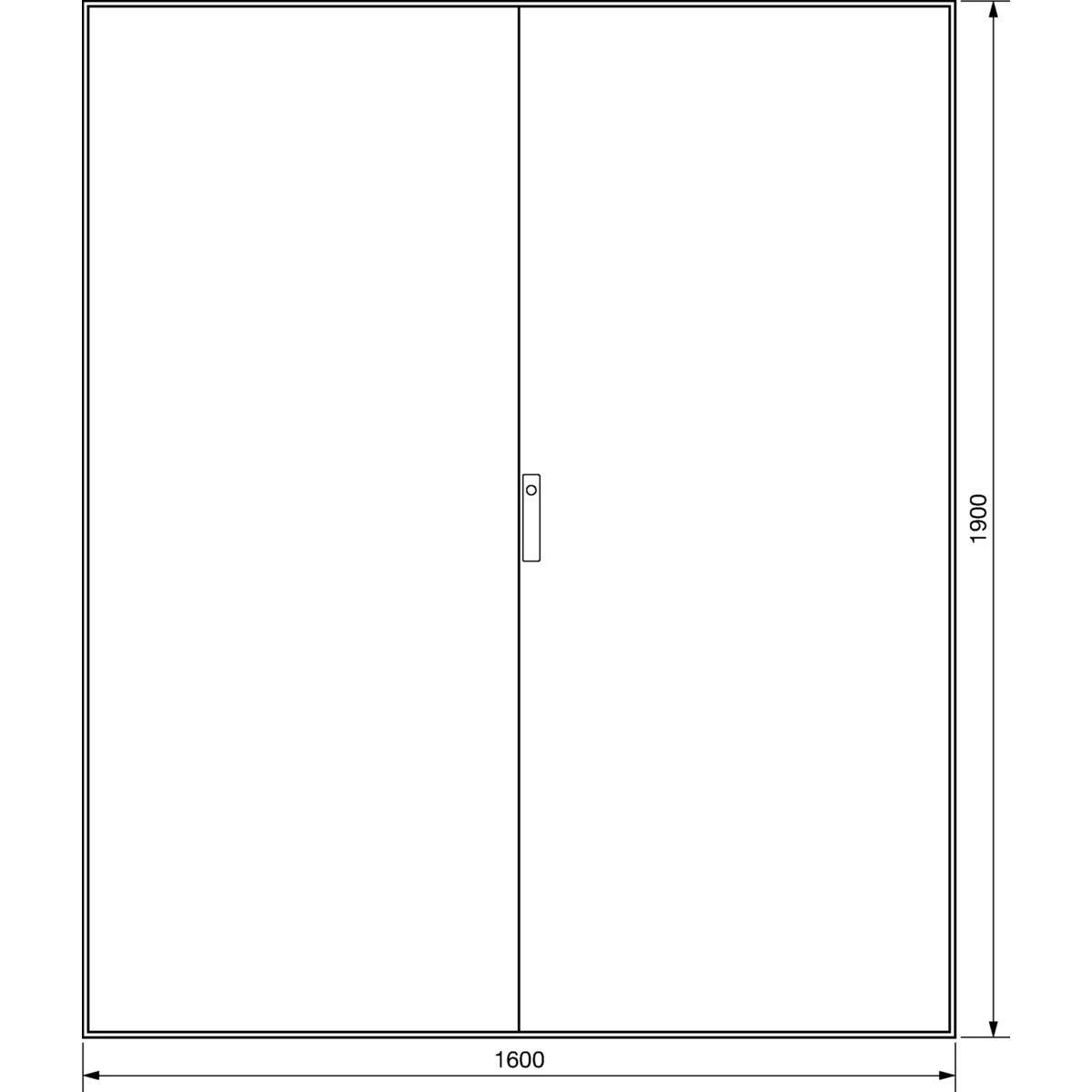

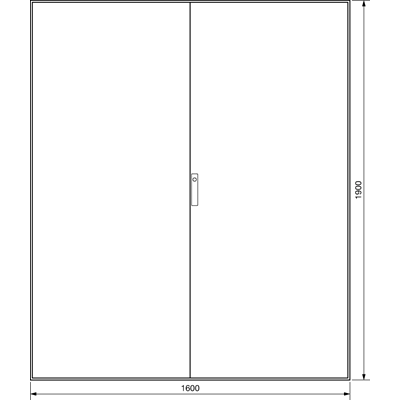

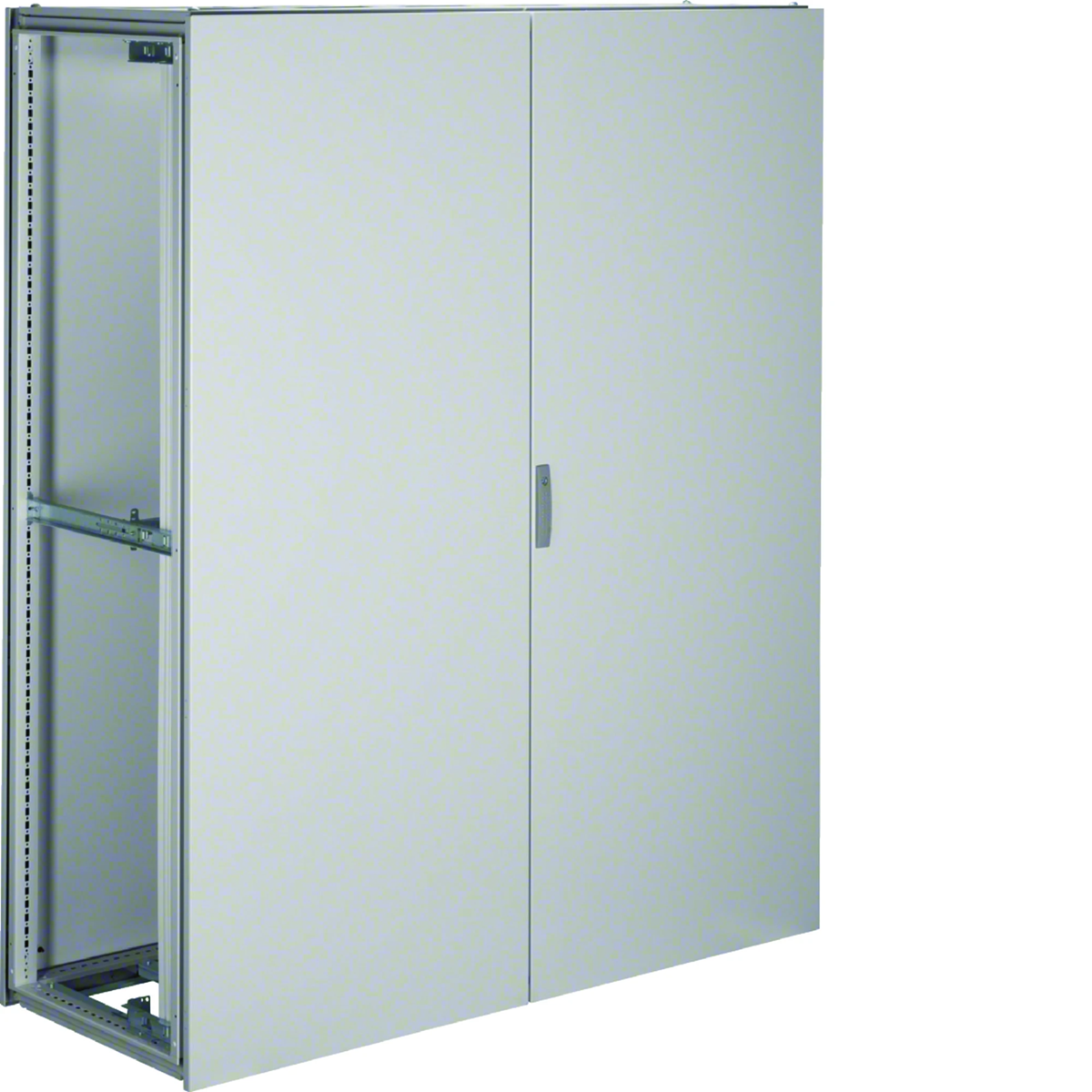

Floor-standing cabinet for rowing, depth 600 mm, height 1900 mm with solid doors Protection class I

Technical data

  • Depth [mm]
    600
  • Color
    Gray
  • Width [mm]
    1600
  • Accurate color
    Gray
  • Number of doors
    2
  • Level of security
    IP54
  • Height [mm]
    1900
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Floor installation
  • Cover model
    Closed
  • Transparent cover/door
    No
  • Nominal current (In)
    1600 A
  • Width
    1600 mm
  • Built-in depth
    600 mm
  • Material plate thickness cabinet
    1.5 mm
  • Colour
    Grey
  • Number of modules
    864
  • Width in number of modular spacings
    72
  • Extension possible
    Yes
  • Housing material
    Steel
  • With mounting plate
    No
  • Suitable for lightning protection
    No
  • Protection class
    I
  • Circuit integrity
    None
  • Type of covering
    Door
  • Type of door
    Double
  • With lock
    Yes
  • Height
    1900 mm
  • Depth
    600 mm
  • Inner depth
    600 mm
  • Material plate thickness door/cover
    1.5 mm
  • RAL-number
    7035
  • Number of rows
    72
  • Number of openings for flange plates
    12
  • Number of conduit inlets
    12
  • Surface protection
    Powder coating
  • Suitable for outdoor use
    No
  • Degree of protection (IP)
    IP54
  • Impact strength
    IK10

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 166,999 167,000 192,000
Width (m) 1,600 0,650 0,800
Length (m) 1,900 1,920 2,070
Depth (m) 0,600 1,600 1,600
