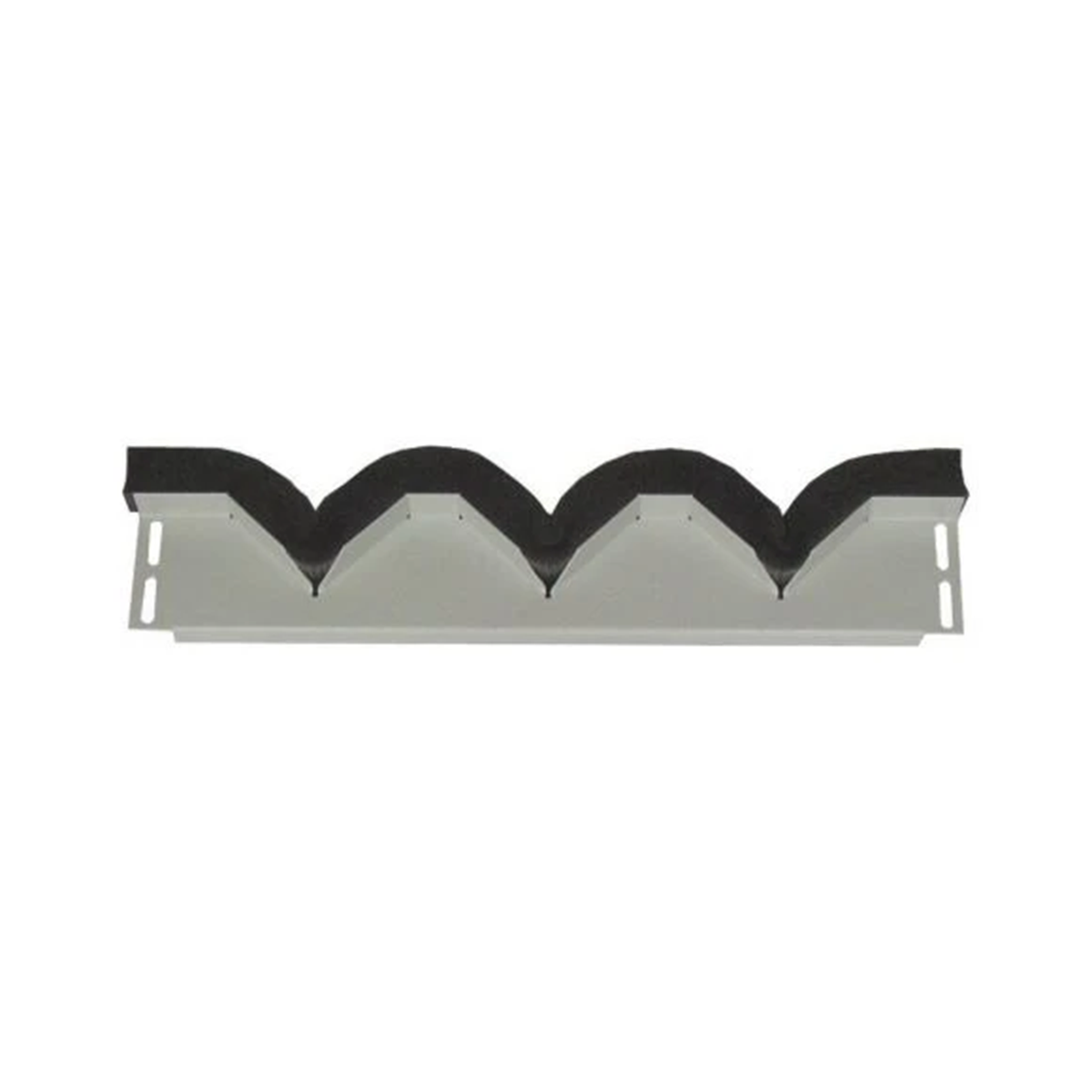

Bottom entries for cables 50-80mm, XVTL-BP/JL-8 115239

local index:
RRR646MOEL
Catalog No:
115239
EAN code:
4015081146390
Manufacturer: EATON
Depth [mm]: 90-105
Cable [mm]: 50 - 80
Width [mm]: 800
Price:
36,17 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Bottom pins (end caps) XSPBA, XVTL-BP/JL
• Type XSPBA with sliding flange, 60-75 mm deep, for thin conductors
• Type XVTL-BP/JL with sliding flange, 90-105 mm deep, for thick cables

Technical data

  • Depth [mm]
    90-105
  • Width [mm]
    800
  • Cable [mm]
    50 - 80

Other technical data

  • Model
    Floor plate
  • Suitable for enclosure building height
    0 mm
  • Width
    105 mm
  • Depth
    670 mm
  • Material
    Metal
  • RAL-number
    7035
  • Suitable for enclosure building width
    800 mm
  • Suitable for enclosure building depth
    0 mm
  • Height
    40 mm
  • Max. load capacity
    0 kg
  • Colour
    Grey

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,470
Volume (m3) 0,003
Width (m) 0,105
Length (m) 0,670
Depth (m) 0,040
