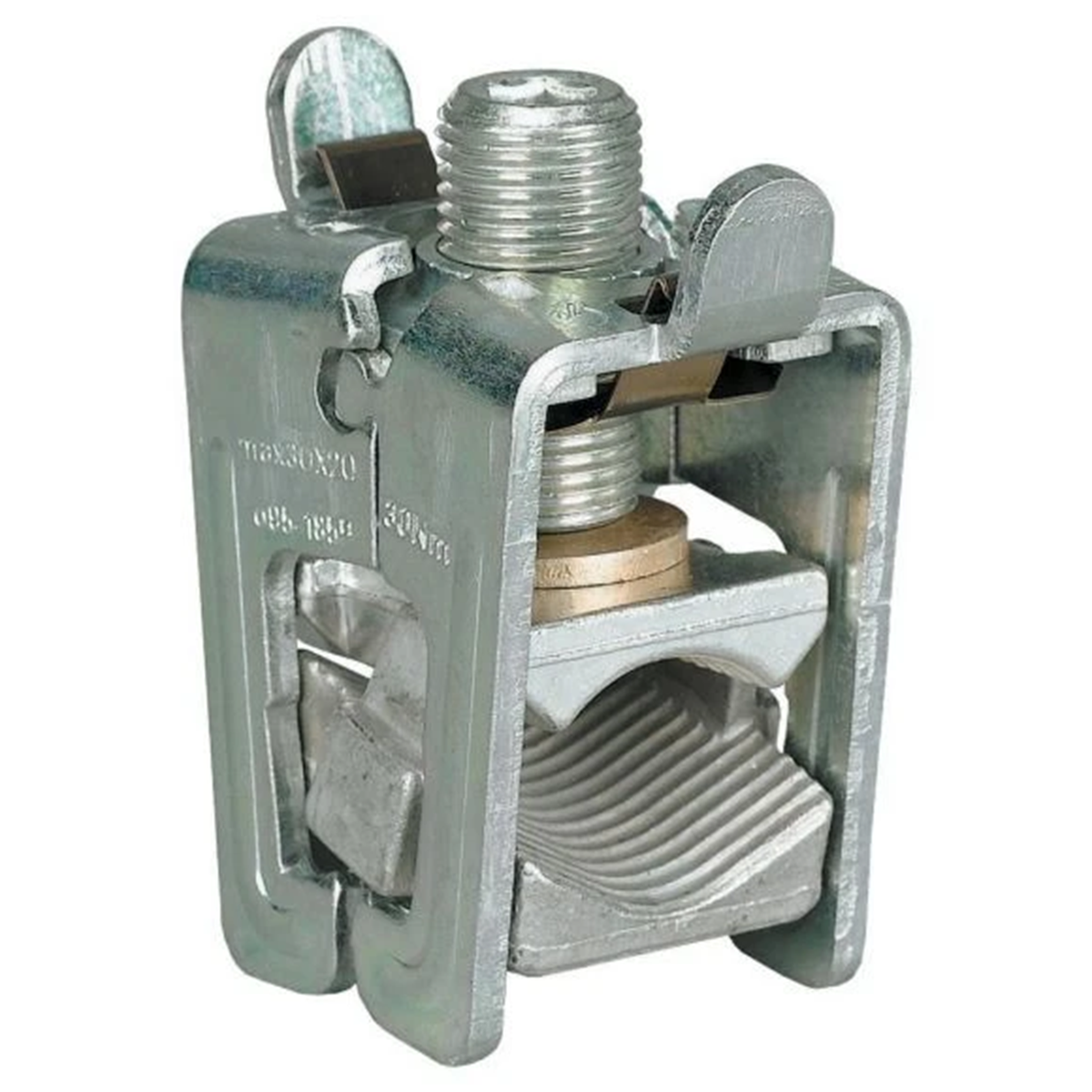

Alligator clamps 95-185 mm, AKS185 6 pcs. 107195

local index:
RRR296MOEL
Catalog No:
107195
EAN code:
4015081069583
Manufacturer: EATON
Connection: 95-185 mm2, AWG3/0 - MCM 350. direct Connection
Rated current [A]: 500
Pieces in the package: 6
Price:
161,98 €
gross / pkg.
(including VAT 23%)
27,00 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Alligator clamps do not require drilling holes in the rail.



Technical data

  • Connection
    95-185 mm2, AWG3/0 - MCM 350. direct Connection
  • Pieces in the package
    6
  • Rated current [A]
    500
  • Application
    For CU rails 20 x 5/10 25 x 5/10 30 x 5/10 (H-profile)

Other technical data

  • Busbar thickness
    5 ... 10 mm
  • Suitable for
    Flat rail
  • Max. conductor cross section
    185 mm²
  • Suitable for round conductor connection
    Yes
  • Suitable for strip conductor connection
    Yes
  • Busbar width
    20 ... 30 mm
  • Width clamp
    38 mm
  • Max. rated operation current Ie
    500 A
  • Suitable for sector conductor connection
    Yes

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 1,858
Volume (m3) 0,001
Width (m) 0,120
Length (m) 0,145
Depth (m) 0,070
