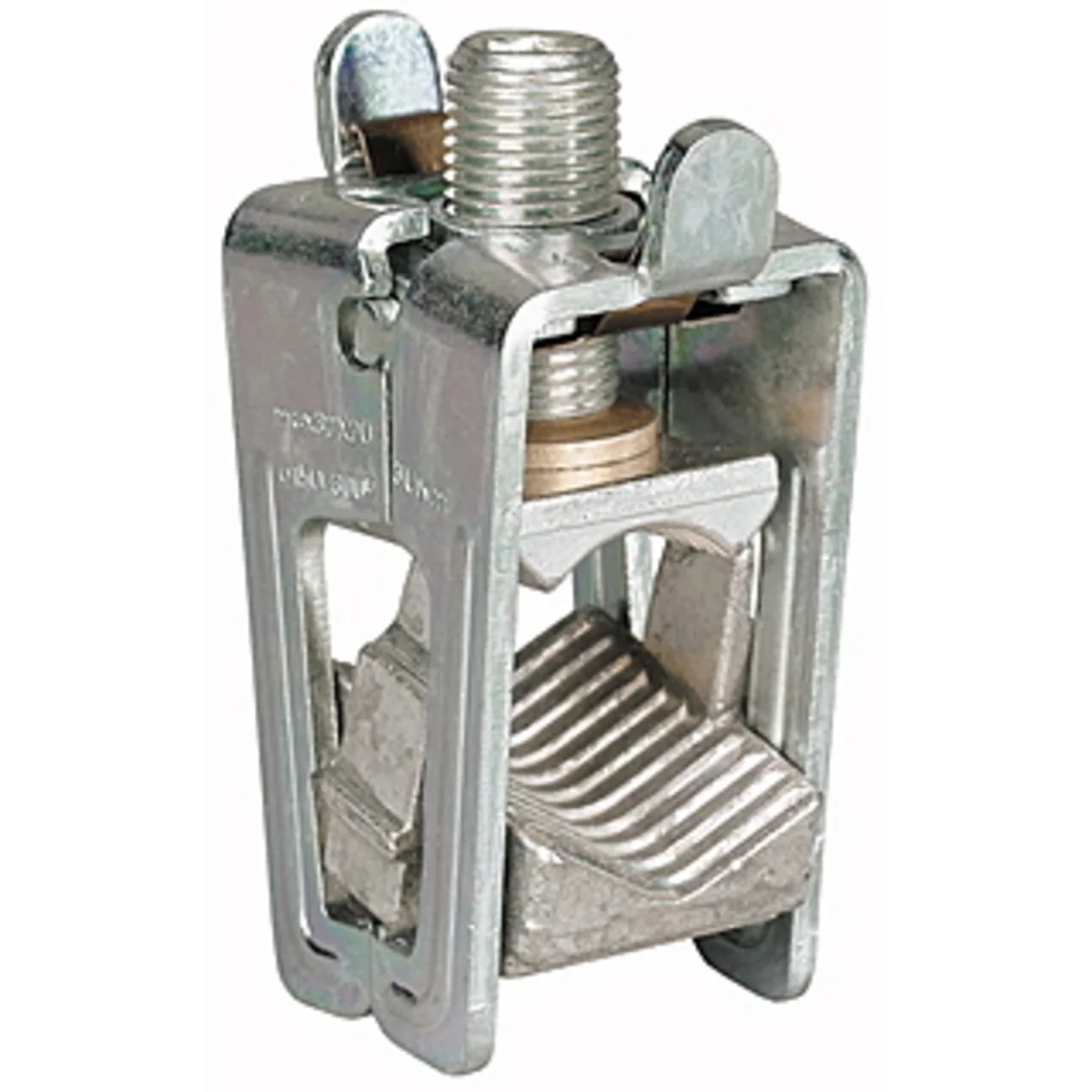

Alligator clamps 150-300 mm, AKS300 3 pcs. 107196

local index:
RRR288MOEL
Catalog No:
107196
EAN code:
4015081069590
Manufacturer: EATON
Connection: 150-300mm2, MCM300-MCM600. directly connection
Rated current [A]: 600
Pieces in the package: 3
Price:
112,55 €
gross / pkg.
(including VAT 23%)
37,52 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Alligator clamps without drilling holes in the rail



Technical data

  • Connection
    150-300mm2, MCM300-MCM600. directly connection
  • Pieces in the package
    3
  • Rated current [A]
    600
  • Application
    For CU rails 12 x 5/10 15 x 5/10 20 x 5/10 25 x 5/10 30 x 5/10 (H-profile)

Other technical data

  • Busbar thickness
    5 ... 10 mm
  • Suitable for
    Flat rail
  • Max. conductor cross section
    300 mm²
  • Suitable for round conductor connection
    Yes
  • Suitable for strip conductor connection
    Yes
  • Busbar width
    20 ... 30 mm
  • Width clamp
    41 mm
  • Max. rated operation current Ie
    600 A
  • Suitable for sector conductor connection
    Yes

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 1,260
Volume (m3) 0,001
Width (m) 0,120
Length (m) 0,145
Depth (m) 0,070
