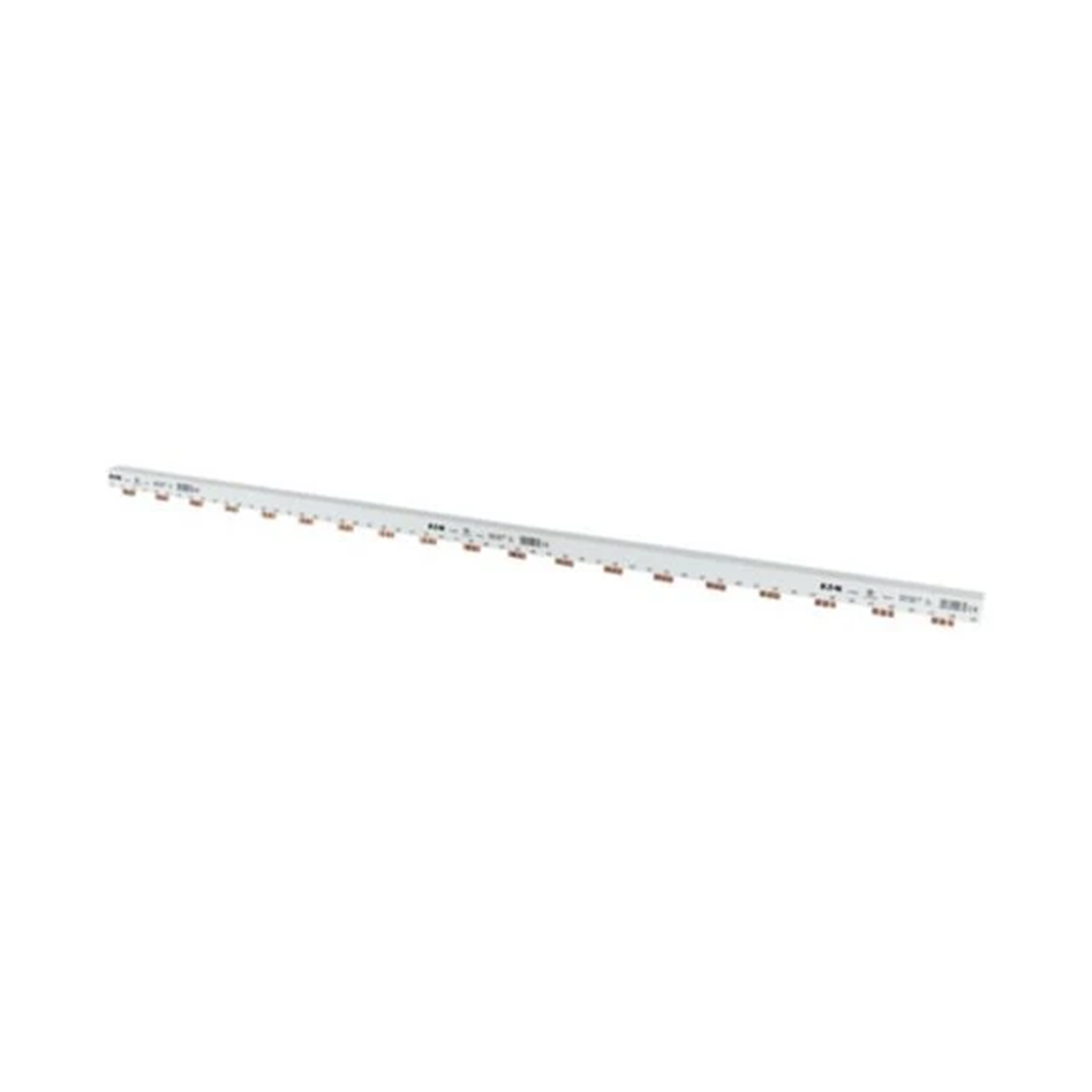

3-phase railing of the block BB-UL-18 39JC, 1m long 121986

local index:
RPU012MOEL
Catalog No:
121986
EAN code:
4015081201860
Manufacturer: EATON
Length [mm]: 1000
number of phases: 3
Number of modules: 39
Price:
964,81 €
gross / pkg.
(including VAT 23%)
96,48 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching devices for use in industry and functional buildings.


  • Busbar system for circuit breaker

Technical data

  • Length [mm]
    1000
  • Number of modules
    39
  • Type of electrical connection
    pin/pin
  • Pieces in the package
    10
  • Rated operating voltage up to [V]
    277
  • cross section [mm²]
    18
  • number of phases
    3
  • Number of poles
    39
  • Rail type
    3-phase
  • With insulation
    Yes
  • Rated impulse voltage [kV]
    10

Other technical data

  • Number of phases
    3
  • Suitable for number of devices
    12
  • Cross section
    18 mm²
  • Width in number of modular spacings
    39
  • Type of electric connection
    Pin
  • Rated surge voltage
    10 kV
  • Max. rated operation voltage Ue
    277 V
  • Suitable for devices with N-conductor
    No
  • Colour
    Other
  • Number of poles
    39
  • Module width
    0 mm
  • Length
    1040 mm
  • Rated permanent current Iu
    80 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    10 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Karton
Quantity 1 pkg.
Weight (kg) 8,194
Volume (m3) 0,009
Width (m) 0,103
Length (m) 1,070
Depth (m) 0,085
