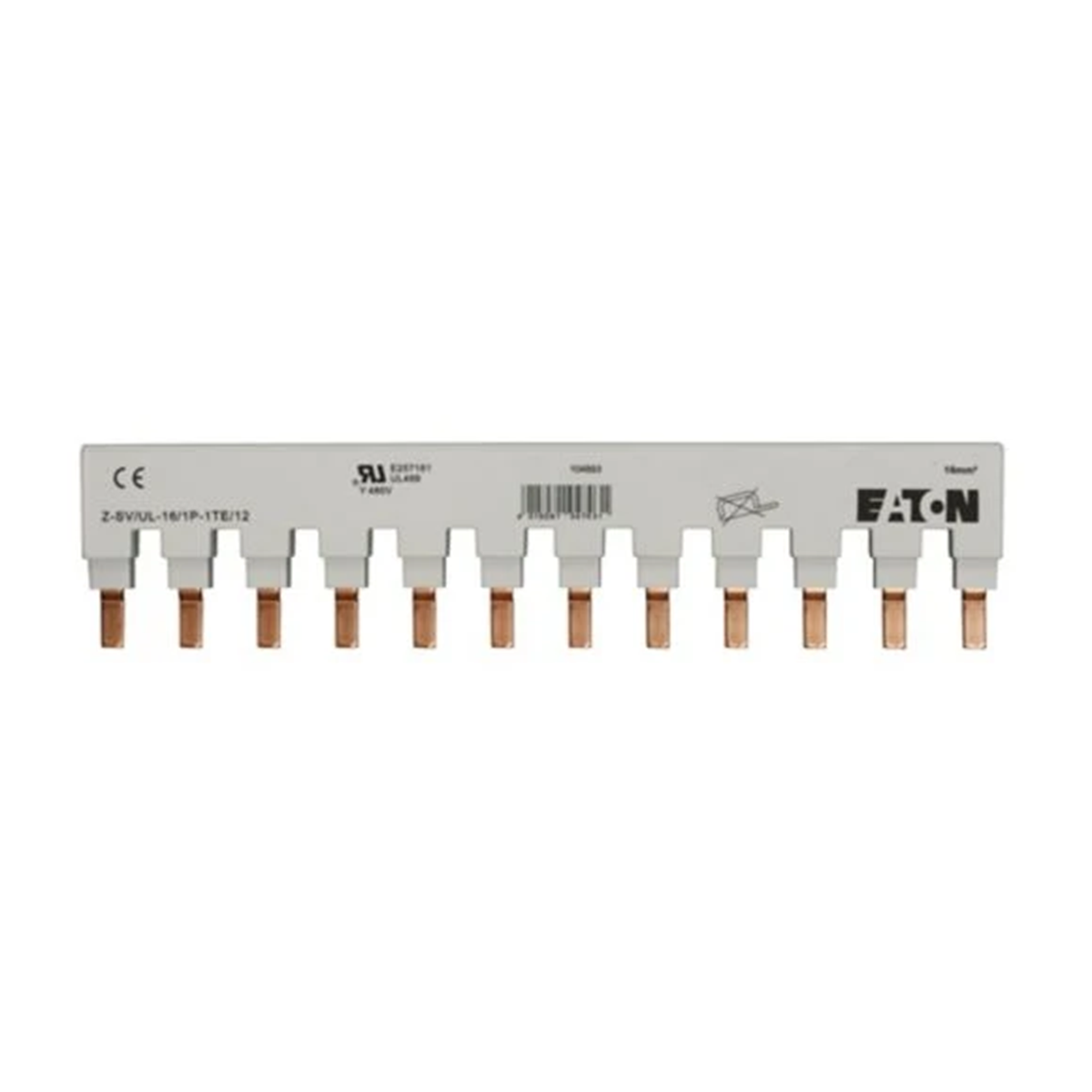

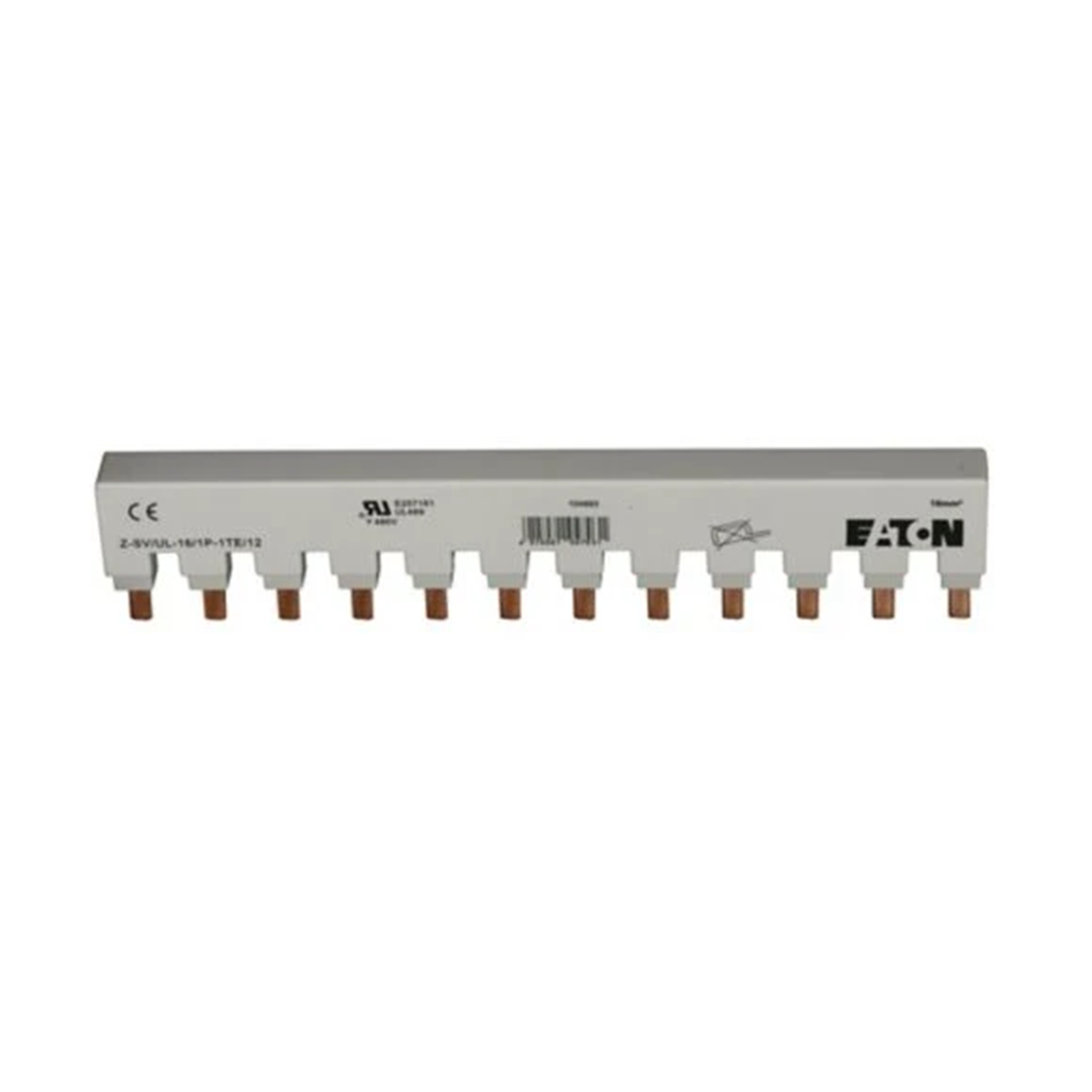

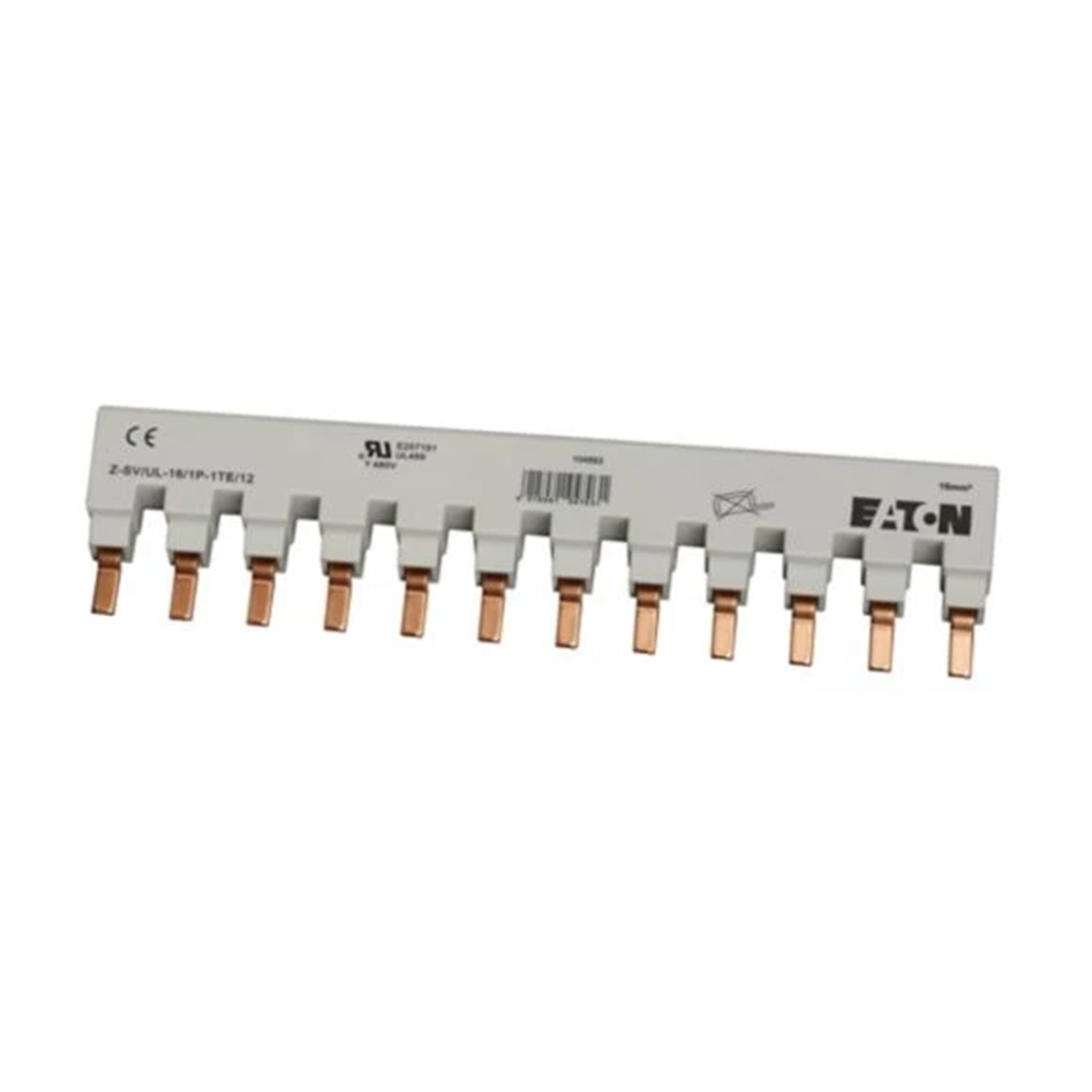

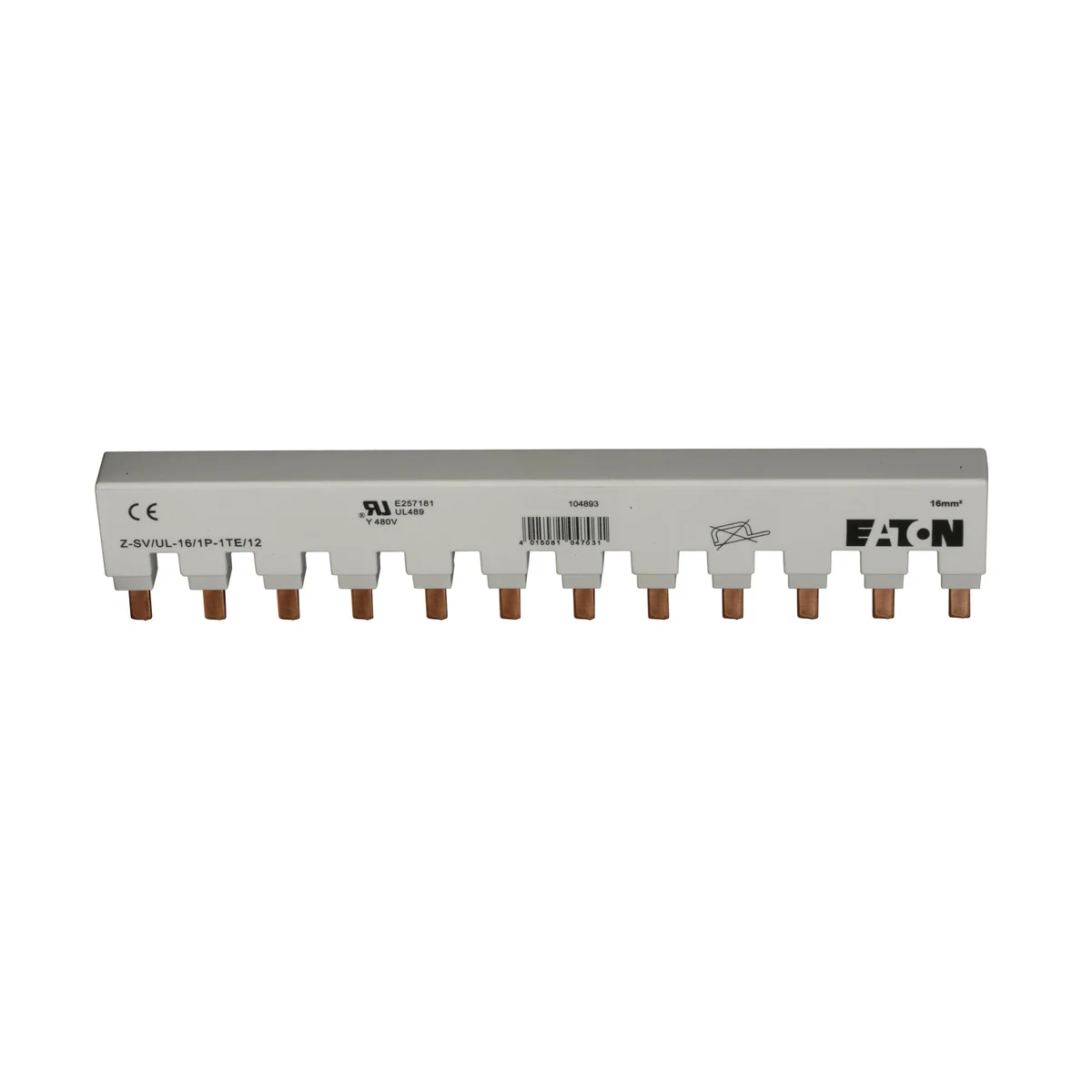

2-phase block busbar, Z-SV, 12JC, for FAZ-NA, FAZ-RT 104896

local index:
RRR1V3MOEL
Catalog No:
104896
EAN code:
4015081047062
Manufacturer: EATON
Length [mm]: 210
number of phases: 2
Number of modules: 2
Price:
35,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switching devices for use in industry and functional buildings.

  • Busbar system for circuit breaker
  • Busbar system for residual current module
  • System busbars to the combined residual current circuit breaker FI/LS

Technical data

  • Length [mm]
    210
  • Number of modules
    2
  • Type of electrical connection
    pin/pin
  • With insulation
    Yes
  • Rated impulse voltage [kV]
    9.5
  • number of phases
    2
  • Number of poles
    2
  • Rail type
    2-phase
  • Rated operating voltage up to [V]
    690
  • cross section [mm²]
    16

Other technical data

  • Number of phases
    2
  • Suitable for number of devices
    6
  • Cross section
    16 mm²
  • Width in number of modular spacings
    2
  • Type of electric connection
    Pin
  • Rated surge voltage
    9.5 kV
  • Max. rated operation voltage Ue
    690 V
  • Suitable for devices with N-conductor
    No
  • Colour
    Other
  • Number of poles
    2
  • Module width
    0 mm
  • Length
    206 mm
  • Rated permanent current Iu
    0 A
  • Insulated
    Yes
  • Conditioned rated short-circuit current Iq
    0 kA
  • Rated short-time withstand current lcw
    0 kA
  • Suitable for devices with auxiliary switch
    No

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 10 pcs. 100 pcs.
Weight (kg) 0,135 1,355 13,596
Volume (m3) 0,000 0,001 0,001
Width (m) 0,018 0,086 0,085
Length (m) 0,208 0,218 0,218
Depth (m) 0,048 0,074 0,074
