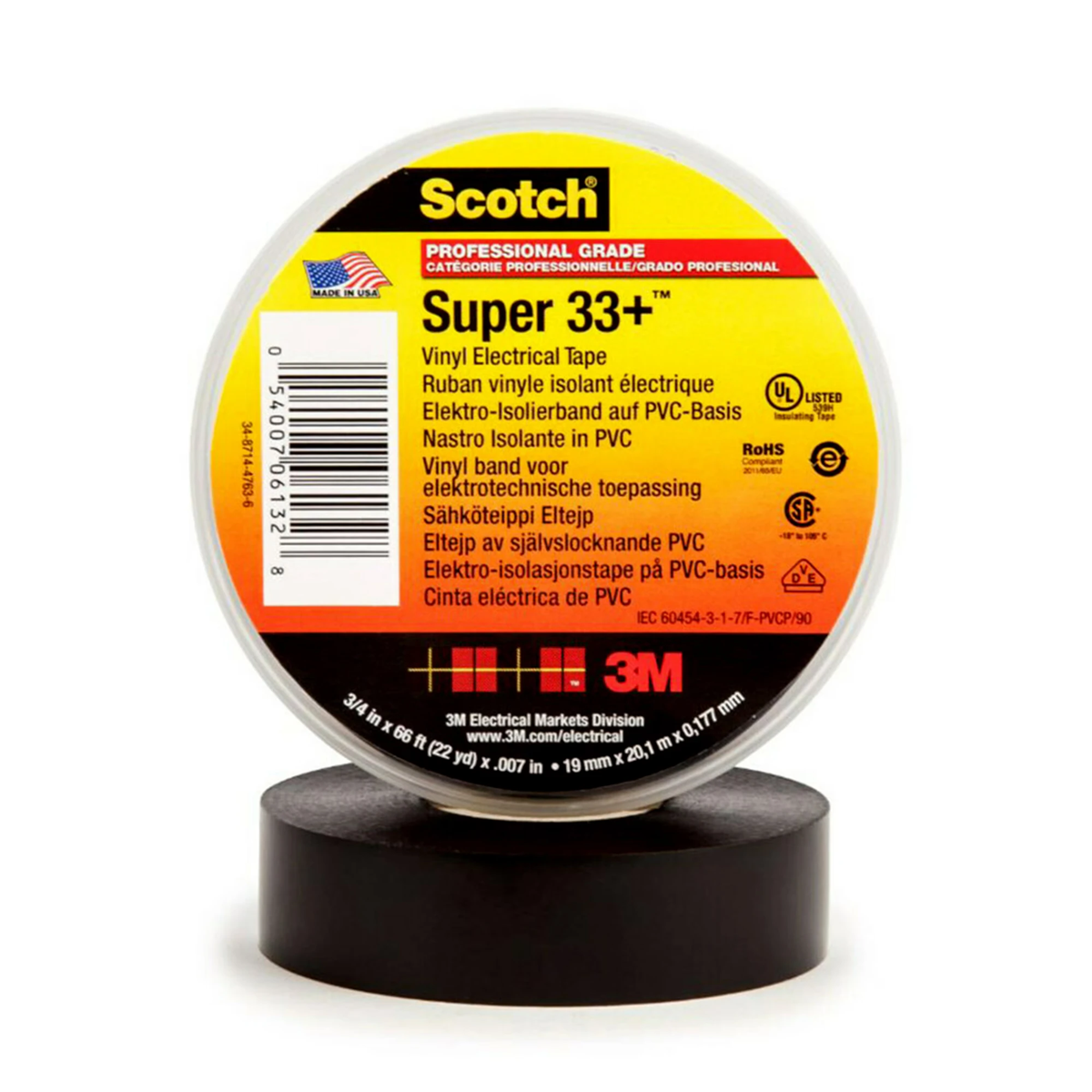

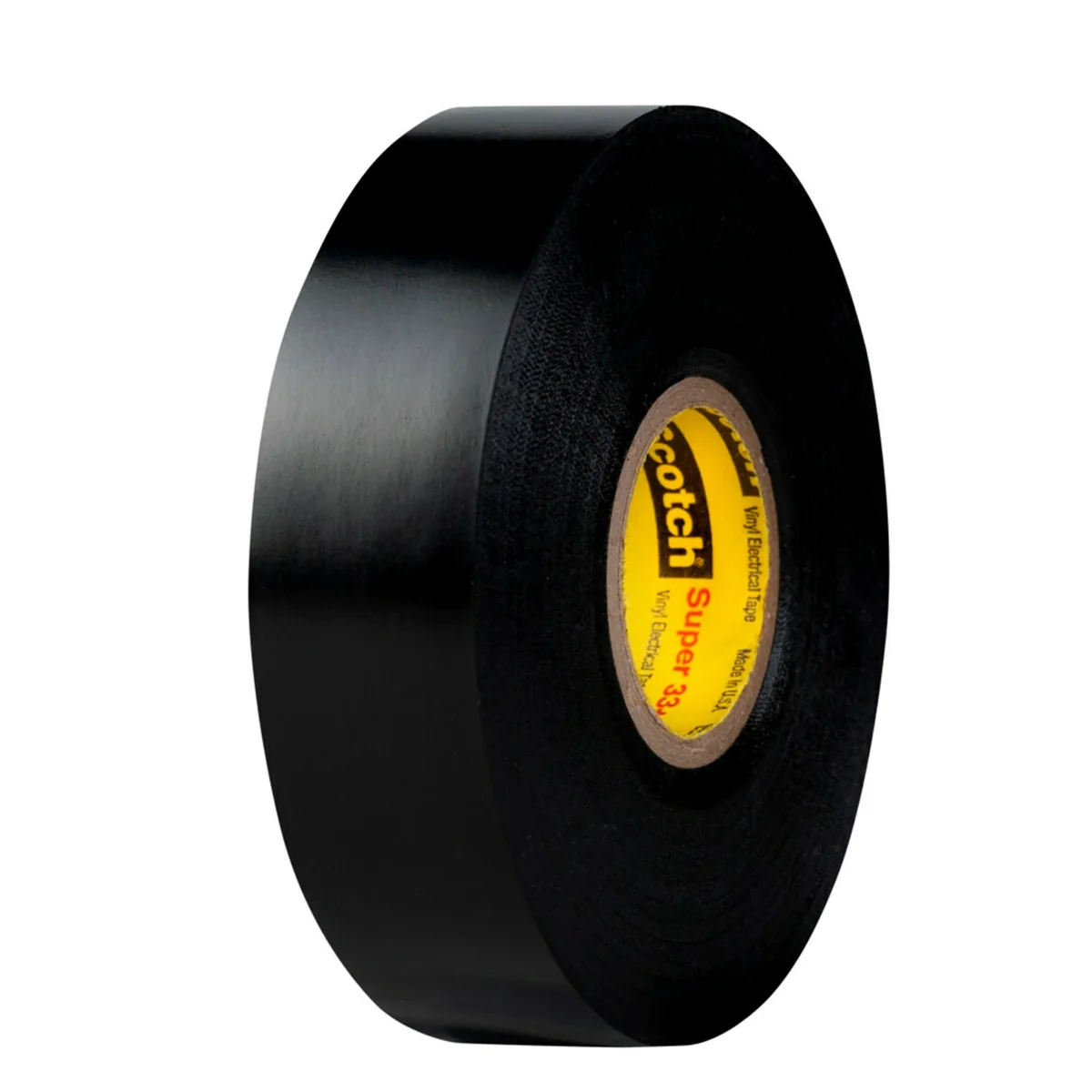

Scotch S 33+ PVC electrical insulating tape, top class, self-extinguishing. wind up to -18C, 19x20 7000042541

local index:
TMT123TRIM
Catalog No:
7000042541
EAN code:
00054007061328
Manufacturer: 3M
Thickness [mm]: 0.18
Color: Black
Material: PVC
Price:
8,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Top-class PVC tape with a thickness of 0.18 mm, very flexible and very resistant to abrasion, moisture, acids, corrosion, UV, aging and changing weather conditions. Self-extinguishing. The combination of high-quality material and strong adhesive guarantees waterproof mechanical protection and efficient electrical insulation. The tape material is characterized by high dielectric strength, thanks to which the breakdown voltage of one layer exceeds 11 kV. The tape maintains the stability of parameters in a wide range of temperatures. Can be wound at temperatures up to –18 º C. Permissible continuous working temperature is +105 º C. Thanks to its high flexibility, it fits well on uneven surfaces, it is ideal for insulating wires, conductor rails and irregularly shaped elements. Good adhesion and elasticity ensures a well-glued and wrinkle-free wrapping. Intended for use as direct insulation resistant to elevated temperatures (up to +105 º C), flexible, sealing and frost-resistant protective coating and for making wire harnesses.

Technical data

  • Thickness [mm]
    0.18
  • Material
    PVC
  • Breaking force [N/10mm]
    26
  • Elongation at break [%]
    250
  • Tensile strength [N/mm]
    15
  • Accurate color
    Black
  • Color
    Black
  • PVC
    Breaking force [N/10mm]
  • Temperature resistance up to [°C]
    105
  • Dielectric strength [kV/mm]
    65
  • Continuous working temperature [°C]
    105
  • PKWIU
    22.21.30
