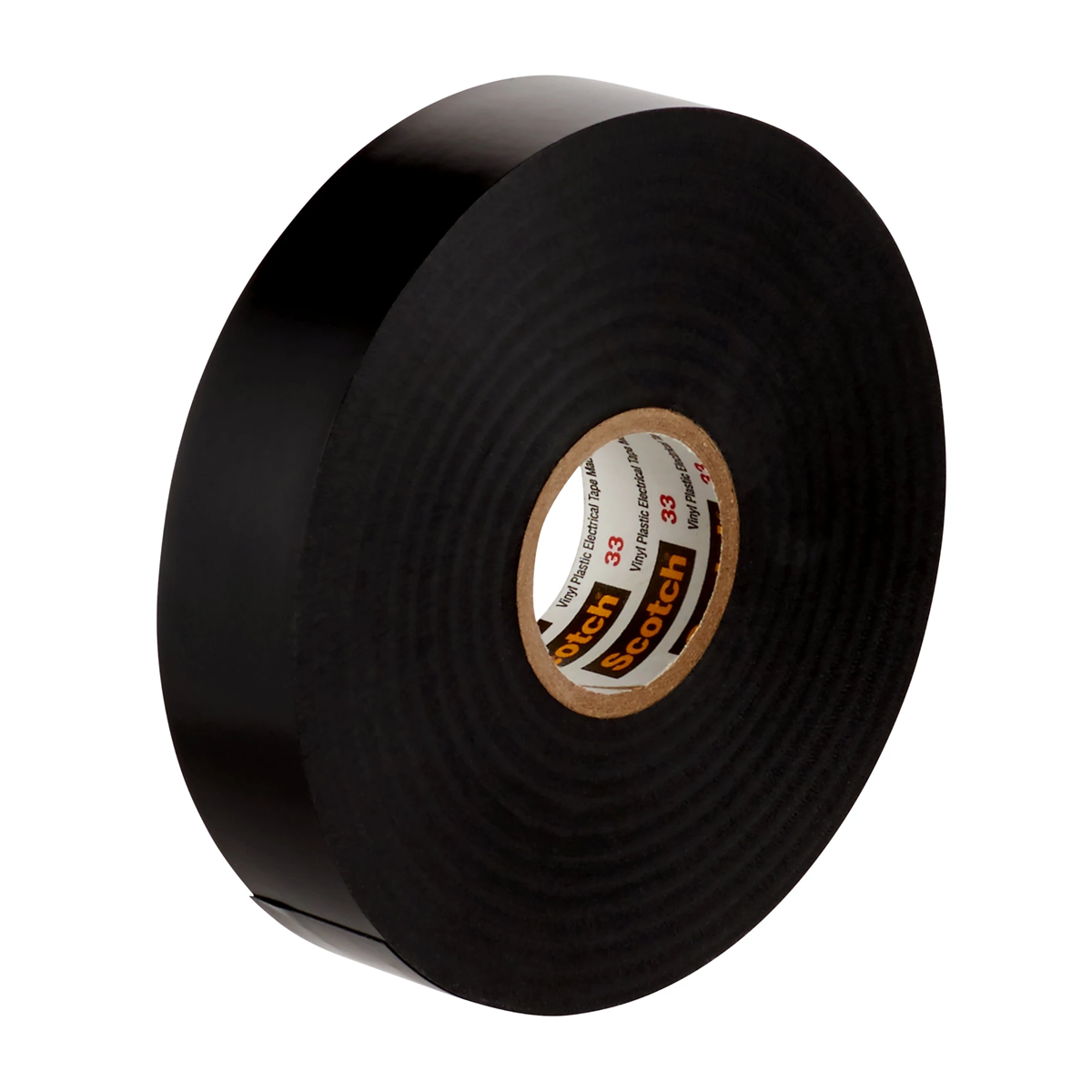

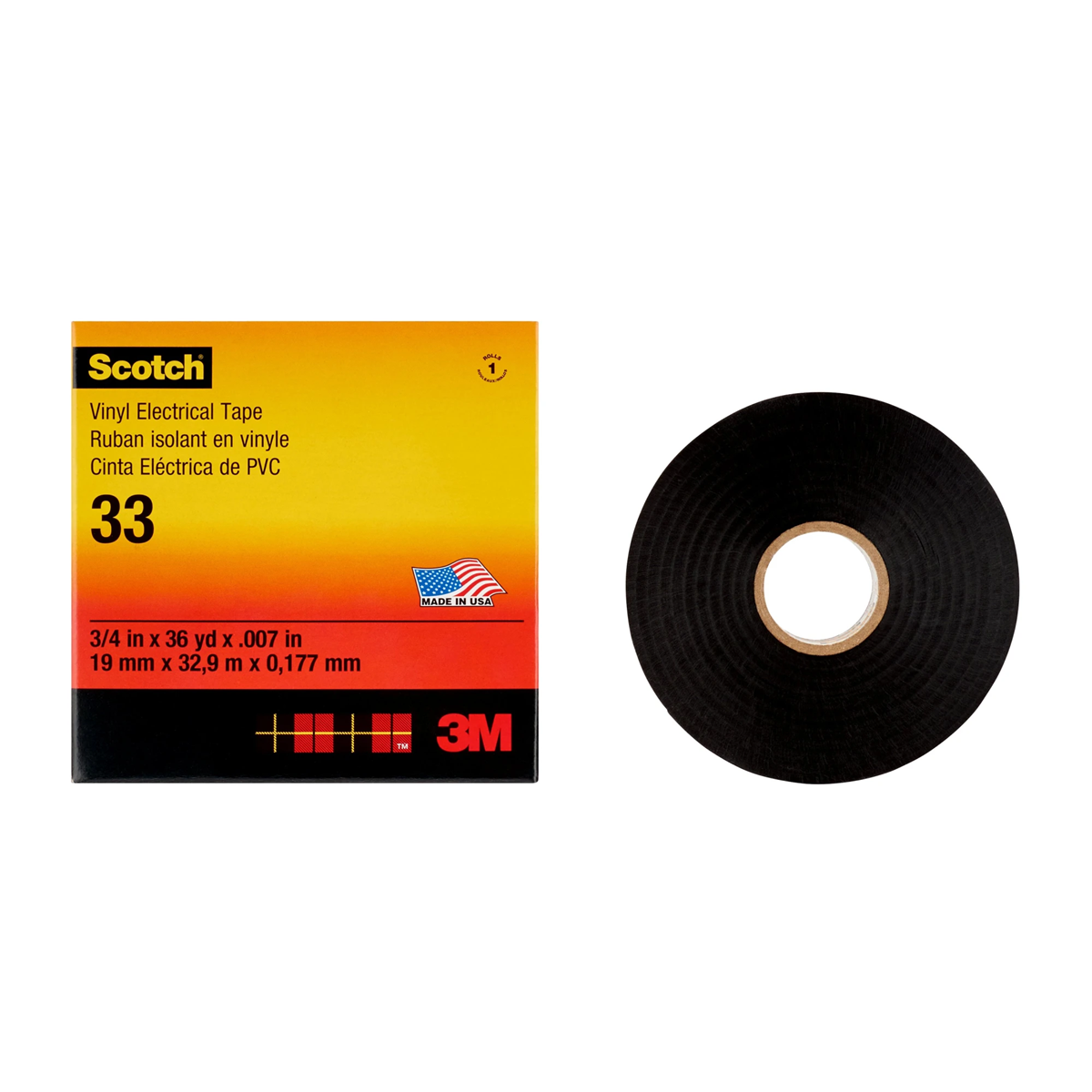

Scotch 33 PVC insulating tape ideal for outdoor use. layers. in joints and heads LV MV for plastic cable. 19x33 7000057497

local index:
TMT121TRIM
Catalog No:
7000057497
EAN code:
00054007101338
Manufacturer: 3M
Thickness [mm]: 0.18
Color: Black
Material: PVC
Price:
14,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

High-quality electrically insulating tape made of PVC, 0.18mm thick, self-extinguishing, resistant to UV, corrosion, moisture, abrasion, acids, alkalis. Used for direct insulation, especially in humid solvent vapor environments. Ideal as a protective coating for protecting cables, wires, pipes and other elements laid directly in the ground. Used for repairs of external sheaths of power cables and wires, also as an external layer in joints and tape heads for LV and MV cables.

Technical data

  • Thickness [mm]
    0.18
  • Material
    PVC
  • Breaking force [N/10mm]
    32
  • Elongation at break [%]
    150
  • Tensile strength [N/mm]
    20
  • Accurate color
    Black
  • Color
    Black
  • PVC
    Continuous working temperature [°C]
  • Temperature resistance up to [°C]
    80
  • Dielectric strength [kV/mm]
    40
  • Continuous working temperature [°C]
    80
  • PKWIU
    22.21.30
