Insulation tape - self-amalgamating Scotch 23, 19x9.15 7000007286

local index:
TMT134TRIM
Catalog No:
7000007286
EAN code:
07891040003860
Manufacturer: 3M
Thickness [mm]: 0.76
Color: Black
Material: EPR rubber
Price:
16,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

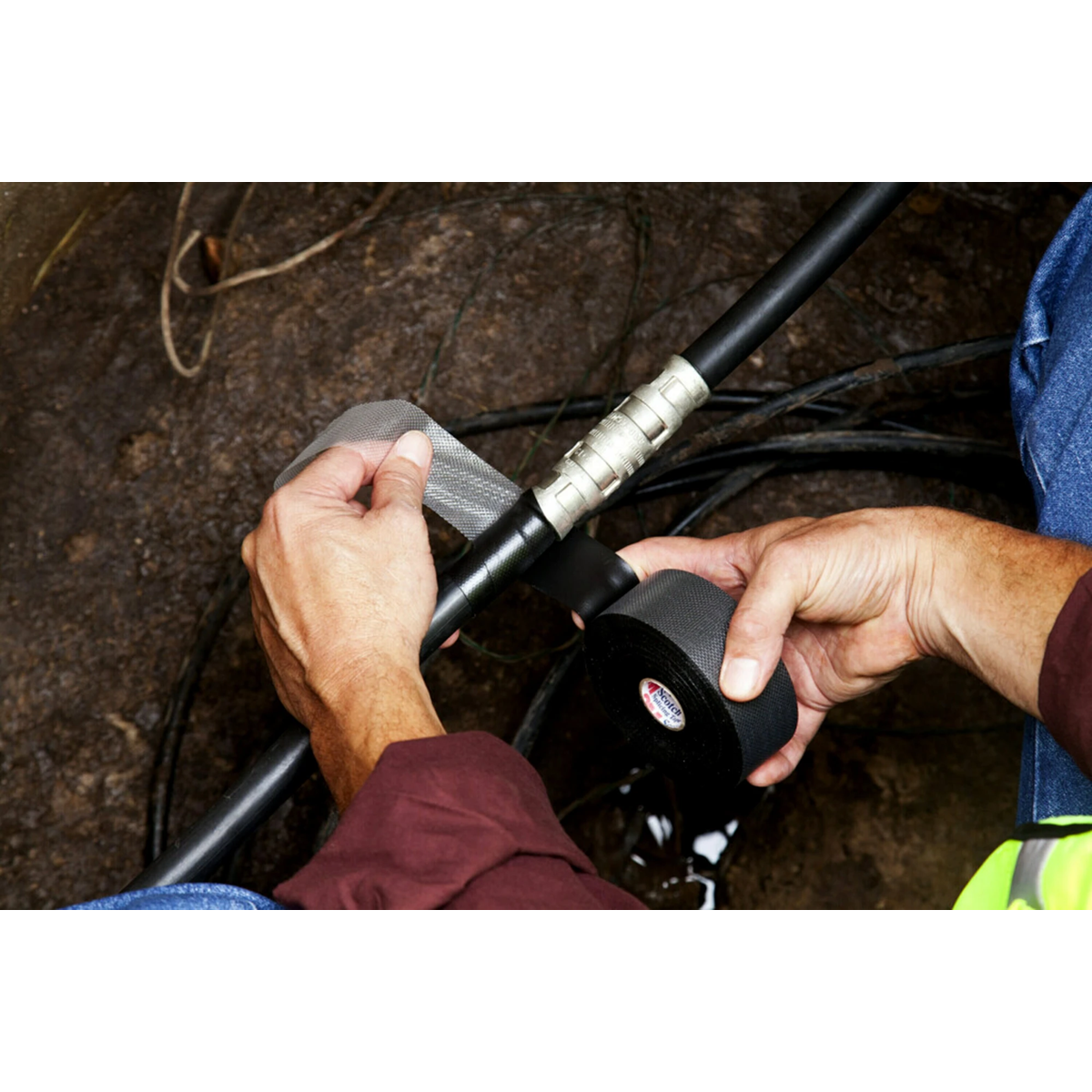

Self-amalgamating insulating tape made of ethylene-propylene rubber, 0.76 mm thick, ideal for restoring insulation in low voltage and medium voltage cables. Tape with excellent electrical properties, guaranteeing the stability of parameters such as dielectric strength, dielectric constant, loss tangent in the operating temperature range up to +90 º C with short-term overloads up to +130 º C. Resistant to moisture, aging, UV, ozone, atmospheric influences. It is characterized by very good thermal conductivity. It is vulcanized after winding with strong tension, which makes it twice as long, creating a homogeneous layer of material without air bubbles, tightly adhering to the surface. Intended for use as insulation wrapped in tape joints for LV and MV power cables with plastic insulation or for repairing cable sheaths. It can also be used for anti-corrosive protection of metal pipes as well as for sealing and protection against moisture. Does not contain glue. It can be easily removed if necessary, leaving a clean surface.

Technical data

  • Thickness [mm]
    0.76
  • Material
    EPR rubber
  • Width [mm]
    19
  • Elongation at break [%]
    1000
  • Continuous working temperature [°C]
    90
  • PKWIU
    22.19.20
  • Color
    Black
  • Breaking force [N/10mm]
    13.5
  • Temperature resistance up to [°C]
    90
  • Dielectric strength [kV/mm]
    38
  • Accurate color
    Black
