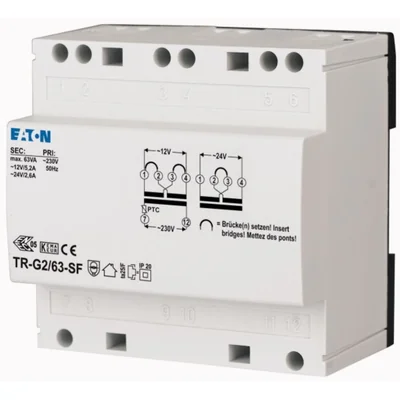

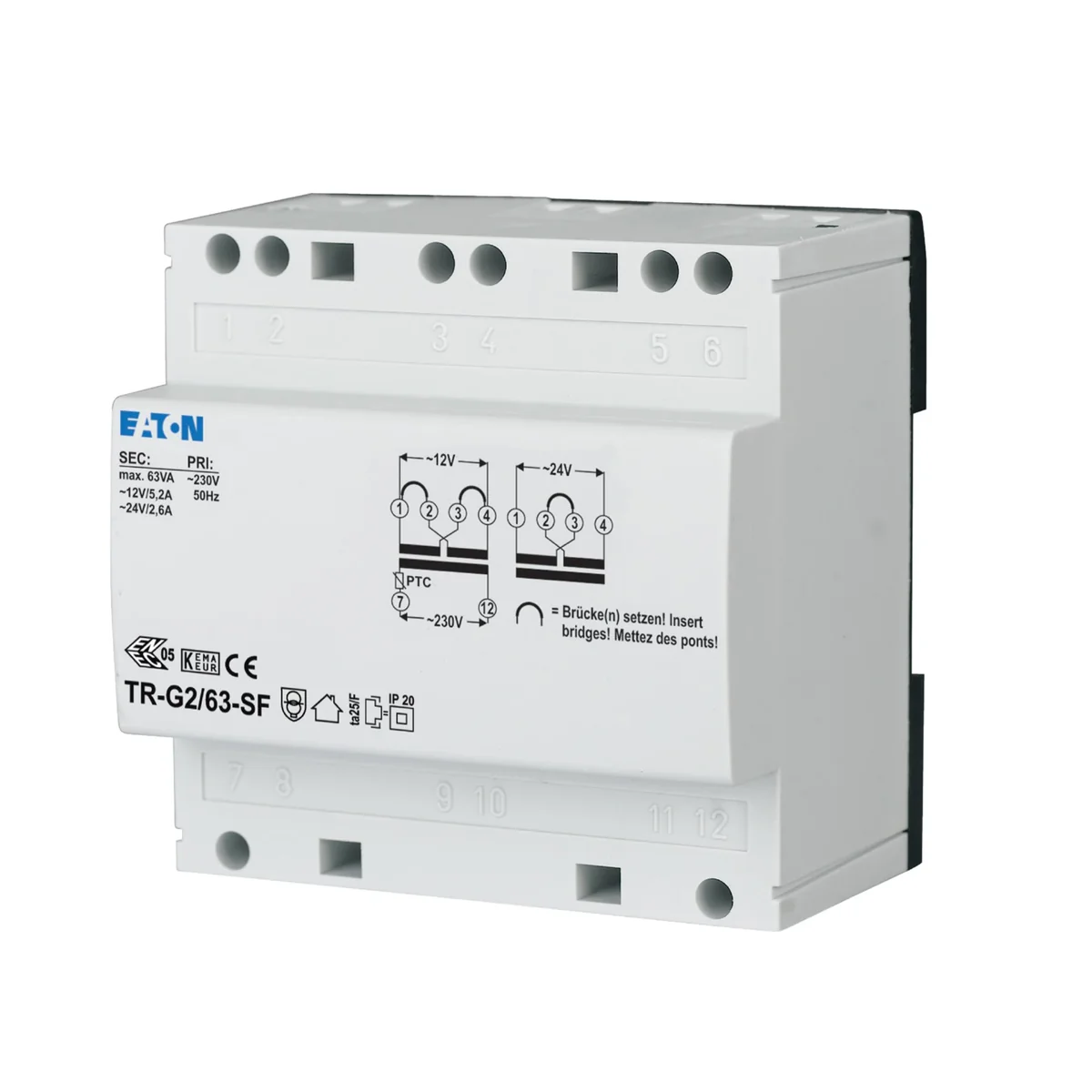

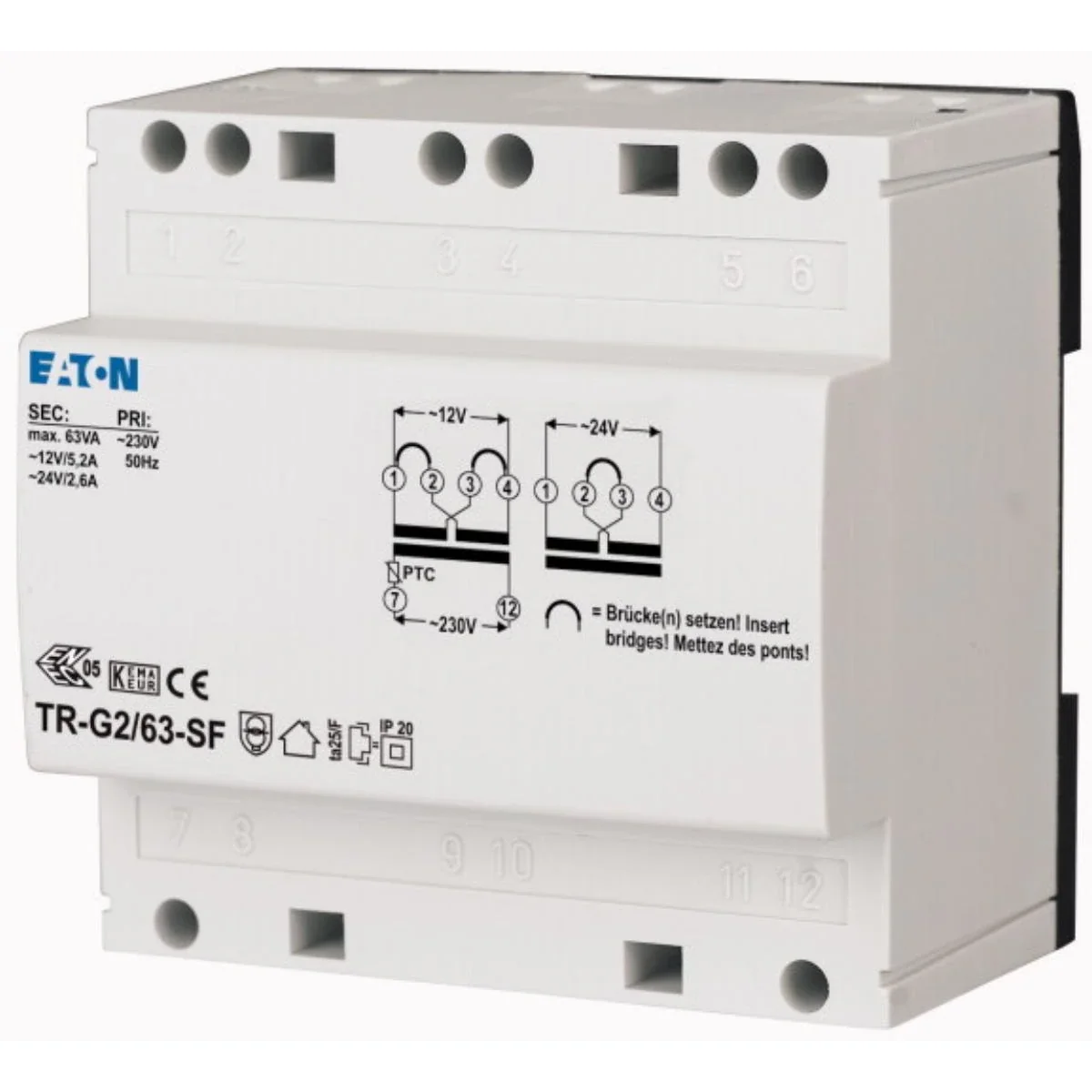

Trafo 230V, output 12-24V, 5.2-2.6A, TR-G2/63-SF 272485
local index:
AUP010MOEL
Catalog No:
272485
EAN code:
4015082724856
Price:
293,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Bell transformers 230V, TR-G.
• Type -S with transformer primary circuit breaker
• Type -S with transformer primary circuit breaker
Technical data
-
Number of modules5
-
Primary voltage [V]230
-
Output current [A]5.2-2.6
-
Power [VA]60
-
Secondary voltage [V]12
-
Output current [A]5.2-2.6
Other technical data
-
Primary voltage230 V
-
Secondary voltage 224 V
-
Secondary amperage 15.2 A
-
Secondary amperage 30 A
-
Max. output current0 A
-
Type of transformerSafety transformer
-
Do montażu podtynkowegoNo
-
Length55 mm
-
Height90 mm
-
Short-circuit protectedYes
-
With on/off switchNo
-
Secondary voltage 112 V
-
Secondary voltage 30 V
-
Secondary amperage 22.6 A
-
Max. output power0 W
-
Max. power loss0 W
-
Do montażu natynkowegoYes
-
Modular versionYes
-
Width90 mm
-
Width in number of modular spacings5
-
Temperature protectionYes
Manufacturer details
-
ManufacturerEATON ELECTRIC SP. Z O.O.
-
Address80-299 UL. GALAKTYCZNA 30
-
E-mail
-
Tax identification number5841022327
Bulk packaging
| A kind of package | Skrzynia | Karton | Skrzynia | Karton |
| Quantity | 1 pcs. | 12 pcs. | 1 pcs. | 12 pcs. |
| Weight (kg) | 1,316 | 15,792 | 1,316 | 15,792 |
| Volume (m3) | 0,001 | 0,009 | 0,001 | 0,009 |
| Width (m) | 0,095 | 0,195 | 0,095 | 0,195 |
| Length (m) | 0,095 | 0,295 | 0,095 | 0,295 |
| Depth (m) | 0,070 | 0,150 | 0,070 | 0,150 |
