BREVE

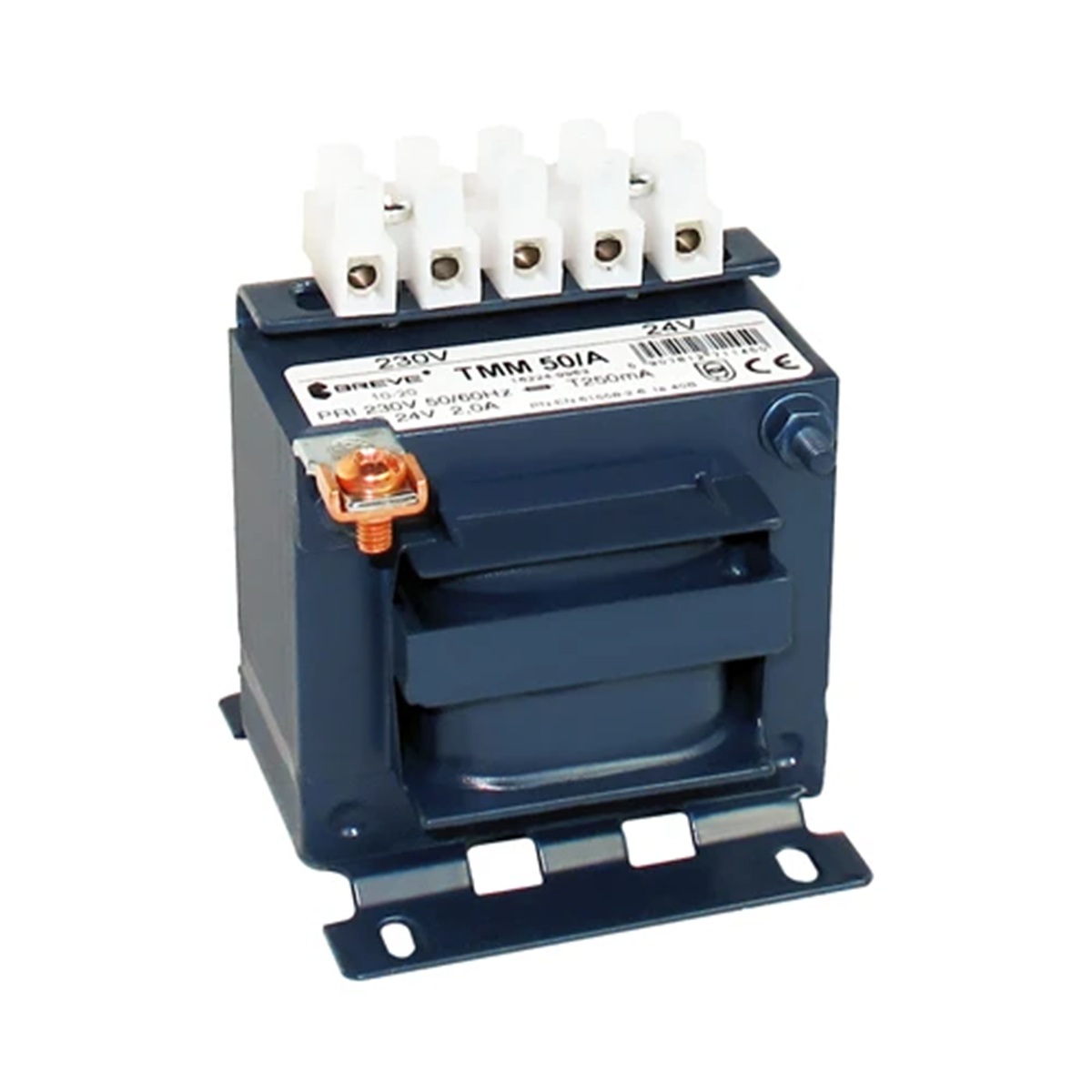

Single-phase transformer TMM 50/A 230/ 24V 16224-9963

local index:
AUP002BREV
Catalog No:
16224-9963
EAN code:
5907812711450
Price:
29,98 €
gross / pcs.
including VAT 23%
Availability:
Check availability in branches
In warehouses 12 pcs.
Delivery:
From 3,45 € (prepaid courier) Details
Estimated delivery time:
DHL, Inpost 1-3 working days

Delivery in 3h

Pickup in 1h

Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Single-phase open (IP00) isolation or safety transformers, intended for general use and built-in in industrial or
electric power installations and devices.
I insulation class and IP00 protection, max. ambient temperature 40°C.
Made according to EN 61558-2-4, EN 61558-2-6.

Technical data

  • Length [mm]
    66
  • Maximum ambient temperature [°C]
    40
  • Primary voltage [V]
    230
  • Mounting method
    For screws
  • Width [mm]
    66
  • Primary winding [V]
    230
  • Mounting thread
    M4
  • Depth [mm]
    85
  • Power [VA]
    50
  • Secondary voltage [V]
    24
  • Level of security
    IP00
  • Height [mm]
    65
  • Secondary winding [V]
    24

Other technical data

  • Built as safety transformer
    yes
  • Built as energy saving transformer
    no
  • Secondary voltage 1
    24 ... - V
  • Type of insulation material according to IEC 85
    B
  • Width
    66 mm
  • Depth
    85 mm
  • Ring core
    no
  • Modular version
    no
  • Built as isolating transformer
    no
  • Primary voltage 1
    230 ... - V
  • Rated apparent power
    50 VA
  • Short-circuit-proof
    no
  • Height
    65 mm
  • Degree of protection (IP)
    IP00
  • Suitable for mounting on PCB
    no

Catalog cards, diagrams, certificates

See other products in the category: Safety and separation transformers
