Single-phase transformer TMM 160/A 230/24V 16224-9974

Name: Single-phase transformer TMM 160/A 230/24V
Brand: BREVE
SKU: AUP011BREV
Price: 39.04 PLN

local index:

AUP011BREV

Catalog No:

16224-9974

EAN code:

5907812711498

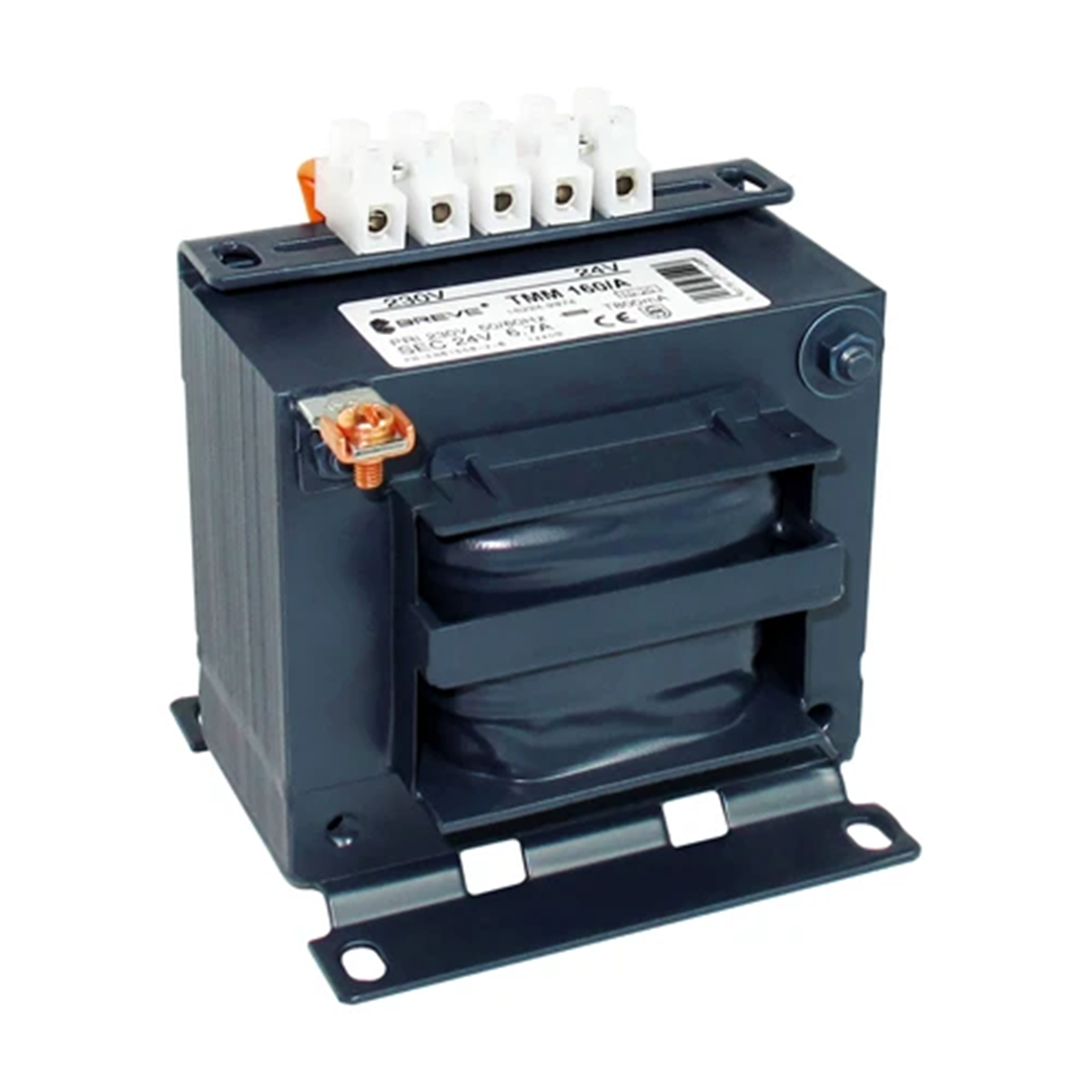

Single-phase transformer TMM 160/A 230/24V

Click on the photo to enlarge

Manufacturer: BREVE

Length [mm]: 96

number of phases: 1

Maximum ambient temperature [°C]: 40

See full description

Price:

39,04 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to a week (working days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Single-phase open (IP00) isolation or safety transformers, intended for general use and built-in in industrial or
electric power installations and devices.
I insulation class and IP00 protection, max. ambient temperature 40°C.
Made according to EN 61558-2-4, EN 61558-2-6.

Technical data

Length [mm]

96
Maximum ambient temperature [°C]

40
Primary voltage [V]

230
Mounting method

For screws
Width [mm]

86
Weight [kg]

2.6
Mounting thread

M4
Secondary current [A]

6.7
PKWIU

27.11.42.0

number of phases

1
Power [VA]

160
Secondary voltage [V]

24
Level of security

IP00
ambient temperature [°C]

40
Height [mm]

115
Insulation class

b
No-load voltage [V]

25.6

Other technical data

Built as safety transformer

Yes
Built as energy saving transformer

No
Secondary voltage 1

24 ... - V
Type of insulation material according to IEC 85

B
Width

96 mm
Depth

115 mm
Ring core

No
Modular version

No

Built as isolating transformer

No
Primary voltage 1

230 ... - V
Rated apparent power

160 VA
Short-circuit-proof

No
Height

86 mm
Degree of protection (IP)

IP00
Suitable for mounting on PCB

No

Manufacturer details

Manufacturer

BREVE-TUFVASSONS Sp. z o.o.
Address

93-347 Łódź Postępowa 25/27 Polska
E-mail

handel@breve.pl

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	8 pcs.
Weight (kg)	2,600	-	21,400
Width (m)	0,096	0,110	0,380
Length (m)	0,115	0,115	0,127
Depth (m)	0,086	0,095	0,233
