Single-phase transformer PVS 50/A 230/24V 16024-9996

Name: Single-phase transformer PVS 50/A 230/24V
Brand: BREVE
SKU: AUP330BREV
Price: 177.67 PLN
Availability: BackOrder

local index:

AUP330BREV

Catalog number:

16024-9996

EAN code:

5907812710804

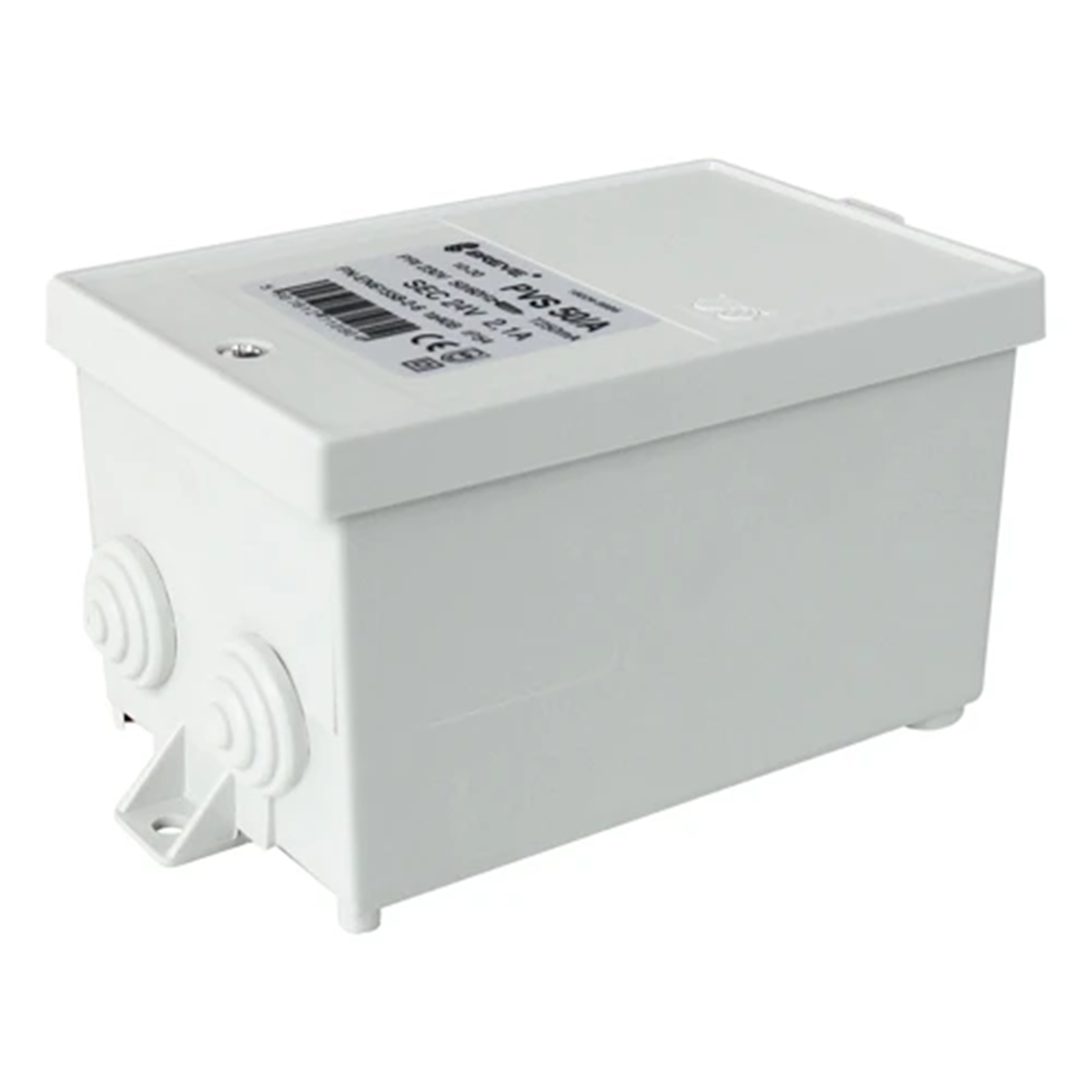

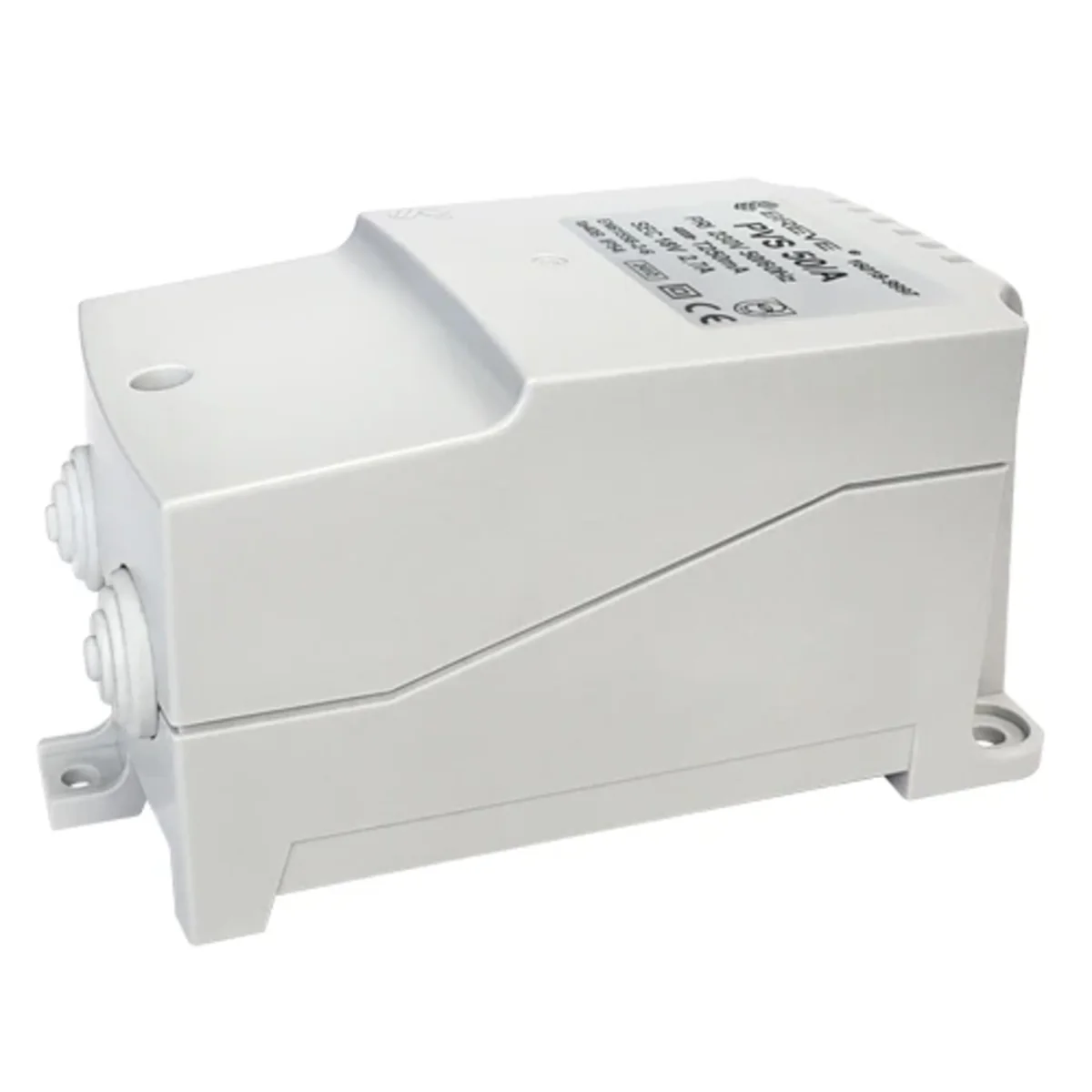

Single-phase transformer PVS 50/A 230/24V

Click on the photo to enlarge

Manufacturer: BREVE

Length [mm]: 77

Depth [mm]: 71

Protection class: 130

See full description

Price:

177,67 zł

gross / pcs.

(including VAT 23%)

up to 2 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Enclosed, portable, separation or safety transformers intended mainly for applications requiring protection against electric shock and a high degree of IP protection. PVS is a stationary, free-standing or wall-mounted version. Made in class II insulation and protection degree IP54, max. ambient temperature 40°C, insulation thermal class B (130°C). Manufactured in accordance with EN 61558-2-4, EN 61558-2-6.

Technical data

Length [mm]

77
Protection class

130
Power [VA]

50
Secondary voltage [V]

24
Level of security

IP54
Height [mm]

77
Secondary winding [V]

24
PKWIU

27.11.42.0

Depth [mm]

71
Maximum ambient temperature [°C]

40
Primary voltage [V]

230
Mounting method

For screws
Width [mm]

138
Primary winding [V]

230
Mounting thread

M4

Other technical data

Built as safety transformer

Yes
Built as energy saving transformer

No
Secondary voltage 1

24 ... - V
Type of insulation material according to IEC 85

B
Width

77 mm
Depth

71 mm
Ring core

No
Modular version

No

Built as isolating transformer

No
Primary voltage 1

230 ... - V
Rated apparent power

50 VA
Short-circuit-proof

Yes
Height

138 mm
Degree of protection (IP)

IP54
Suitable for mounting on PCB

No

Manufacturer details

Manufacturer

BREVE-TUFVASSONS Sp. z o.o.
Address

93-347 Łódź Postępowa 25/27 Polska
E-mail

handel@breve.pl

Bulk packaging

A kind of package	NE	Paczka	Karton
Quantity	1 pcs.	1 pcs.	6 pcs.
Weight (kg)	1,200	-	7,400
Width (m)	0,077	0,155	-
Length (m)	0,071	0,080	-
Depth (m)	0,138	0,085	-
