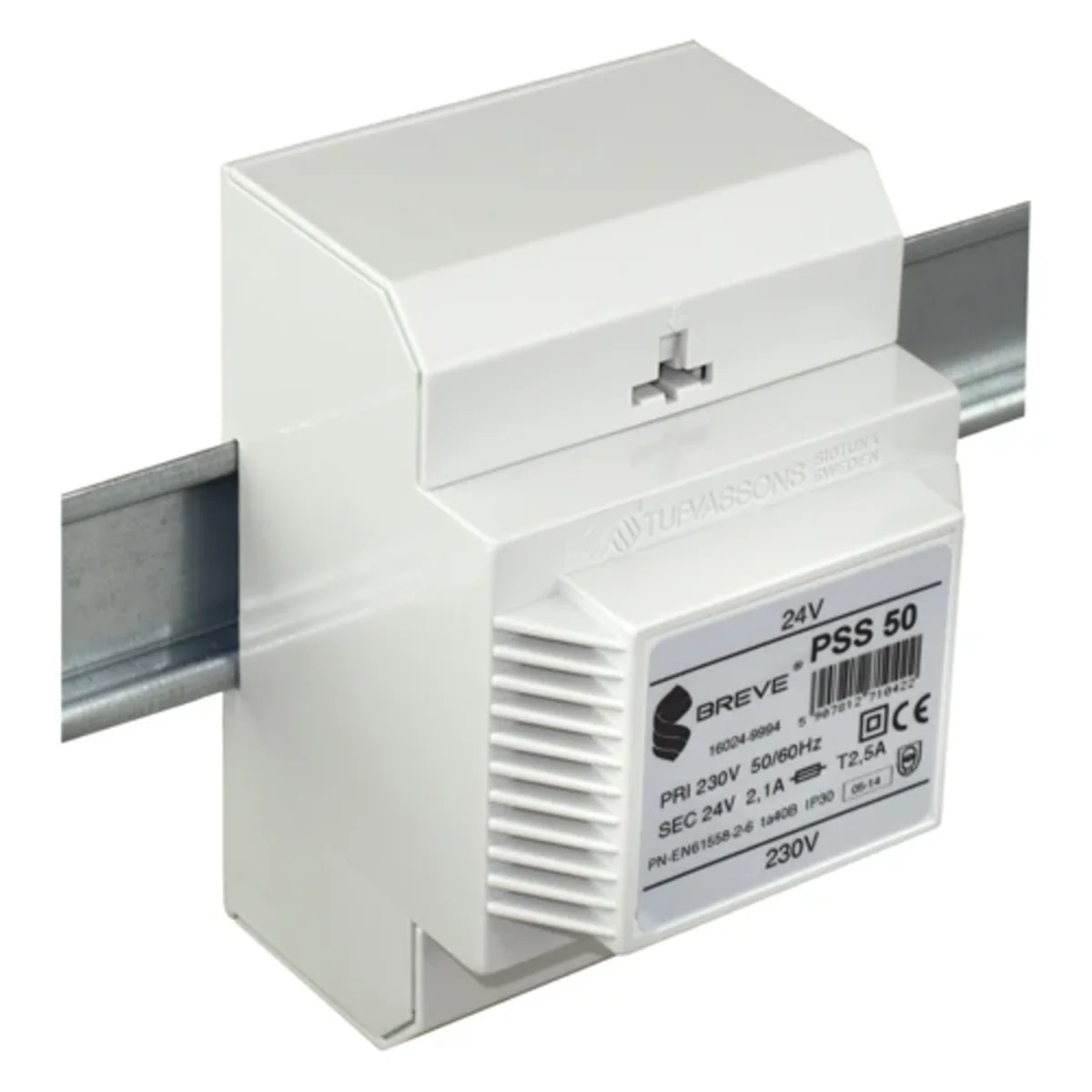

Single-phase transformer PSS 50 230/ 24V 16024-9994

local index:
AUP309BREV
Catalog No:
16024-9994
EAN code:
5907812710422
Manufacturer: BREVE
Depth [mm]: 72
Maximum ambient temperature [°C]: 40
Power [VA]: 50
Price:
50,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 12 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Enclosed, safety or separation transformers, intended mainly for mounting on a T-35 rail.
Aesthetic housing with a spring-loaded handle significantly facilitates and speeds up mounting.
These are made in class II insulation and IP20 protection level (models with N series) or IP30, max. ambient temperature 40°C, insulation thermal class B (130°C).
Made according to EN 61558-2-4, EN 61558-2-6.

Technical data

  • Depth [mm]
    72
  • Power [VA]
    50
  • Primary voltage [V]
    230
  • Mounting method
    For screws
  • Width [mm]
    110
  • Primary winding [V]
    230
  • Mounting thread
    M4
  • Maximum ambient temperature [°C]
    40
  • Installation
    On the TH-47 rail
  • Secondary voltage [V]
    24
  • Level of security
    IP30
  • Height [mm]
    72
  • Secondary winding [V]
    24
  • PKWIU
    27.11.42.0

Other technical data

  • Built as safety transformer
    Yes
  • Built as energy saving transformer
    No
  • Secondary voltage 1
    24 ... - V
  • Type of insulation material according to IEC 85
    B
  • Width
    72 mm
  • Depth
    72 mm
  • Ring core
    No
  • Modular version
    Yes
  • Built as isolating transformer
    No
  • Primary voltage 1
    230 ... - V
  • Rated apparent power
    50 VA
  • Short-circuit-proof
    Yes
  • Height
    110 mm
  • Degree of protection (IP)
    IP30
  • Suitable for mounting on PCB
    No
