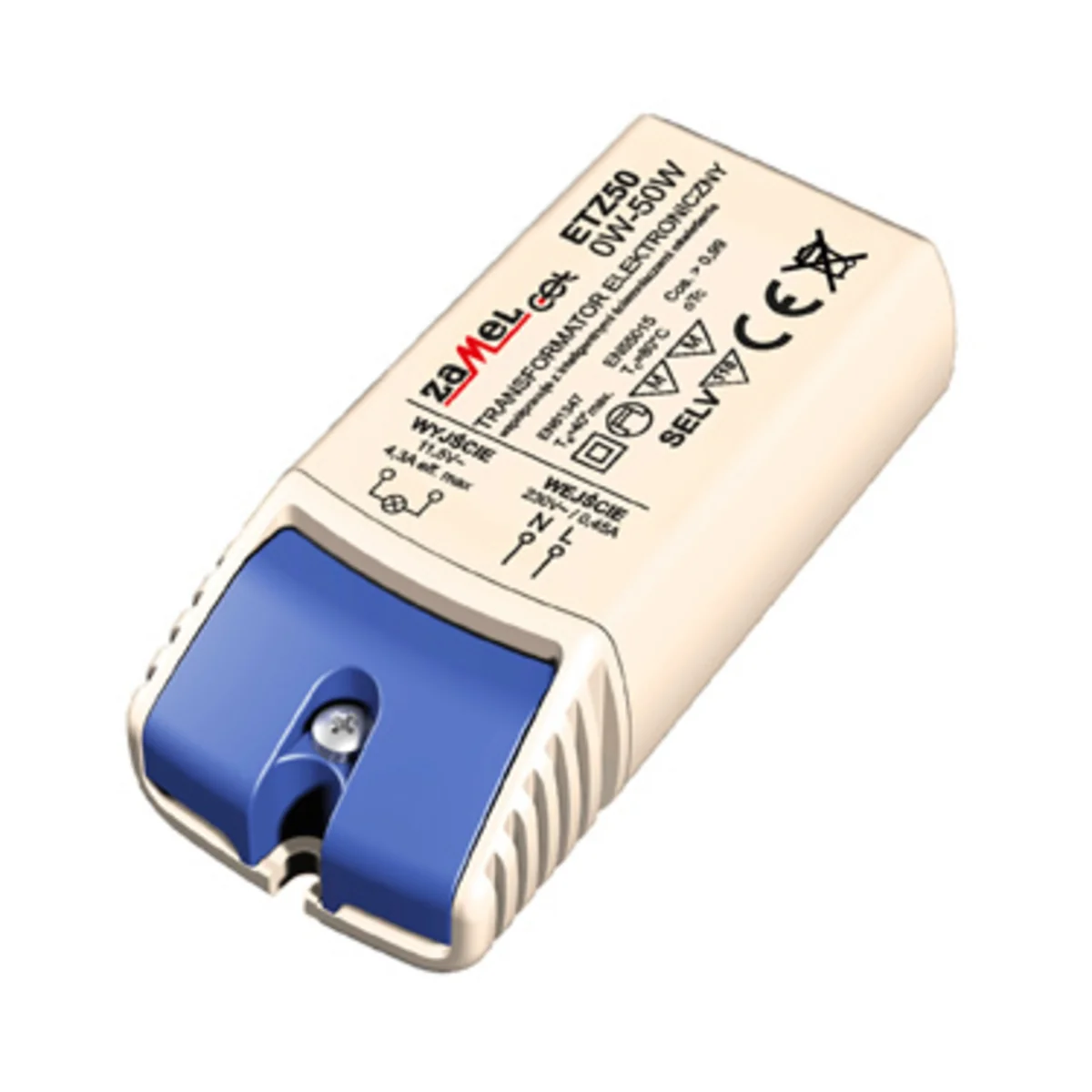

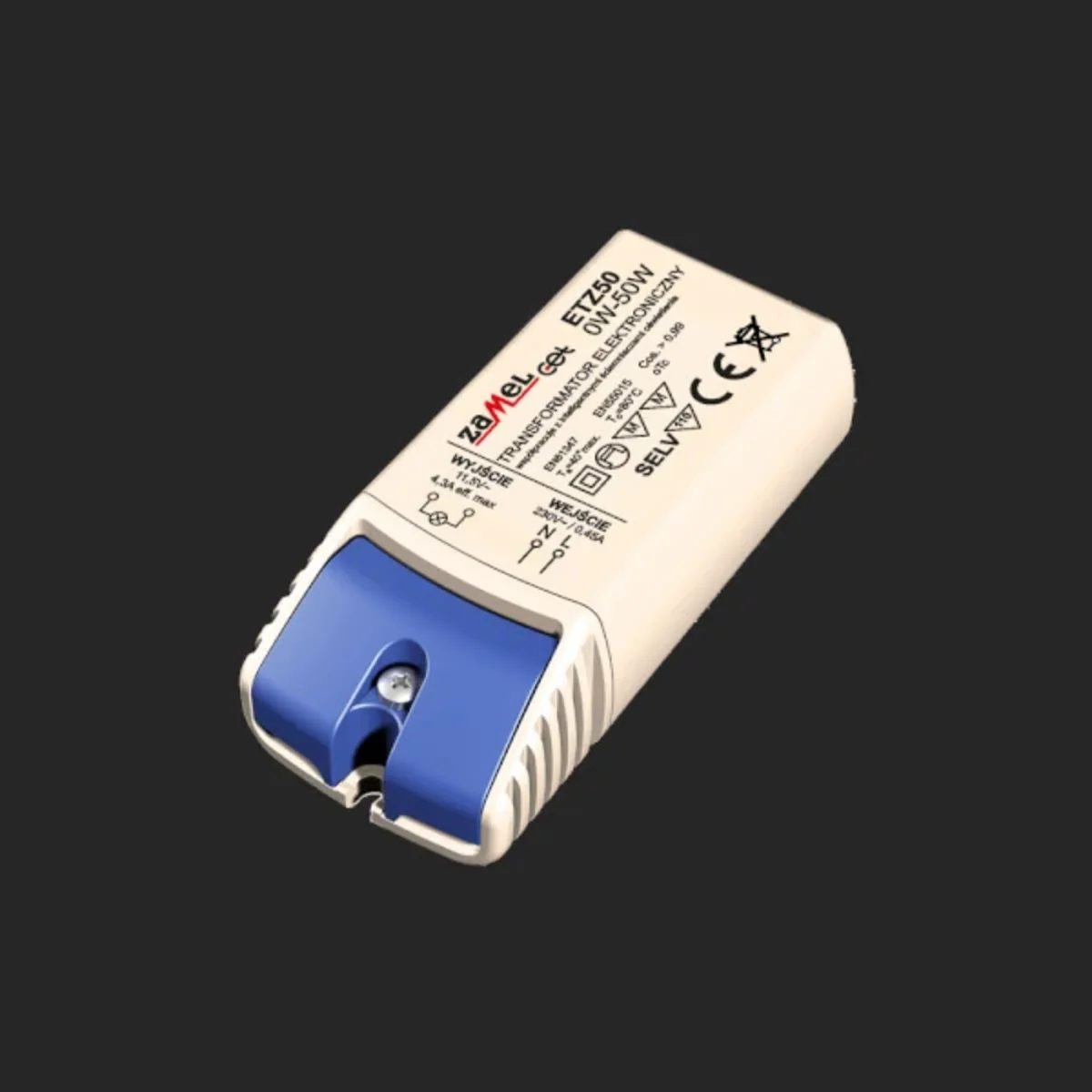

Electronic transformer 230/11.5V 0-50W LDX10000041-WPL

Index local:
AUL005ZAME
Numéro de catalogue:
LDX10000041-WPL
Code EAN:
5903669027041
Producteur: ZAMEL
Rated frequency [Hz]: 50/60
Protection class: II
Output power [W]: 50
Prix:
63,17 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

The ETZ50 transformer with an output power of 50W is designed to work with halogen light sources powered by 12V AC. A characteristic feature of the transformer is the ability to power very small loads from 0 W. The device has a number of protections (short-circuit, overload, thermal) and patented solutions that increase the life of halogen bulbs cooperating with transformers, and improve the safety of the devices themselves. ETZ50 is designed for surface mounting. The connection is made using screw connections. The transformer can work with intelligent types of lighting dimmers.

Données techniques

  • Rated frequency [Hz]
    50/60
  • Output power [W]
    50
  • Rated voltage [V]
    230
  • Level of security
    IP20
  • Rated output current [A]
    4.3
  • Protection class
    II
  • Installation
    Surface-mounted
  • Output voltage [V]
    11.5
  • Rated input current [A]
    0.22
  • PKWIU
    27.11.42.0

Détails du fabricant

  • Producteur
    ZAMEL SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Adresse
    43-200 UL. ZIELONA 27
  • Numéro identifiant TVA
    6380000669
