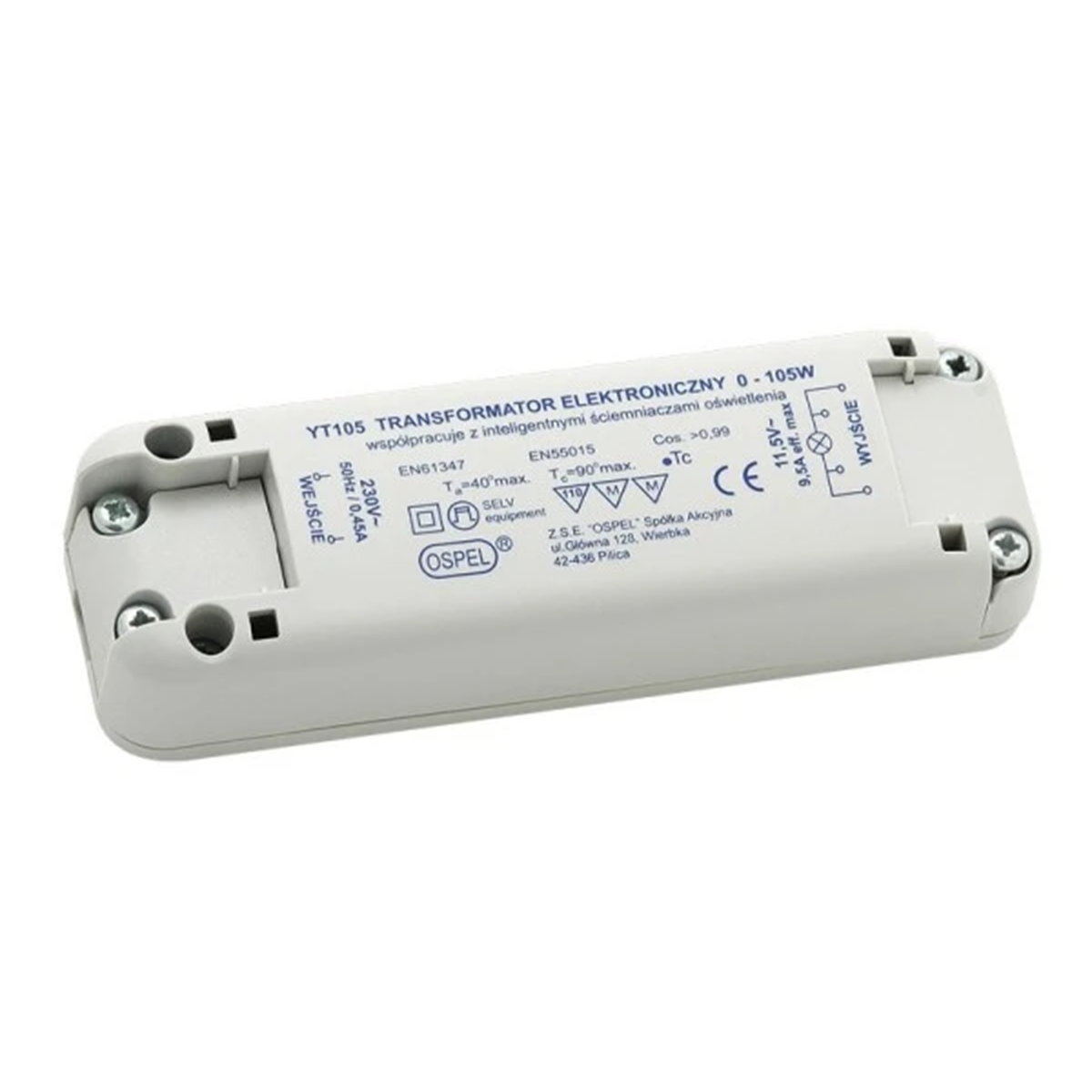

Electronic transformer 0.45A, 0-105W, 11.5V YT105

Indeks lokalny:
AUL007OSPE
Nr katalogowy:
YT105
Kod EAN:
5906160700024
Producent: OSPEL
Maximum input voltage [V]: 230
Rated voltage [V]: 230
Level of security: IP40
Cena:
29,10 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

For supplying 12V halogen and LED bulbs with a total power not exceeding.
Transformer:

  • Cooperates with lighting dimmers.
  • Has built-in returnable protections: short-circuit protection,
  • Overload protection, overvoltage protection, thermal protection.
  • Works in the entire load range, from "0" to nominal.

Output voltage is reduced to 11.5V to extend lamp life.

Dane techniczne

  • Maximum input voltage [V]
    230
  • Level of security
    IP40
  • Rated output voltage [V]
    11.5
  • Rated output current [A]
    9.5
  • Rated voltage [V]
    230
  • Power range [W]
    0-105
  • Rated input current [A]
    0.45
  • PKWIU
    27.11.50.0

Pozostałe dane techniczne

  • Type of transformer
    Toroidal core transformer
  • Input voltage
    230 ... 230 V
  • Power
    0 ... 60 W
  • Connection type secondary side
    Screw connection
  • Built-in
    Yes
  • Colour
    Grey
  • Short-circuit protected
    No
  • Overtemperature protection
    Yes
  • Number of output positions (pairs)
    2
  • Width
    53 mm
  • Diameter
    0 mm
  • Safety transformer
    No
  • Output voltage
    0 ... 11.5 V
  • Connection type primary side
    Screw connection
  • Surface-mounted
    Yes
  • Housing material
    Plastic
  • Dimmable
    No
  • Overload protection
    No
  • With secondary automatic circuit breaker
    No
  • Length
    173 mm
  • Height
    38 mm
