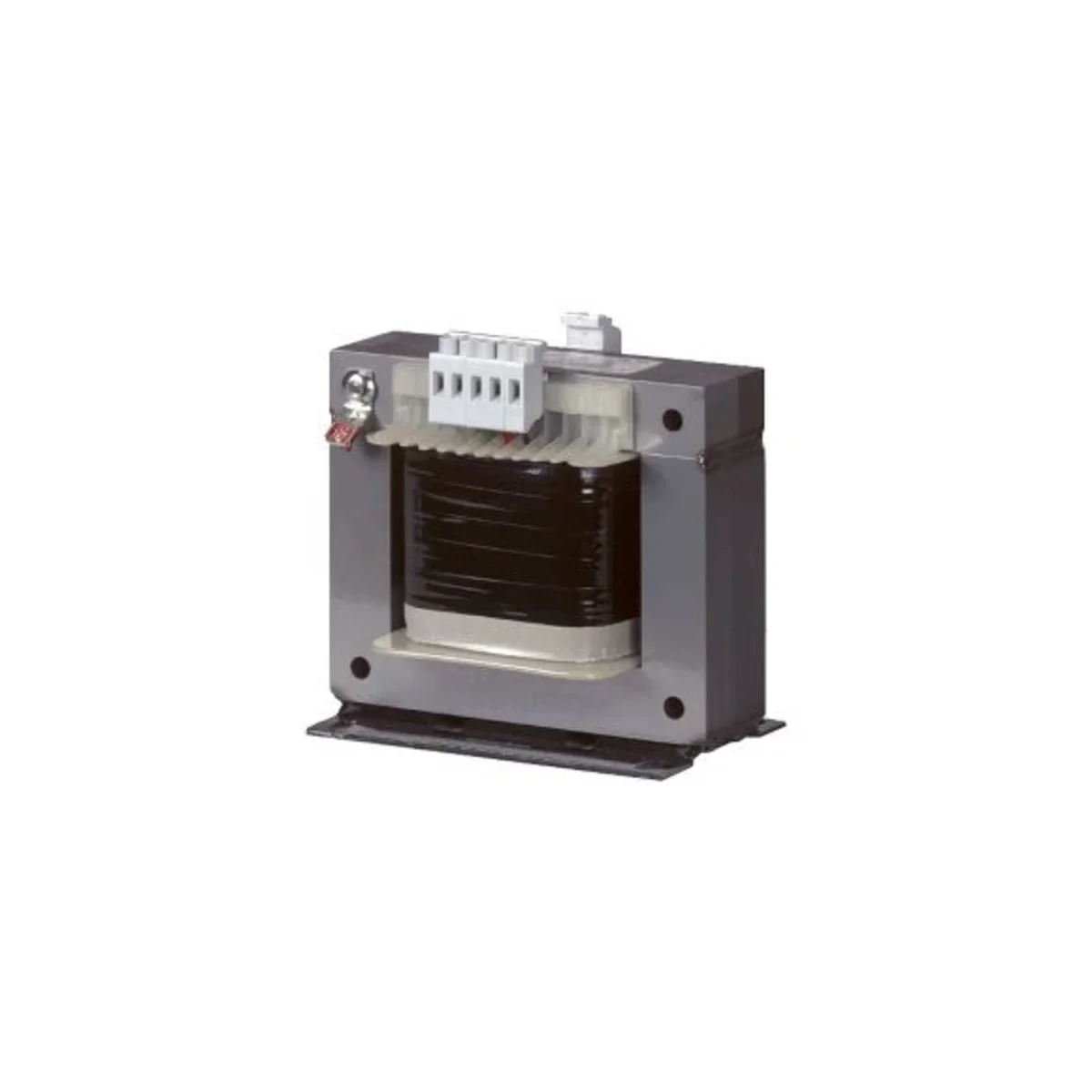

Control transformer, 250VA, STI0, 25(400/230) 046638

local index:
AUP023MOEL
Catalog No:
046638
EAN code:
4015080466383
Manufacturer: EATON
Power [VA]: 1000
Short-time power [kVA]: 2.8
Power [kVA]: 1
Price:
218,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-phase control, isolation and safety transformers with preferred voltage IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers ). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.

Technical data

  • Power [VA]
    1000
  • Power [kVA]
    1
  • Secondary voltage [V]
    230
  • Short-time power [kVA]
    2.8
  • Primary voltage [V]
    400
  • Rated voltage [V]
    230

Other technical data

  • Built as safety transformer
    Yes
  • Built as energy saving transformer
    No
  • Primary voltage 2
    0 ... 0 V
  • Primary voltage 4
    0 ... 0 V
  • Primary voltage 6
    0 ... 0 V
  • Primary voltage 8
    0 ... 0 V
  • Primary voltage 10
    0 ... 0 V
  • Secondary voltage 2
    0 ... 0 V
  • Secondary voltage 4
    0 ... 0 V
  • Secondary voltage 6
    0 ... 0 V
  • Secondary voltage 8
    0 ... 0 V
  • Secondary voltage 10
    0 ... 0 V
  • Type of insulation material according to IEC 85
    B
  • Relative short circuit voltage
    5.1 %
  • Height
    112 mm
  • Degree of protection (IP)
    IP00
  • Suitable for mounting on PCB
    No
  • Conductor material
    Copper
  • Built as isolating transformer
    Yes
  • Primary voltage 1
    400 ... 400 V
  • Primary voltage 3
    0 ... 0 V
  • Primary voltage 5
    0 ... 0 V
  • Primary voltage 7
    0 ... 0 V
  • Primary voltage 9
    0 ... 0 V
  • Secondary voltage 1
    230 ... 230 V
  • Secondary voltage 3
    0 ... 0 V
  • Secondary voltage 5
    0 ... 0 V
  • Secondary voltage 7
    0 ... 0 V
  • Secondary voltage 9
    0 ... 0 V
  • Rated apparent power
    200 VA
  • Short-circuit-proof
    No
  • Width
    106 mm
  • Depth
    91 mm
  • Ring core
    No
  • Modular version
    No

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 3,713
Volume (m3) 0,003
Width (m) 0,169
Length (m) 0,134
Depth (m) 0,148
