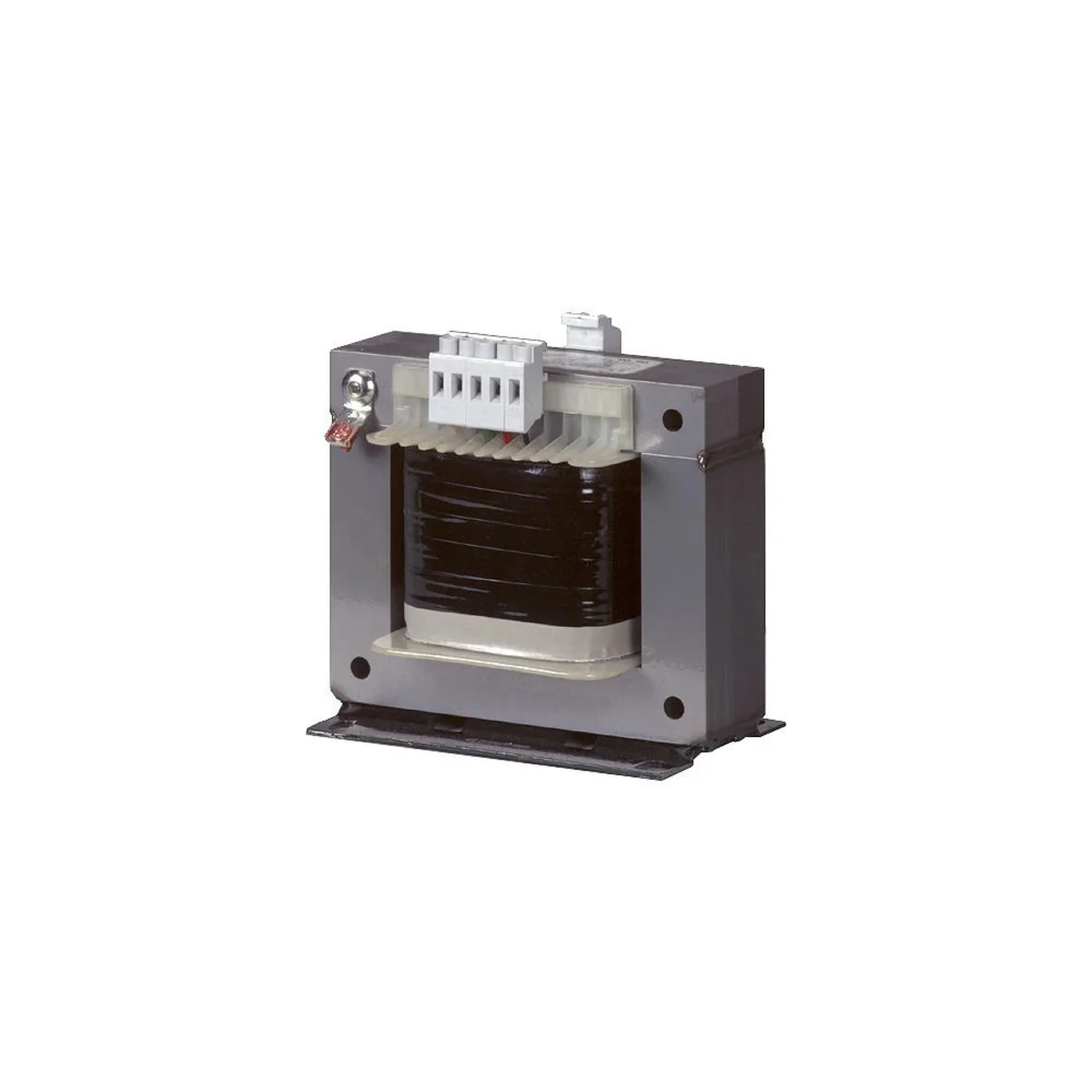

Control transformer, 160VA, STI0.16(230/24) 046632
local index:
AUP011MOEL
Catalog No:
046632
EAN code:
4015080466321
Price:
185,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-phase control, isolation and safety transformers with preferred voltage IEC/EN 61558-2-2/2-4/2-6 VDE 0570 part 2-2, part 2-6 (safety transformers), part 2-4 (isolation transformers ). Rated input voltage 230 ±5%V, 400 ±5%V. Rated output voltage 24 V, 230 V.
Technical data
-
Power [VA]160
-
Power [kVA]0.16
-
Secondary voltage [V]24
-
Short-time power [kVA]0.36
-
Primary voltage [V]230
-
Rated voltage [V]230
Other technical data
-
Built as safety transformerYes
-
Built as energy saving transformerNo
-
Primary voltage 20 ... 0 V
-
Primary voltage 40 ... 0 V
-
Primary voltage 60 ... 0 V
-
Primary voltage 80 ... 0 V
-
Primary voltage 100 ... 0 V
-
Secondary voltage 20 ... 0 V
-
Secondary voltage 40 ... 0 V
-
Secondary voltage 60 ... 0 V
-
Secondary voltage 80 ... 0 V
-
Secondary voltage 100 ... 0 V
-
Type of insulation material according to IEC 85B
-
Relative short circuit voltage6.6 %
-
Height91 mm
-
Degree of protection (IP)IP00
-
Suitable for mounting on PCBNo
-
Conductor materialCopper
-
Built as isolating transformerYes
-
Primary voltage 1230 ... 230 V
-
Primary voltage 30 ... 0 V
-
Primary voltage 50 ... 0 V
-
Primary voltage 70 ... 0 V
-
Primary voltage 90 ... 0 V
-
Secondary voltage 124 ... 24 V
-
Secondary voltage 30 ... 0 V
-
Secondary voltage 50 ... 0 V
-
Secondary voltage 70 ... 0 V
-
Secondary voltage 90 ... 0 V
-
Rated apparent power160 VA
-
Short-circuit-proofNo
-
Width85 mm
-
Depth97 mm
-
Ring coreNo
-
Modular versionNo
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 2,459 | 2,609 |
| Volume (m3) | 0,001 | 0,003 |
| Width (m) | 0,085 | 0,145 |
| Length (m) | 0,097 | 0,140 |
| Depth (m) | 0,091 | 0,130 |
