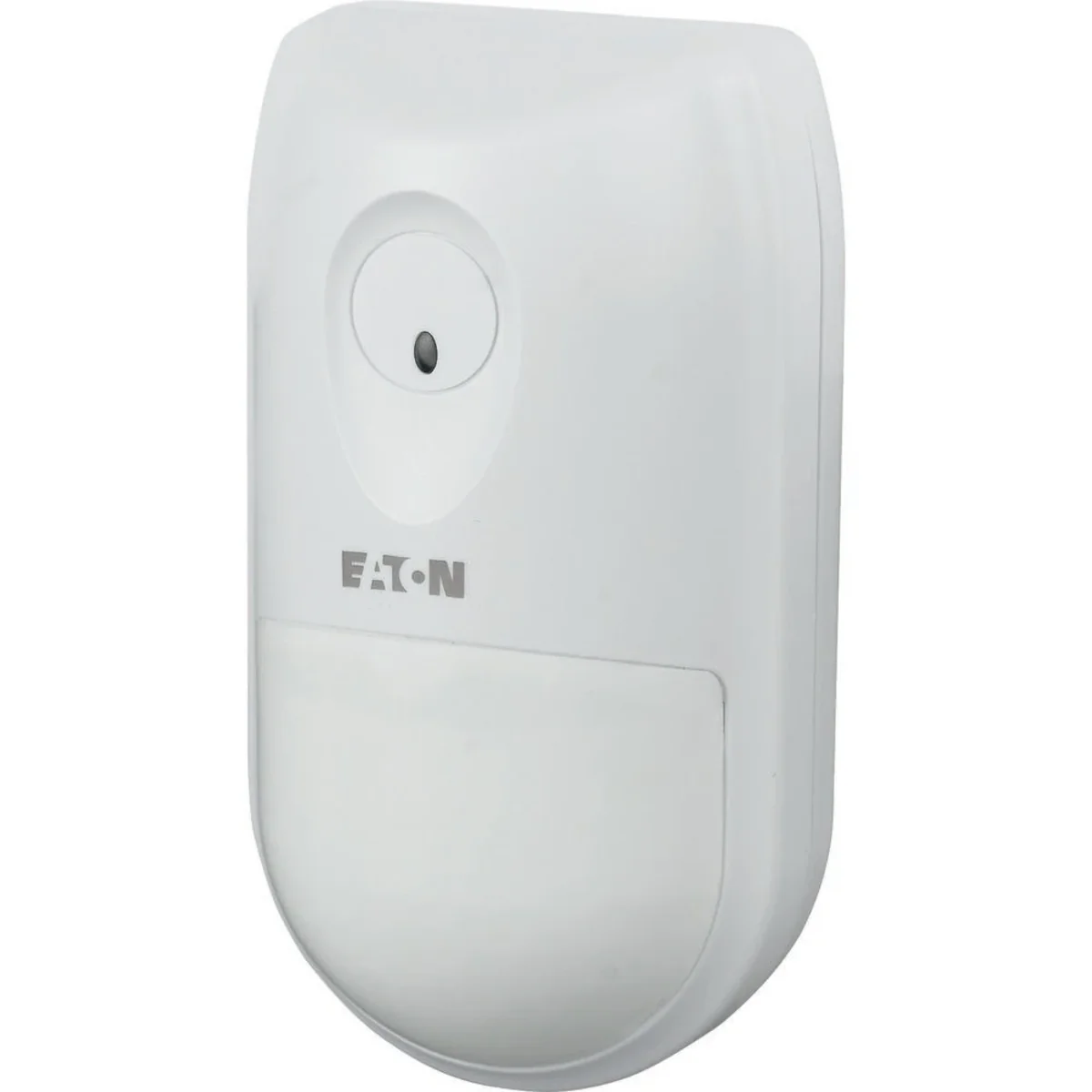

Wireless motion sensor 104921

local index:
APK001MOEL
Catalog No:
104921
EAN code:
4015081047284
Manufacturer: EATON
Installation: Surface-mounted
Sensor type: Movement, Presence
Power: Battery
Price:
431,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The PIR motion sensor detects movements inside the building. The device is powered by two AAA batteries (included) or a power adapter (106291 not included) so it can be easily mounted anywhere (screwed or glued). For easier positioning of the motion sensor, a separate swivel "mounting bracket" (106292) can be ordered. Channel A (lighting) sends a control command depending on movement, brightness and off delay. Channel B (alarm functions) sends a control command when motion is detected depending on the brightness and time delay (channel B activated for about 145s). The number of recorded pulses that will be analyzed can be set simultaneously in the scope of both channels. All settings are made with the front covers removed directly on the device. The LED makes it easy to set up the sensor.

Technical data

  • Installation
    Surface-mounted
  • Power
    Battery
  • Sensor type
    Movement, Presence
  • PKWIU
    27.12.24.0

Other technical data

  • Bus system KNX
    No
  • Bus system radio frequent
    No
  • Bus system Powernet
    No
  • Radio frequent bidirectional
    Yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9003
  • With bus connection
    No
  • Creep-under protection
    No
  • Animal zone
    No
  • Response value luminosity adjustable
    Yes
  • Switch-off delay self-learning
    No
  • Optimum mounting height
    2.2 m
  • Max. reach frontally
    12 m
  • Detection angle vertical
    0 ... 90 °
  • Number of digital inputs
    0
  • Switching power
    0 W
  • Max. duty cycle
    30 min
  • Bus system KNX-RF (Radio Frequent)
    No
  • Bus system LON
    No
  • Other bus systems
    xComfort
  • Model
    Movement sensor
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Substation input
    No
  • Operation mode switch
    Yes
  • Staircase light controller
    No
  • Teach-function for response value luminosity
    No
  • DALI-2 certified
    No
  • Max. reach sideways
    12 m
  • Diameter reach on floor
    12 m
  • Detection angle horizontal
    0 ... 110 °
  • Number of channels
    2
  • Min. switch-on time
    30 s
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Skrzynia Karton
Quantity 1 pcs. 12 pcs.
Weight (kg) 0,213 2,556
Volume (m3) 0,001 0,017
Width (m) 0,165 0,190
Length (m) 0,065 0,385
Depth (m) 0,080 0,230
