el12 Lighting Light fixtures Outdoor luminaires Street luminaires

URBINO LED ED 6350lm/740 O3 gray 2nd class 53 W luminaire 130222.5L042.021

local index:
OZA044LUGQ
Catalog No:
130222.5L042.021
EAN code:
5900530124809

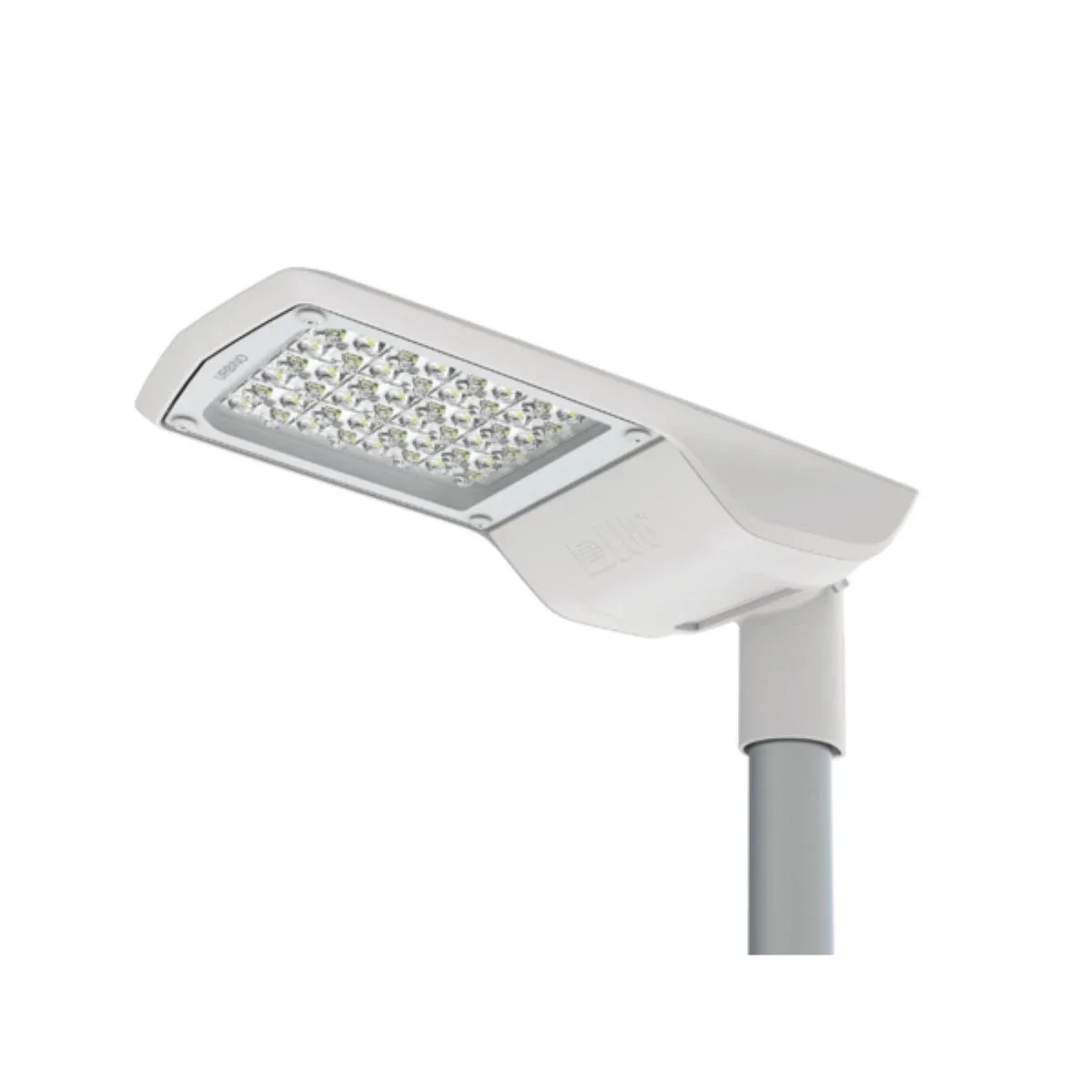

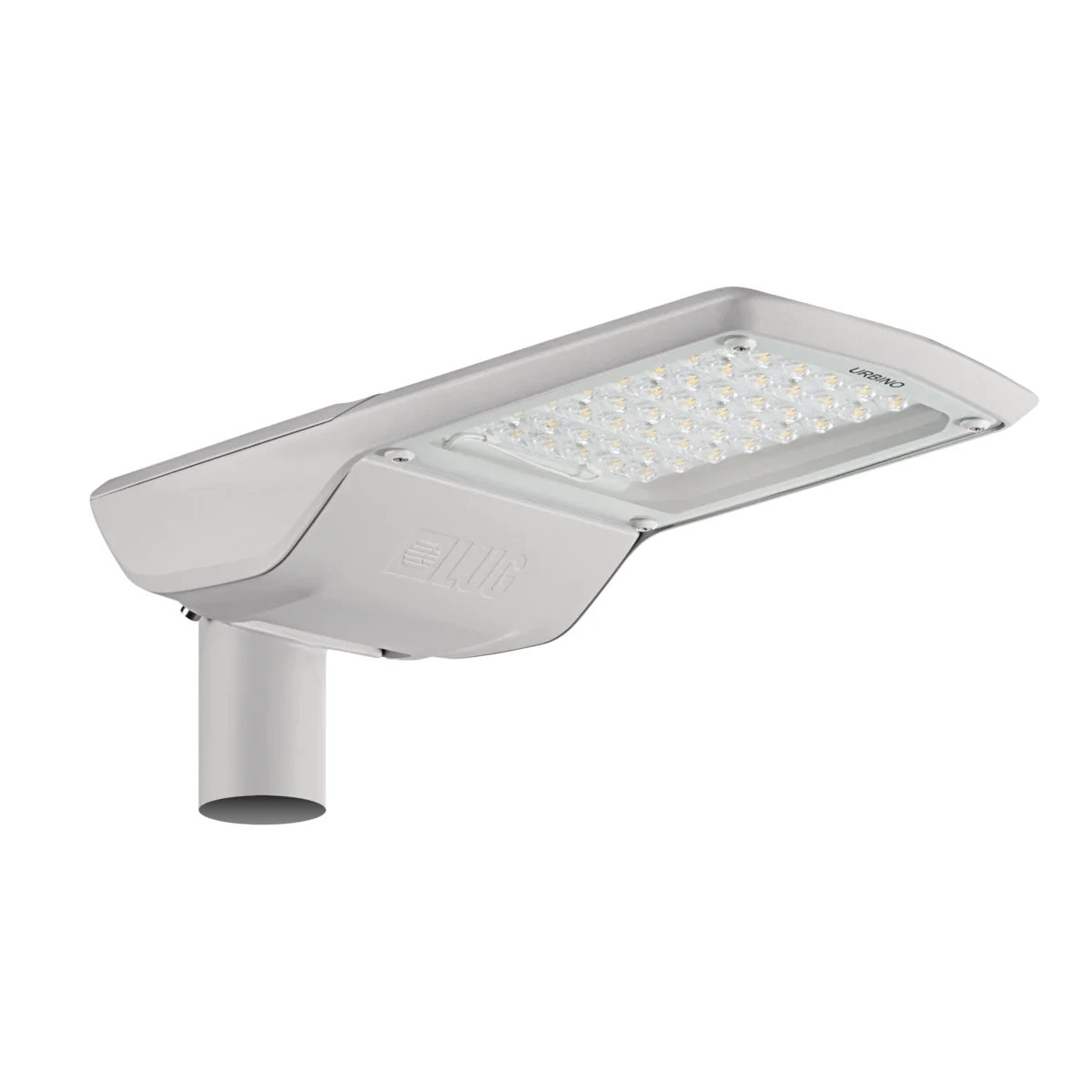

URBINO LED ED 6350lm/740 O3 gray 2nd class 53 W luminaire
URBINO LED ED 6350lm/740 O3 gray 2nd class 53 W luminaire

Click on the photo to enlarge

Manufacturer: LUG LIGHT
luminous flux [lm]: 6350
Price:
372,85 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
2 weeks
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Technical data

Technical data

  • luminous flux [lm]
    6350

Other technical data

  • Mounting method
    Post top/side entry
  • Housing material
    Aluminium
  • Housing colour
    Grey
  • Voltage type
    AC
  • Prąd znamionowy LED przy zasilaniu prądem stałym
    700 ... 700 mA
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming Zigbee
    Yes
  • Klasa efektywności energetycznej zamontowanego źródła światła
    A++, A+, A (LED)
  • Degree of protection (IP)
    IP66
  • Adjustable optics
    No
  • Impact strength
    IK09
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • With radio control
    No
  • With light regulation program control
    No
  • Max. system power
    55 W
  • Colour of light
    White
  • Colour rendering index CRI
    70-79
  • Width
    250 mm
  • Length
    550 mm
  • Conductor cross section
    2.5 mm²
  • With light source
    Yes
  • Surface protection
    Powder coating
  • Material cover
    Glass transparent
  • Nominal voltage
    220 ... 240 V
  • Type of control gear
    LED operating device current-controlled
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming programmable
    No
  • No dim function
    Yes
  • Żywotność znamionowa L90/B10 przy 25°C
    100000 h
  • Light distributor
    Diffuser lens/optic/panel
  • Suitable for spigot size
    4000 ... 12000 mm
  • Protection class
    II
  • Rated ambient temperature according to IEC 62722-2-1
    -40 ... 55 °C
  • Constant light output (CLO)
    No
  • With connection cable
    Yes
  • Rated luminous flux according to IEC 62722-2-1
    6050 lm
  • Colour temperature
    4000 ... 4000 K
  • Luminaire efficacy
    110 lm/W
  • Height/depth
    100 mm
  • Type of wiring
    Suitable for through wiring
See more >>
