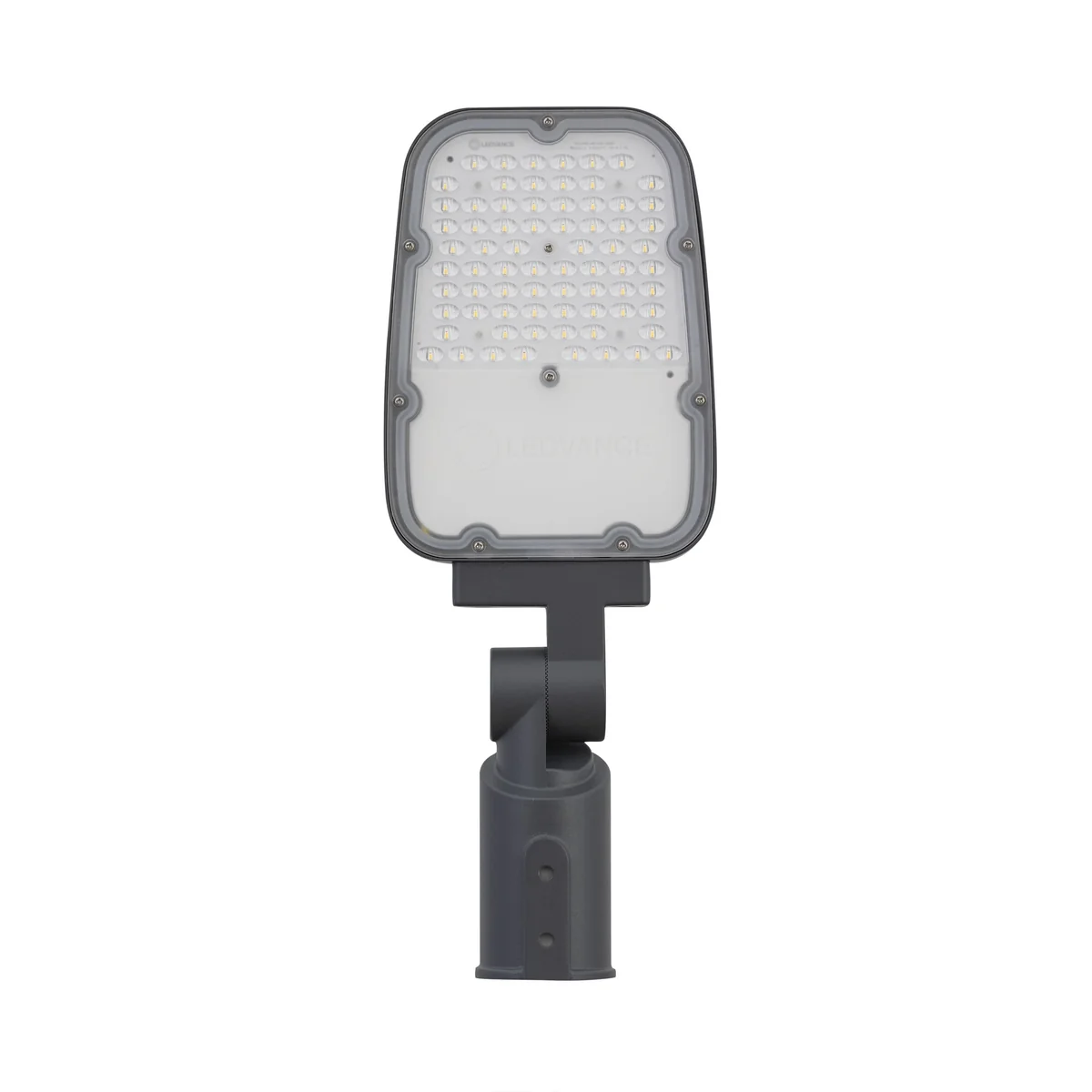

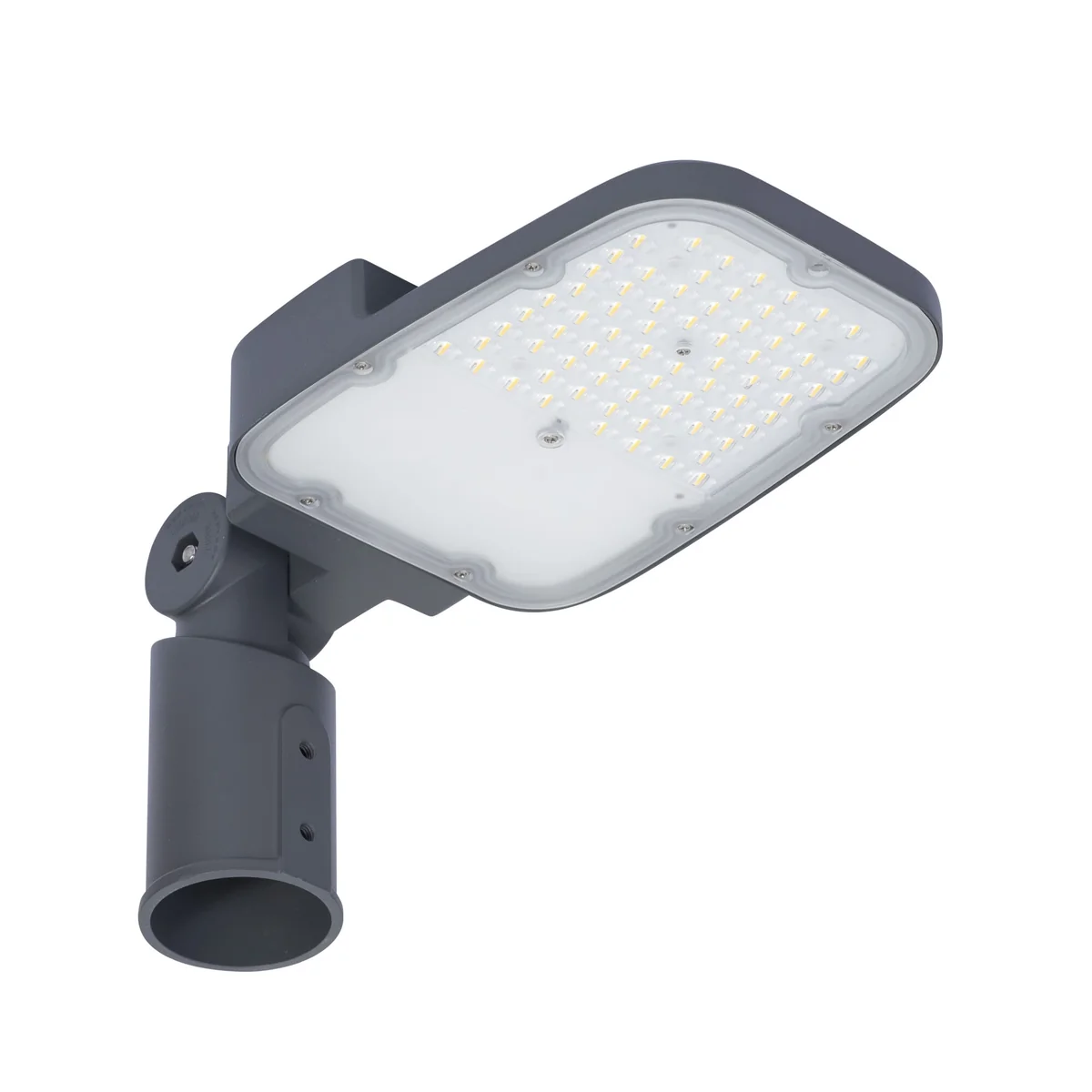

STREETLIGHT AREA SM V 45W 765 RV20ST GY luminaire 4058075725157

Внутрішній артикул:
OZA004LEDV
№ каталоговий:
4058075725157
Код EAN:
4058075725157
Виробник: LEDVANCE
Ціна:
409,86 zł
gross / шт.
(з ПДВ 23%)
2 тижні
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Технічні дані

Інші технічні дані

  • Mounting method
    Post top
  • With light source
    Yes
  • Housing material
    Aluminium
  • Housing colour
    Grey
  • Voltage type
    AC
  • Nominal current
    186.000 ... 186.000 mA
  • Exchangeable control gear
    Yes
  • Dimming DALI-2
    No
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Zigbee
    No
  • Adjustable optics
    No
  • Max. number of luminaires per miniature circuit breaker B16 (MCB)
    60
  • Degree of protection (IP)
    IP66
  • Protection class
    I
  • Rated ambient temperature according to IEC 62722-2-1
    -30 ... +50 °C
  • With radio control
    No
  • With light regulation program control
    No
  • Cable length
    0.5 m
  • Znamionowy strumień świetlny zgodnie z normą IEC 62722-2-1
    6075 ... 6075 lm
  • Colour temperature
    6500 ... 6500 K
  • Power factor
    0.9

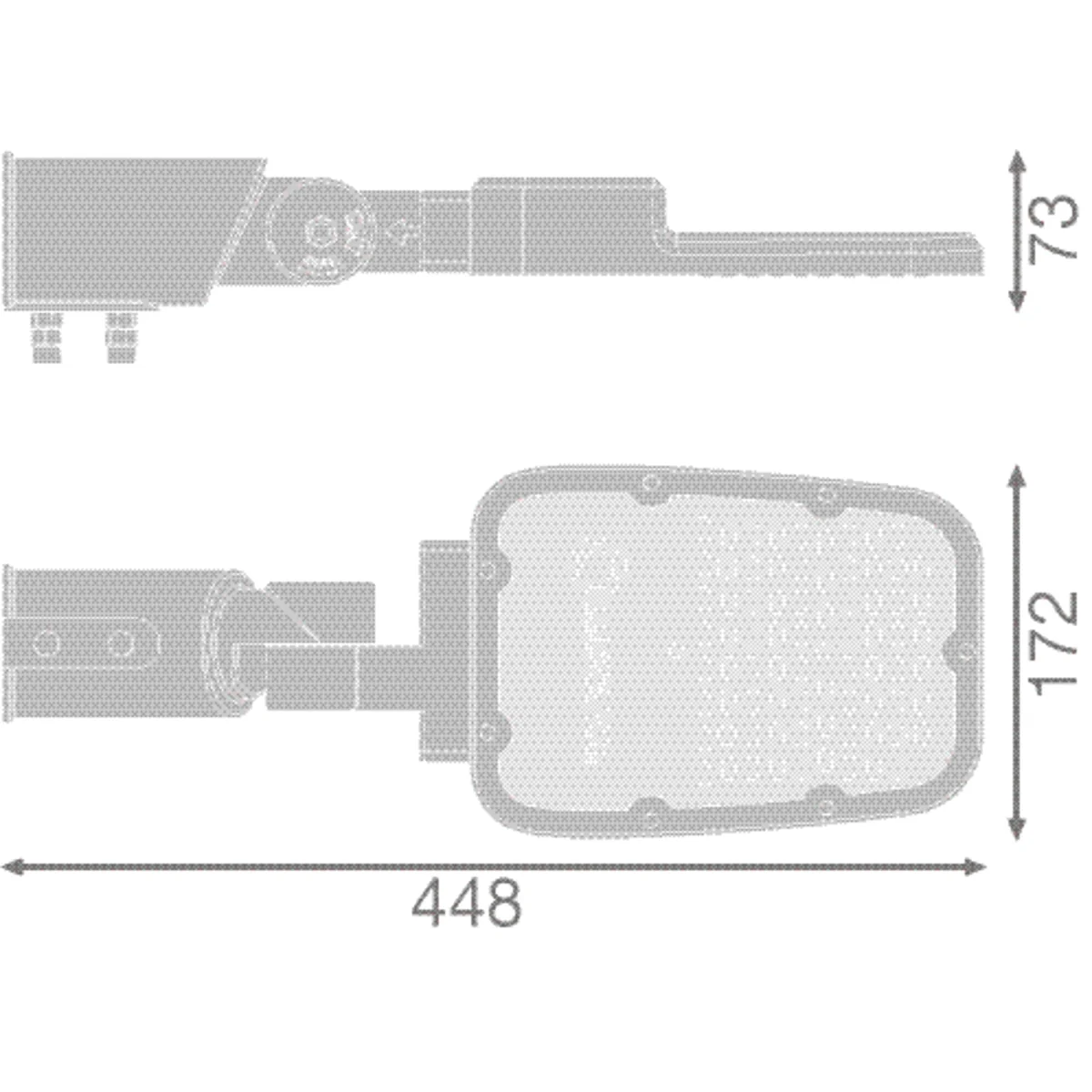

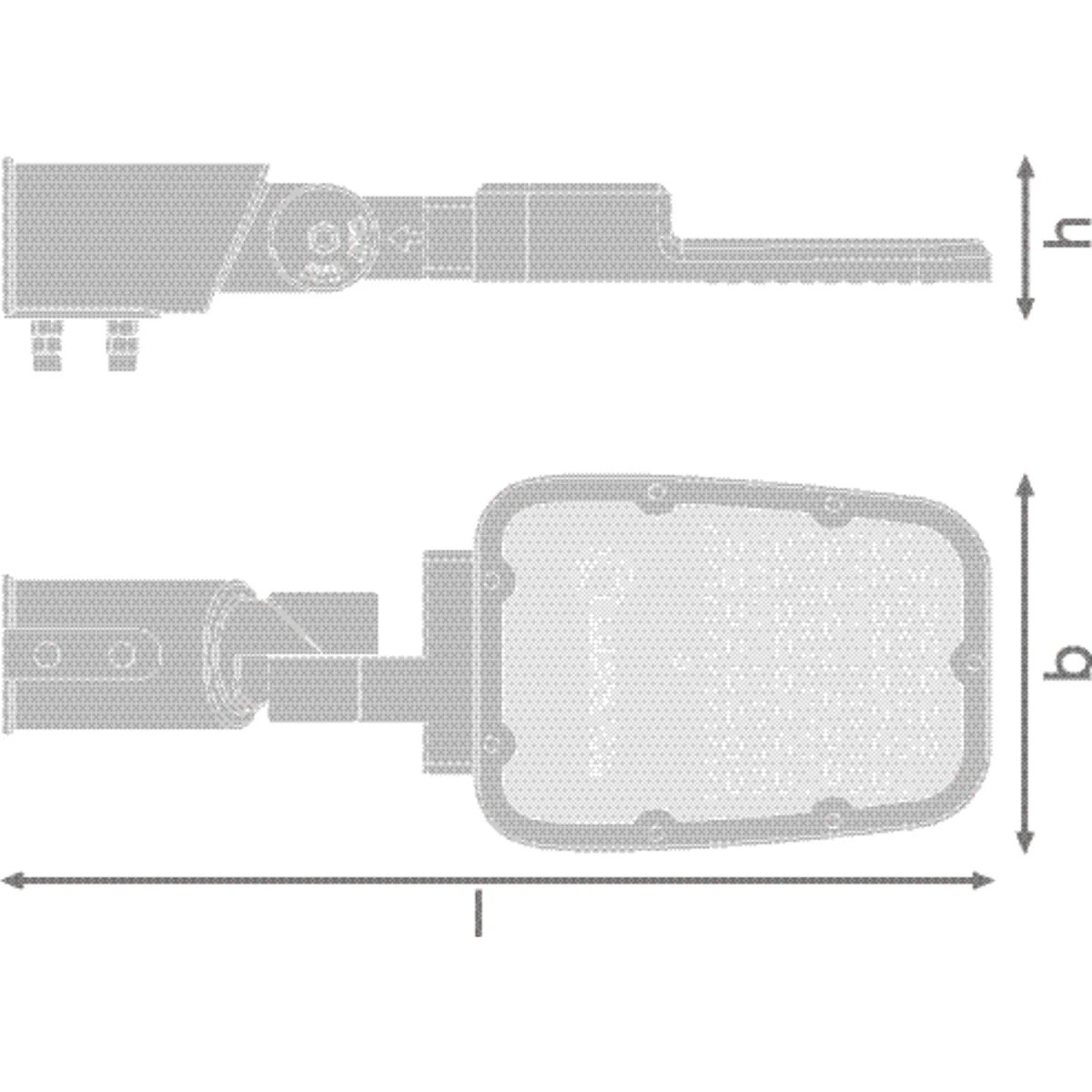

  • Height/depth
    73 mm
  • Type of wiring
    Ending
  • Connection type
    Other
  • With light sensor
    No
  • Lamp type
    LED not exchangeable
  • Suitable for number of light sources
    0
  • Surface protection
    Powder coating
  • Material cover
    Plastic, opal
  • Nominal voltage
    100 ... 240 V
  • With control gear
    Yes
  • Dimmable
    No
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No

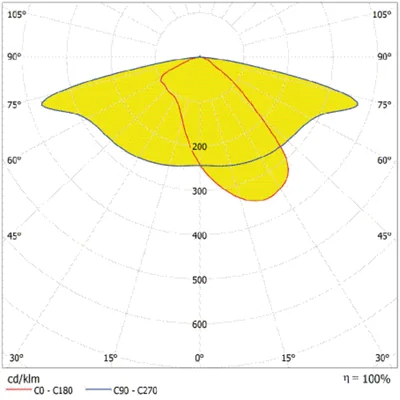

  • Light distributor
    Focal lens
  • Rated life time L70/B50 at 25 °C
    70000 h
  • Max. number of luminaires per miniature circuit breaker C16 (MCB)
    64
  • Impact strength
    IK08
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
    No
  • Remote control
    None
  • Constant light output (CLO)
    No
  • With connection cable
    Yes
  • Max. system power
    45 W
  • Luminaire efficacy
    135 lm/W
  • Colour rendering index CRI
    70-79
  • Width
    172 mm
  • Length
    448 mm
  • Number of poles
    3
  • Operation by Bluetooth
    No
  • With movement sensor
    No

Інформація про виробника

  • Виробник
    LEDVANCE GmbH
  • Адреса
    85748 Garching Parkring 29-33 Niemcy
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Skrzynia Karton
Кількість 1 шт. 4 шт.
Вага (кг) 1,584 7,297
Об'єм (м3) 0,007 0,036
Ширина (м) 0,080 0,210
Довжина (м) 0,470 0,490
Глибина (м) 0,190 0,350
