CORONA 2 LED BASIC Street lamp 65W 7050lm 5700K IP66 gray 568114

local index:
OZA365LENA
Catalog No:
568114
EAN code:
5905963568114
Manufacturer: LENA LIGHTING
Light color [K]: 4800-6500 (cool)
Protection class: AND
Color: Gray
Price:
143,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Characteristics:

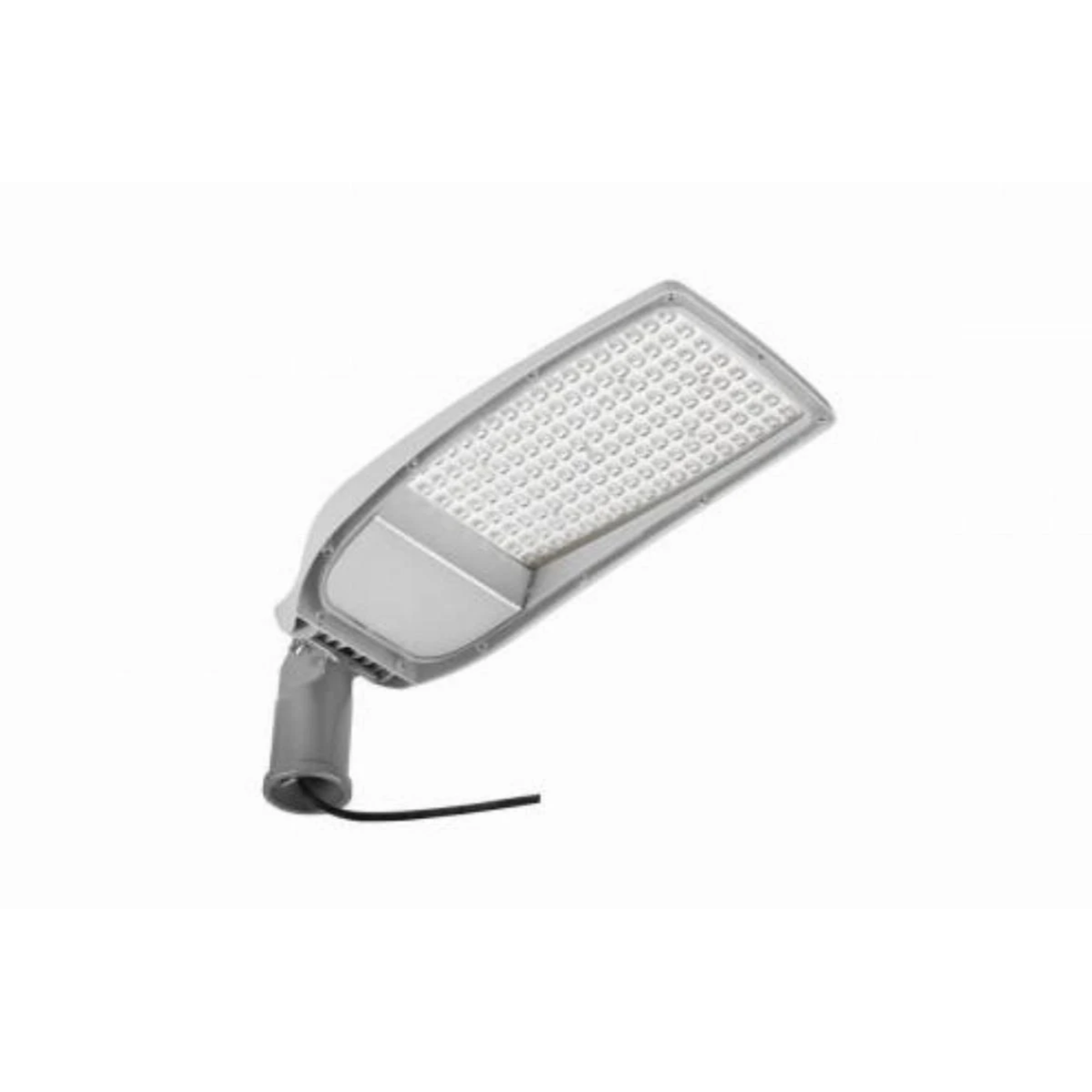

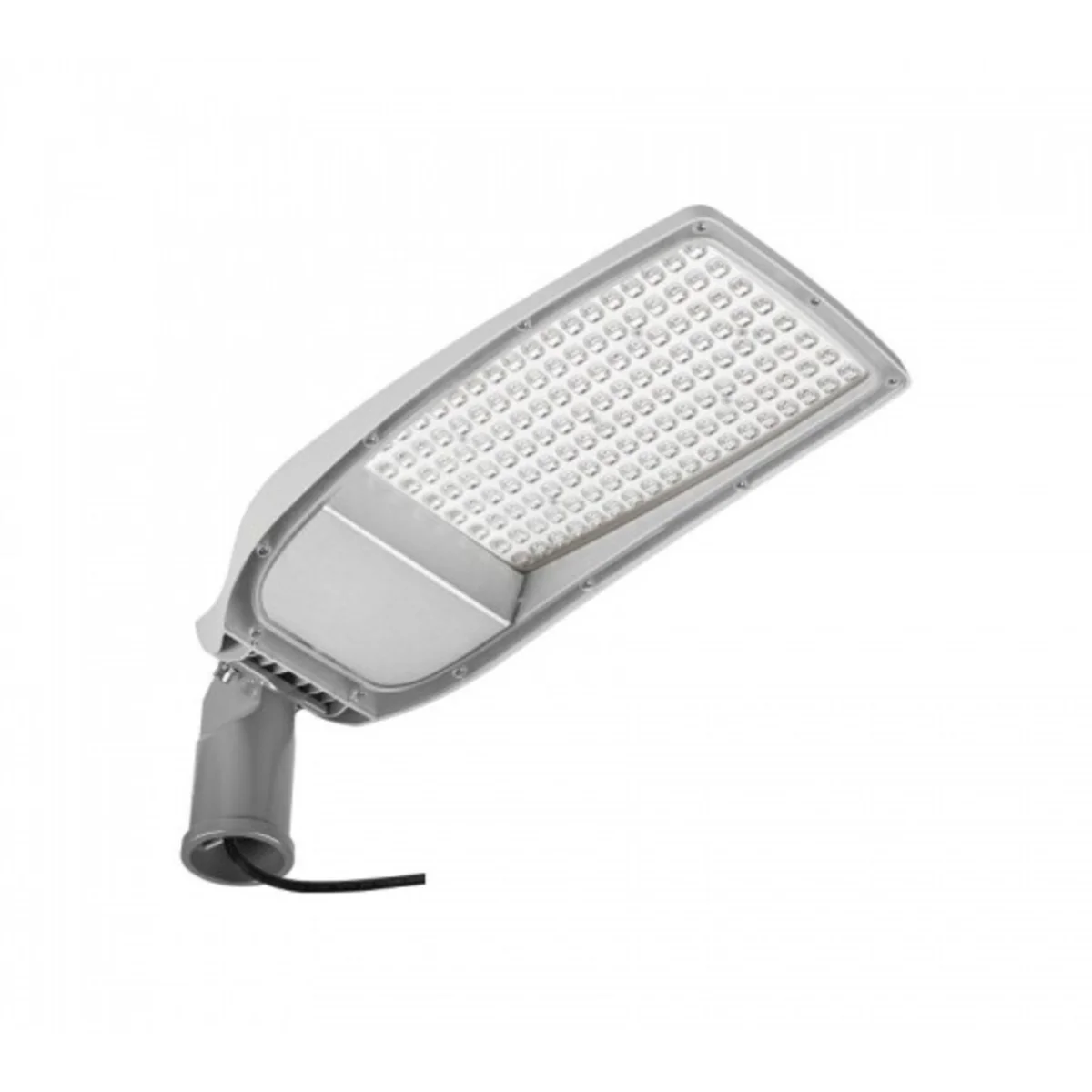

LED road lamp with high luminous efficiency and energy-saving, integrated LED module. Self-cleaning body made of polypropylene (PP) with fiberglass (FG), aluminum handle. The lamp uses directional lens matrices (made of PC polycarbonate). The lamp is characterized by a high degree of protection IP66 and resistance to mechanical impacts IK08 (vandal-proof). The integrated handle, adjustable in steps of 5 degrees, allows adjustment in the range of: -5° to +15° (top, on the pole); -5° to +15° (side, boom). Standard equipped with H07RN-F cable with a length of 0.2 m. Options: any RAL color.

Application:
Traffic lamp for use in open areas to illuminate: streets, local roads, bicycle paths, alleys, sidewalks, car parks and squares.

Technical data

  • Light color [K]
    4800-6500 (cool)
  • Color
    Gray
  • Power [W]
    65
  • Mounting method
    side, top
  • luminous flux [lm]
    7050
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    5700
  • cri (ra)
    >80
  • Protection class
    AND
  • Material
    PC
  • Family
    CORONA 2 LED BASIC
  • Level of security
    IP66
  • Dimensions [mm]
    640x113x233
  • Lampshade type
    Lenticular
  • EEL - energy efficiency class
    A++

Other technical data

  • Mounting method
    Post top/side entry
  • With light source
    Yes
  • Housing colour
    Grey
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Rated life time L70/B50 at 25 °C
    120000 h
  • Degree of protection (IP)
    IP66
  • With connection cable
    Yes
  • Max. system power
    65 W
  • Colour temperature
    5700 ... 5700 K
  • Width
    113 mm
  • Length
    640 mm
  • Lamp type
    LED not exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Żywotność znamionowa L90/B10 przy 25°C
    36000 h
  • With radio control
    No
  • Cable length
    0.2 m
  • Rated luminous flux according to IEC 62722-2-1
    7050 lm
  • Luminaire efficacy
    98 lm/W
  • Height/depth
    233 mm
