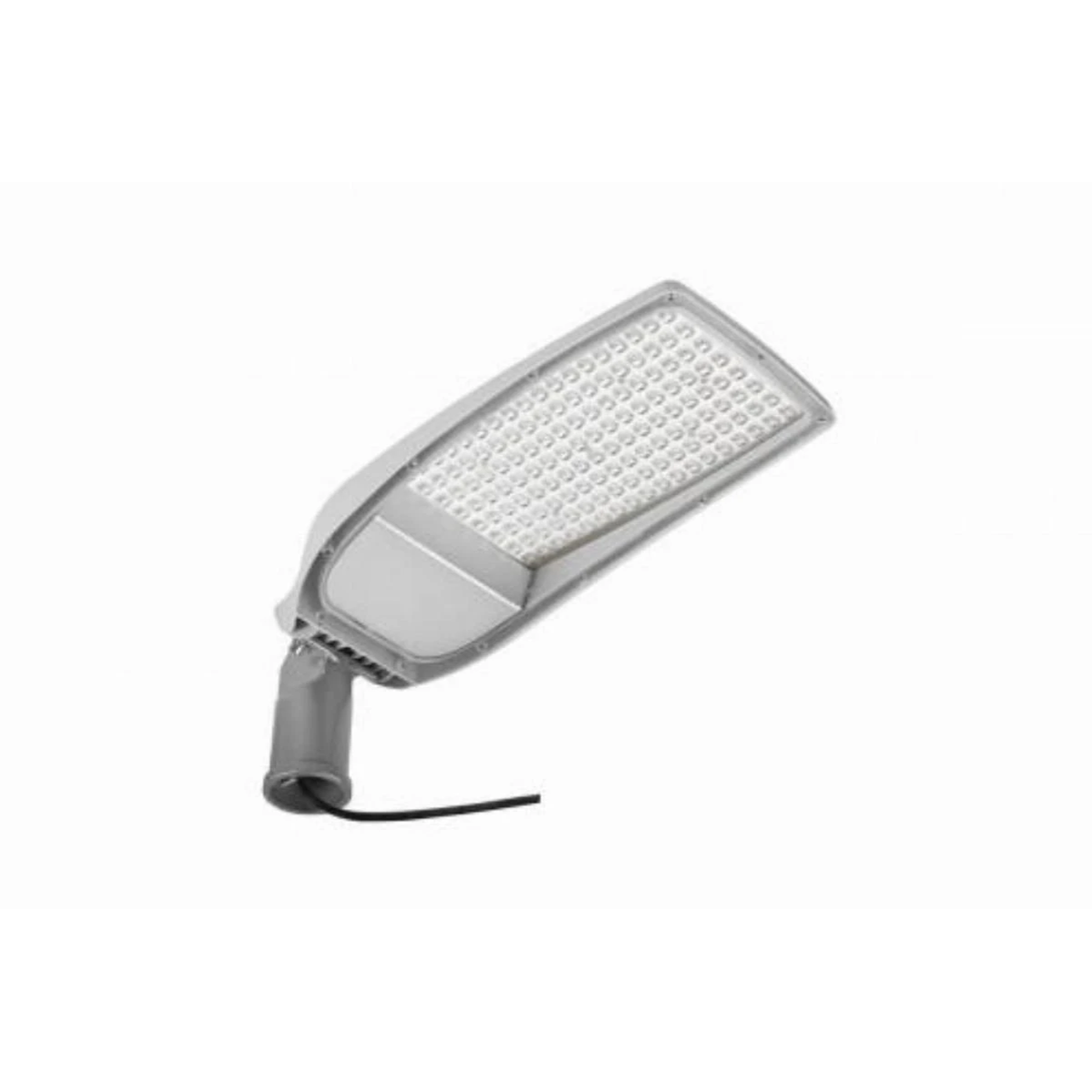

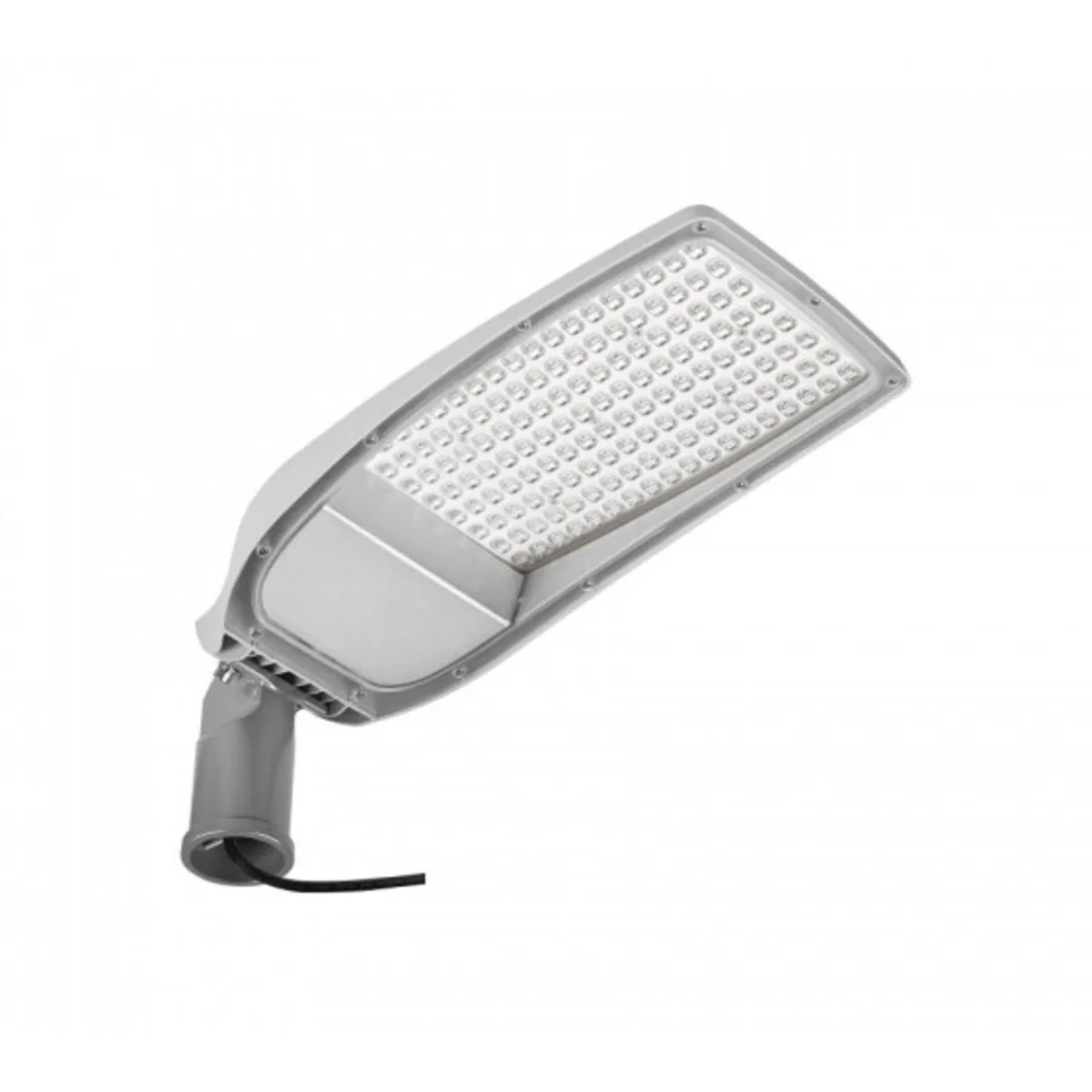

CORONA 2 LED BASIC Street lamp 50W 5700lm 5700K IP66 gray 568077

Indice locale:
OZA364LENA
Numero di catalogo:
568077
Codice EAN:
5905963568077
Produttore: LENA LIGHTING
Light color [K]: 4800-6500 (cool)
Protection class: AND
Color: Gray
Prezzo:
126,15 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
Accessibile 4 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Characteristics:
LED road lamp with high luminous efficiency and energy-saving, integrated LED module. Self-cleaning body made of polypropylene (PP) with fiberglass (FG), aluminum handle. The lamp uses directional lens matrices (made of PC polycarbonate). The lamp is characterized by a high degree of protection IP66 and resistance to mechanical impacts IK08 (vandal-proof). The integrated handle, adjustable in steps of 5 degrees, allows adjustment in the range of: -5° to +15° (top, on the pole); -5° to +15° (side, boom). Standard equipped with H07RN-F cable with a length of 0.2 m. Options: any RAL color.

Application:
Traffic lamp for use in open areas to illuminate: streets, local roads, bicycle paths, alleys, sidewalks, car parks and squares.

Dati tecnici

  • Light color [K]
    4800-6500 (cool)
  • Color
    Gray
  • Power [W]
    50
  • Mounting method
    side, top
  • luminous flux [lm]
    5700
  • Degree of mechanical protection
    IK08
  • Color Temperature [K]
    5700
  • cri (ra)
    >80
  • Protection class
    AND
  • Material
    PC
  • Family
    CORONA 2 LED BASIC
  • Level of security
    IP66
  • Dimensions [mm]
    640x113x233
  • Lampshade type
    Lenticular
  • EEL - energy efficiency class
    A++

Altri dati tecnici

  • Mounting method
    Post top/side entry
  • With light source
    Yes
  • Housing colour
    Grey
  • With control gear
    Yes
  • Dimming 1-10 V
    No
  • Dimming DMX
    No
  • Dimming potentiometer (integrated)
    No
  • Dimming LineSwitch
    No
  • Dimming mains voltage modulation
    No
  • Dimming phase cut-on
    No
  • Dimming RF
    No
  • Dimming Touch and Dim
    No
  • Dimming with push-button
    No
  • Rated life time L70/B50 at 25 °C
    120000 h
  • Degree of protection (IP)
    IP66
  • With connection cable
    Yes
  • Max. system power
    50 W
  • Colour temperature
    4000 ... 4000 K
  • Width
    113 mm
  • Length
    640 mm
  • Lamp type
    LED exchangeable
  • Housing material
    Plastic
  • Material cover
    Plastic, transparent
  • Dimming 0-10 V
    No
  • Dimming DALI
    No
  • Dimming DSI
    No
  • Ściemniacz GPRS
    No
  • Dimming manufacturer's proprietary system
    No
  • Dimming phase cut-off
    No
  • Dimming programmable
    No
  • Dimming Sine Wave Reduction
    No
  • Dimming Zigbee
    No
  • No dim function
    Yes
  • Żywotność znamionowa L90/B10 przy 25°C
    36000 h
  • With radio control
    No
  • Cable length
    0.2 m
  • Rated luminous flux according to IEC 62722-2-1
    6100 lm
  • Luminaire efficacy
    102 lm/W
  • Height/depth
    233 mm

Dettagli del produttore

  • Produttore
    Lena Lighting S.A
  • Indirizzo
    63-000 Środa Wielkopolska Kórnicka 52 Polska

Imballaggio sfuso

Una specie di pacchetto
Quantità 1 pezzi
Peso (kg) 1,160
Larghezza (m) 0,113
Lunghezza (m) 0,640
Profondità (m) 0,233
