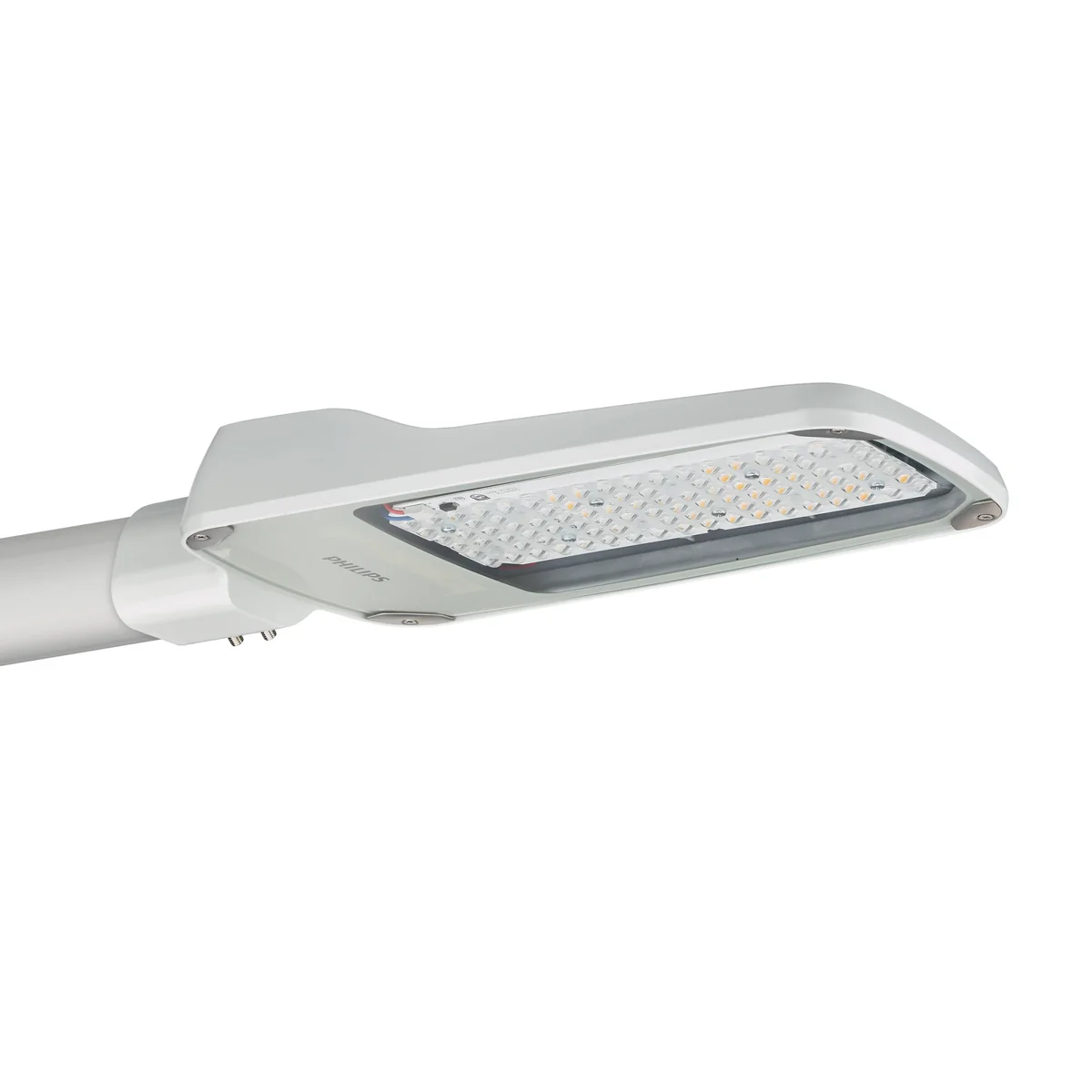

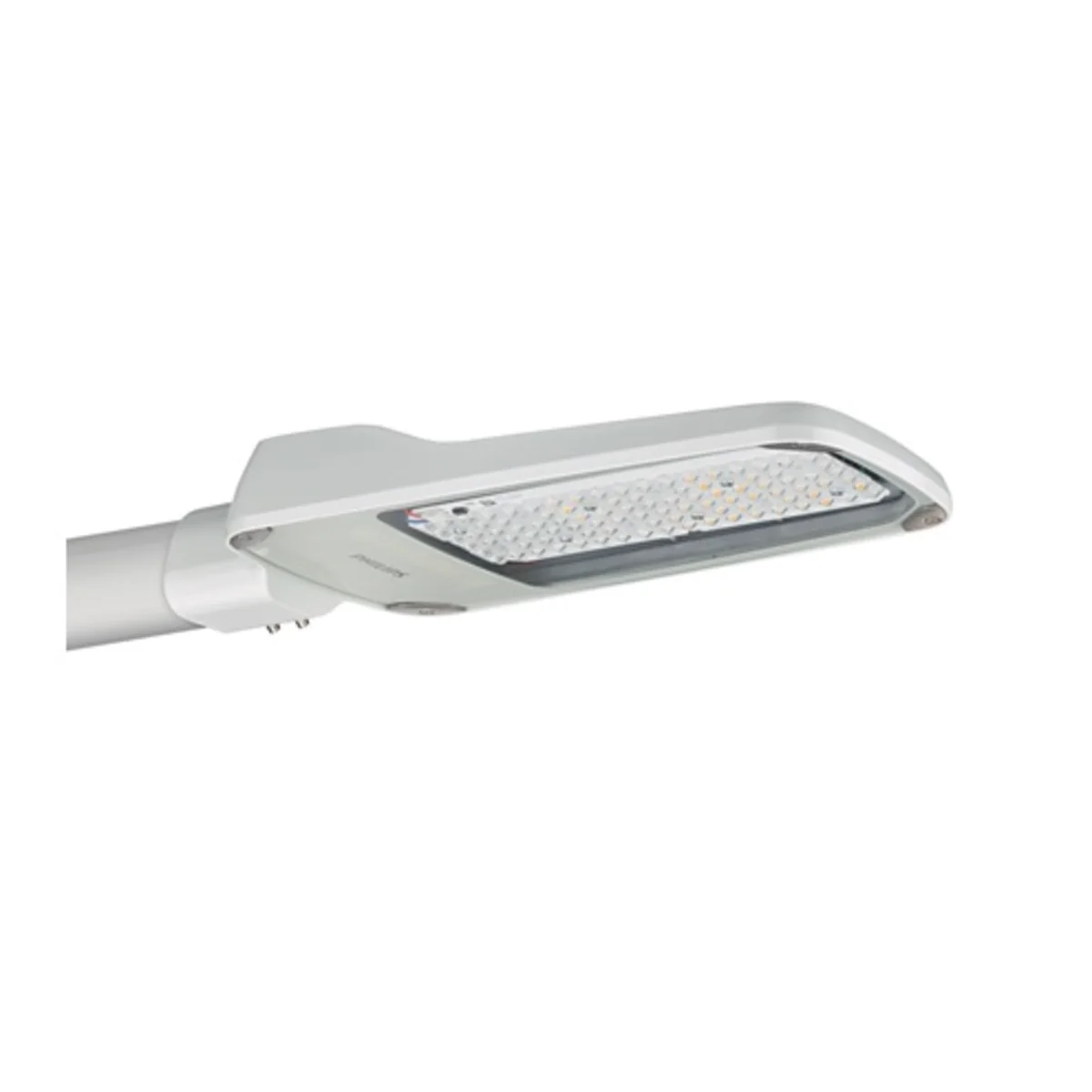

CORELINE MALAGA LED LED street luminaire 39W 4600lm 4000K BRP102 LED55/740 II DM NW 910925865341

local index:
OZA001FARE
Catalog No:
910925865341
EAN code:
8718696998182
Manufacturer: PHILIPS - FAREL
Light color [K]: 3500-4800 (natural)
Length [mm]: 493
Shade: FG - flat glass
Price:
143,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 2 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

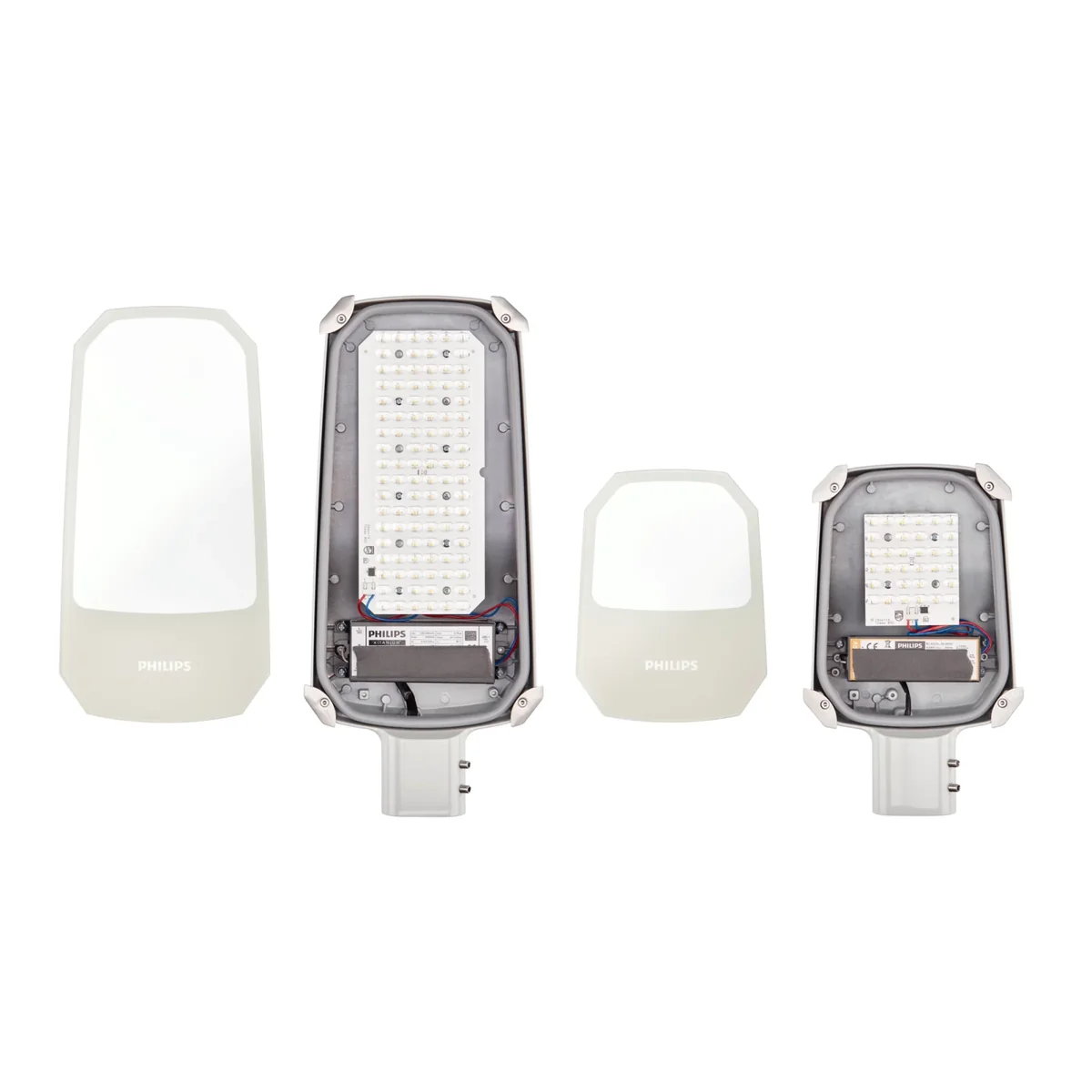

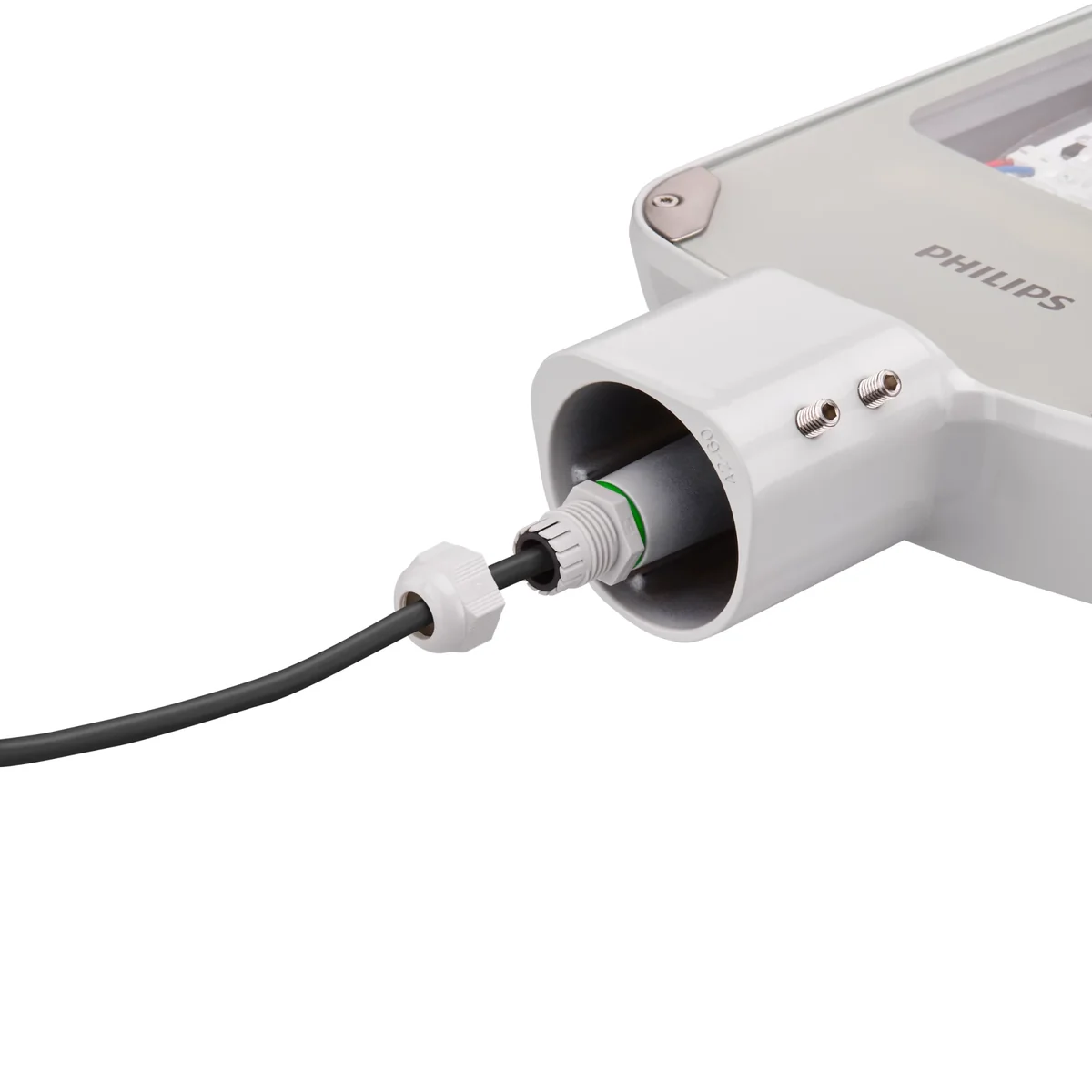

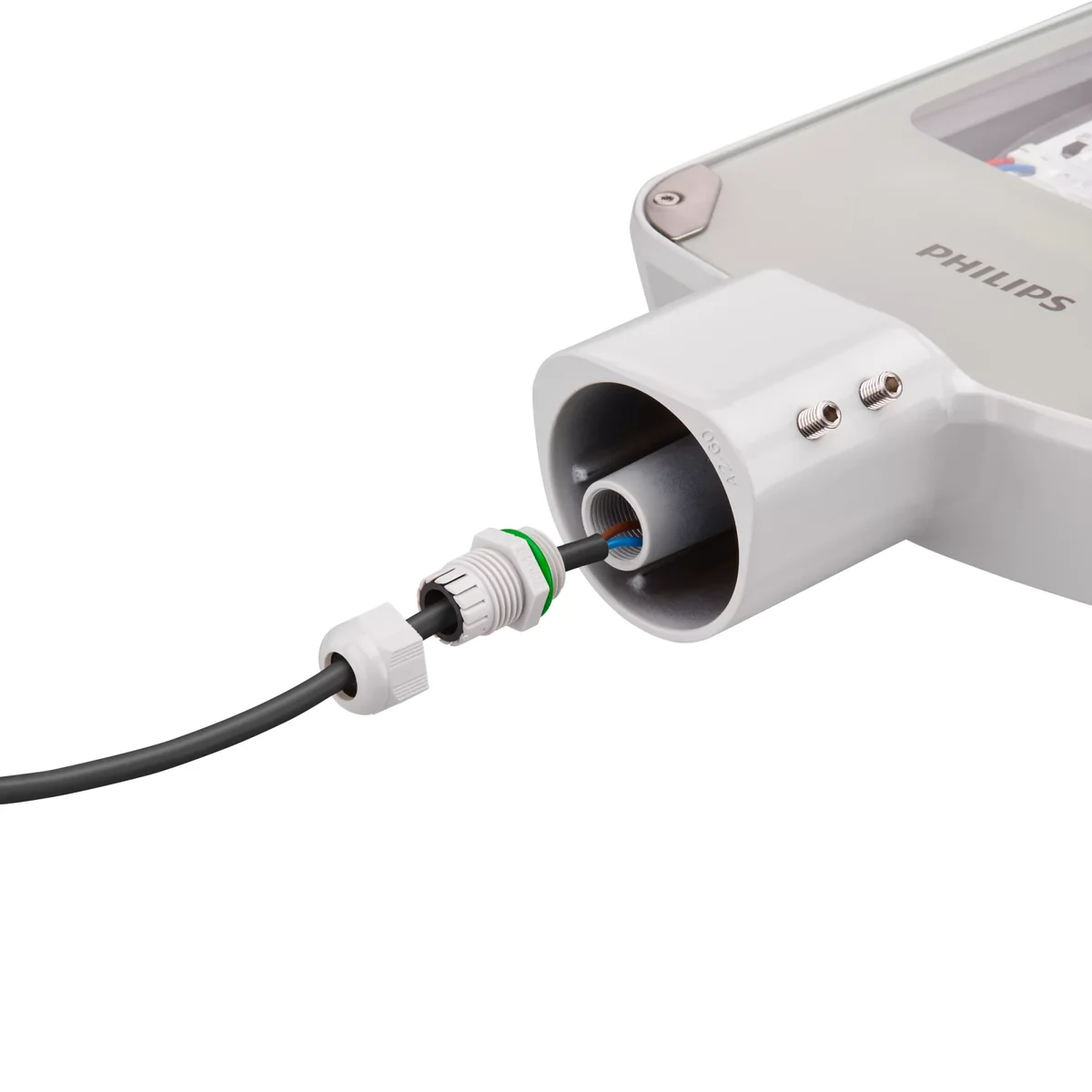

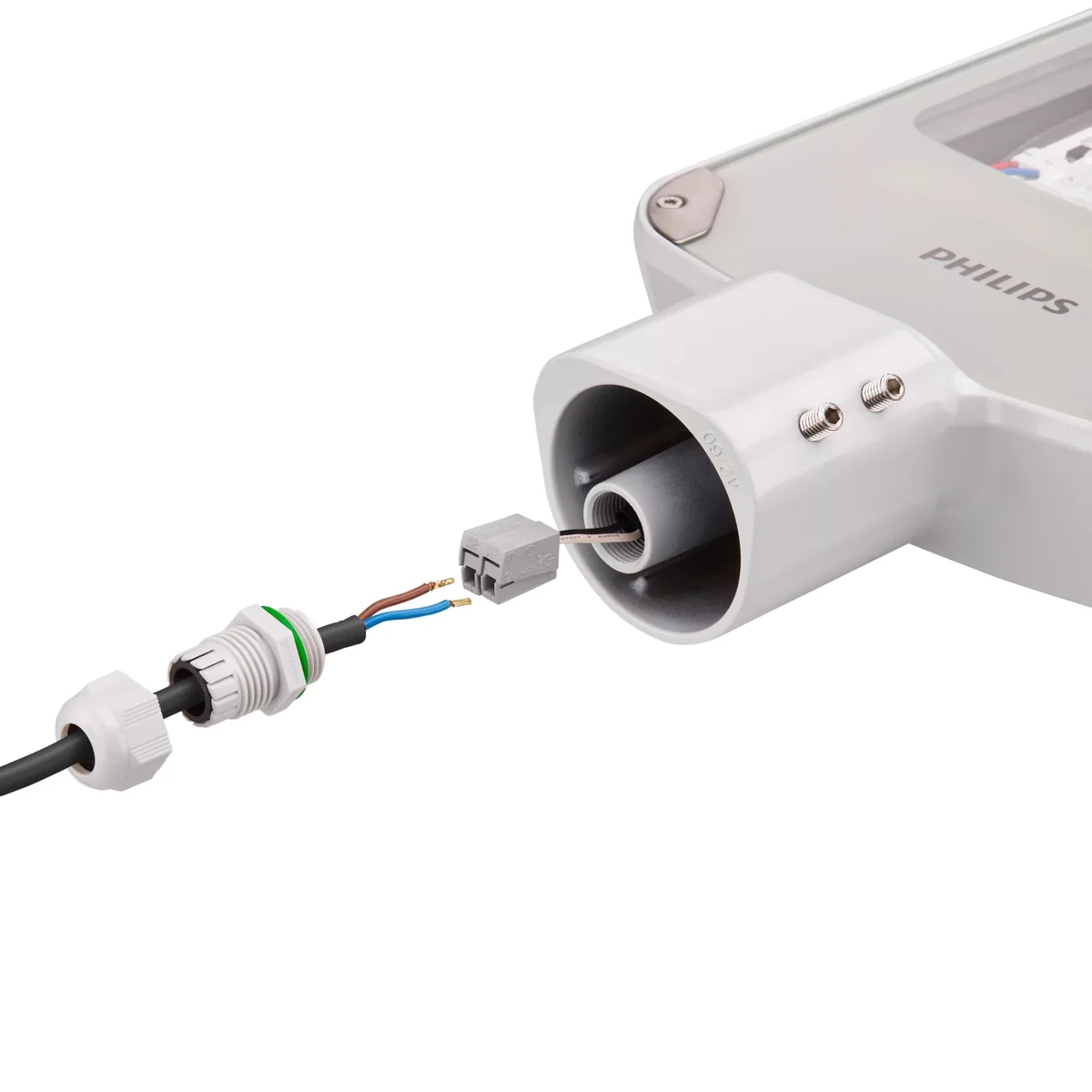

The CoreLine Malaga LED family of luminaires has been designed for general street lighting applications. This family is available in two sizes and uses a standard Philips LED module and a Philips Xitanium series driver as the light source. This guarantees quality you can rely on. The family of CoreLine Malaga LED luminaires has been designed in such a way as to enable easy and quick 1:1 replacement of worn out traditional luminaires with SON sources of 50, 70, 100 and 150W. The optical system in Coreline Malaga LED luminaires ensures effective and even distribution of light on the illuminated surface. This allows for a significant reduction in operating costs and energy savings of 50%. Coreline Malaga LED luminaires are characterized by an extremely long service life of up to 100,000 hours. Such a high durability of the luminaires, combined with their reliability, allows you to minimize the necessary maintenance activities and their costs, which results in a faster return on investment. there is no need to open the luminaire to connect the power cable, which further facilitates its installation.

Technical data

  • Light color [K]
    3500-4800 (natural)
  • Shade
    FG - flat glass
  • Power [W]
    39
  • Mechanical resistance
    IK08
  • luminous flux [lm]
    4600
  • Diameter [mm]
    520
  • Color Temperature [K]
    4000
  • Start-up time [ms]
    440

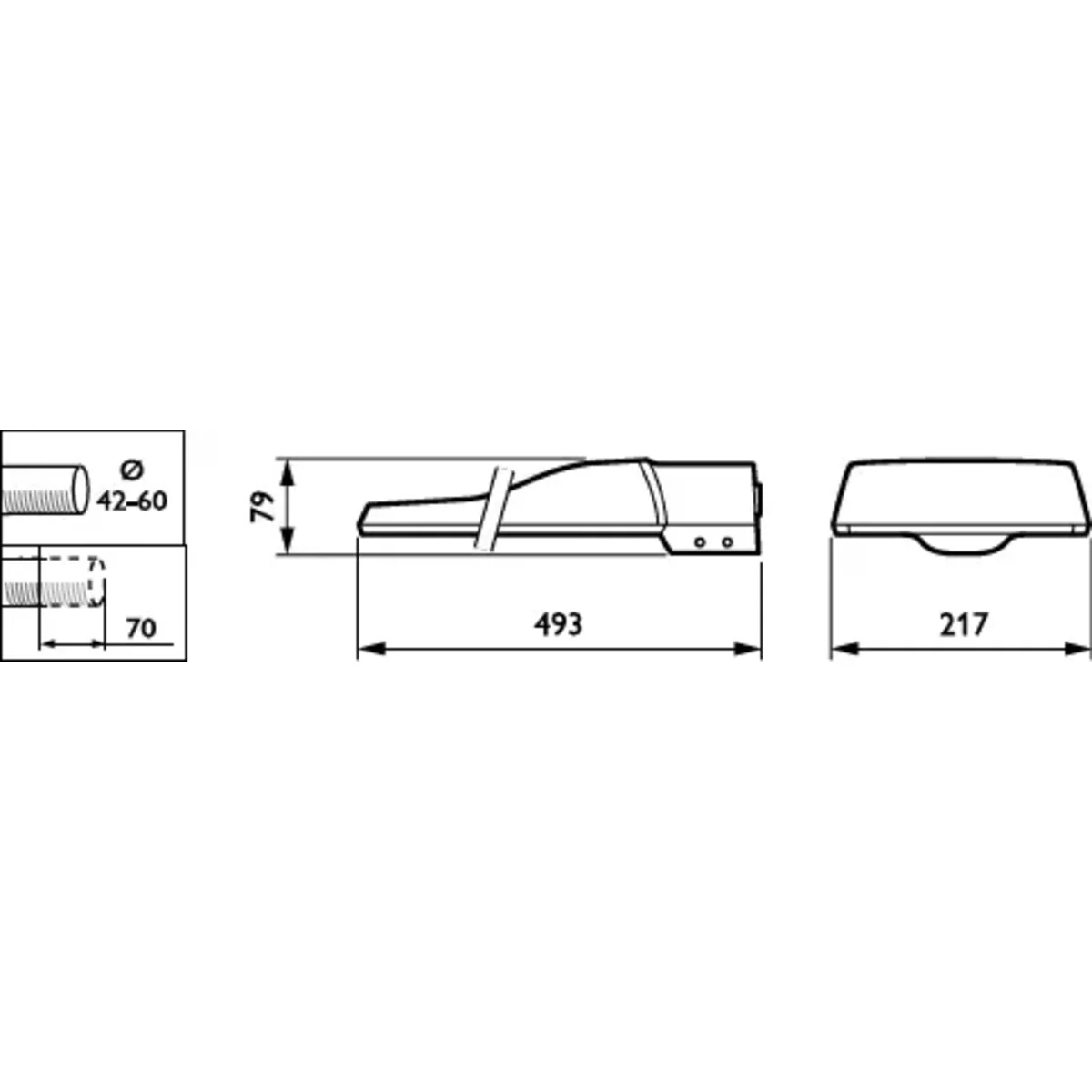

  • Length [mm]
    493
  • Housing material
    Aluminum
  • Rated voltage [V]
    230
  • Level of security
    IP65
  • Width [mm]
    217
  • Height [mm]
    79
  • Starting current [A]
    46

Bulk packaging

A kind of package Paczka Karton Paleta
Quantity 1 pcs. 1 pcs. 160 pcs.
Weight (kg) 3,500 3,500 -
Width (m) - 0,220 -
Length (m) - 0,500 -
Depth (m) - 0,085 -
