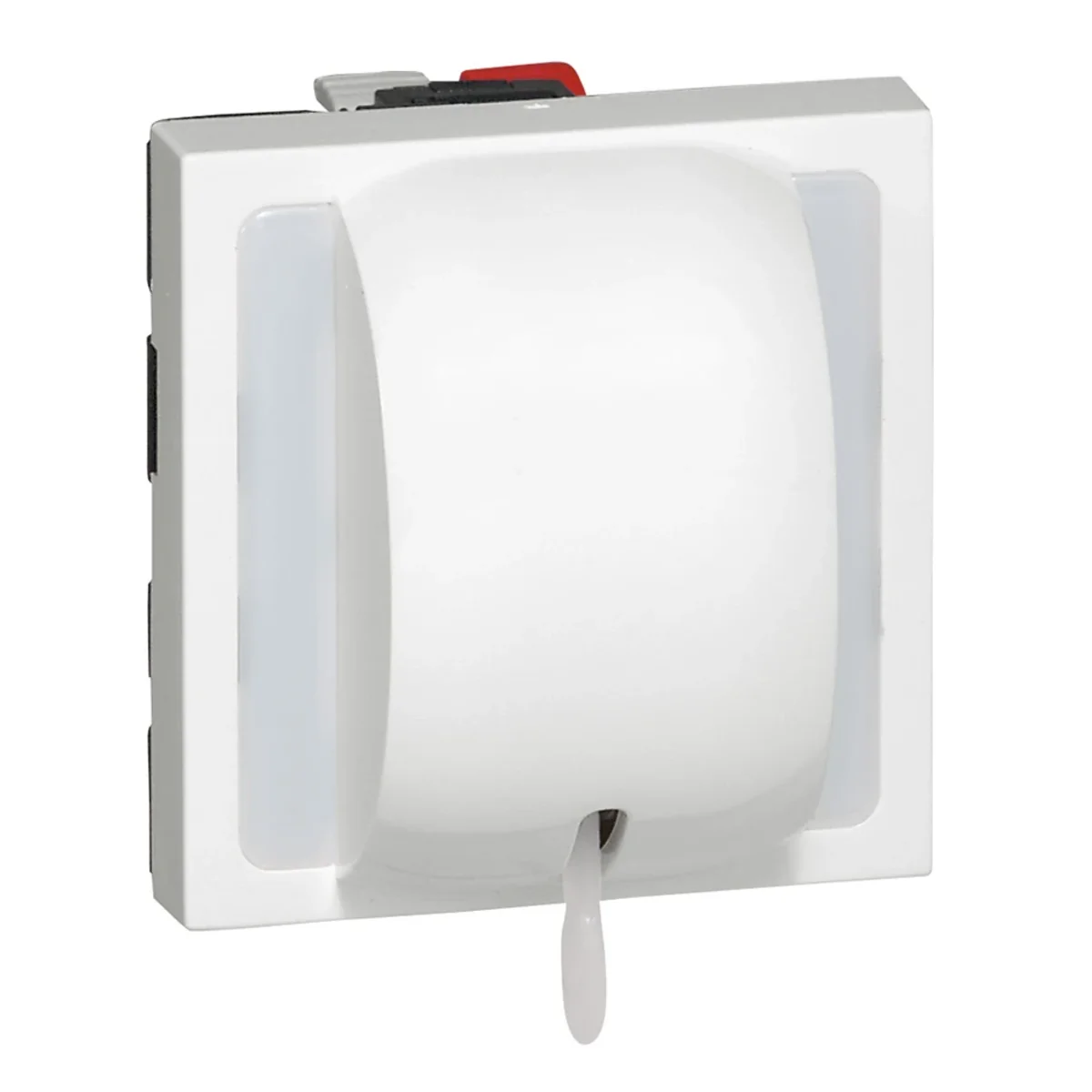

White two-module connector 077014

Index local:

MSS006LEGR

Numéro de catalogue:

077014

Code EAN:

3245060770143

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Color: White

Family: MOSAIC

Type: Fasteners

Voir la description complète

185

zł

gross / pcs. (y compris la TVA 23%)

Dostępne jusqu'à 2 semaines

Sur commande

Choisissez votre grossiste

Sélectionner

Quantité pcs. (plusieurs: 1 )

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

The Mosaic program is a complete solution for use in public buildings such as: offices, hotels, commercial facilities, hospitals, schools and many others. The equipment can be installed according to the user's requirements and preferences in the wall, in cable trays, through the suspended ceiling in columns, on the floor in power supply blocks, on or near the desk. Selected functions are also available in an antibacterial version.

Données techniques

Color

White
Type

Fasteners
Accurate color

White

Family

MOSAIC
Fastener type

Bipolar
PKWIU

27.33.11.0

Autres données techniques

Wiring system

Two-way switch
Assembly arrangement

Modular device for domestic switching devices
Push button switch

No
Mounting method

Module frame
With mounting plate

No
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Glossy
RAL-number (similar)

9003
Label space/information surface

No
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP31
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Other
Washing machine switch

No
Device height

45 mm
Built-in depth

28.5 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Method of operation

Pull cord
Number of modules (module system)

2
Number of rockers

1
Type of fastening

Engage (snap)
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Colour of switch operator

White
Illumination

Optional
Type of lighting

Other
Impact strength

IK04
Rated current

10 A
Feedback-signal contact

No
Heating switch

No
Device width

45 mm
Device depth

50.5 mm
Min. depth of built-in installation box

30 mm
Compatible with Google Assistant

No
IFTTT support available

No

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	BX	CT	PF
Quantité	1 pcs.	20 pcs.	400 pcs.
poids (kg)	0,063	1,300	26,000
Volume (m3)	0,001	0,014	0,454
Largeur (m)	0,097	0,298	1,200
Longueur (m)	0,057	0,114	0,378
Profondeur (m)	0,099	0,398	1,000
