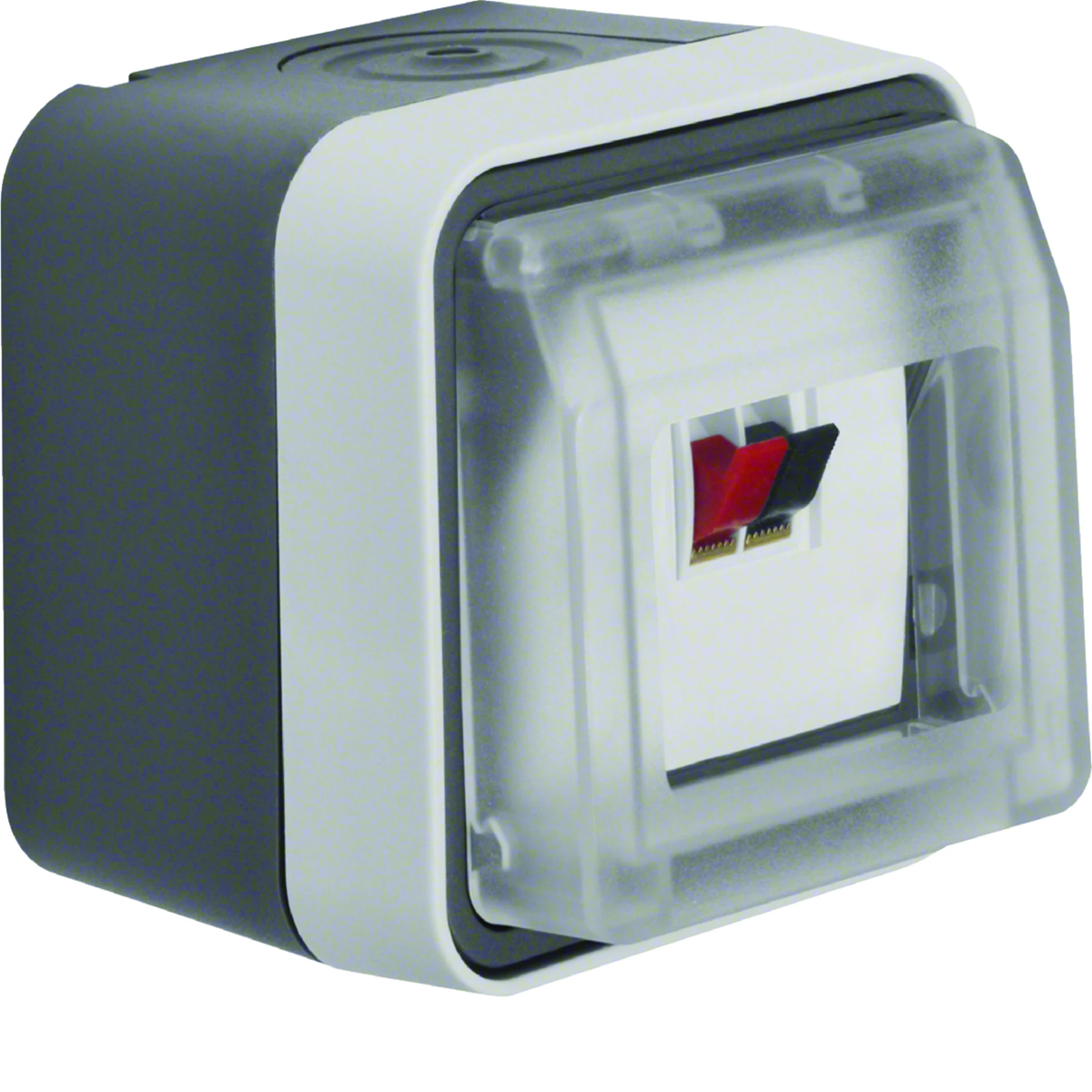

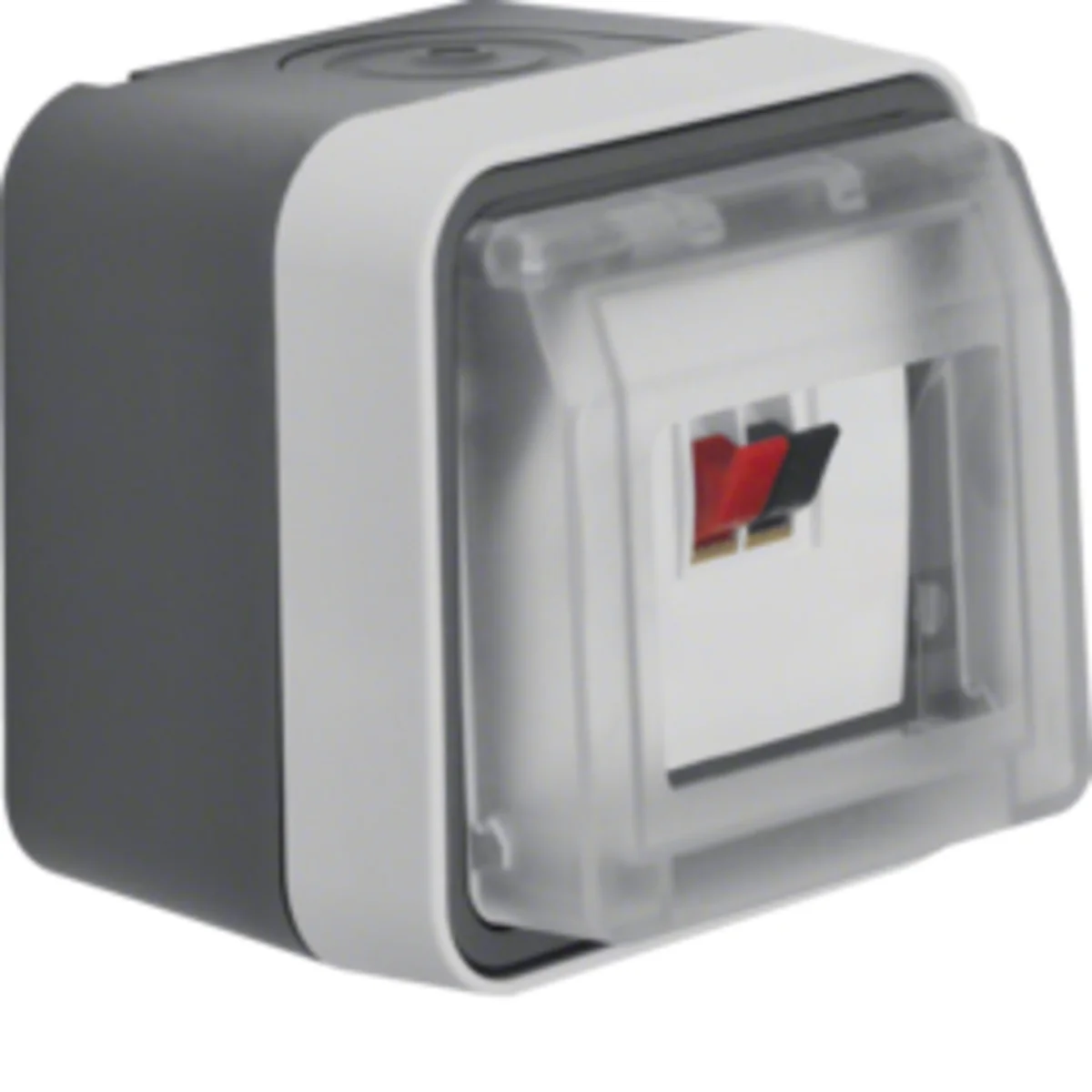

W.1 Single loudspeaker socket with cover complete IP55 grey 11963505

local index:
MFG002BERK
Catalog No:
11963505
EAN code:
4011334404613
Manufacturer: BERKER
Number of sockets: 1
Color: Gray
Shape: Square
Price:
51,65 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Surface-mounted loudspeaker socket from the W.1 series, from Berker. The product part number is 11963505.



FEATURES

  • Single.< /li>
  • Color grey.
  • Rating IP55.
  • Mountingsurface .
  • With transparent cover.
  • With labeling field.
  • With plug-in terminals (double-sided).
  • With 2-cable entry and cable or pipe entry.
  • Hinged lid, stainless steel, ZAMAK quick-release pins.



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is distinguished by its innovative design. Surface-mounted loudspeaker socket characterize the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Surface-mounted
  • Descriptive field
    Yes
  • Family
    W.1
  • Type
    Surface-mounted
  • Maximum conductor cross-section [mm²]
    2.5
  • Variant
    Pin-type plugs
  • Exact material
    Thermoplastic
  • Color
    Gray
  • Material
    Plastic
  • Cover
    Yes
  • Type
    speaker
  • Level of security
    IP55
  • Surface finish
    matte
  • Backlight
    NO
  • For the frame system
    NO
  • PKWIU
    27.12.40.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • With dust cover
    yes
  • Imprintable label
    With indication plate
  • Material
    Plastic
  • Halogen free
    yes
  • Surface finishing
    Matt
  • RAL-number (similar)
    7011
  • Type of fastening
    Mounting with screw
  • With strain relief
    no
  • Luster terminal
    no
  • Device width
    76 mm
  • Device depth
    65 mm
  • Utilization
    Loudspeaker connection
  • With hinged lid
    yes
  • Mounting method
    Surface mounted
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    no
  • With buses/couplings
    no
  • Shielded buses
    no
  • Suitable for degree of protection (IP)
    IP55
  • Device height
    76 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Pakiet Paczka Paleta
Quantity 1 pcs. 18 pcs. 576 pcs.
Weight (kg) 0,142 3,028 121,896
Width (m) 0,090 0,300 0,800
Length (m) 0,100 0,225 1,050
Depth (m) 0,120 0,400 1,200
