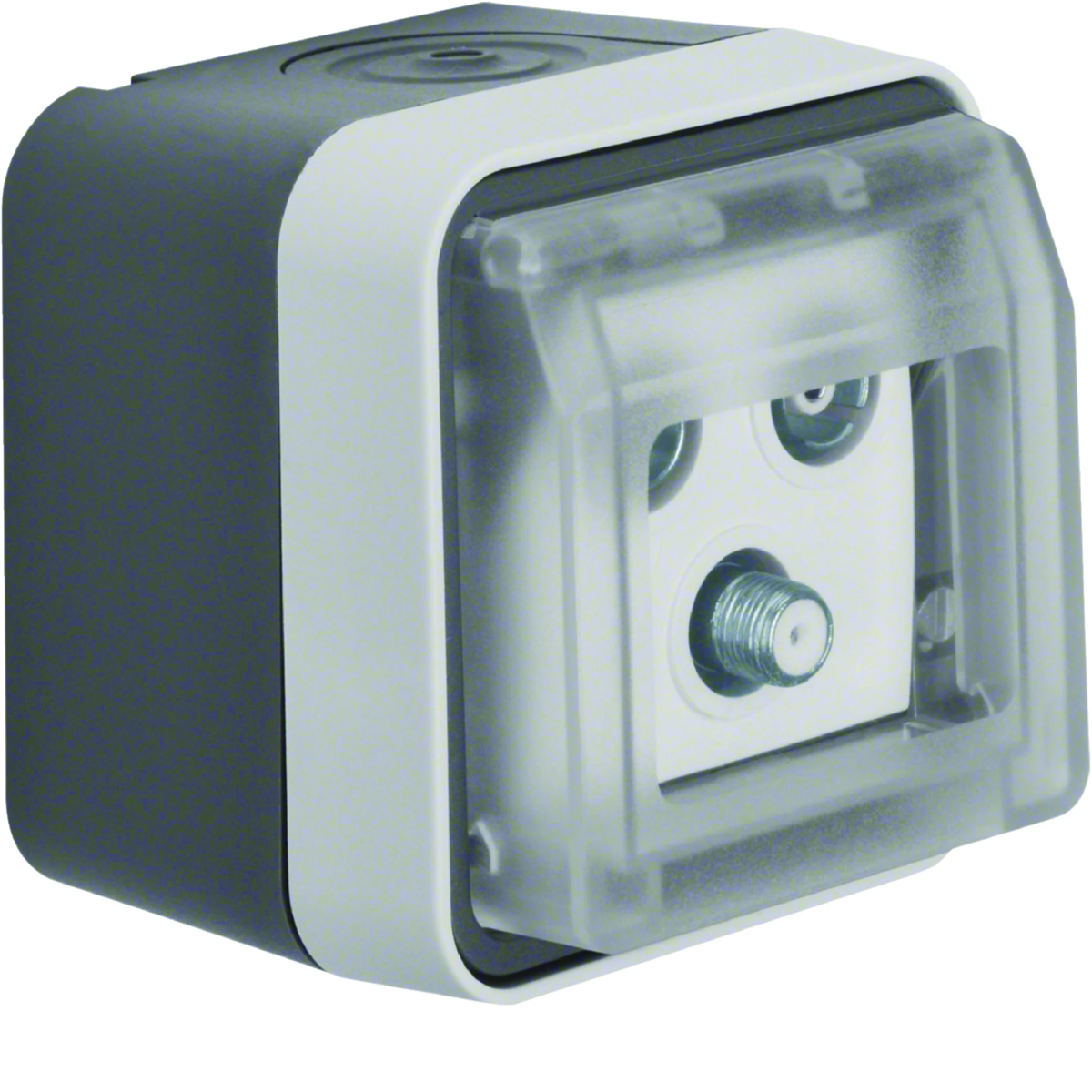

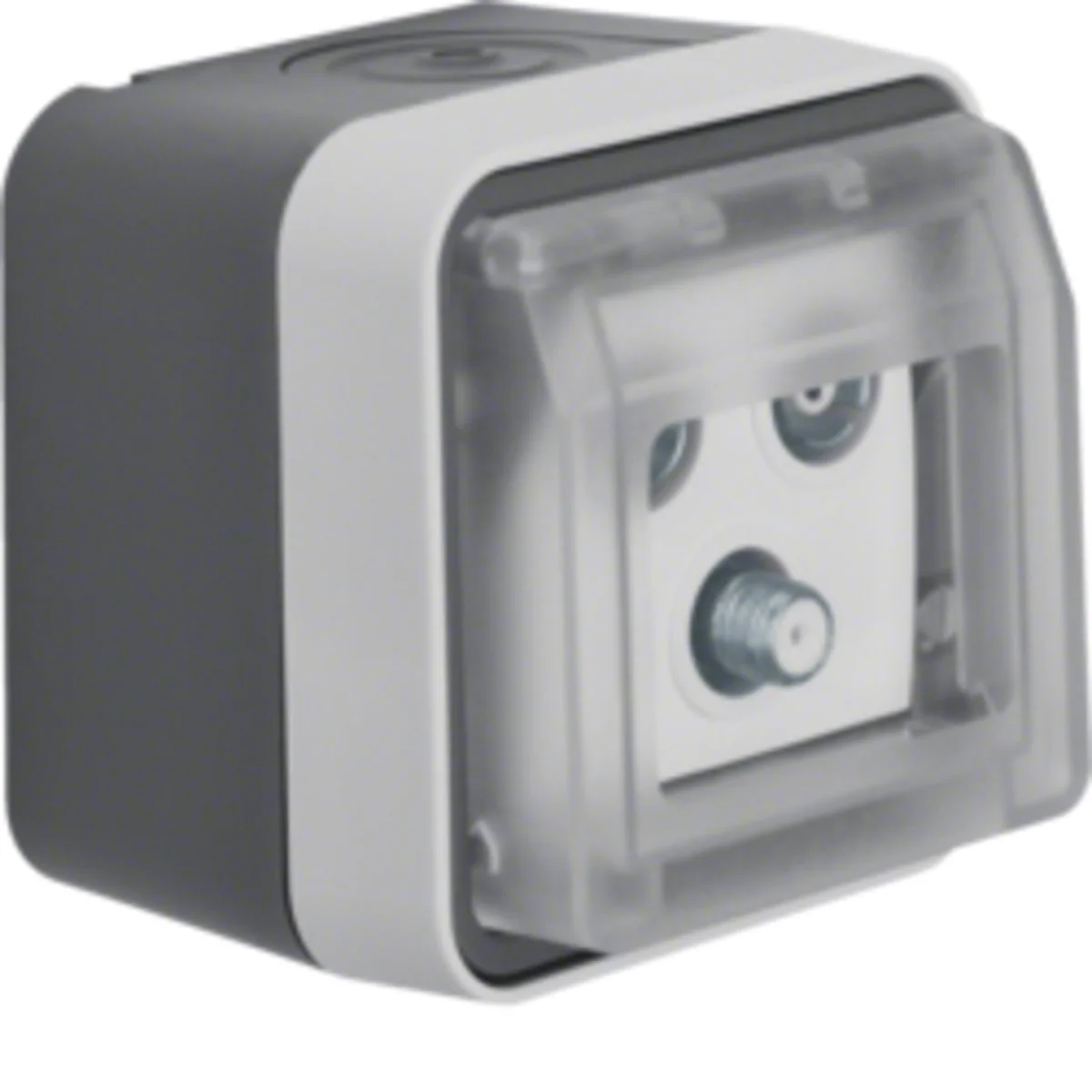

W.1 R+TV+SAT terminal socket with cover complete IP55 grey 12033535

local index:
MFA006BERK
Catalog No:
12033535
EAN code:
4011334404590
Manufacturer: BERKER
Number of sockets: 3
Wave impedance [Ω]: 75
Color: Gray
Price:
60,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Surface-mounted antenna socket from the W.1 series, from the manufacturer Berker. The product catalog number is 12033535.



FEATURES

  • R-TV-SAT.
  • Final.
  • Complete.
  • For terrestrial SAT reception.
  • For transmission analog and digital.
  • With transparent cover.
  • Broadband technology: 4…2400 MHz.
  • Losses at 2150 MHz: 2 dB.
  • Losses at 860 MHz: 5 dB.
  • With 2-wire entry and cable or pipe entry.
  • Hinged cover, made of stainless steel, ZAMAK quick release pins.



SERIES DESCRIPTION

Berker W. 1 is a series of waterproof electrical installation accessories, which is distinguished by its innovative design. The surface-mounted antenna socket has all the features of this unique series.

Technical data

  • Number of sockets
    3
  • Color
    Gray
  • Material
    Plastic
  • Cover
    Yes
  • Family
    W.1
  • Attenuation [dB]
    At 2150MHz: 2 At 860MHz: 5
  • Version
    Final
  • Surface finish
    matte
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Wave impedance [Ω]
    75
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Antenna
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Frequency Range [MHz]
    4-2400
  • Backlight
    NO
  • Variant
    R TV sat
  • For the frame system
    NO

Other technical data

  • Model
    Multimedia end box
  • Cover
    Complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    Yes
  • Frequency
    4 ... 2400 MHz
  • Colour
    Grey
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Mounting method
    Surface mounted
  • Tap loss at 860 MHz
    5 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    7011
  • Surface finishing
    Matt
  • Material quality
    Thermoplastic

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 18 pcs. 576 pcs.
Weight (kg) 0,175 0,200 4,096 151,072
Width (m) 0,076 0,090 0,300 0,800
Length (m) 0,068 0,100 0,225 1,050
Depth (m) 0,076 0,120 0,400 1,200
