Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
Price:
13,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

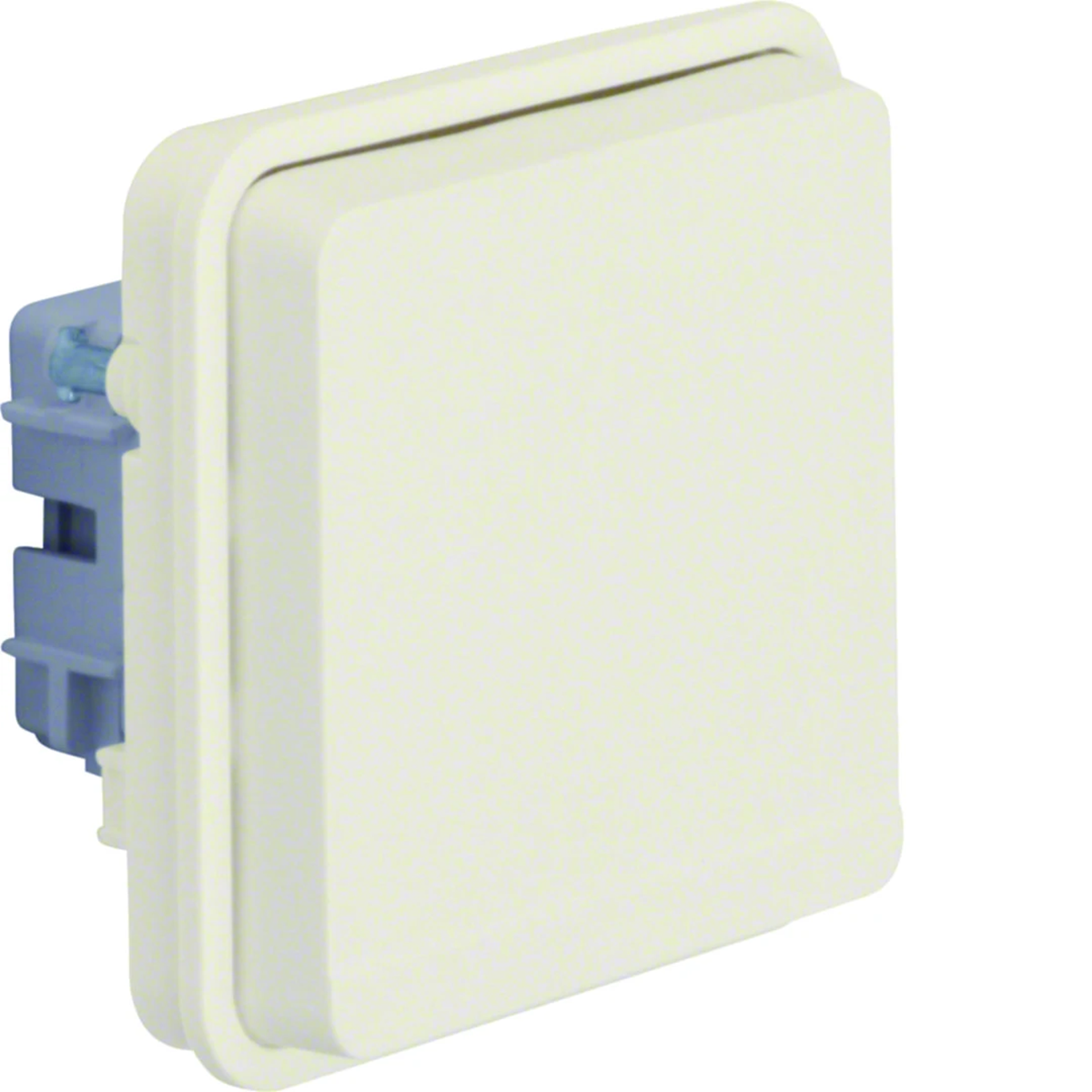

Hermetic electric socket of the W.1 series from the manufacturer Berker. The product catalog number is 6768803512< /strong>.



FEATURES

  • 2P+E.
  • < strong>Earth; grounding pin.
  • Increased protection against touch.
  • Rating IP55.
  • Socket color < strong>snow white.
  • Lid in bright white.
  • Rated current 16A.
  • Rated voltage 230V.
  • Mechanisms achieve IP55 protection only when mounted with surface-mounted housing or flush-mounted frame.
  • Hinged cover, made of stainless steel, quick-release pins
  • Connection: with plug-in terminals.
  • Mounting: for screw connection.
  • With lockable cover, manually locked.< /li>



SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, which is has an innovative look. Hermetic electrical socket characterizes the features of this series.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Type
    Recessed Surface-mounted
  • Surface finish
    matte
  • Backlight
    NO
  • Shutters of current paths
    Yes
  • Lid color
    Socket color
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Ground
    Hurt
  • Accurate color
    Snow white
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    71 mm
  • Device depth
    44 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    0 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,070 0,075 3,225 139,100
Width (m) 0,071 0,080 0,300 0,800
Length (m) 0,044 0,070 0,225 1,050
Depth (m) 0,071 0,080 0,400 1,200
