Manufacturer: BERKER
Number of sockets: 1
Color: Gray
Shape: Square
Price:
24,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

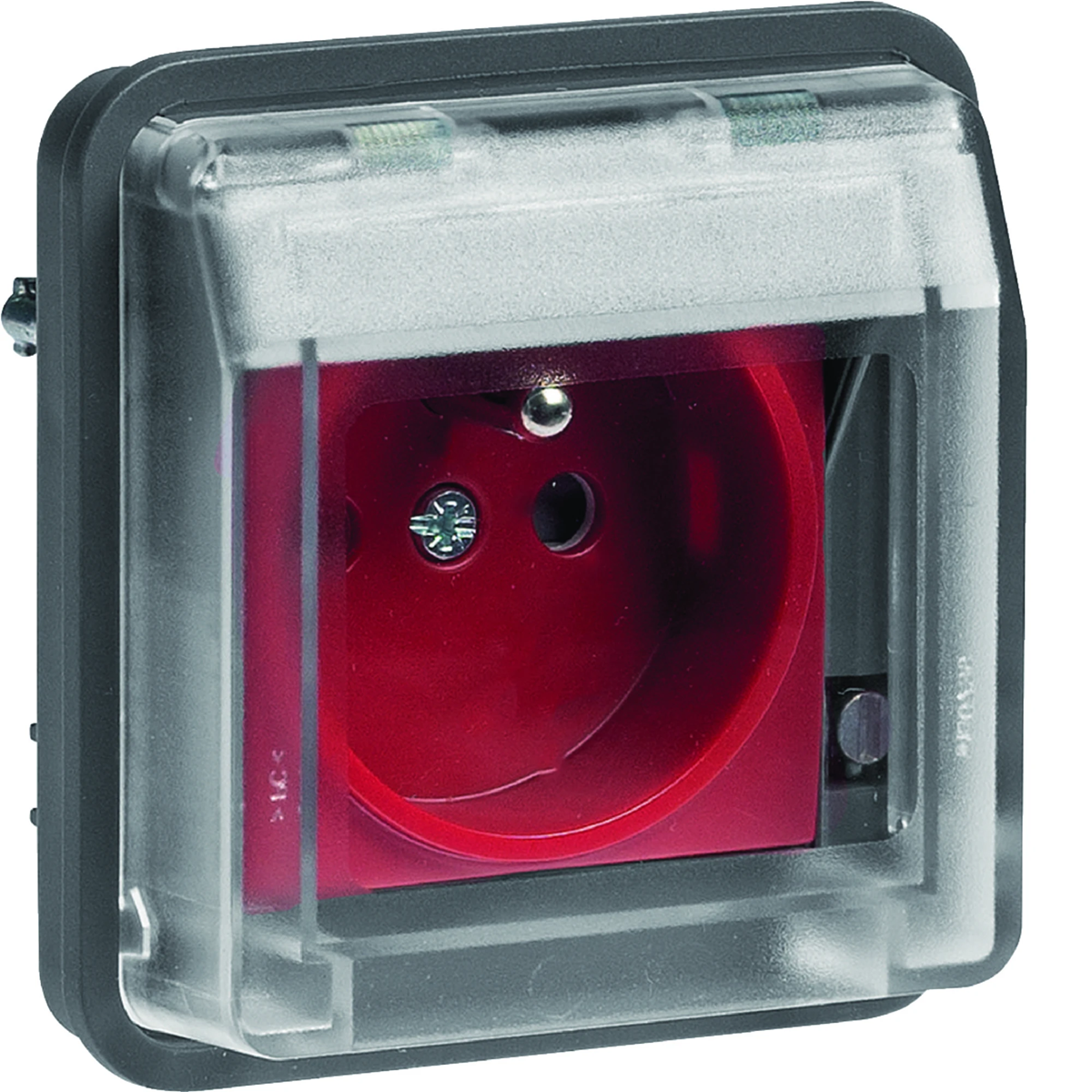

Earthed socket, from the Berker W.1 series, which combines the functionality of an external electrical installation with an aesthetic appearance. The mechanisms achieve the IP55 degree of protection only when mounted with a surface-mounted housing or a frame for flush-mounted mounting.

  • 2P+E
  • DATA
  • with key
  • 2-pole
  • with lockable cover, manually locked
  • complete housing
  • with plug-in terminals

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    16
  • Family
    W.1
  • Width [mm]
    71
  • Ground
    Hurt
  • Degree of mechanical protection
    IK05
  • Backlight
    NO
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Exact material
    Material Metal
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electrical hermetic
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    71
  • Surface finish
    matte
  • Mounting depth [mm]
    48
  • Standard
    European
  • On the DATA key
    Yes
  • Lid color
    Transparent
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Surface mounted
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    71 mm
  • Device depth
    48 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • With hinged lid
    Yes
  • Label space/information surface
    Yes
  • RAL-number (similar)
    7011
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Impact strength
    IK05
  • Device height
    71 mm
  • Min. depth of built-in installation box
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 36 pcs. 1152 pcs.
Weight (kg) 0,070 0,085 3,644 136,601
Width (m) 0,071 0,085 0,300 0,800
Length (m) 0,048 0,070 0,225 1,050
Depth (m) 0,071 0,085 0,400 1,200
