W.1 Double loudspeaker socket with cover complete IP55 grey 11963515

Name: W.1 Double loudspeaker socket with cover complete IP55 grey
Brand: BERKER
SKU: MFG004BERK
Price: 57.35 PLN

local index:

MFG004BERK

Catalog No:

11963515

EAN code:

4011334404637

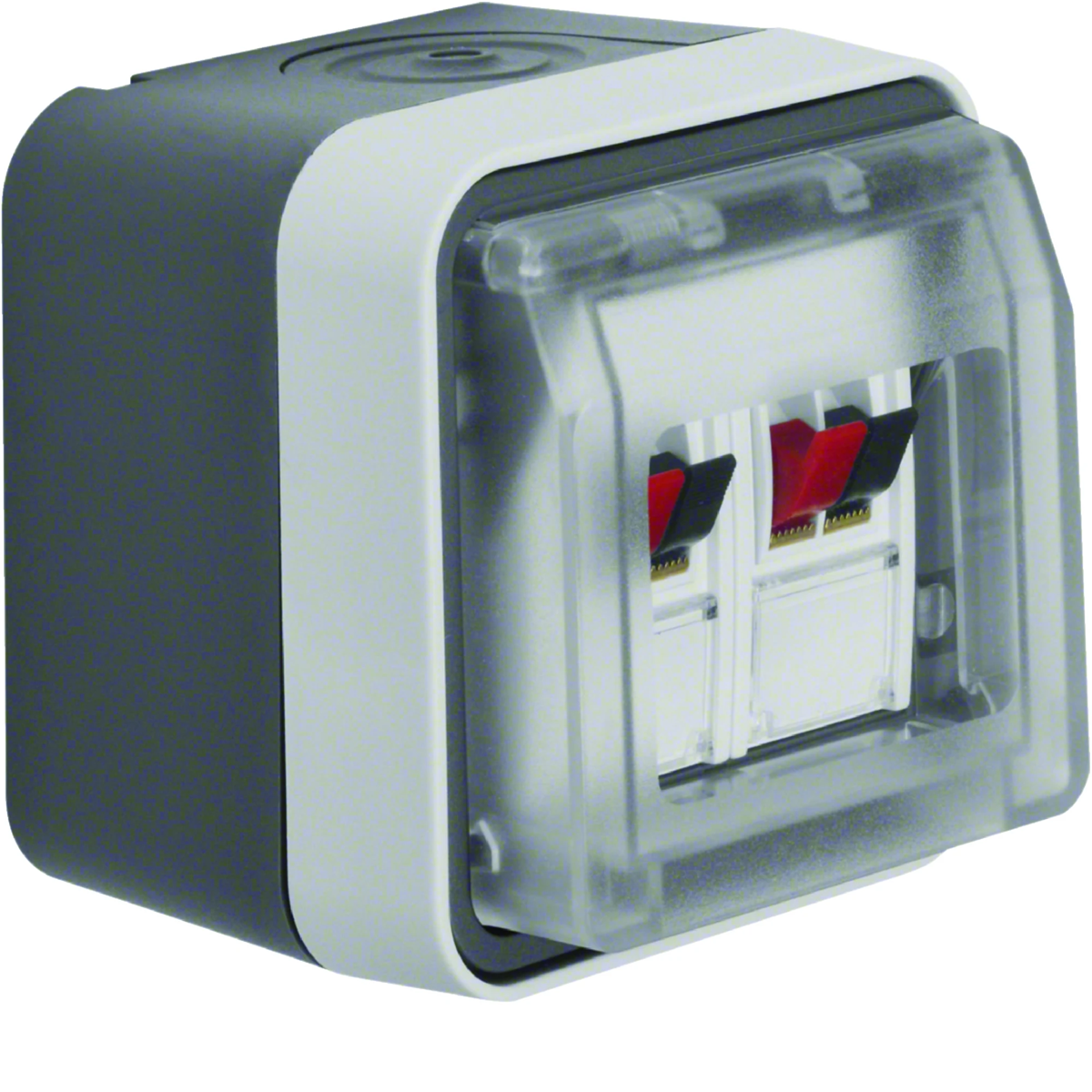

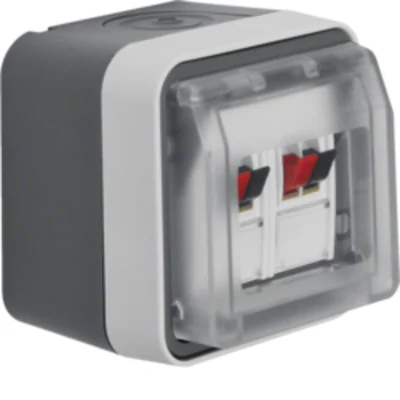

W.1 Double loudspeaker socket with cover complete IP55 grey

Click on the photo to enlarge

Manufacturer: BERKER

Number of sockets: 2

Color: Gray

Shape: Square

See full description

Price:

57,35 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Surface-mounted loudspeaker socket from the W.1 series, from Berker. The product part number is 11963515.

FEATURES

Double .
Color grey.
Rating IP55.
Mountingsurface strong>.
With transparent cover.
With labeling field.
With plug-in terminals (double-sided).
With 2-cable entry and cable or pipe entry.
Hinged lid, stainless steel, ZAMAK quick-release pins.

SERIES DESCRIPTION

Berker W.1 is a series of waterproof electrical installation equipment, distinguished by its innovative design. Surface-mounted loudspeaker socket characterize the features of this series.

Technical data

Number of sockets

2
Shape

Square
Installation

Surface-mounted
Descriptive field

Yes
Family

W.1
Type

Surface-mounted
Maximum conductor cross-section [mm²]

2.5
Variant

Pin-type plugs
Exact material

Thermoplastic

Color

Gray
Material

Plastic
Cover

Yes
Type

speaker
Level of security

IP55
Surface finish

matte
Backlight

NO
For the frame system

NO
PKWIU

27.12.40.0

Other technical data

Assembly arrangement

Basic element with complete housing
With dust cover

Yes
Imprintable label

With indication plate
Material

Plastic
Halogen free

Yes
Surface finishing

Matt
RAL-number (similar)

7011
Type of fastening

Mounting with screw
With strain relief

No
Luster terminal

No
Device width

76 mm
Device depth

65 mm

Utilization

Loudspeaker connection
With hinged lid

Yes
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface protection

Untreated
Colour

Grey
Transparent

No
With buses/couplings

No
Shielded buses

No
Suitable for degree of protection (IP)

IP55
Device height

76 mm
Min. depth of built-in installation box

35 mm

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	18 pcs.	576 pcs.
Weight (kg)	0,124	0,150	3,140	125,480
Width (m)	0,076	0,090	0,300	0,800
Length (m)	0,065	0,100	0,225	1,050
Depth (m)	0,076	0,115	0,400	1,200
