VGA socket GLOSSY WHITE 3315407009
local index:
MEH012BERK
Catalog No:
3315407009
EAN code:
4011334330301
Price:
59,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

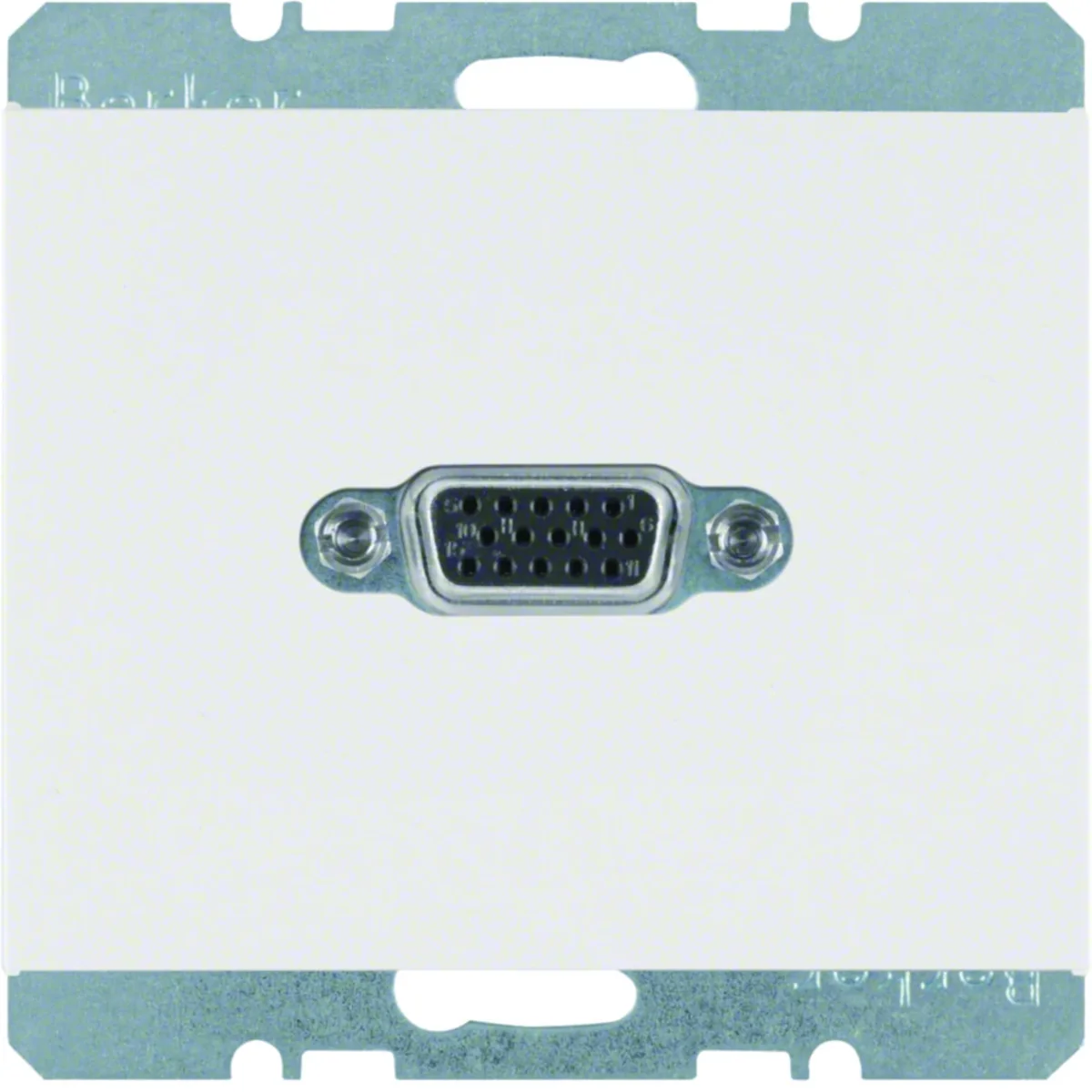

VGA socket from the K.1 series, from the manufacturer Berker. The product part number is 3315407009.
FEATURES
- Single.
- With straight-through output.
- S-VGA compatible.
- With 15-pole D-sub socket (front).
- Video frequency range: ;maximum 160 MHz.
- Resolution: maximum 1280 x 1024 px.
- Without clamps, for screw connection.
- With socket on the back side for connecting a factory-prepared VGA cable.
- With support ring.
- Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors .
Technical data
-
Number of sockets1
-
ShapeRectangular
-
InstallationFlush-mounted
-
FamilyK.1
-
Level of securityIP20
-
Surface finishShiny
-
Mounting depth [mm]12
-
For the frame systemYes
-
PKWIU27.33.13.0
-
ColorWhite
-
MaterialPlastic
-
TypeHDMI / VGA
-
Resolution [px]1280 x 1024
-
TypeFlush-mounted
-
Accurate colorSnow white
-
VariantVGA
-
Exact materialMaterial Metal
Other technical data
-
Assembly arrangementBasic element with central cover plate
-
With dust coverNo
-
Outlet directionStraight
-
Mounting methodFlush-mounted
-
Material qualityOther
-
Surface protectionUntreated
-
ColourWhite
-
TransparentNo
-
With buses/couplingsYes
-
With strain reliefNo
-
Luster terminalNo
-
Device width71 mm
-
Device depth23.5 mm
-
Support ringYes
-
With hinged lidNo
-
Imprintable labelWithout indication field
-
MaterialOther
-
Halogen freeYes
-
Surface finishingGlossy
-
RAL-number (similar)9010
-
Type of fasteningMounting with screw
-
Suitable for number of connectors1
-
Shielded busesYes
-
Suitable for degree of protection (IP)IP20
-
Device height71 mm
-
Min. depth of built-in installation box14 mm
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 3330 pcs. |
| Weight (kg) | 0,056 | 0,695 | 254,435 |
| Width (m) | 0,071 | 0,150 | 0,800 |
| Length (m) | 0,029 | 0,080 | 1,050 |
| Depth (m) | 0,071 | 0,295 | 1,200 |
