Manufacturer: BERKER
Number of sockets: 1
Color: White
Shape: Square
Price:
55,04 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

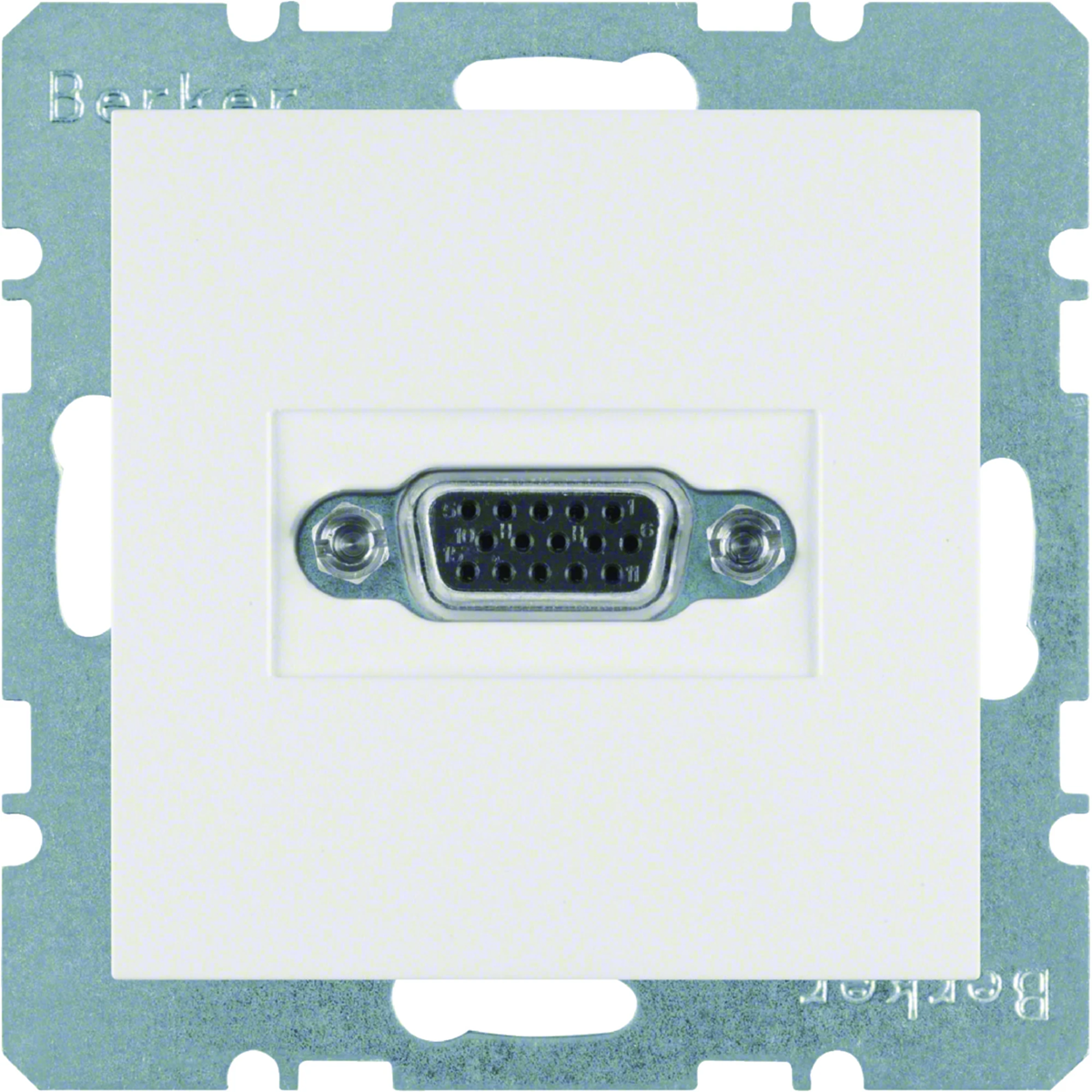

VGA socket from the B.Kwadrat/B.3/B.7 series, from Berker. The product part number is 3315408989.



FEATURES

  • Single.
  • With straight-through output.
  • S-VGA compatible.
  • With 15-pin D-sub socket (front).
  • Video frequency range:  up to 160 MHz.
  • Resolution: up to 1280 x 1024 px.
  • Without clamps, for screw connection.
  • With socket on the back for for connection of a factory-prepared VGA cable.
  • With riser ring.
  • Enables connection of PCs and laptops to display devices, e.g. monitors (LCD) and projectors.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    B.SQUARE
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface finish
    Shiny
  • Mounting depth [mm]
    12
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Type
    HDMI / VGA
  • Resolution [px]
    1280 x 1024
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    Snow white
  • Variant
    VGA
  • Exact material
    Material Metal

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • With dust cover
    No
  • Outlet direction
    Straight
  • Mounting method
    Flush-mounted
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    71 mm
  • Device depth
    23.5 mm
  • Support ring
    Yes
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9010
  • Type of fastening
    Mounting with screw
  • Suitable for number of connectors
    1
  • Shielded buses
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    71 mm
  • Min. depth of built-in installation box
    14 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 80 pcs. 1600 pcs.
Weight (kg) 0,054 0,675 5,780 140,600
Width (m) 0,071 0,154 0,305 0,800
Length (m) 0,038 0,078 0,335 1,050
Depth (m) 0,071 0,292 0,395 1,200
