VGA socket 22.5x45mm 15+1pin FU/FA-2420-VGA-16

local index:
MGH001EMSO
Catalog No:
FU/FA-2420-VGA-16
EAN code:
5906764107960
Manufacturer: EMITER
Depth [mm]: 38
Number of sockets: 1
Number of modules: 1
Price:
6,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

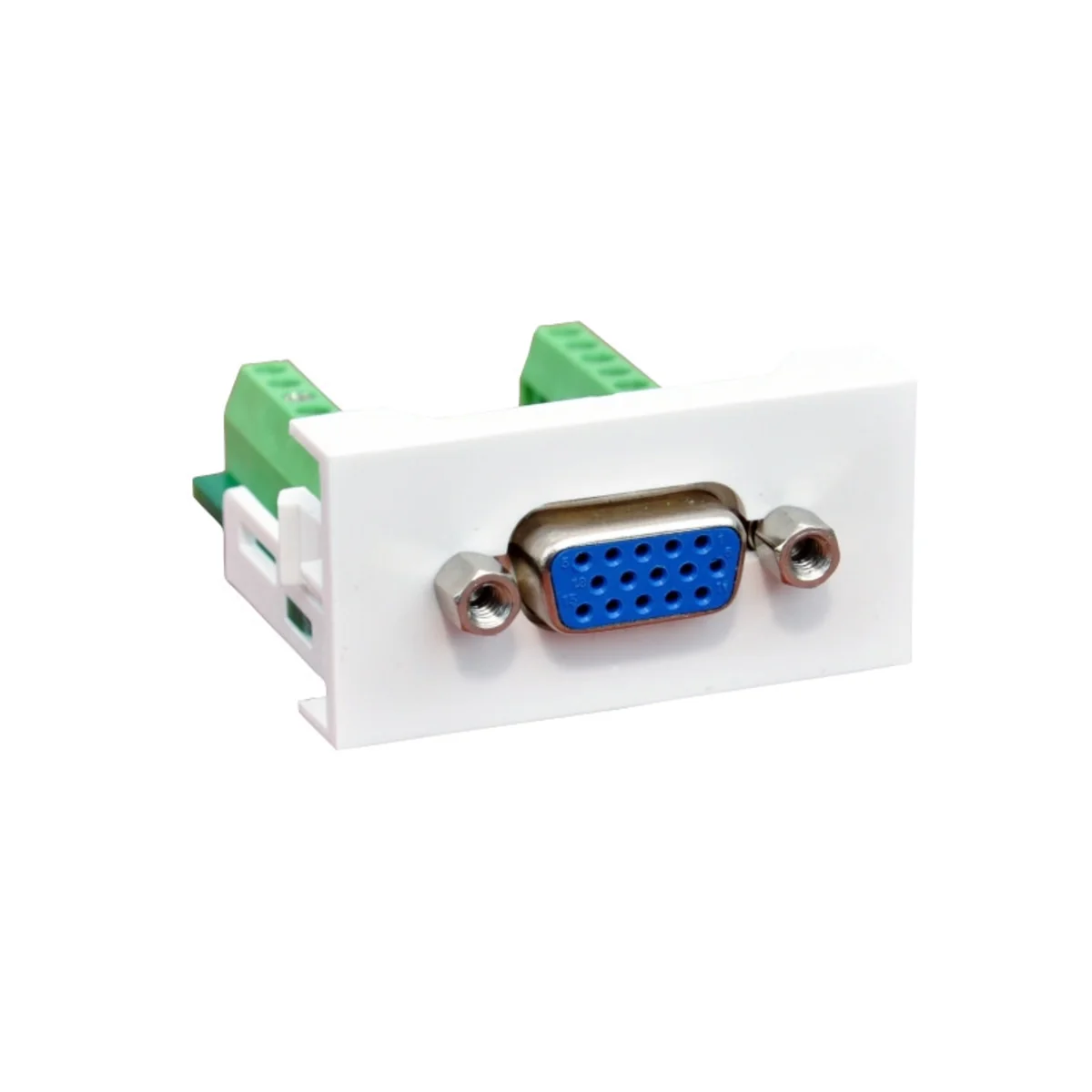

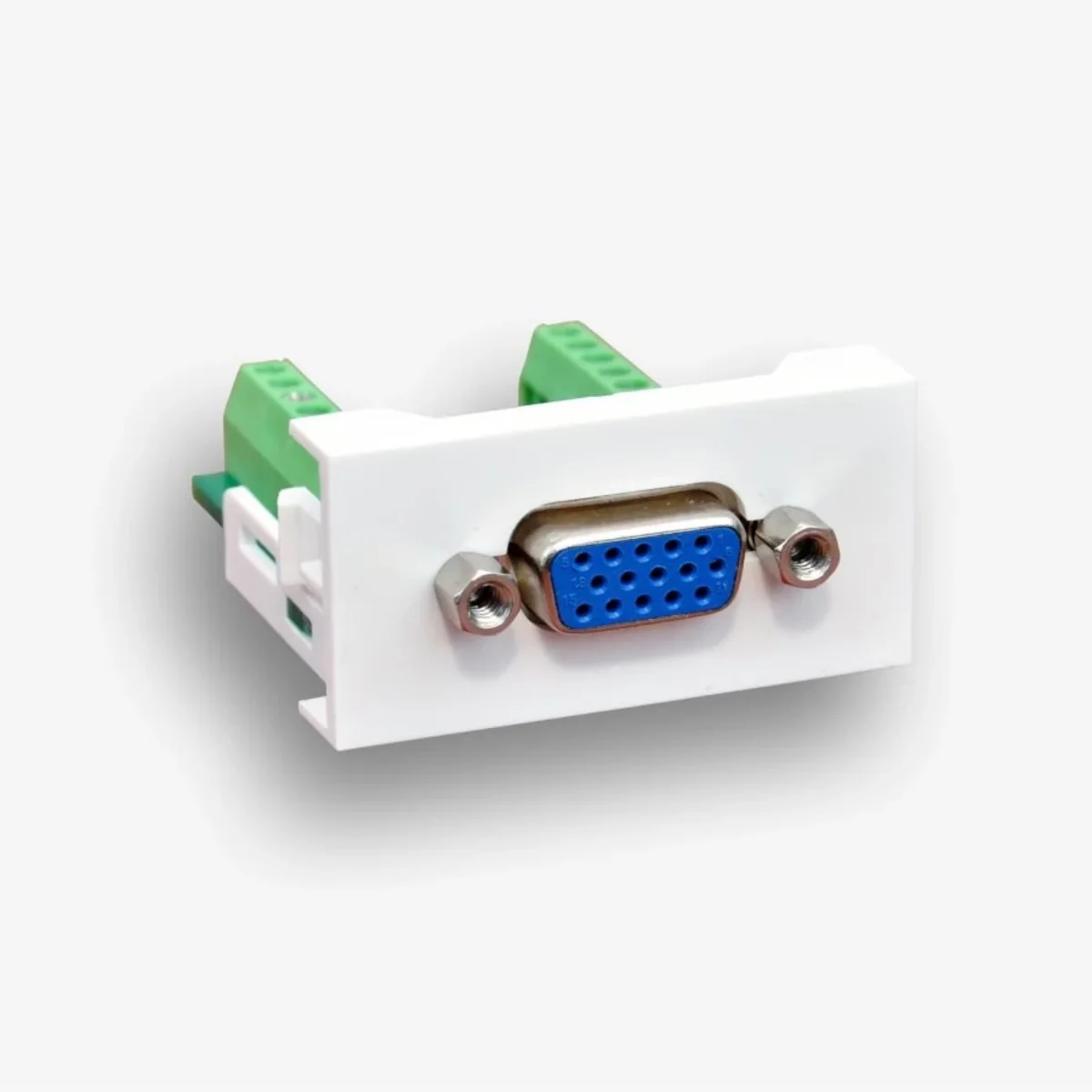

VGA socket from manufacturer Emitter. Product part number is FU/FA-2420-VGA-16.



FEATURES

  • D-Sub 15-pin female connector.

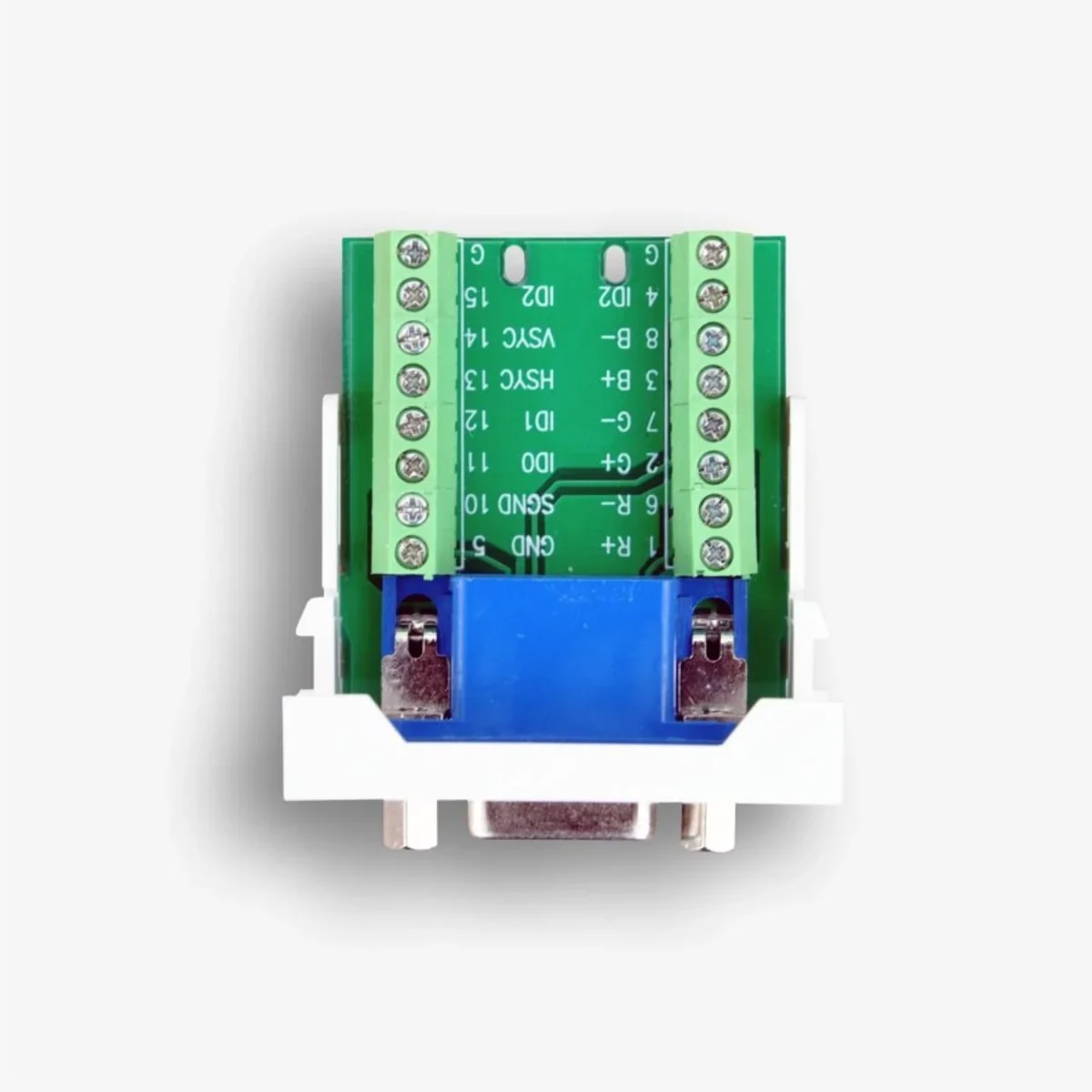

  • Connection of wires to screw terminal of all wiresó w 15+1 - pin.
  • Small compact design, which allows use in cable ducts with a depth of 40mm.
  • Mounting by snapping in the UCHKP quick mounting bracket, housing OBUK surface-mounted frame, FRAME masking frame.

Technical data

  • Depth [mm]
    38
  • Number of modules
    1
  • Shape
    Rectangular
  • Type
    HDMI / VGA
  • Type
    45x45
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • Number of sockets
    1
  • Color
    White
  • Material
    Plastic
  • Width [mm]
    22.5
  • Height [mm]
    45
  • Variant
    VGA

Other technical data

  • Assembly arrangement
    Basic element
  • With dust cover
    No
  • Outlet direction
    Straight
  • With imprint
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    1
  • Suitable for number of connectors
    1
  • Shielded housing
    No
  • Device width
    22.5 mm
  • Device depth
    38 mm
  • Support ring
    No
  • With hinged lid
    No
  • Imprintable label
    Without indication field
  • Mounting method
    Wall duct
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9003
  • Type of fastening
    Engage (snap)
  • With buses/couplings
    Yes
  • With strain relief
    No
  • Luster terminal
    Yes
  • Device height
    45 mm
