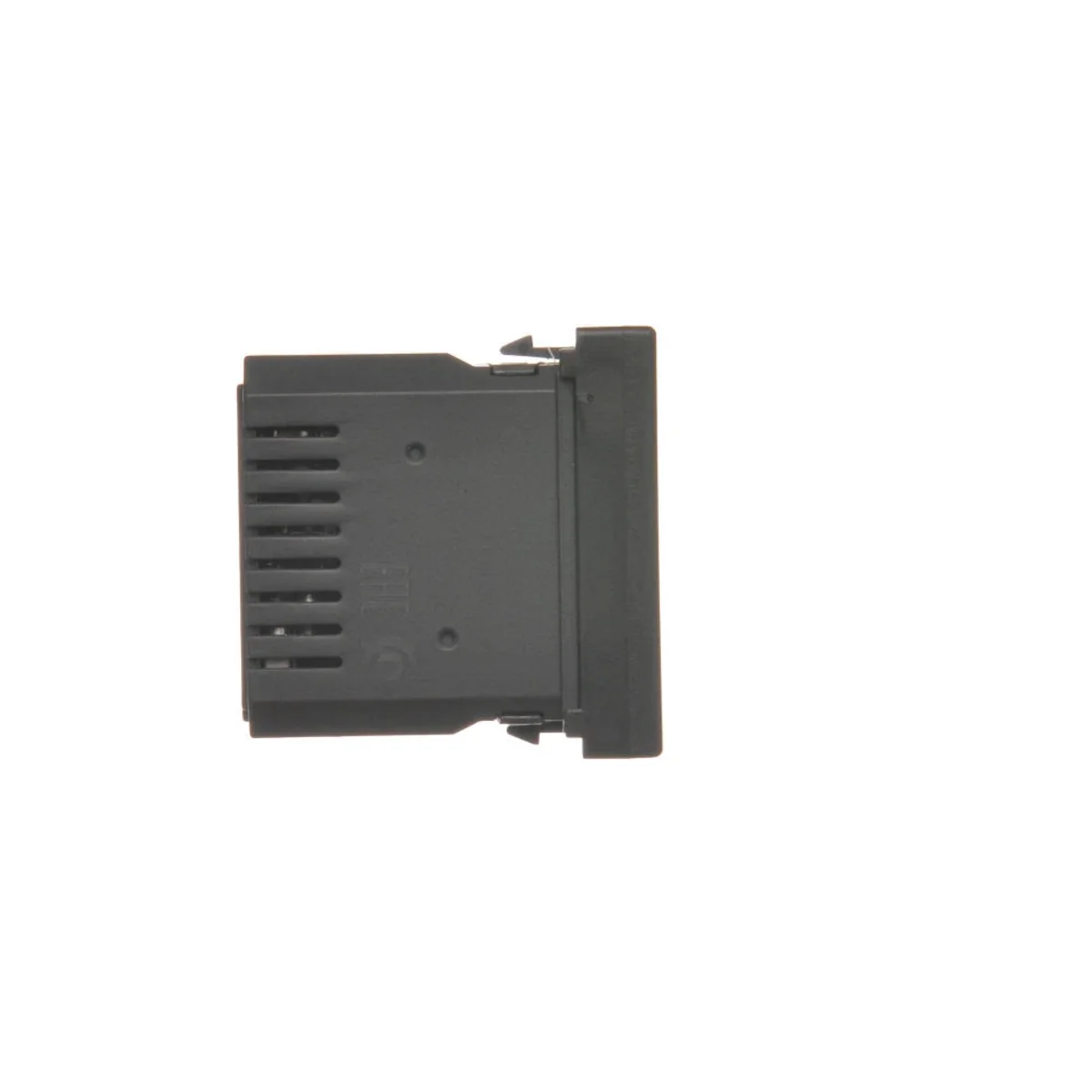

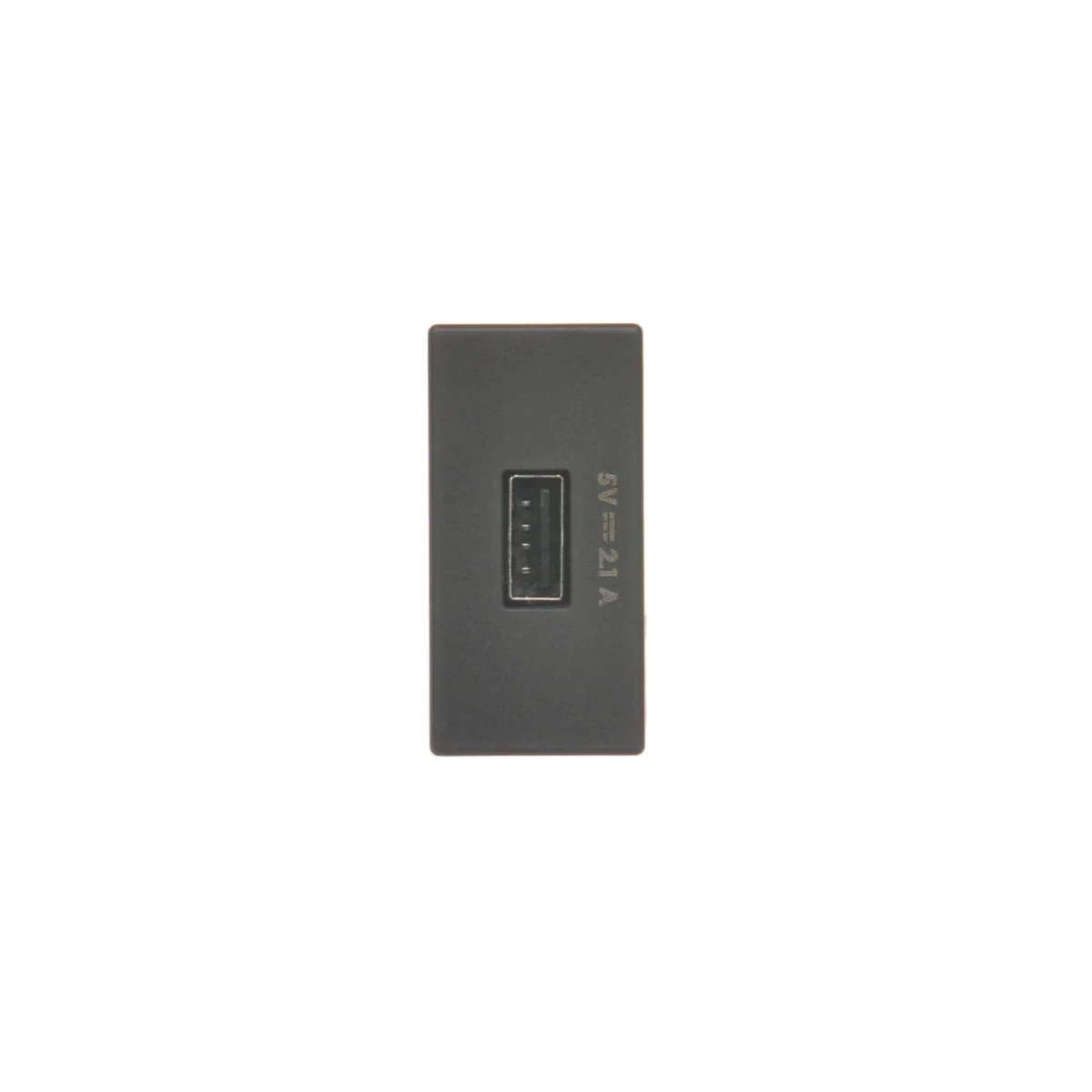

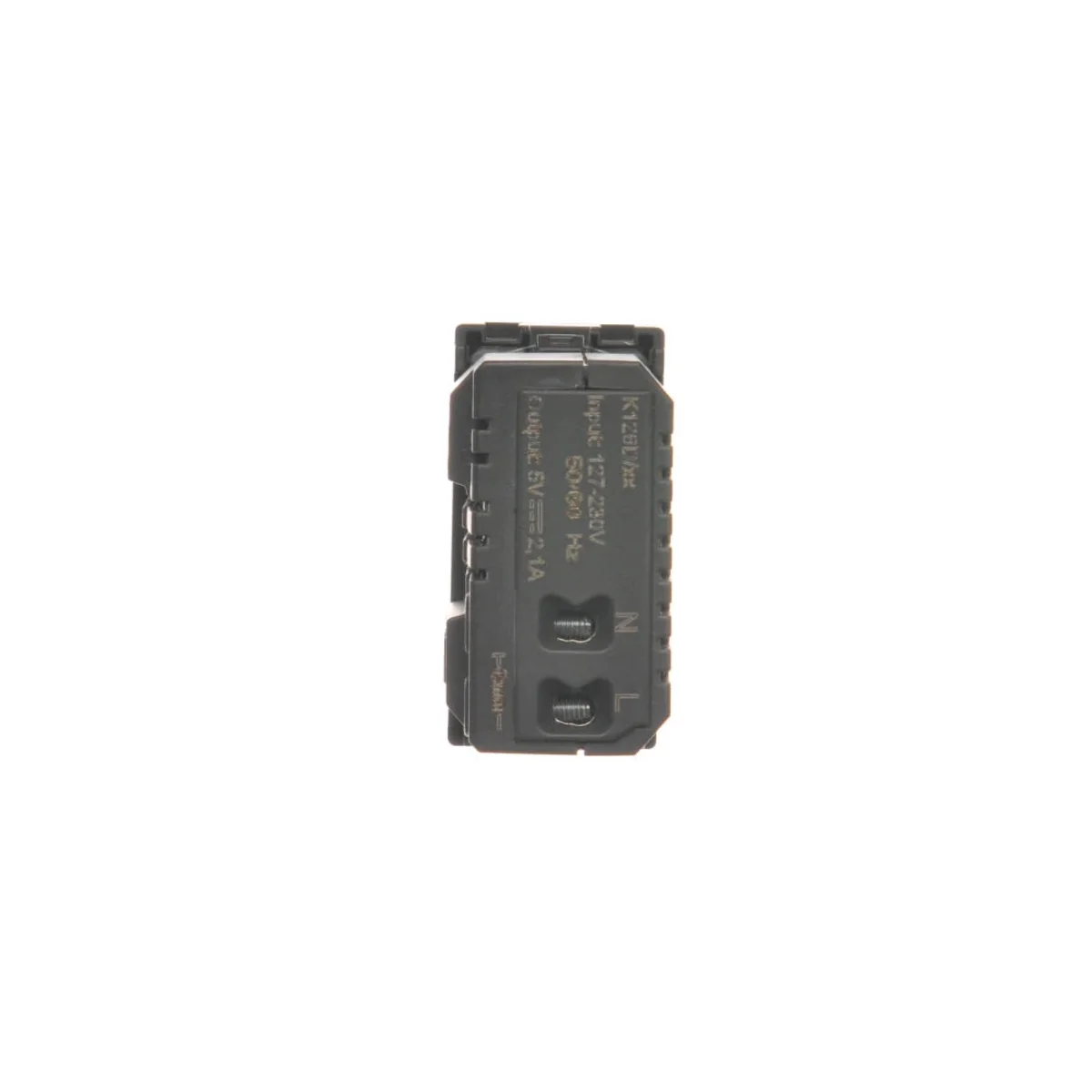

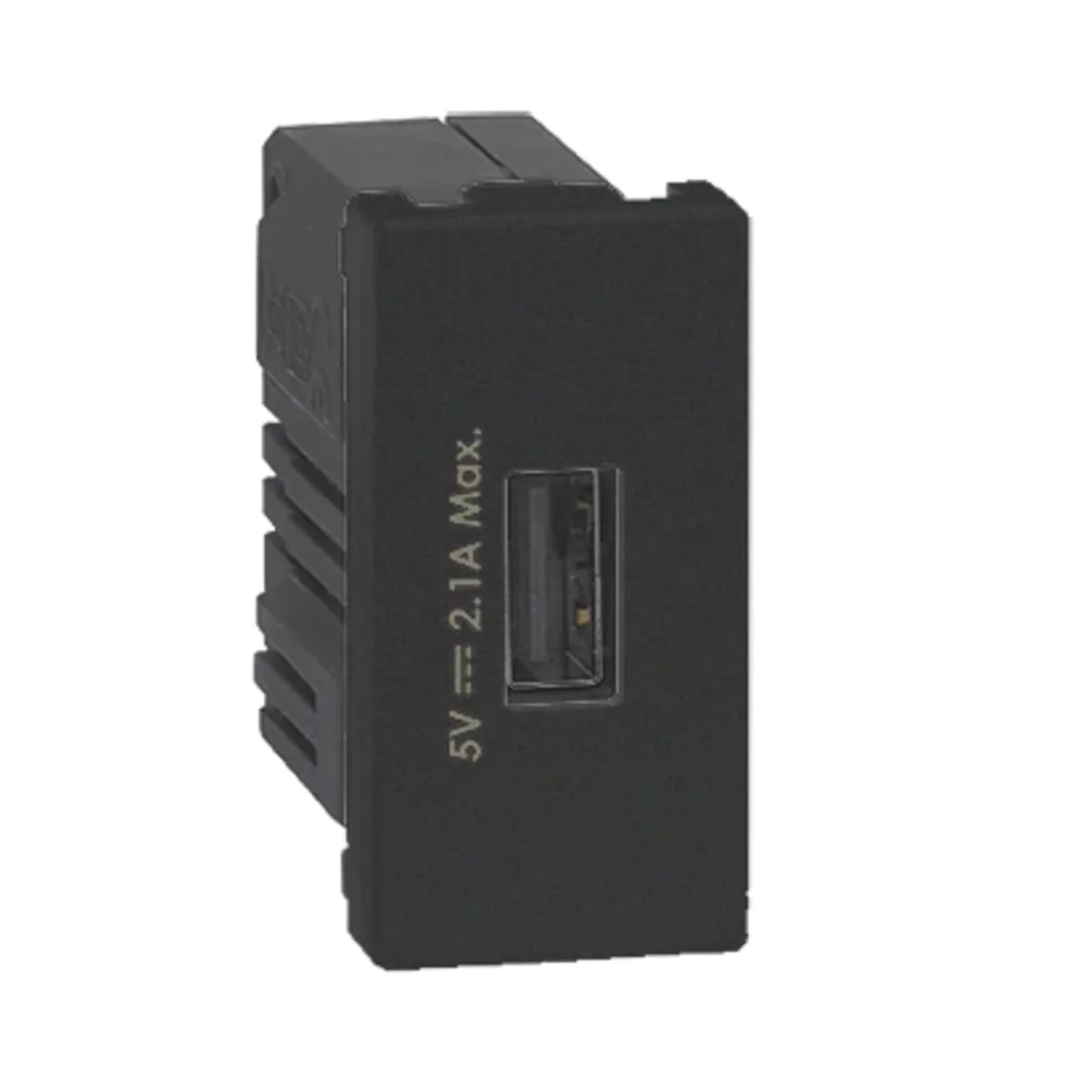

USB charger K45 USB 2.0 - A 5V DC 2.1A graphite K126D/14

local index:
MGU008KONT
Catalog No:
K126D/14
EAN code:
8421053195062
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Number of sockets: 1
Number of modules: 1
Price:
37,97 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

USB charger in standard K45, from the manufacturer Contact Simon. The product catalog number is K126D/14.



FEATURES

  • USB 2.0 type A.< /li>
  • 1 module.
  • 2.1 A.



SERIES DESCRIPTION

The USB charger of the K45  standard has been designed so that it can be used in various installations, such as floor boxes, columns or installation ducts.   ;

Technical data

  • Halogen free
    Yes
  • Number of modules
    1
  • Shape
    Rectangular
  • Installation
    Snaps
  • Output voltage [V]
    5
  • Type
    USB / power supply 5-24V
  • Level of security
    IP20
  • Type
    45x45
  • Surface protection
    Natural
  • Mounting depth [mm]
    43
  • Variant
    USB
  • PKWIU
    27.90.11.0
  • Number of sockets
    1
  • Color
    Graphite
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Rated current [A]
    2.1
  • Family
    K45
  • Width [mm]
    22.5
  • Height [mm]
    45
  • Surface finish
    matte
  • Terminal type
    Threaded
  • For the frame system
    Yes

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 1 pcs.
Weight (kg) 0,045 0,045 -
Width (m) 0,023 - -
Depth (m) 0,045 - -
