USB / 3.5mm Audio jack 3315391909

local index:

MEU025BERK

Catalog No:

3315391909

EAN code:

4011334330141

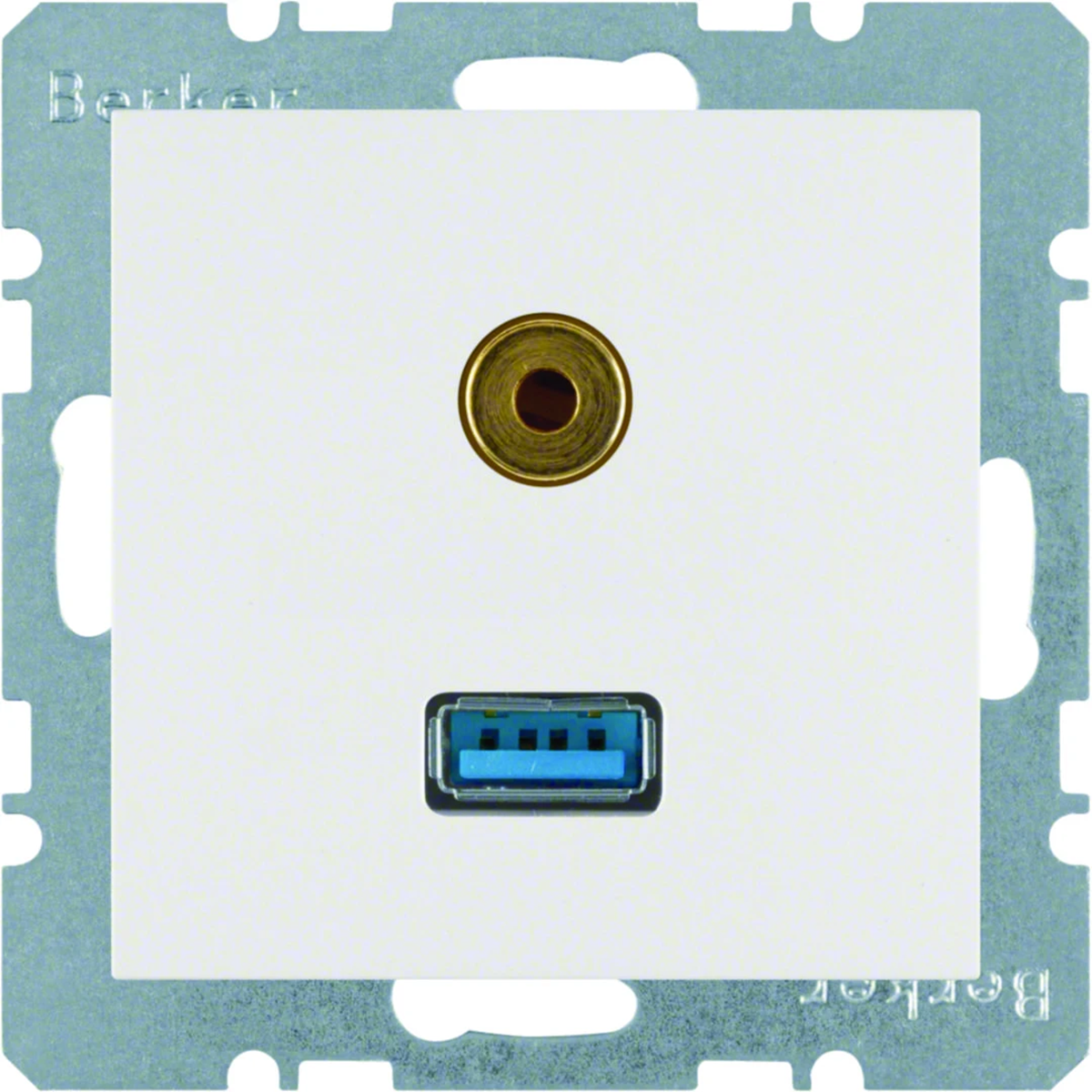

USB / 3.5mm Audio jack

USB / 3.5mm Audio jack

Click on the photo to enlarge

Manufacturer: BERKER

Depth [mm]: 36.4

Number of sockets: 1

Color: White

See full description

Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet

Price:

159,94 zł

gross / pcs.

(including VAT 23%)

The lowest price from 30 days before the reduction: 364,08 zł gross -204,14 zł

Manufacturer's price: 413,28 zł gross

Accessible 1 pcs.

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Add to clipboard

Print

Ask about the product

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

USB socket from the B.Kwadrat/B.3/B.7 series, from Berker. The product part number is 3315391909.

FEATURES

USB port type A, compatible with USB 2.0.
Gold-plated 3.5 mm jack, stereo (mini jack).
With straight output.
Audio frequency range: 20 Hz…20 kHz.
USB transfer rate: max. 5 Gbit/s.
Without struts.
Intended for connecting portable devices such as mobile phones, MP3 players (mini audio), digital and computer cameras peripheral devices (USB 2.0).
Recommended use of mounting boxes for electronic devices with increased volume in order to properly lay wireów.

Technical data

Depth [mm]

36.4
Color

White
Material

Plastic
Installation

Flush-mounted
Family

B.SQUARE
Width [mm]

71
Height [mm]

71
Surface finish

matte
For the frame system

Yes
Exact material

Material Metal

Number of sockets

1
Shape

Square
Fixing

screws
Type

USB / power supply 5-24V
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Variant

USB
Extra socket

JACK
PKWIU

27.33.13.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Support ring

Yes
With hinged lid

No
Mounting method

Flush-mounted
Material quality

Other
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

9010
Type of fastening

Mounting with screw
With strain relief

No
Luster terminal

No
Impact strength

IK05
Device height

71 mm
Min. depth of built-in installation box

27 mm

Utilization

USB
With dust cover

No
Imprintable label

Without indication field
Material

Plastic
Halogen free

Yes
Surface protection

Untreated
Colour

White
Transparent

No
With buses/couplings

Yes
Shielded buses

Yes
Suitable for degree of protection (IP)

IP20
Device width

71 mm
Device depth

36.4 mm

Manufacturer details

Manufacturer

Berker GmbH & Co. KG.
Address

DE 66440 Blieskastel Zum Gunterstal Niemcy
E-mail

wsparcie.klienta@hager.com

Bulk packaging

A kind of package	Karton	Pakiet	Paleta
Quantity	10 pcs.	80 pcs.	1600 pcs.
Weight (kg)	0,620	4,960	99,200
Width (m)	0,150	0,300	0,800
Length (m)	0,070	0,330	1,050
Depth (m)	0,290	0,390	1,200

Files to download

rohs_declaration_3315391909-01.pdf

33153XX-33154XX__MULTIMEDIA-SOCKETS__DE-EN__2023-03__MANUAL.pdf
