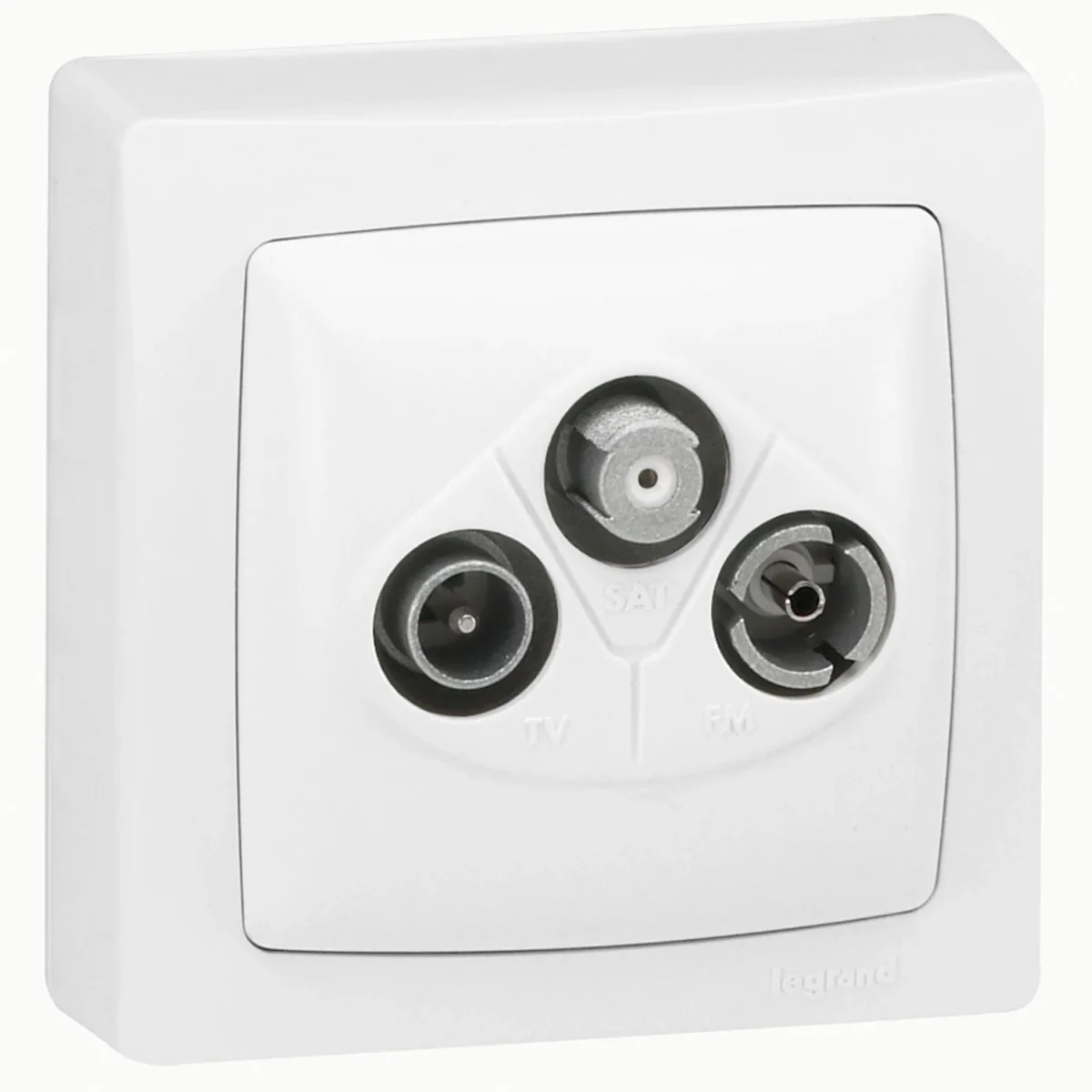

TV-RD-SAT socket white 086042

local index:
MFA002LEGR
Catalog number:
086042
EAN code:
3245060860424
TV-RD-SAT socket white
TV-RD-SAT socket white

Click on the photo to enlarge

Manufacturer: LEGRAND
Number of sockets: 3
Color: White
Shape: Square
See full description
Price:
197,69 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Surface-mounted antenna socket from the Oteo series, from the manufacturer Legrand. The product catalog number is 086042.



FEATURES

  • TV-RD-SAT.
  • Mechanism with push button/plate and surface-mounted box included.
  • Dampening ≤ 2 dB.
  • Color white.
  • Innovative cable connection ensures easy and quick installation.
    • < li>For star installations.



SERIES DESCRIPTION

Oteo is a series of surface-mounted accessories that ;ra allows for quick modernization of the installation. The surface-mounted antenna socket has all the features of this unique series.

Technical data

  • Number of sockets
    3
  • Shape
    Square
  • Installation
    Surface-mounted
  • Type
    Antenna
  • Level of security
    IP2X
  • Type
    Surface-mounted
  • Backlight
    NO
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Color
    White
  • Material
    Plastic
  • Overprint
    Yes
  • Family
    OTEO
  • Attenuation [dB]
    2
  • Frequency Range [MHz]
    R: 87.5-108 TV: 5-68 TV: 120-862 SAT: 950-2150
  • Variant
    R TV sat
  • For the frame system
    NO

Other technical data

  • Model
    End socket
  • DAB+
    No
  • Number of modules (module system)
    2
  • Tap loss at 860 MHz
    1.5 dB
  • Number of outlets
    3
  • Suitable for remote power supply
    Yes
  • SAT frequency band
    950 ... 2400 MHz
  • Colour
    White
  • Surface protection
    Untreated
  • Material
    Plastic
  • Halogen free
    Yes
  • Degree of protection (IP)
    IP20
  • Device width
    72 mm
  • Device depth
    37.7 mm
  • Type of socket outlet
    TV/RD/SAT
  • Mounting method
    Surface mounted
  • Assembly arrangement
    Basic element with complete housing
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for cable modem
    No
  • Radio frequency band
    87.5 ... 240 MHz
  • Type of fastening
    Mounting with screw
  • RAL-number (similar)
    9003
  • Surface finishing
    Glossy
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Impact strength
    IK04
  • Device height
    72 mm
  • Min. depth of built-in installation box
    0 mm

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
  • E-mail
    info@legrand.com.pl

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 1 pcs. 50 pcs. 500 pcs.
Weight (kg) 0,125 6,649 66,490
Volume (m3) 0,001 0,032 0,516
Width (m) 0,058 0,300 1,200
Length (m) 0,089 0,270 0,430
Depth (m) 0,101 0,400 1,000
