tehalit.VE-EE Set Floor and mounting box VQ06/VEQ06/EKQ06 stainless steel UDBDQ06

local index:
MVD044TEHA
Catalog No:
UDBDQ06
EAN code:
4012002247396
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Square
Price:
94,35 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

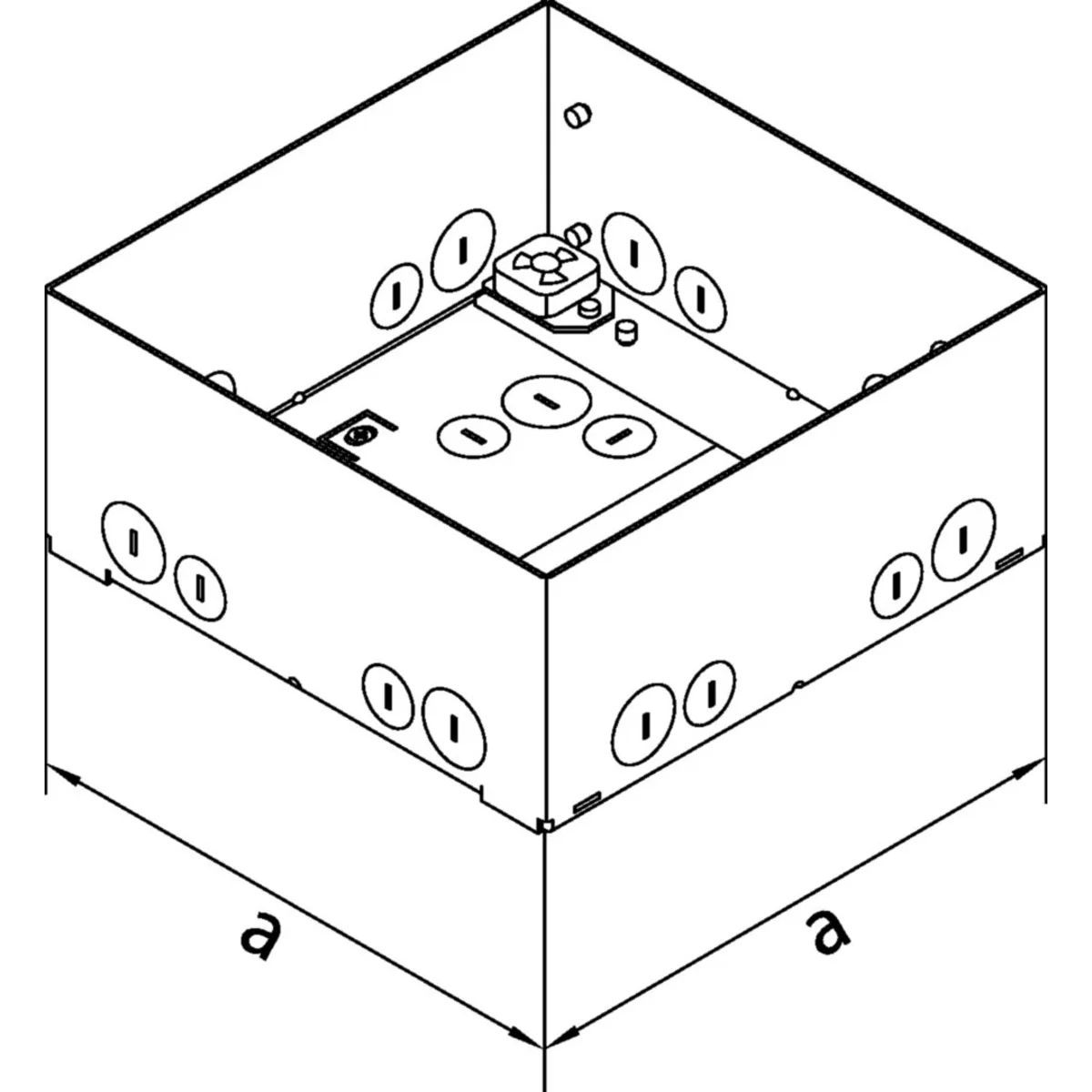

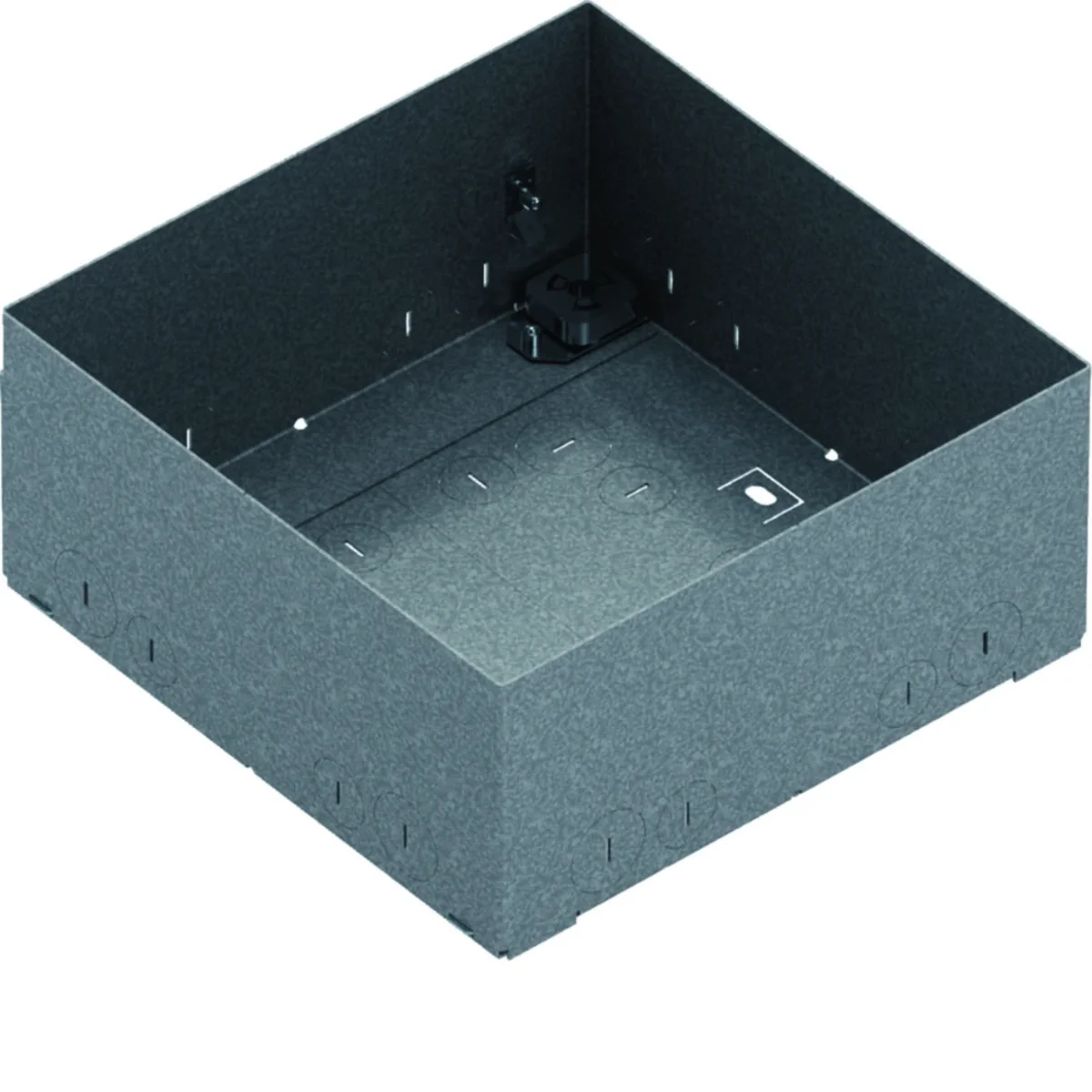

tehalit.VE-EE Set Floor and mounting box VQ06/VEQ06/EKQ06 stainless steel

Technical data

  • Halogen free
    Yes
  • Shape
    Square

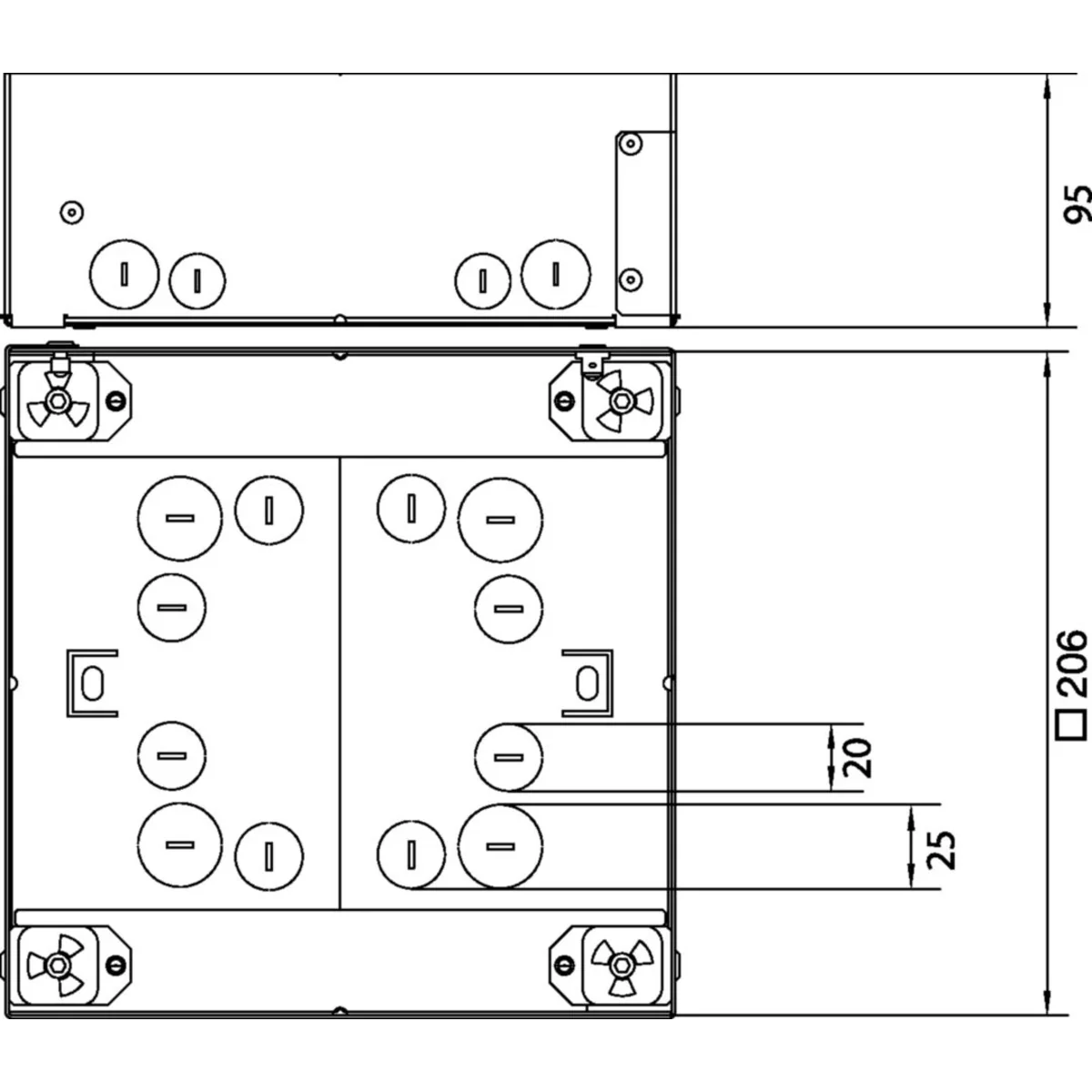

  • Height [mm]
    95
  • Minimum installation depth [mm]
    95
  • Mounting dimension (width) [mm]
    200
  • Color
    Silver
  • Material
    Galvanized steel sheet
  • Accurate color
    galvanized
  • Mounting dimension (length) [mm]
    200
  • PKWIU
    25.99.29.0

Other technical data

  • Min. height finishing layer
    95 mm
  • Suitable for subfloor duct overhead closed
    No
  • Number of appliances to build in
    6
  • Suitable for placing of sealing
    No
  • Suitable for subfloor duct countersunk (closed)
    Yes
  • Built-in opening for built-in unit
    Square
  • Material side wall
    Steel
  • Decoupling possibility cover from base unit
    Yes

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 96 pcs.
Weight (kg) 1,440 1,655 181,880
Width (m) 0,203 0,255 0,800
Length (m) 0,091 0,110 1,050
Depth (m) 0,203 0,295 1,200
