TEHALIT

TEHALIT.VE-EE hinged lid VR12 fi306 lining 5mm black VR12059005

local index:
MAV080TEHA
Catalog No:
VR12059005
EAN code:
4012002245125
Price:
61,84 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,70 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

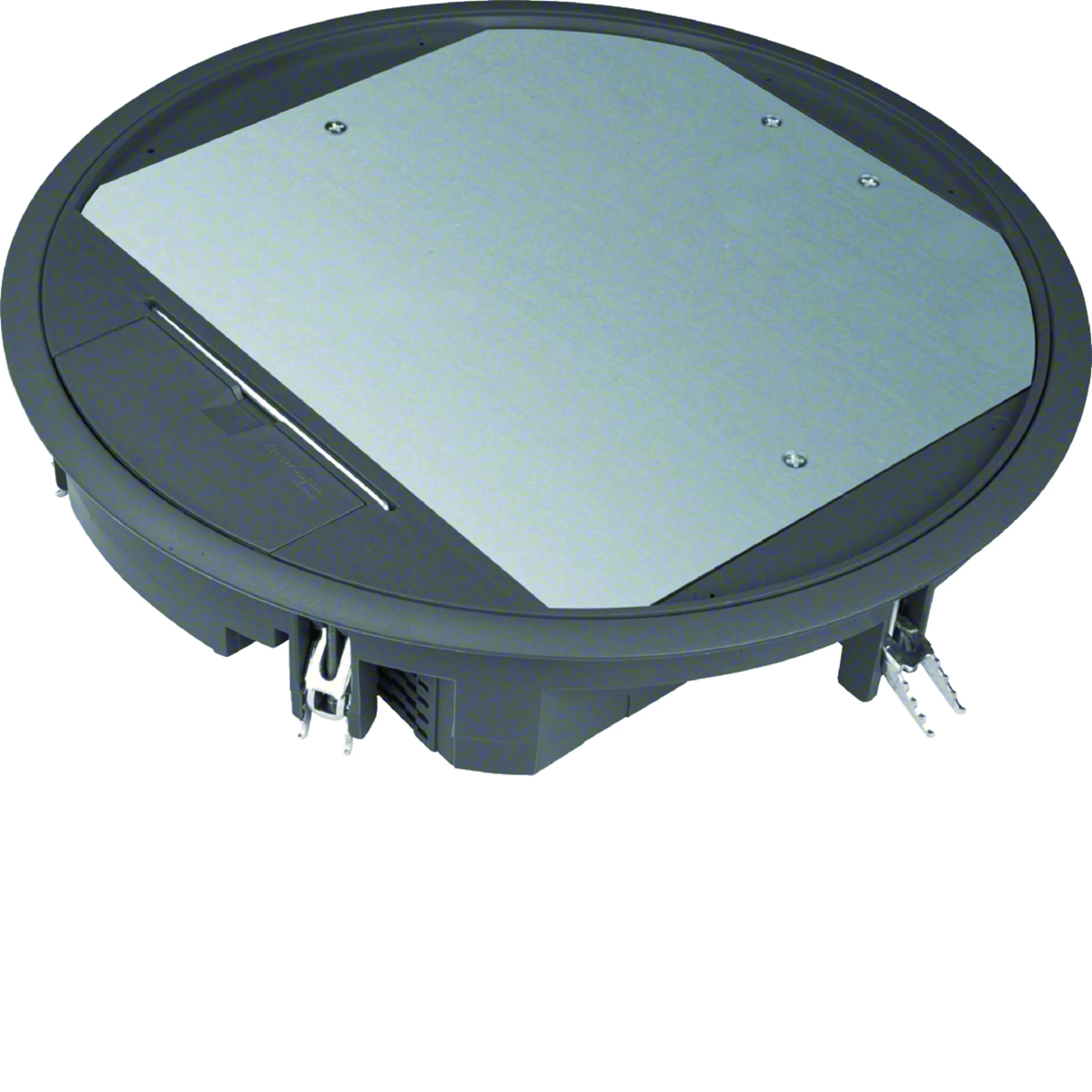

Hinged lid for dry-cleaned floors, series tehalit.VE-EE:

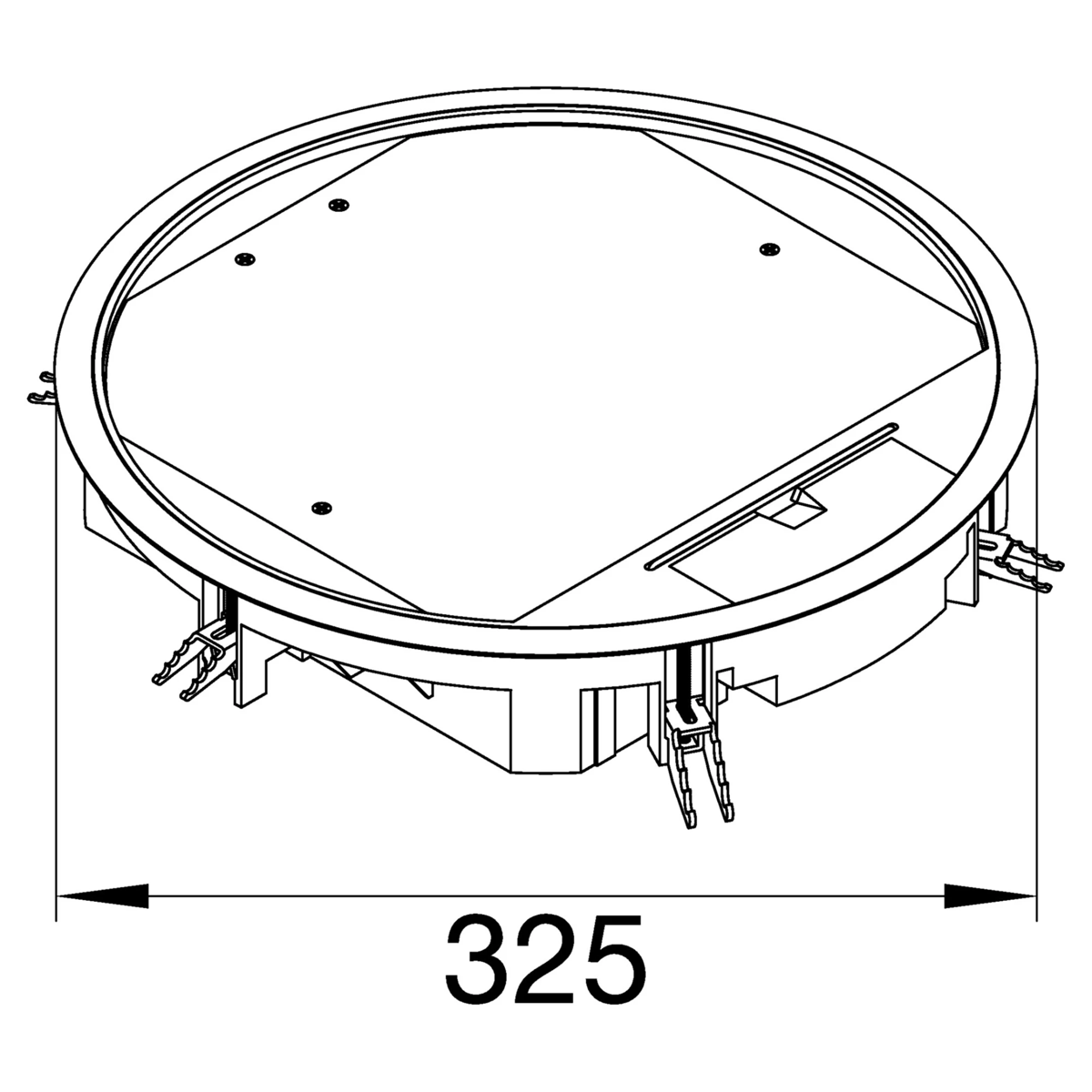

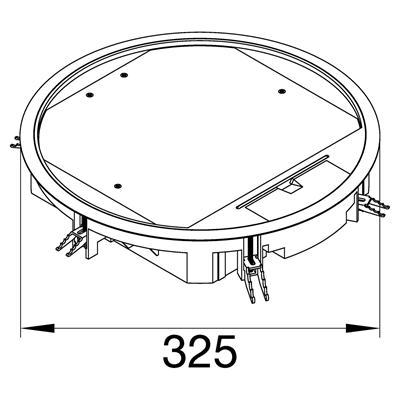

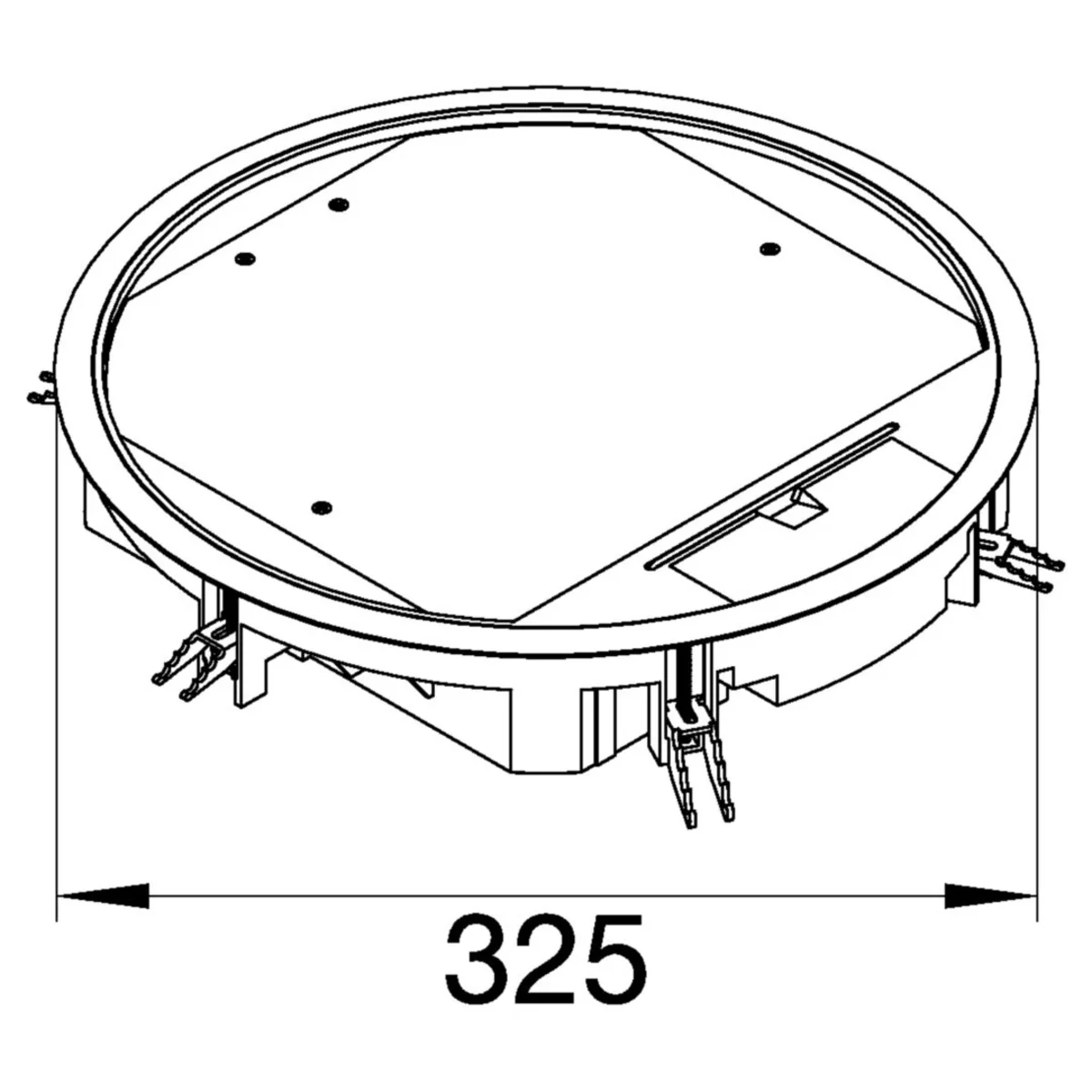

  • external dimension: Ø 325 mm< /li>
  • mounting dimension: Ø 306 mm
  • up to 12 devices in 3 boxes GTVR400, GBVR400, GTVD300
  • gradual lowering of boxes GTVR400, GBVR400, GTVD300 to 18 mm
  • includes cable holders
  • for 5 mm carpet = 70 mm minimum mounting depth

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Shape
    Round
  • Family
    TEHALIT.VE-EE
  • How to use and clean the floor
    dry
  • Color
    Black
  • Material
    Mixed
  • Minimum installation depth [mm]
    77

Other technical data

  • Number of device cups
    3
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Black
  • Suitable for subfloor duct
    yes
  • Suitable for double floor built-in
    yes
  • Outer diameter
    325 mm
  • Min. built-in depth
    77 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    12
  • With opening carpeting
    yes
  • Protective frame carpeting
    yes
  • RAL-number
    9005
  • Suitable for hollow floor
    yes
  • Suitable for wet cleaning
    no
  • Built-in diameter
    306 mm
