TEHALIT

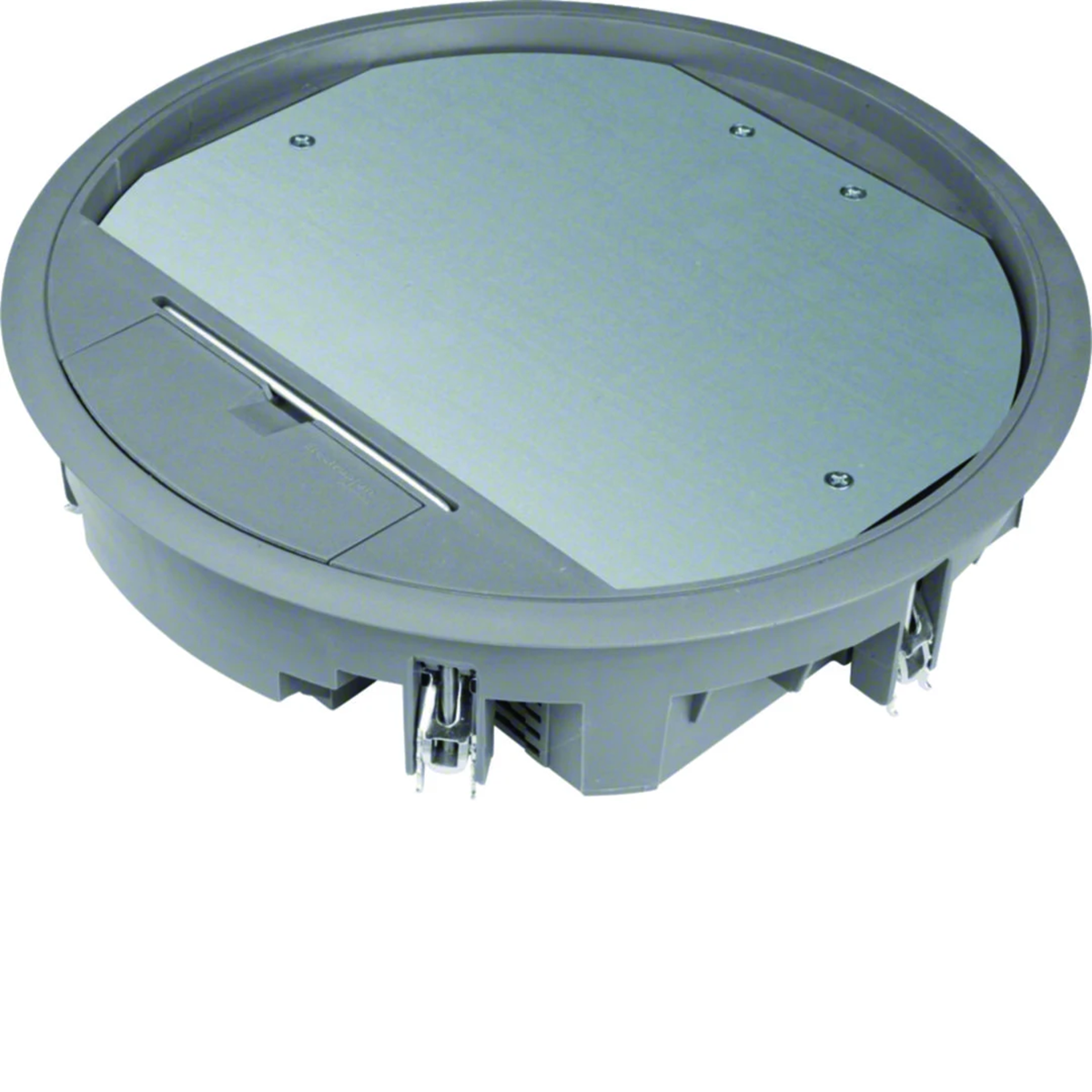

TEHALIT.VE-EE hinged lid VR10 fi275 lining 12mm gray steel VR10127011

local index:
MAV077TEHA
Catalog No:
VR10127011
EAN code:
4012002245095
Price:
51,84 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,49 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Hinged cover for dry-cleaned floors, series tehalit.VE-EE:

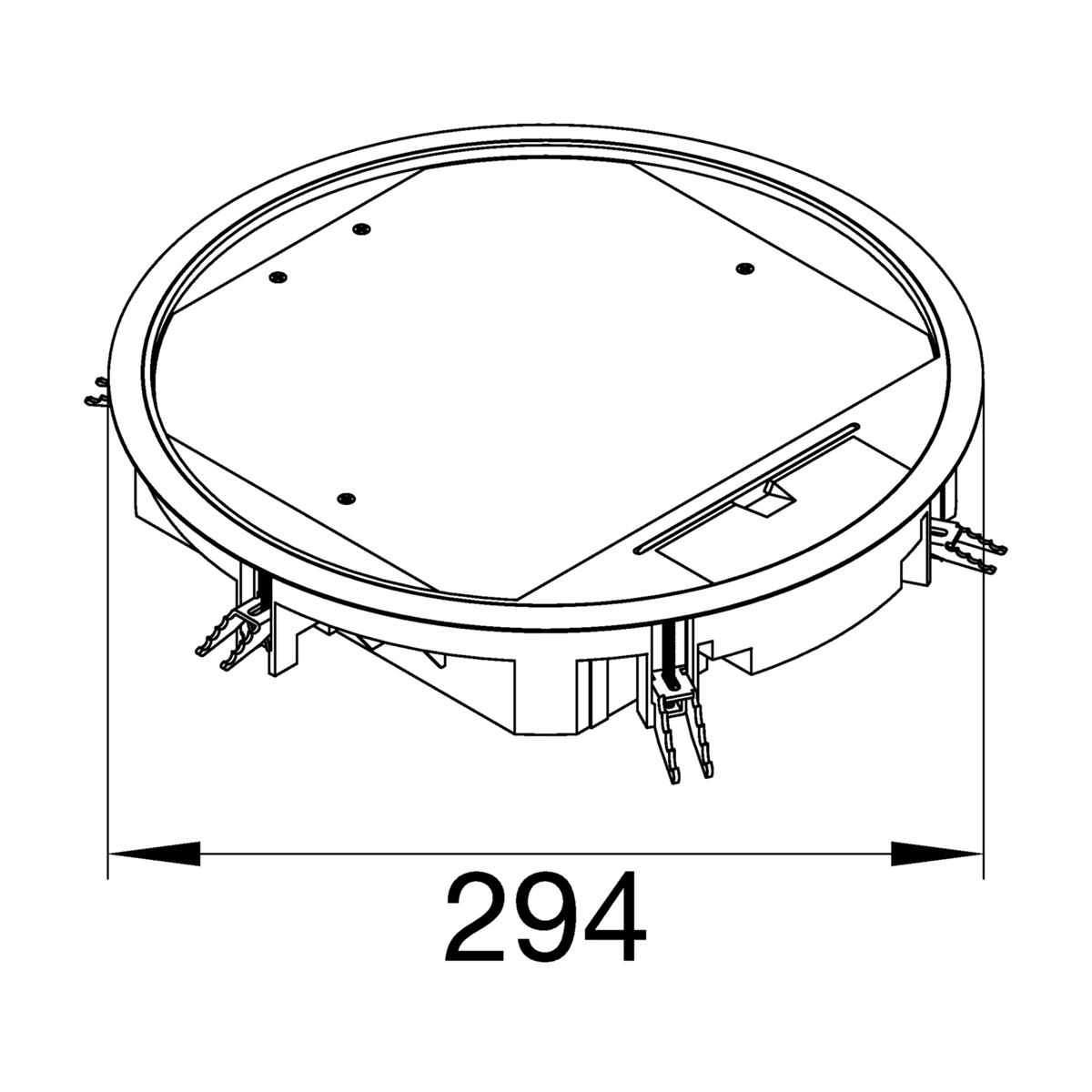

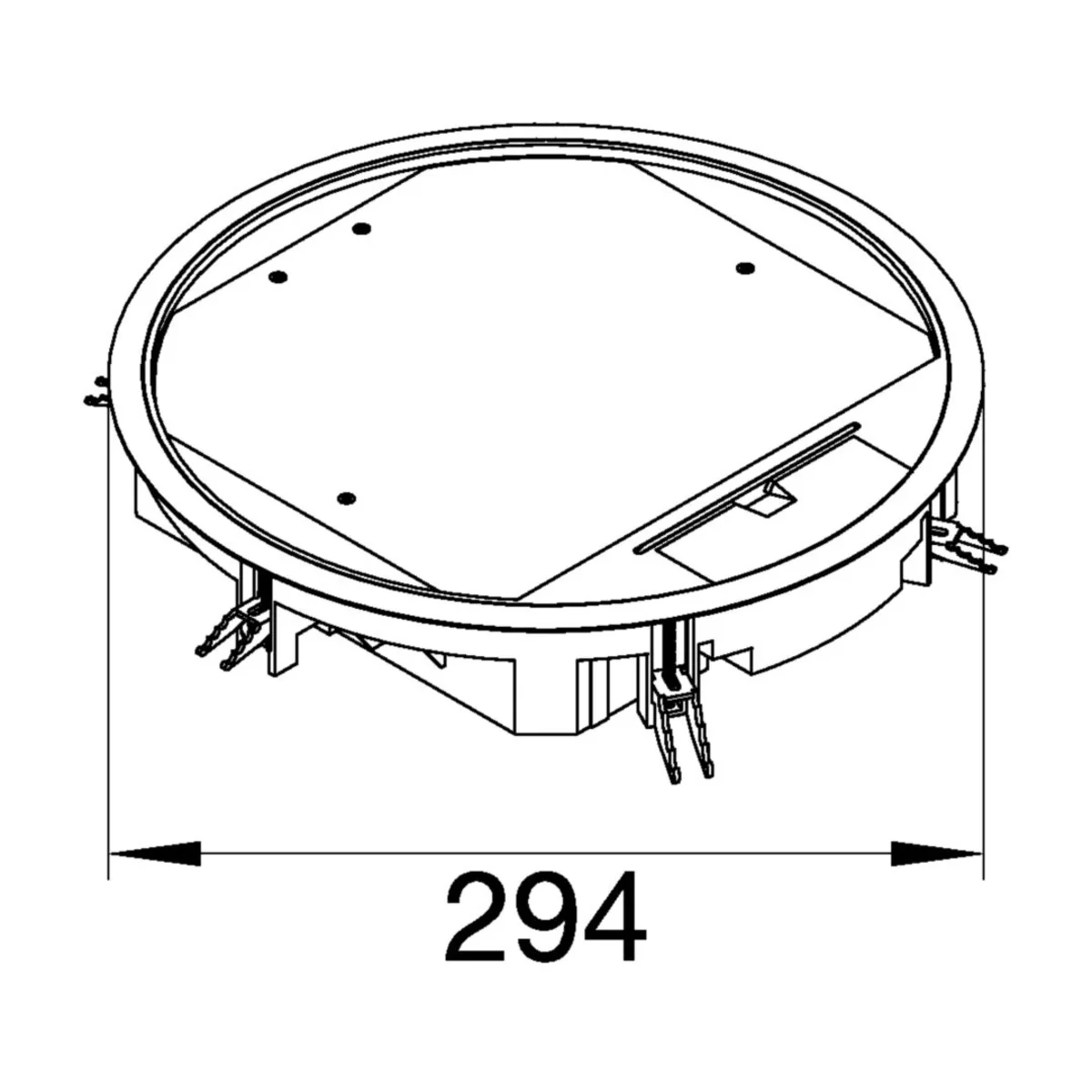

  • external dimension: Ø 294 mm< /li>
  • mounting dimension: Ø 275 mm
  • up to 10 devices in 3 boxes
  • 1 x GTVR400, GBVR400, GTVD300 box (middle) and 2 x GTVR300, GBVR300 boxes , GTVD200 (right and left side)
  • progressive lowering of boxes (right, middle, left) to 18mm
  • includes cable holders
  • for 12 mm lining = minimum installation depth 77 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Shape
    Round
  • Family
    TEHALIT.VE-EE
  • Minimum installation depth [mm]
    84
  • Color
    Silver
  • Material
    Mixed
  • Accurate color
    Steel
  • How to use and clean the floor
    dry

Other technical data

  • Number of device cups
    3
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    12 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    yes
  • Suitable for double floor built-in
    yes
  • Outer diameter
    294 mm
  • Min. built-in depth
    84 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    10
  • With opening carpeting
    yes
  • Protective frame carpeting
    yes
  • RAL-number
    7011
  • Suitable for hollow floor
    yes
  • Suitable for wet cleaning
    no
  • Built-in diameter
    275 mm
