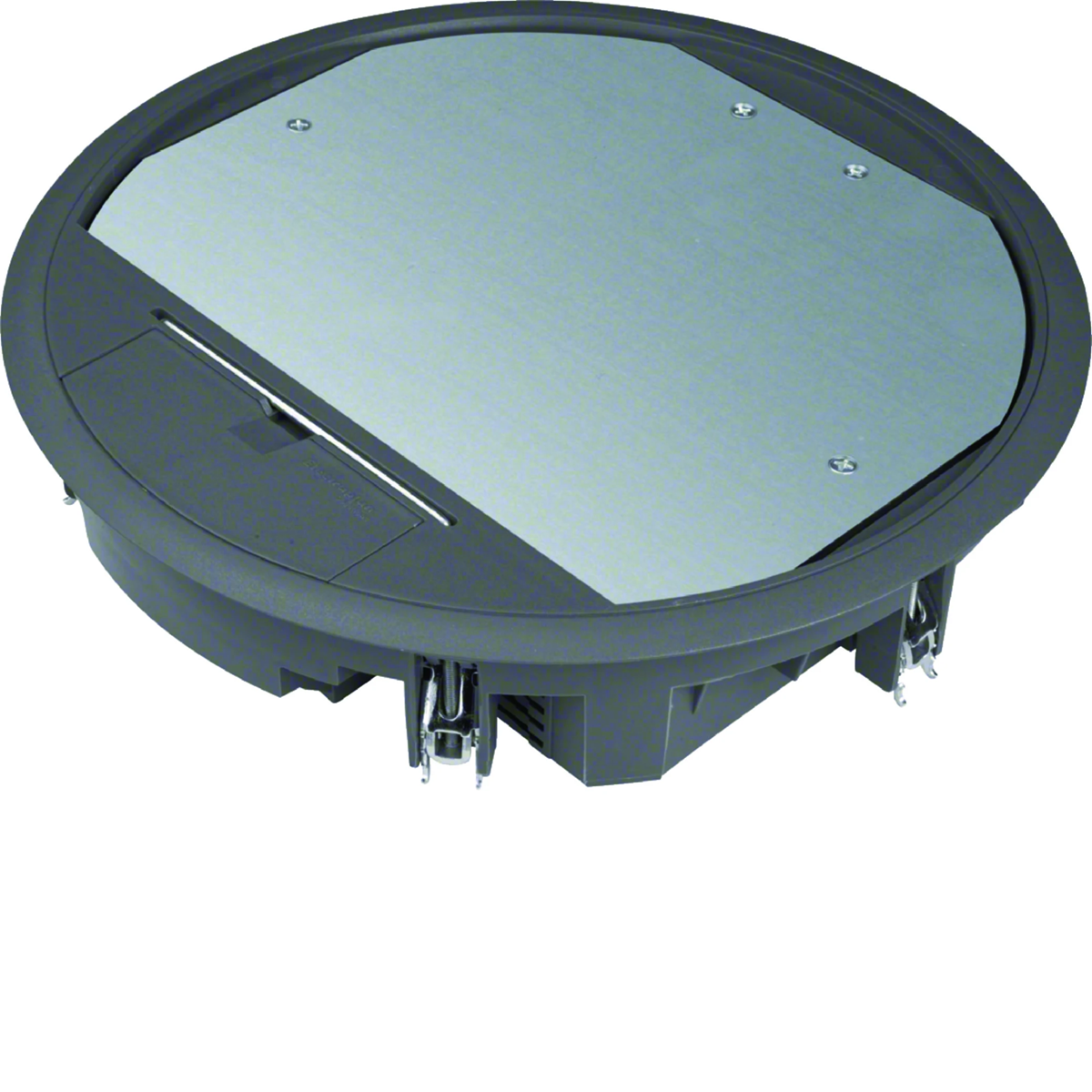

TEHALIT.VE-EE hinged lid VR10 fi275 carpet 5mm black VR10059005

Hinged lid for dry-cleaned floors, series tehalit.VE-EE:

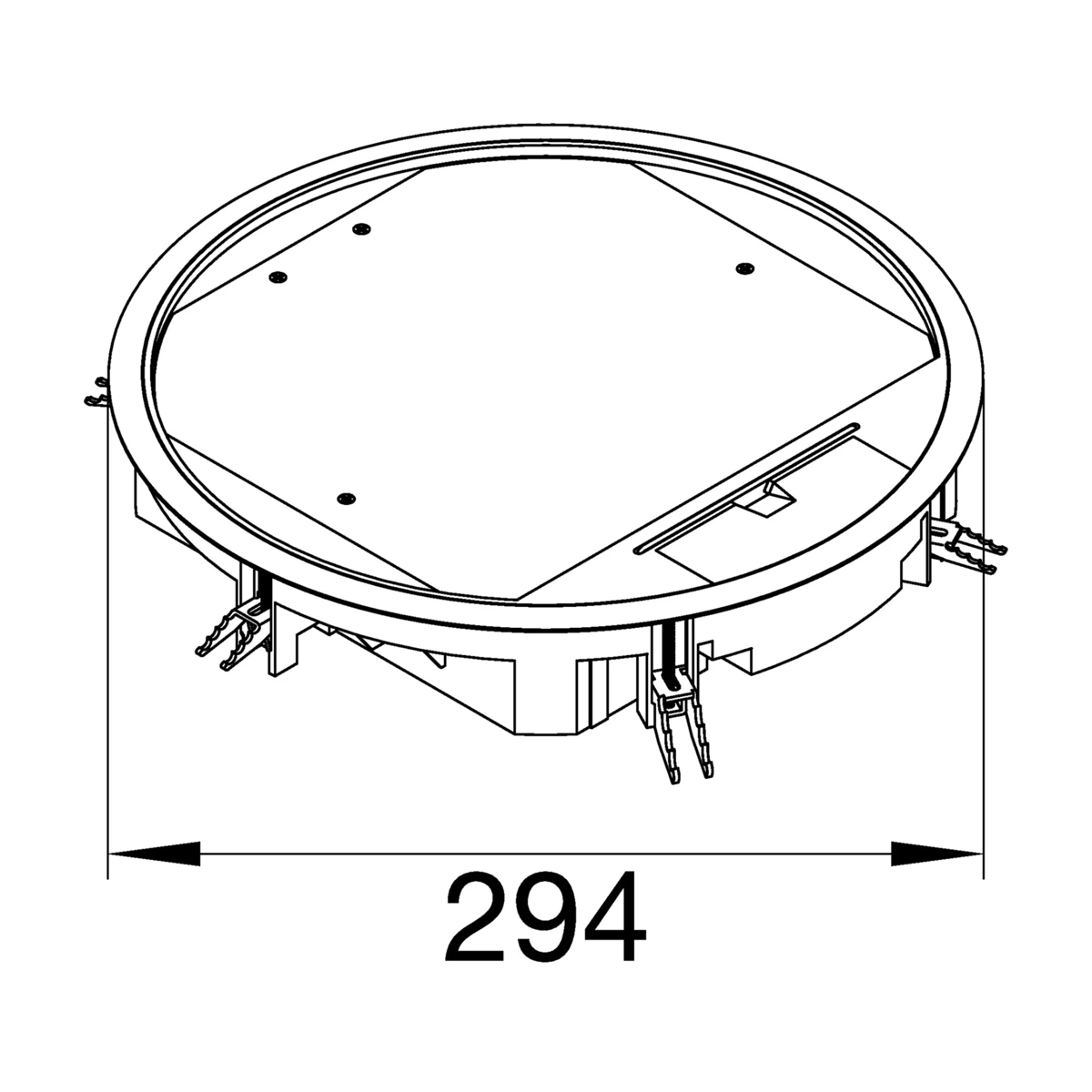

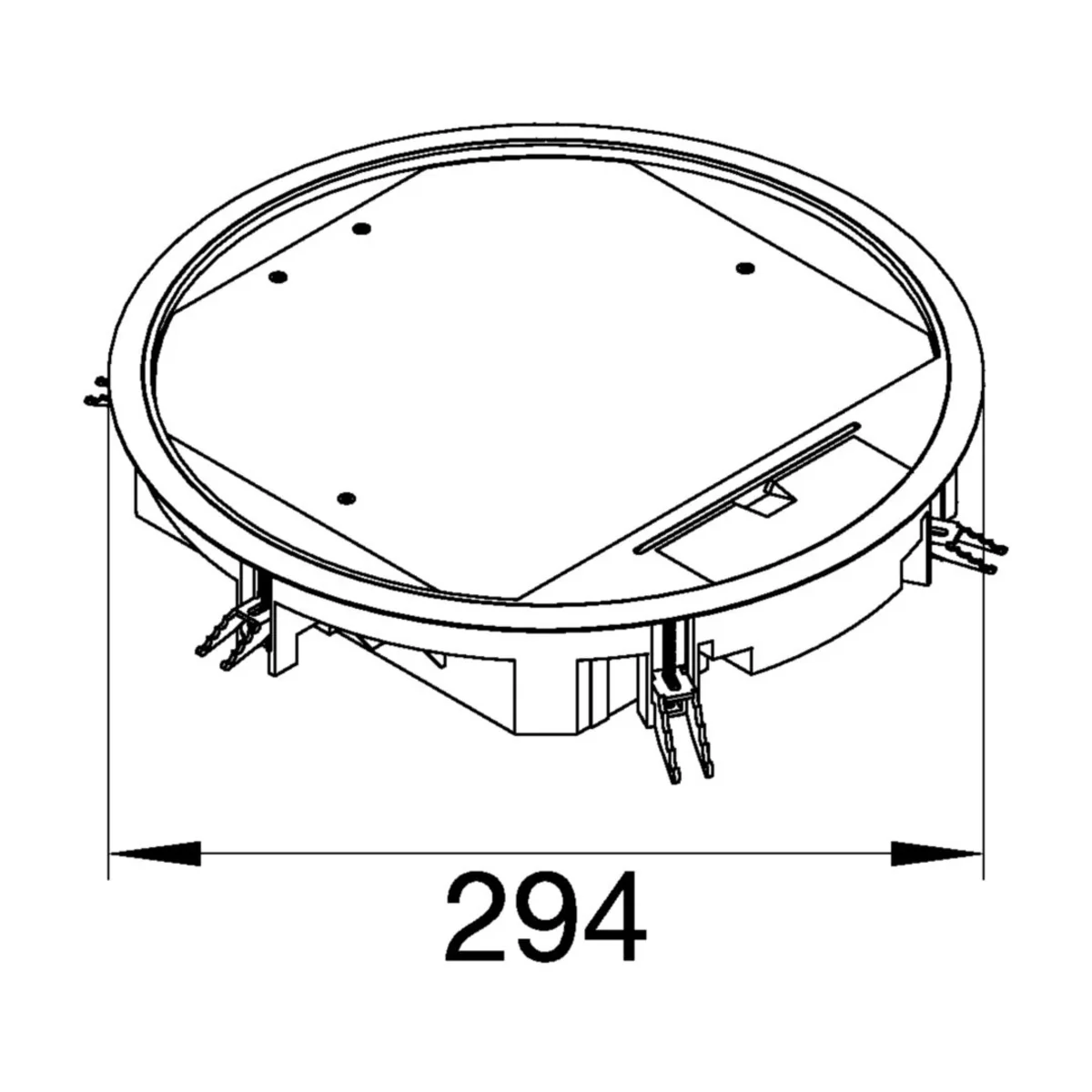

• external dimension: Ø 294 mm< /li>
• mounting dimension: Ø 275 mm
• up to 10 devices in 3 boxes
• 1 x GTVR400, GBVR400, GTVD300 box (middle) and 2 x GTVR300, GBVR300 boxes , GTVD200 (right and left side)
• gradual lowering of boxes (right, middle, left) to 18mm
• includes cable holders
• for 5 mm lining = minimum installation depth 70 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.
