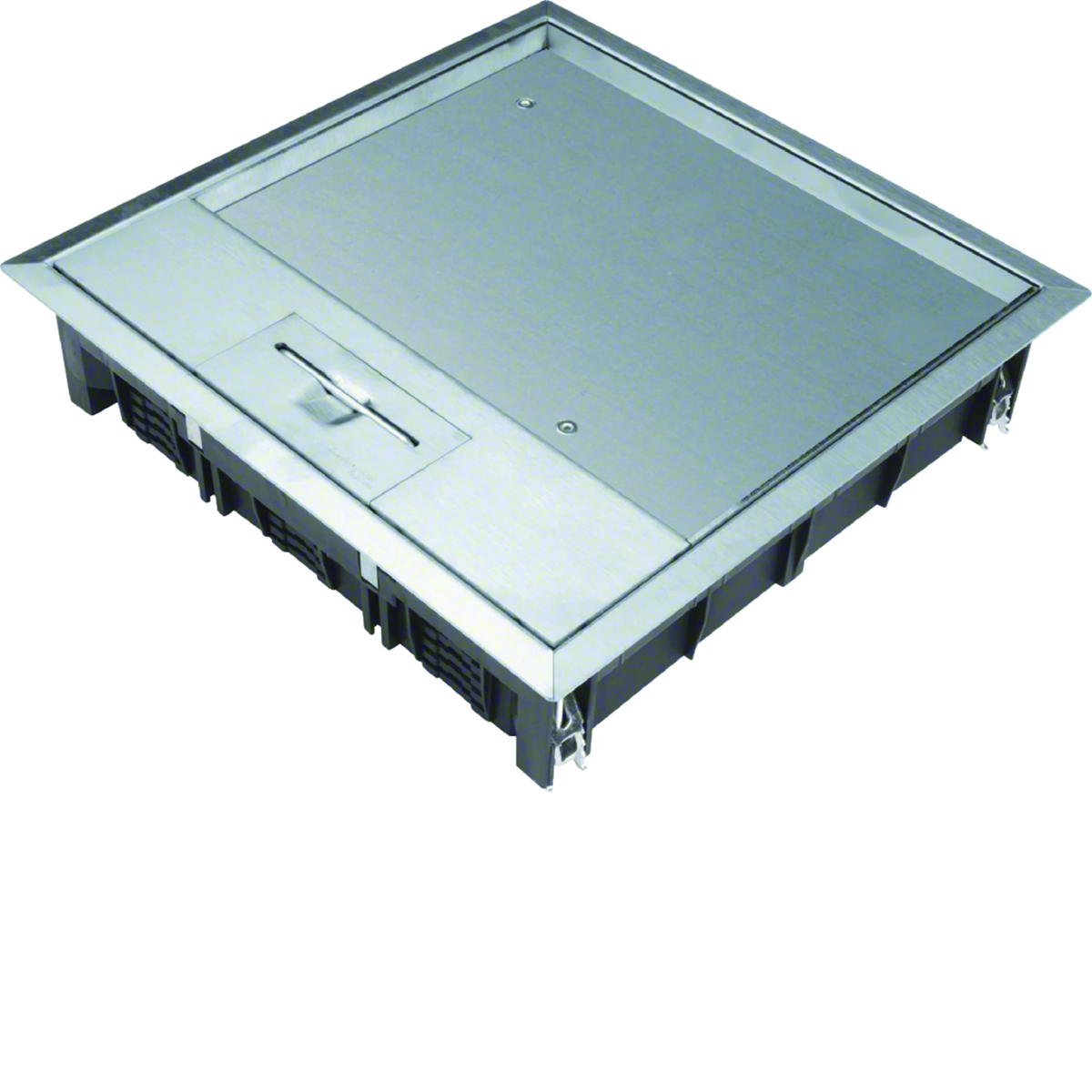

TEHALIT.VE-EE hinged lid VEQ12 244x244 lining 12mm stainless steel VEQ1212E

Hinged lid for dry-cleaned floors, series tehalit.VE-EE:

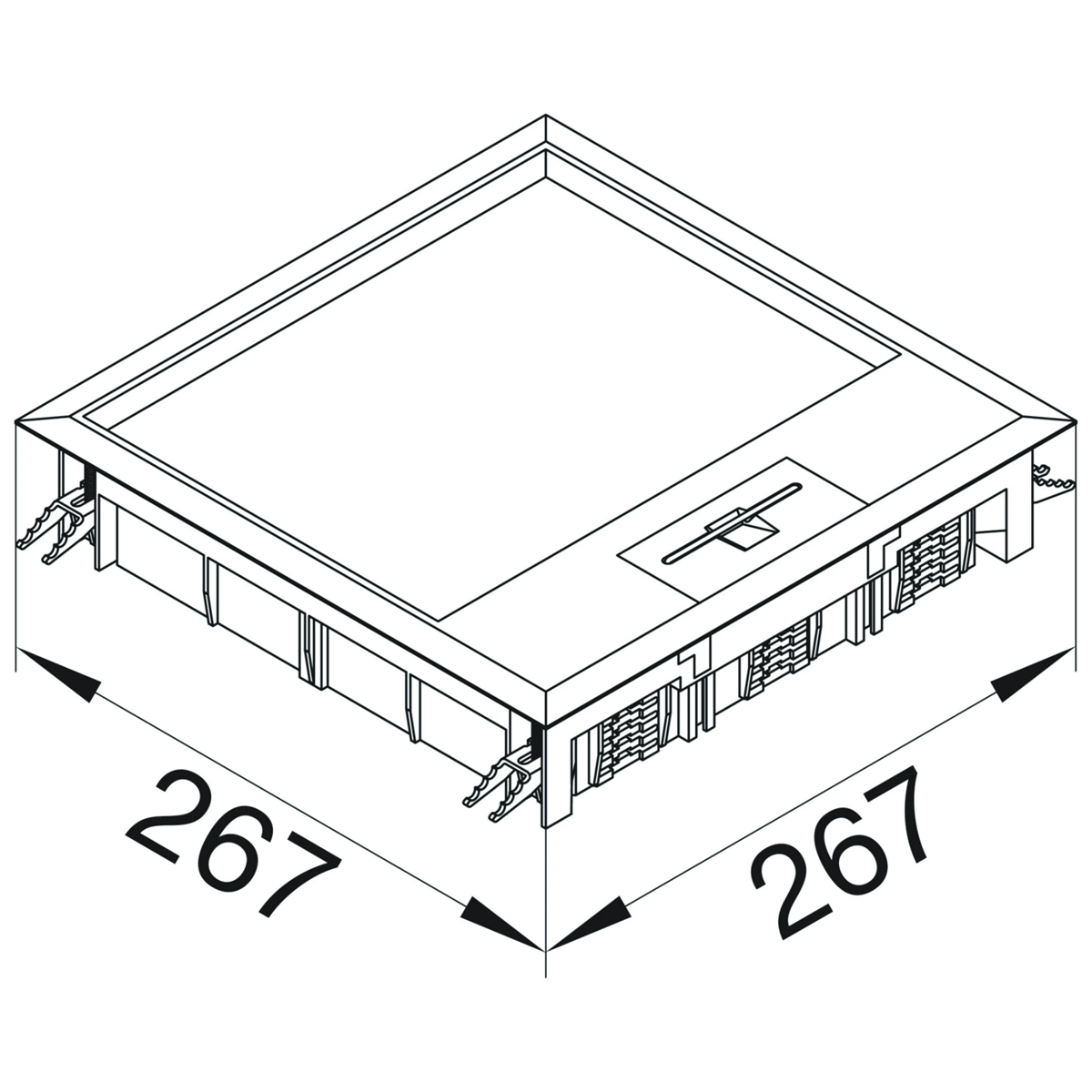

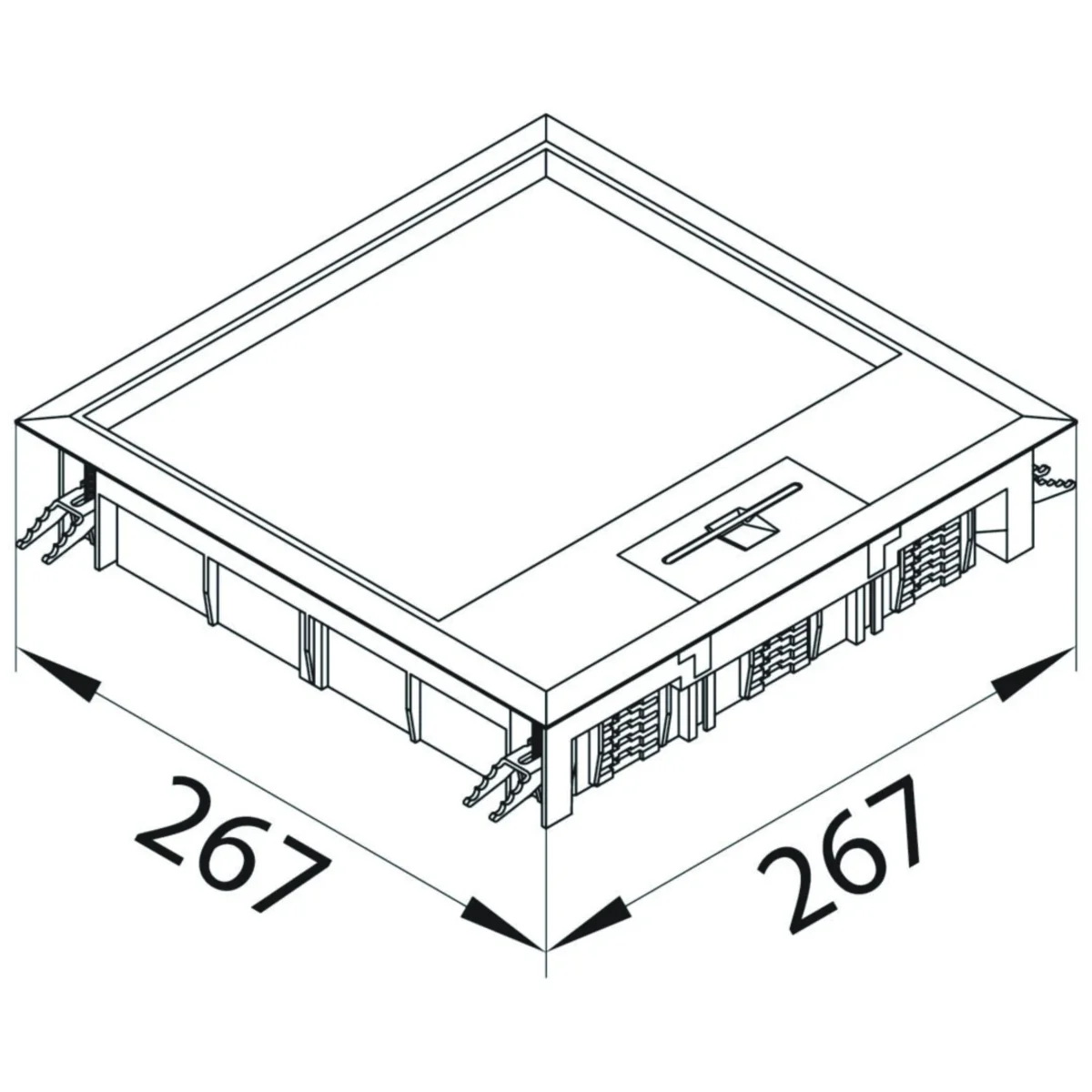

• external dimensions: 267 x 267 mm
• mounting dimensions: 244 x 244 mm
• up to 12 devices in 3 boxes GTVR400, GBVR400, GTVD300
• gradual lowering of boxes GTVR400, GBVR400, GTVD300 to 18 mm
• for 12 mm carpet = minimum installation depth 77 mm

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.
