TEHALIT.VE-EE Hinged cover VR06 fi215 lining 5mm gray steel VR06057011

local index:
MAV071TEHA
Catalog No:
VR06057011
EAN code:
4012002245033
Manufacturer: TEHALIT
Halogen free: Yes
Color: Silver
Shape: Round
Price:
41,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

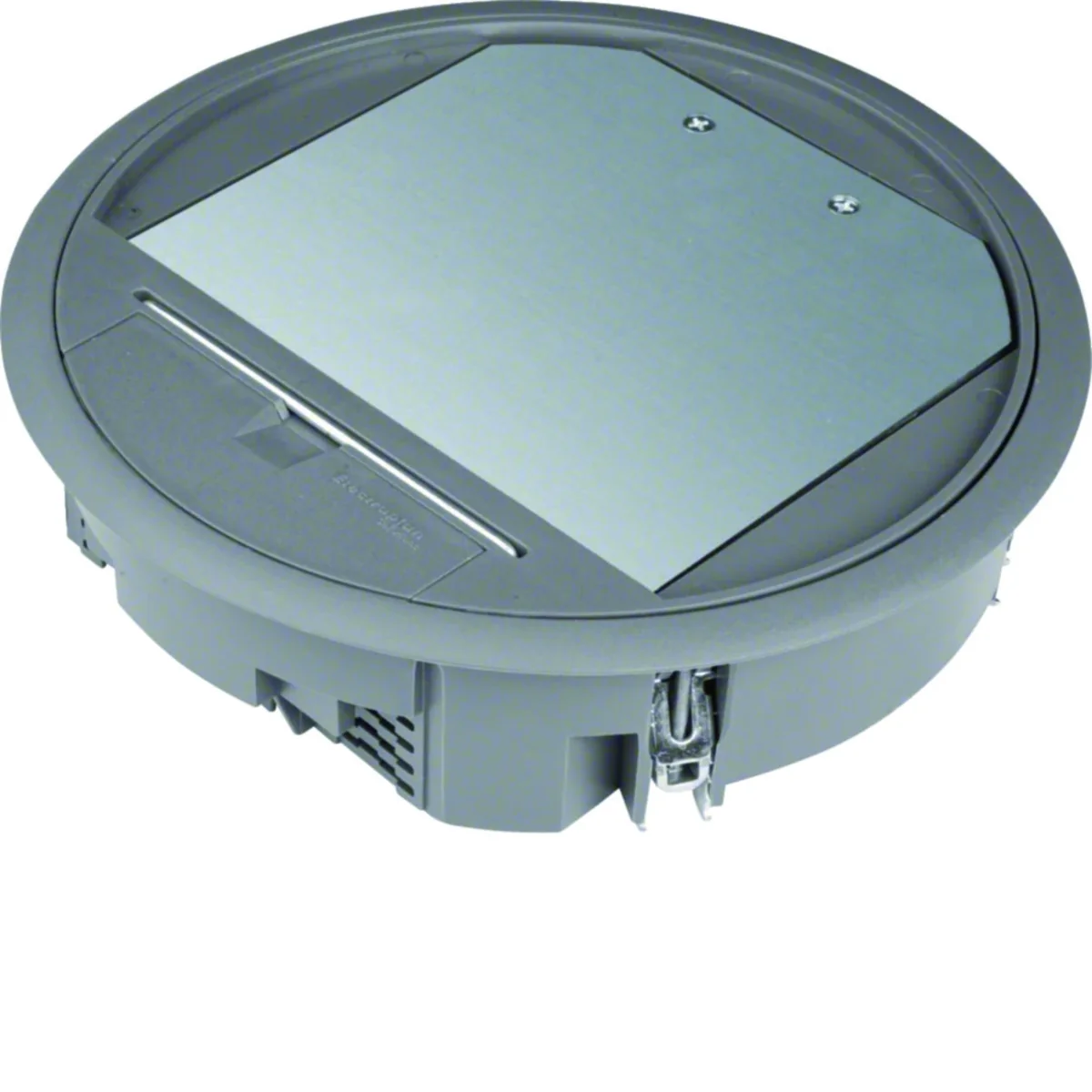

Hinged cover for dry-cleaned floors, series tehalit.VE-EE:

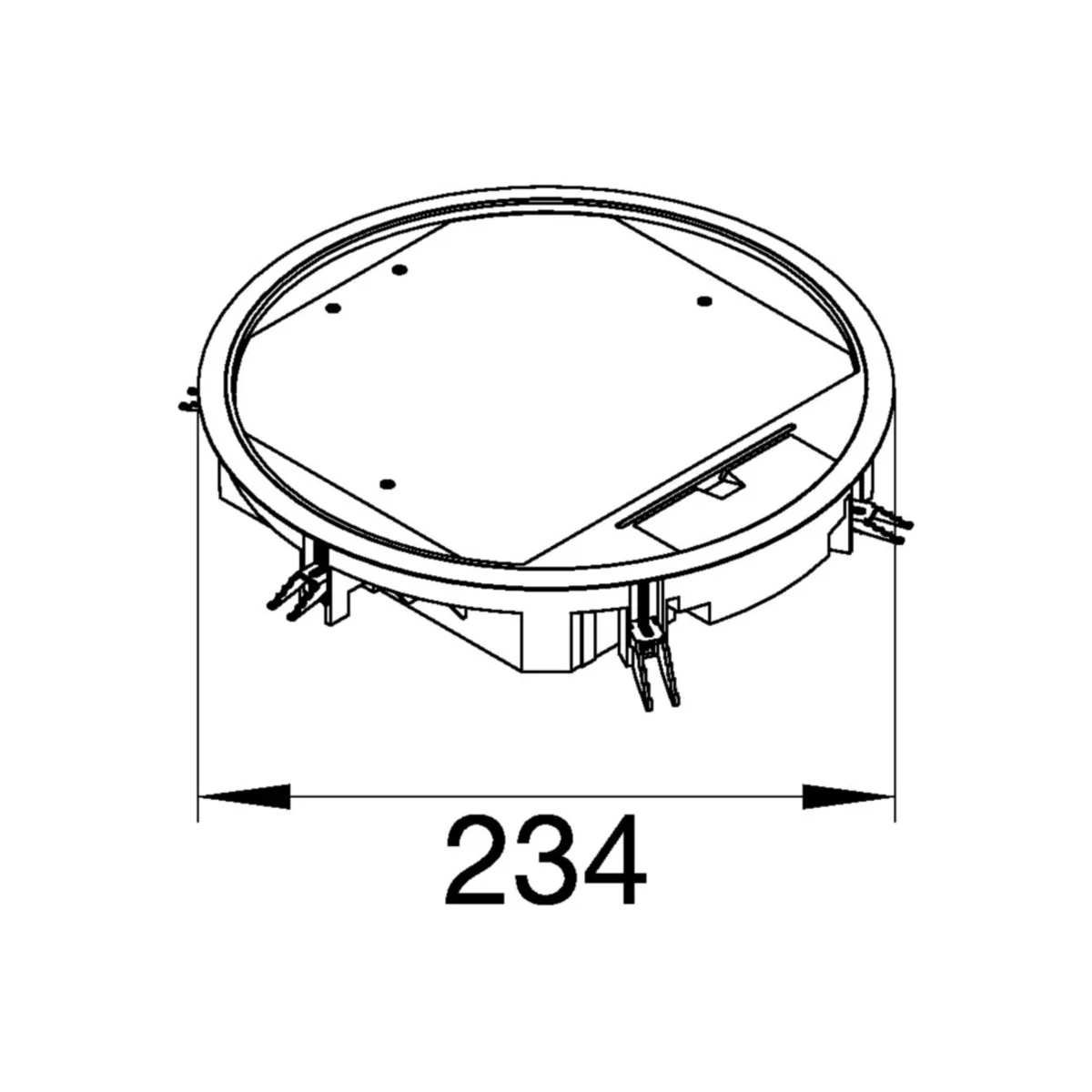

  • external dimension: Ø 234 mm< /li>
  • mounting dimension: Ø 215 mm
  • up to 6 devices in 2 boxes GTVR300, GBVR300, GTVD200
  • gradual lowering of boxes GTVR300, GBVR300, GTVD200 to 18 mm
  • includes cable holders
  • for 5 mm carpet = 70 mm minimum mounting depth

Series characteristics:

A system of perfectly matched elements. Different sizes, shapes, materials and colors of the hinged lids can be used for different floor thicknesses. Made of polyamide, aluminum or stainless steel, they are designed for dry, damp or wet cleaned floors (IP66). Universal mounting boxes that fit all types of covers are a great simplification. The tehalit.VE-EE hinged cover system has been adapted to the diverse needs of customers. The offer includes covers for standard loads of 1500 N, as well as special cassettes for loads of 7500 N or 20000 N, used, for example, in car workshops or production and storage halls.

Technical data

  • Halogen free
    Yes
  • Shape
    Round
  • Family
    TEHALIT.VE-EE
  • Minimum installation depth [mm]
    77
  • PKWIU
    22.23.19.0
  • Color
    Silver
  • Material
    Mixed
  • Accurate color
    Steel
  • How to use and clean the floor
    dry

Other technical data

  • Number of device cups
    2
  • Degree of protection (IP)
    IP20
  • Depth of flooring recess
    5 mm
  • Colour
    Grey
  • Suitable for subfloor duct
    Yes
  • Suitable for double floor built-in
    Yes
  • Outer diameter
    234 mm
  • Min. built-in depth
    77 mm
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    6
  • With opening carpeting
    Yes
  • Protective frame carpeting
    Yes
  • RAL-number
    7011
  • Suitable for hollow floor
    Yes
  • Suitable for wet cleaning
    No
  • Built-in diameter
    215 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 4 pcs. 144 pcs.
Weight (kg) 0,979 0,980 4,370 180,320
Width (m) 0,230 0,230 0,250 0,800
Length (m) 0,060 0,060 0,265 0,795
Depth (m) 0,230 0,230 0,250 1,200
